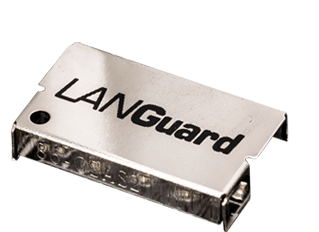

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges. |  |
 |
|
|  |
 |

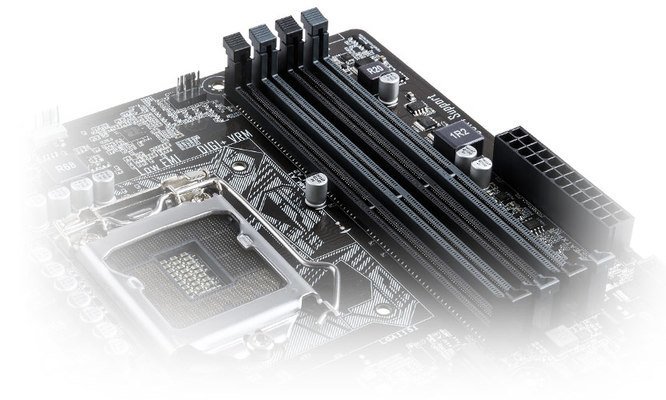

With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility. |
| SPECIFICATIONS | |
| Brand | Asus |
| Model | H110M-K |
| Series | Skylake |
| CPU | Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors | Supports Intel 14 nm CPU | Supports Intel Turbo Boost Technology 2.0 | * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. | * Refer to www.asus.com for CPU support list |
| Chipset | Intel H110 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *1 | Supports Intel Extreme Memory Profile (XMP) | * Hyper DIMM support is subject to the physical characteristics of individual CPUs. | * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | * The maximum memory frequency supported varies by processor. |
| Graphic | Integrated Graphics Processor- Intel HD Graphics support | Multi-VGA output support : DVI-D/RGB ports | - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz | Maximum shared memory of 1024 MB | Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider | Supports up to 2 displays simultaneously |
| Expansion Slots | 1 x PCIe 3.0/2.0 x1 (x16 mode) | 2 x PCIe 2.0 x1 |
| Storage | Intel H110 Chipset : | 4 x SATA 6Gb/s port(s), gray, | Intel Rapid Storage Technology supports*2 |
| LAN | Realtek RTL8111H |
| Audio | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *3 | - Supports : Jack-detection, Front Panel Jack-retasking | Audio Feature : | - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. | - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| USB Ports | Intel H110 chipset : | 4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board) | Intel H110 chipset : | 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) |

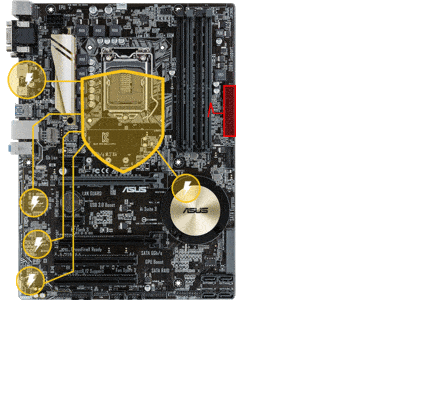

| Special Features | ASUS 5X Protection II : | - ASUS LANGuard - 2.5X higher surge tolerance | - ASUS Overvoltage Protection - World-class circuit-protecting power design | - ASUS DIGI+ VRM - 6 Phase digital power design | - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits | - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability | - ASUS ESD Guards - Electrostatic discharge protection | ASUS EPU : | - EPU | ASUS Exclusive Features : | - AI Suite 3 | - Ai Charger | - Anti-Surge | - Low EMI Solution | - USB 3.0 Boost | - Mobo Connect | - PC Cleaner | Remote Entertainment | - Media Streamer | ASUS Quiet Thermal Solution : | - Stylish Fanless Design Heat-sink solution | - ASUS Fan Xpert | ASUS EZ DIY : | - ASUS CrashFree BIOS 3 | - ASUS EZ Flash 3 | - ASUS UEFI BIOS EZ Mode | - Push Notice | ASUS Q-Design : | - ASUS Q-Slot | - ASUS Q-DIMM |
| Operating System Support | Windows 10 , 64bit | Windows 8.1 , 64bit | Windows 7 , 32bit/64bit *4 |
| Back I/O Ports | 1 x PS/2 keyboard (purple) | 1 x PS/2 mouse (green) | 1 x DVI-D | 1 x D-Sub | 1 x HDMI | 1 x LAN (RJ45) port(s) | 2 x USB 3.0 (blue) | 4 x USB 2.0 | 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) | 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) | 1 x COM port(s) connector(s) | 4 x SATA 6Gb/s connector(s) | 1 x CPU Fan connector(s) (1 x 4 -pin) | 1 x Chassis Fan connector(s) (1 x 4 -pin) | 1 x S/PDIF out header(s) | 1 x 24-pin EATX Power connector(s) | 1 x 4-pin ATX 12V Power connector(s) | 1 x Front panel audio connector(s) (AAFP) | 1 x System panel(s) | 1 x Clear CMOS jumper(s) |
| Accessories | User's manual | I/O Shield | 2 x SATA 6Gb/s cable(s) | 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | uATX Form Factor | 8.9 inch x 7.3 inch ( 22.62 cm x 18.55 cm ) |
| Note | *1: Due to Intel chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz. | *2: These functions will work depending on the CPU installed. | *3: Use a chassis with HD audio module in the front panel to support an 8-channel audio output. | *4: Please refer to ASUS website and download “Windows 7 installation guide” and “ASUS EZ installer” to install Windows 7. | Warranty Information |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
