| SPECIFICATIONS | |
| Brand | Galax |
| Series | Exoc |
| Model | 80NSJ6DHL4EC |
| GPU Engine Specs: | CUDA Cores 2560 | Base Clock (MHz) 1657 | Boost Clock (MHz) 1797 |
| Memory Specs: | Memory Speed 10Gbps | Standard Memory Config 8GB | Memory Interface Width 256-bit GDDR5 | Memory Bandwidth (GB/sec) 320 |
| Display Support: | Multi Monitor 4 Displays | Maximum Digital Resolution 4096x2160 | Maximum VGA Resolution 2048x1536 | HDCP Yes | HDMI Yes | Standard Display Connectors DVI-D, HDMI, 3x DP 1.4 | Audio Input for HDMI Internal |
| Power Specs: | Maximum Graphics Card Power (W) 180W | Minimum System Power Requirement (W) 500W | Supplementary Power Connectors 1x6pin?1x8pin |
| Feature Support: | OpenGL 4.5 | Bus Support PCI-E 3.0 | Certified for Windows 7-10, Linux, Free85BSDx86 | Supported Technologies Microsoft DirectX 12 | Virtual Reality Ready Yes | SLI Options |
| Supported OS | Windows 10 / 8 / 7 / Vista |
| Card Dimensions | 282mm x 128mm |
| Model: | Product Code 80NSJ6DHL4EC | UPC Code 4895147123066 |
| Requirements | PCI Express-compliant motherboard with one dual-width x 16 graphics slot | 1x 6-pin & 1x 8-pin PCI Express supplementary power connectors | Minimum 500W or greater system power supply | 300MB of available hard-disk space | 2GB system memory (4GB or higher recommended) | Microsoft Windows 10, Windows 8 & 8.1, Windows 7, Windows Vista (32 or 64-bit) | CD-ROM/DVD-ROM drive or Internet connection | Warranty Information |
| Warranty | 2 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Very Good Card - Thomas, 1 August 2016

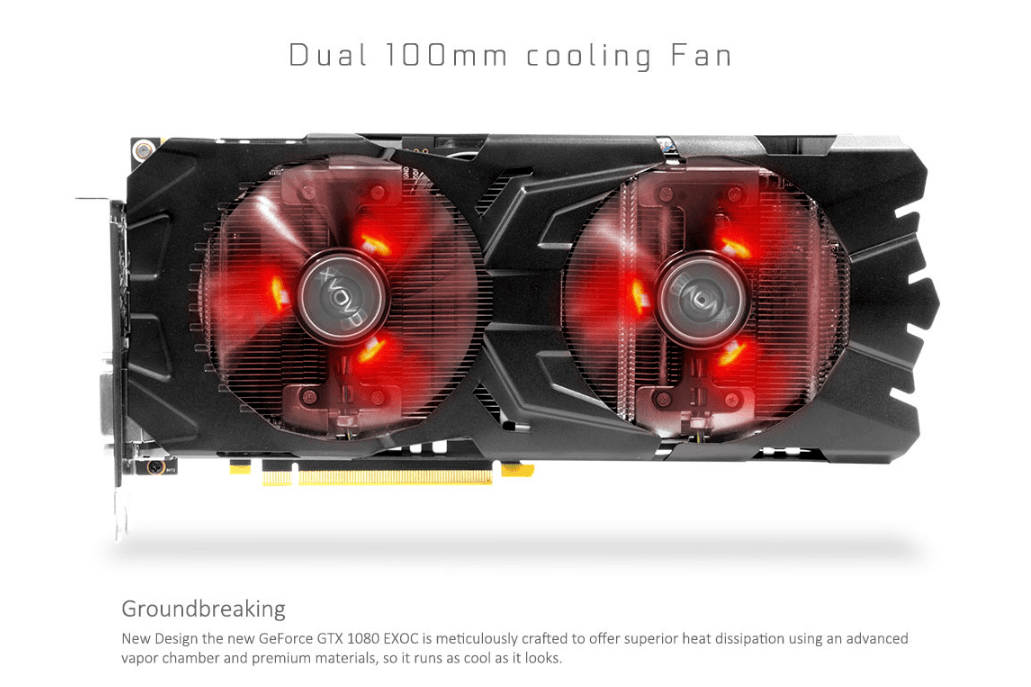

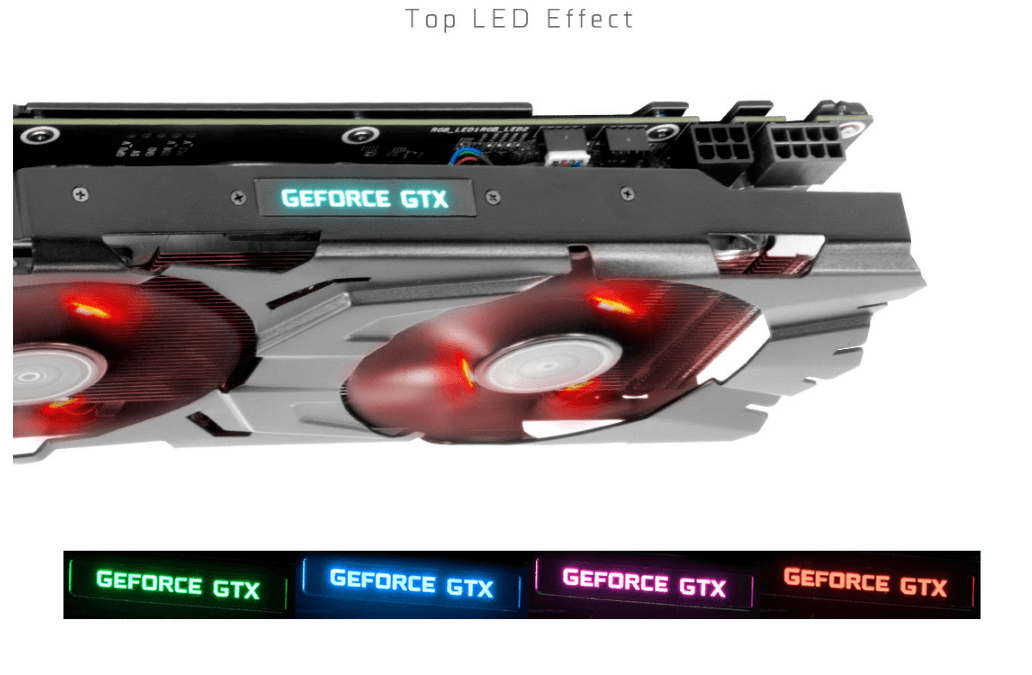

I've owned this card for a few weeks now and can say this card is great however If you plan on buying this card note that you have to overclock this card out of the box if you want it to reach the identical performance levels of the strix, evga ftw or msi z cards (This is not a problem because all the chips are generally the same with some exceptions and my card got to 2063mhz on the core easily without increasing the voltage). The cooler on the card is very good and quiet even at high fan speeds and high overclocks (70 degrees at 64 percent fan speed stock and 76 degrees at 75-80 percent fan speed at overclock). The red light on the fans can be a bit annoying for non red builds as it is fixed to that colour and cannot be changed (The GeForce GTX logo on the side is RGB no the fans). If you plan on getting this card ensure you have very good case airflow as all the heat is left in the case regardless of the overclocking. Lastly there is basically no coil whine at all unless in a menu with high frame rates like 3000fps. This card is very well made by Galax and I would buy it again if I could.
3Dfirestrike Extreme Graphics score at stock : 10 749
3Dfirestrike Extreme Graphics score after overclock : 11 529
