| SPECIFICATIONS | |
| Brand | TP-LINK |
| Model | TL-ARCHERC2 |
| Series | Archer | Hardware Features |

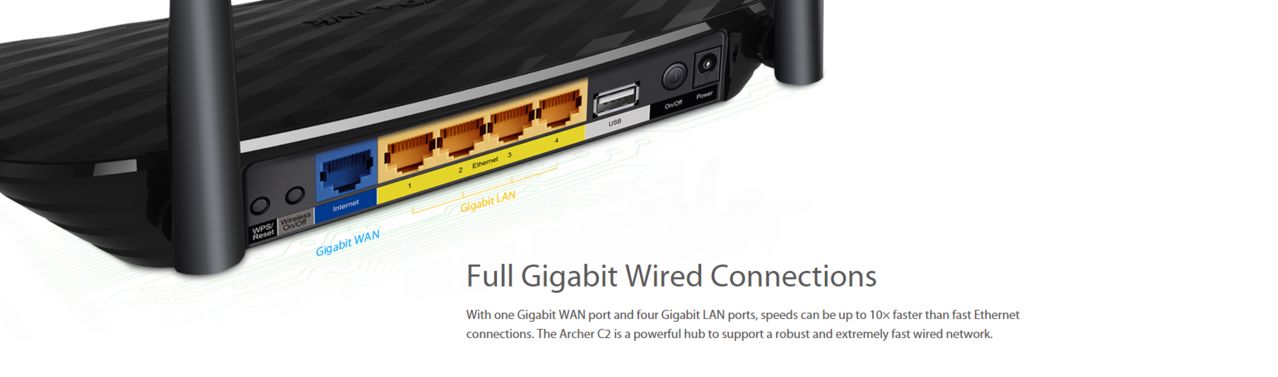

| Interface | 4 10/100/1000Mbps LAN ports | 1 10/100/1000Mbps WAN port | 1 USB 2.0 port |
| Button | WPS/Reset Button | Wireless On/Off Switch | Power On/Off Button |
| Dimensions (W X D X H) | 230 x 144 x 35mm |
| External Power Supply | 12VDC /1.5A |

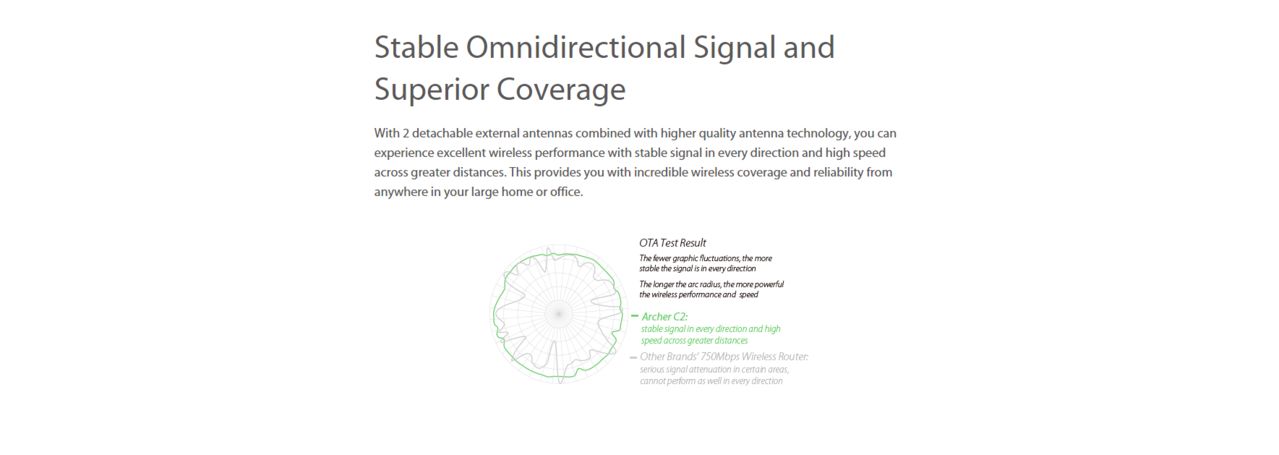

| Antenna Type | Two dual band detachable antennas (RP-SMA) | Wireless Features |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz | IEEE 802.11b/g/n 2.4GHz |

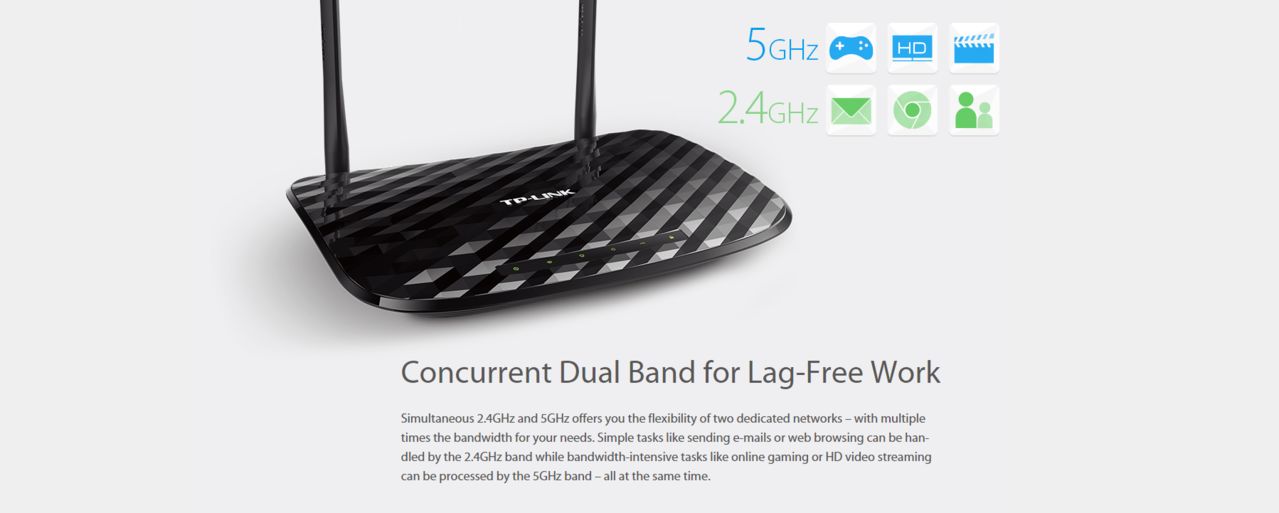

| Frequency | 2.4GHz and 5GHz |

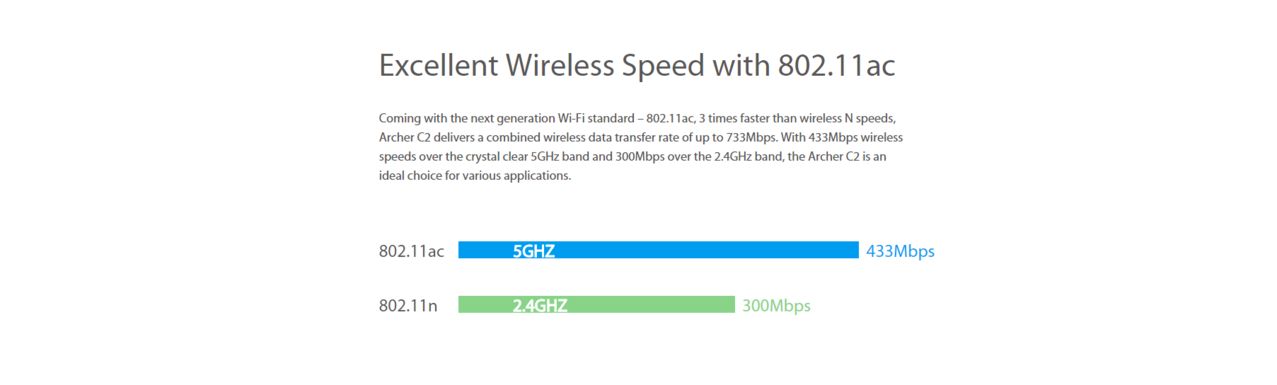

| Signal Rate | 5GHz: Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter | 2.4GHz: Up to 300Mbps |
| Reception Sensitivity | 5GHz | 11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm | 11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm, | 11n HT20: -71dBm, 11n HT40: -69dBm | 2.4GHz | 11g 54M: -74dBm | 11n HT20: -72dBm, 11n HT40: -69dBm |
| Transmit Power | CE: <20dBm(2.4GHz), <23dBm(5GHz) | FCC: <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption | Software Features |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/ | PPTP(Dual Access)/L2TP(Dual Access)/BigPond |
| Management | Access Control | Local Management | Remote Management |
| DHCP | Server, Client, DHCP Client List, | Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, | Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall | IP Address Filtering/MAC Address Filtering/Domain Filtering | IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |

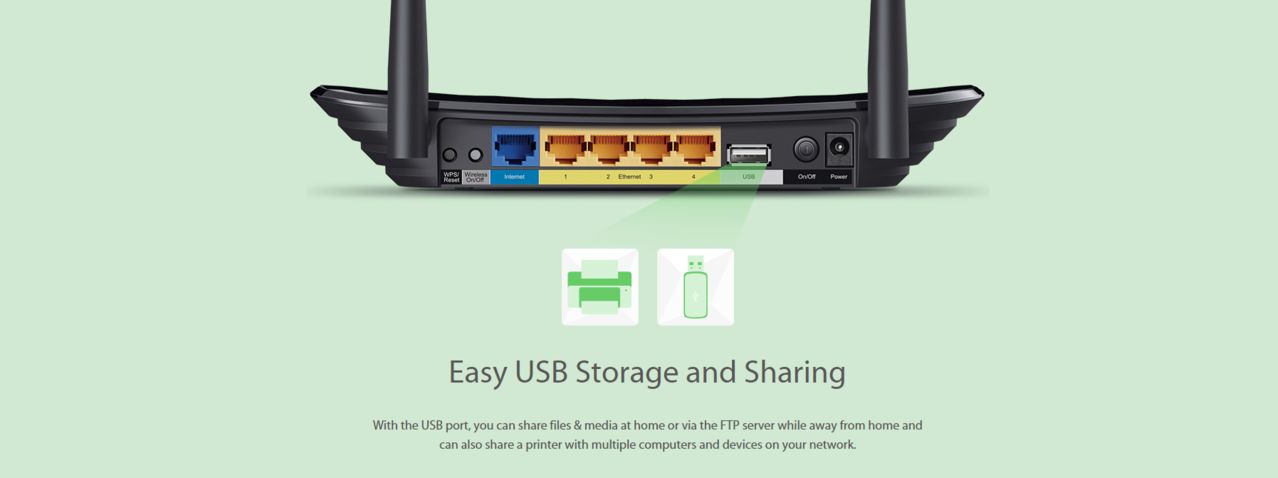

| USB Sharing | Support Samba(Storage)/ FTP Server/Media Server/Printer Server |
| Guest Network | 2.4GHz guest network × 1 | 5GHz guest network × 1 | Others |
| Certification | CE, FCC, RoHS |
| Package Contents | AC750 Wireless Dual Band Gigabit Router Archer C2 | 2 Detachable Antennas | Power Supply Unit | Resource CD | Ethernet Cable | Quick Installation Guide |
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system |
| Environment | Operating Temperature: 0°C~40°C | Storage Temperature: -40°C~70°C | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing | Warranty Information |
| Warranty | 12 Month Warranty |
