| SPECIFICATIONS | |
| Brand | APC |
| Series | Back-UPS Pro 550 |
| Model | BR550GI |
| Output | |
| Output Power Capacity | 330Watts / 550VA |
| Max Configurable Power (Watts) | 330Watts / 550VA |
| Nominal Output Voltage | 230V |
| Output Frequency (Sync to Mains) | 50 Hz |
| Topology | Line Interactive |
| Waveform Type | Stepped Approximation to a Sinewave |

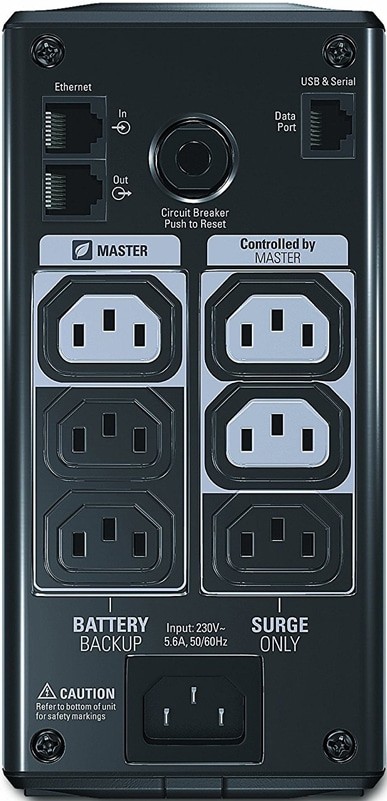

| Output Connections | (3) IEC 320 C13 (Selector_Surgetitle) |
| (3) IEC 320 C13 (Battery Backup) | |
| (2) IEC Jumpers (Battery Backup) | |
| Transfer Time | Typical: 6 ms |
| Maximum: 10 ms | |
| Input | |
| Nominal Input Voltage | 230V |
| Input Frequency | 47 - 63 Hz, 50/60 Hz +/- 3 Hz (Auto Sensing) |
| Input Connections | IEC-320 C14 |
| Input Voltage Range for Main Operations | 176 - 282V |
| Input Voltage Adjustable Range for Mains Operation | 155 - 290V |
| Maximum Input Current | 6.0A |
| Batteries & Runtime | |
| Battery Type | Maintenance-Free Sealed Lead-Acid Battery with Suspended Electrolyte: Leakproof |
| Typical RRecharge Time | 12 Hours |
| Replacement Battery | APCRBC110 |
| Expected Battery Life (Years) | 3 - 5 |
| RBC Quantity | 1 |
| Battery Volt-Amp-Hour Capacity | 66 |
| Communications & Management | |
| Interface Ports | Optional Simple Signalling RS232 Cable, USB |
| Control Panel | Multi-Function LCD Status and Control Console |
| Interface Ports | Alarm When On Battery : Distinctive Low Battery Alarm : Overload Continuous Tone Alarm |
| Surge Protection and Filtering | |
| Surge Energy Rating | 420 Joules |
| Data Line Protection | Network Line - 10/100/1000 Base-T Ethernet (RJ-45 Connector) |
| Filtering | Full Time Multi-Pole Noise Filtering :10% of IEEE Surge Let-Thgouh : Zero Clamping Response Time: Instantaneous |
| General | |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -15°C - 45°C |
| Compliance | A-tick, C-tick, CE, GOST GS Mark, RoHS, PEP, EOLI |
| Dimensions | 190 x 91 x 310 mm |
| Weight | 6.53 kg |
| Warranty Information | |
| Warranty | Manufacturer's Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
