| SPECIFICATIONS | |

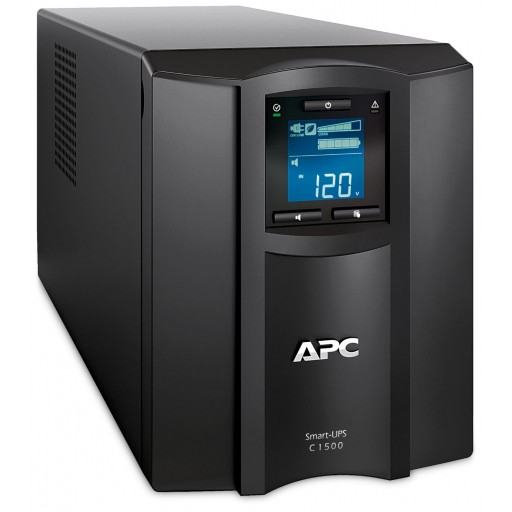

| Brand | APC |
| Series | Smart UPS |
| Model | SMC1500IC |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V |
| 240 V | |
| Rated power in W | 900 W |
| Rated power in VA | 1500 VA |
| Input Connection Type | IEC 320 C14 |
| No. of power socket outlets | 8 IEC 60320 C13 |
| 2 IEC Jumpers | |
| Battery type | Lead-acid battery |
| Provided equipment | Power cord |
| USB cable | |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Cloud-enabled monitoring |
| redundant | No |
| Physical | |
| Colour | Black |
| Height | 21.9 cm |
| Width | 17.1 cm |
| Depth | 43.9 cm |
| Net weight | 20.1 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input | |
| Input voltage limits | 170...300 V adjustable |
| 180...287 V | |
| Network frequency | 50/60 Hz /- 3 Hz auto-sensing |
| Output | |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 900 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz /- 3 Hz sync to mains |
| Conformance | |
| Product certifications | CE |
| GOST | |
| VDE | |
| C-Tick | |
| Standards | UL 1778 |
| Environmental | |
| Acoustic level | 45 dBA |
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Battery | |
| Battery recharge time | 3 h |
| number of battery replacement quantity | 1 |
| Battery life | Up to 5 years |
| Battery power in VAH | 288 VAh runtime |
| Battery charger power | 96 W rated |
| Communications And Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Control Panel | Multifunction LCD status and control console |
| Free Slots | 0 |
| Surge Protection And Filtering | |
| Surge energy rate | 459 J |
| noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Warranty Information | |
| Warranty | 2 Year Warranty |
