| SPECIFICATIONS | |
| Brand | ASRock |
| Series | AMD Series |
| Model | B450M-HDV |
| CPU | AMD AM4 Socket |
| Digi Power Design | |
| Supports CPU Up to 105W | |
| Chipset | AMD B450 |
| Memory | Dual Channel DDR4 Memory Technology |
| 2x DDR4 DIMM Slots | |
| AMD Ryzen Series CPUs (Pinnacle Ridge) Support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC & Non-ECC, Un-Buffered Memory *1 | |
| AMD Ryzen Series CPUs (Summit Ridge) Support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & Non-ECC, Un-Buffered Memory *1 | |
| AMD Ryzen Series CPUs (Raven Ridge) Support DDR4 3200+(OC) / 2933/2667/2400/2133 Non-ECC, Un-Buffered Memory *1 | |
| Maximum Capacity of System Memory: 32GB *2 | |
| 15μ Gold Contact in DIMM Slots | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI Support |
| Supports "Plug and Play" | |
| ACPI 5.1 Compliance Wake Up Events | |
| Supports Jumperfree | |
| SMBIOS 2.3 Support | |
| DRAM Voltage Multi-Adjustment | |
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU *3 |
| DirectX 12, Pixel Shader 5.0 | |
| Shared Memory Default 2GB. Maximum Shared Memory Supports Up to 16GB. *4 | |
| Three Graphics Output Options: D-Sub, DVI-D and HDMI | |
| Supports Triple Monitor | |
| Supports HDMI with Maximum Resolution Up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz | |
| Supports DVI-D with Maximum Resolution Up to 1920x1200 @ 60Hz | |
| Supports D-Sub with Maximum Resolution Up to 2048x1536 @ 60Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI Monitor is Required) | |
| Supports HDCP with DVI-D and HDMI Ports | |
| Supports 4K Ultra HD (UHD) Playback with HDMI Port | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) *5 |
| Supports Surge Protection | |
| ELNA Audio Caps | |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| Realtek RTL8111H | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | AMD Ryzen Series CPUs (Summit Ridge and Pinnacle Ridge): |
| 1x PCI Express 3.0 x16 Slot (PCIE2: x16 Mode) *6 | |
| AMD Ryzen Series CPUs (Raven Ridge): | |
| 1x PCI Express 3.0 x16 Slot (PCIE2: x8 Mode) (If You Use Athlon 200GE APU, PCIE2 Slot Will Run at x4 Mode.) *6 | |
| 1x PCI Express 2.0 x1 Slot | |
| Storage | 4x SATA3 6.0 Gb/s Connectors, Support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| 1x Ultra M.2 Socket, Supports M Key Type 2242/2260/2280 M.2 SATA3 6.0 Gb/s Module and M.2 PCI Express Module Up to Gen3 x4 (32 Gb/s) (With Summit Ridge, Raven Ridge and Pinnacle Ridge) *7 | |
| Connector | 1x Print Port Header |
| 1x COM Port Header | |
| 1x TPM Header | |
| 1x Chassis Intrusion and Speaker Header | |
| 1x CPU Fan Connector (4-pin) *8 | |
| 1x Chassis Fan Connector (3-pin) *9 | |
| 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) *10 | |
| 1x 24 pin ATX Power Connector | |
| 1x 4 pin 12V Power Connector | |
| 1x Front Panel Audio Connector | |
| 2x USB 2.0 Headers (Support 4 USB 2.0 Ports) (Supports ESD Protection) | |
| 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 Ports) (Supports ESD Protection) | |

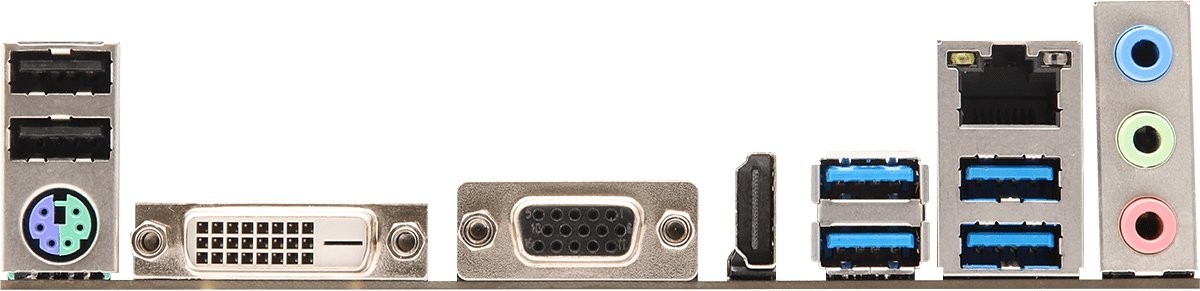

| Rear Panel I/O | 1x PS/2 Mouse/Keyboard Port |
| 1x D-Sub Port | |
| 1x DVI-D Port | |
| 1x HDMI Port | |
| 2x USB 2.0 Ports (Supports ESD Protection) | |
| 4x USB 3.1 Gen1 Ports (Supports ESD Protection) | |
| 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| 3x HD Audio Jacks: Line In / Front Speaker / Microphone | |
| Software | ASRock A-Tuning |
| ASRock XFast LAN | |
| UEFI | ASRock Full HD UEFI |
| ASRock Instant Flash | |
| ASRock Easy RAID Installer | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield |
| 2x SATA Data Cables | |
| 1x Screw for M.2 Socket | |
| Hardware Monitor | Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans | |
| Quiet Fan (Auto Adjust Chassis Fan Speed by CPU Temperature): CPU, Chassis, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans | |
| CASE OPEN Detection | |
| Voltage Monitoring: +12V, +5V, +3.3V, Vcore | |
| Form Factor | Micro-ATX (23.1 x 20.6 cm) |
| Solid Capacitor Design | |
| Operating System | Windows 10 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required) |
| Notes | *1 For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. |
| *2 Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. | |
| *3 Actual support may vary by CPU. | |
| *4 The Max shared memory 16GB requires 32GB system memory installed. | |
| *5 To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| *6 Supports NVMe SSD as boot disks. | |
| *7 Supports NVMe SSD as boot disks. Supports ASRock U.2 Kit. | |
| *8 The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| *9 The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. | |
| *10 The Chassis/Water Pump Fan Connector supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Warranty Information | |
| Warranty | Manufacturer's Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Worst motherboard I ever owned - Rikus, 10 June 2020
First of all, this motherboard shouldn't even have overclocking capabilities. It only has a 4 pin CPU power connector. I can't imagine this giving the CPU enough power even at stock clocks. Secondly, after a few months my audio stopped working. This is a common issue on this motherboard. Do yourself a favor and go have a look on Google, you will find that there are tons of people with this problem. Finally, after a year the motherboard died. I would NOT recommend this motherboard to anyone. I wish I could've given 0 stars.
