| SPECIFICATIONS | |
| Brand | ASRock |
| Series | X570 |

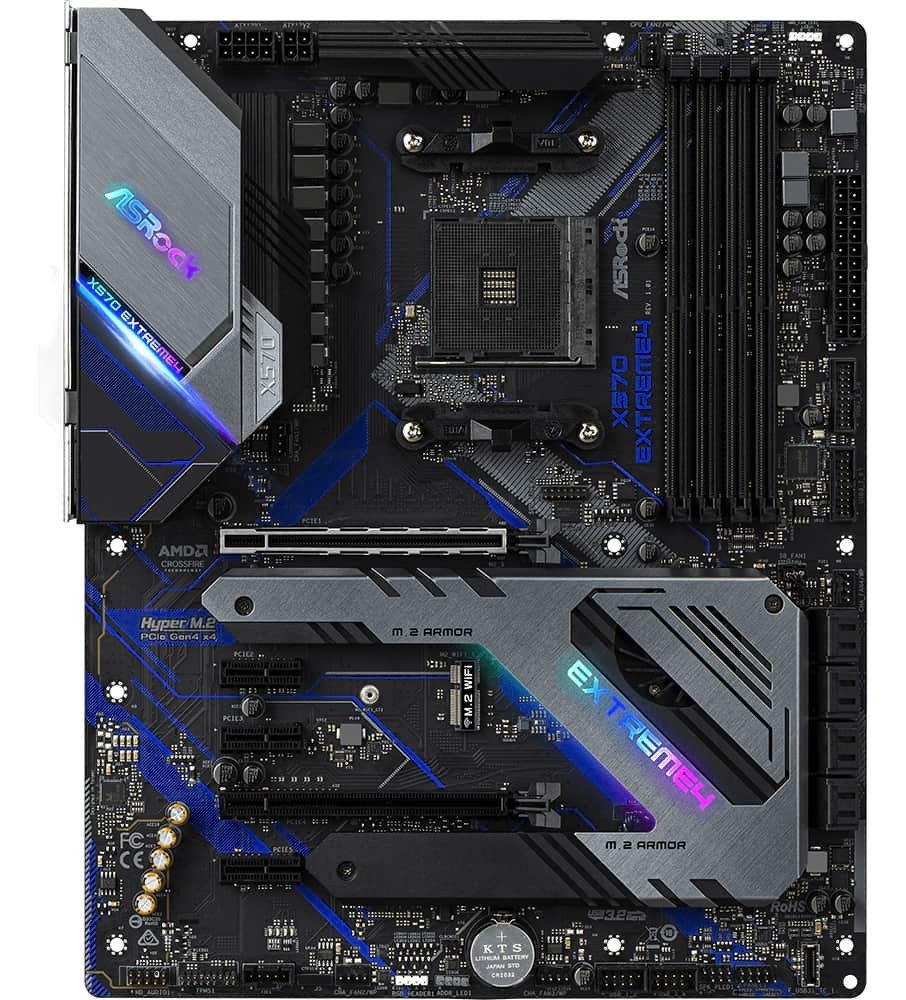

| Model | X570 Extreme4 |
| CPU | Supports AMD AM4 socket Ryzen 2000 and 3000 series processors |
| Intersil Digital PWM | |
| 10 Power Phase design | |
| Chipset | AMD X570 |
| Memory | Dual Channel DDR4 Memory Technology |
| 4x DDR4 DIMM Slots | |
| AMD Ryzen series CPUs (Matisse) support DDR4 4666 (OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600 (OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series CPUs (Picasso) support DDR4 3466 (OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory* | |
| Max. capacity of system memory: 128GB** | |
| 15μ Gold Contact in DIMM Slot | |
| *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. | |
| **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Supports "Plug and Play" | |
| ACPI 5.1 compliance wake up events | |
| Supports jumperfree | |
| SMBIOS 2.3 support | |
| CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, 1.8V, VDDP Voltage Multi-adjustment | |
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* |
| DirectX 12, Pixel Shader 5.0 | |
| Shared memory default 2GB. Max Shared memory supports up to 16GB.** | |
| Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) | |
| Supports HDR (High Dynamic Range) with HDMI 2.0 | |
| Supports HDCP 2.2 with HDMI 2.0 Port | |
| Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port | |
| Supports Microsoft PlayReady | |
| *Actual support may vary by CPU | |
| **The Max shared memory 16GB requires 32GB system memory installed. | |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Premium Blu-ray Audio support | |
| Supports Surge Protection | |
| Supports Purity Sound 4 | |
| Nichicon Fine Gold Series Audio Caps | |
| NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) | |
| Pure Power-In | |
| Direct Drive Technology | |
| PCB isolate shielding | |
| Impedance Sensing on Rear Out port | |
| Individual PCB Layers for R/L Audio Channel | |
| 15μ Gold Audio Connector | |
| Supports DTS Connect | |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| GigaLAN Intel I211AT | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | AMD Ryzen series CPUs (Matisse) |
| 2x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* | |
| AMD Ryzen series CPUs (Pinnacle Ridge) | |
| 2x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* | |
| AMD Ryzen series CPUs (Picasso) | |
| 2x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))* | |
| 3x PCI Express 4.0 x1 Slots | |
| Supports AMD Quad CrossFireX and CrossFireX | |
| 1x M.2 Socket (Key E), supports type 2230 WiFi/BT module | |
| 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| *Supports NVMe SSD as boot disks | |
| Storage | 8x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| 1x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* | |
| 1x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)* | |
| *Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit | |
| Connector | 1x SPI TPM Header |
| 1x Power LED and Speaker Header | |
| 1x AMD Fan LED Header* | |
| 1x RGB LED Header** | |
| 1x Addressable LED Header*** | |
| 1x CPU Fan Connector (4-pin)**** | |
| 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** | |
| 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** | |
| 1x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| 1x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| 1x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
| 1x Front Panel Audio Connector (15μ Gold Audio Connector) | |
| 1x AMD LED Fan USB Header | |
| 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only) | |
| 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
| 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| 1x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) | |
| *The AMD Fan LED Header is compatible with a regular RGB LED stripe. | |
| The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. | |
| **Supports in total up to 12V/3A, 36W LED Strip | |
| ***Supports in total up to 5V/3A, 15W LED Strip | |
| ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | 2x Antenna Ports (on I/O Panel Shield) |
| 1x PS/2 Mouse/Keyboard Port | |
| 1x HDMI Port | |
| 1x Optical SPDIF Out Port | |
| 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) | |
| 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) | |
| 6x USB 3.2 Gen1 Ports (Supports ESD Protection)* | |
| 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone | |
| *Ultra USB Power is supported on USB3_56 ports. | |
| ACPI wake-up function is not supported on USB3_56 ports. | |
| Accessories | Quick Installation Guide, Support CD |
| 4x SATA Data Cables | |
| 3x Screws for M.2 Sockets | |
| 2x Standoffs for M.2 Sockets | |
| Hardware Monitor | Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, 1.8V, VDDP | |
| Form Factor | ATX: 30.5 cm x 24.4 cm |
| 2oz Copper PCB | |
| OS | Microsoft Windows 10 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
