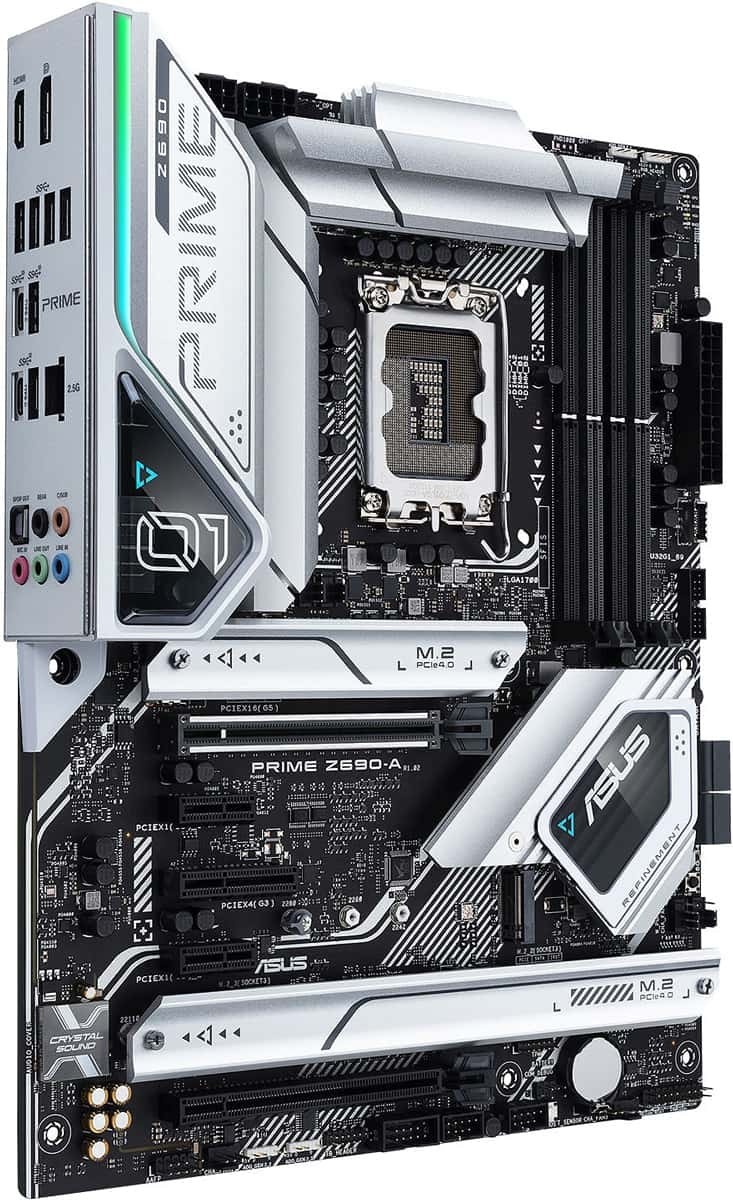

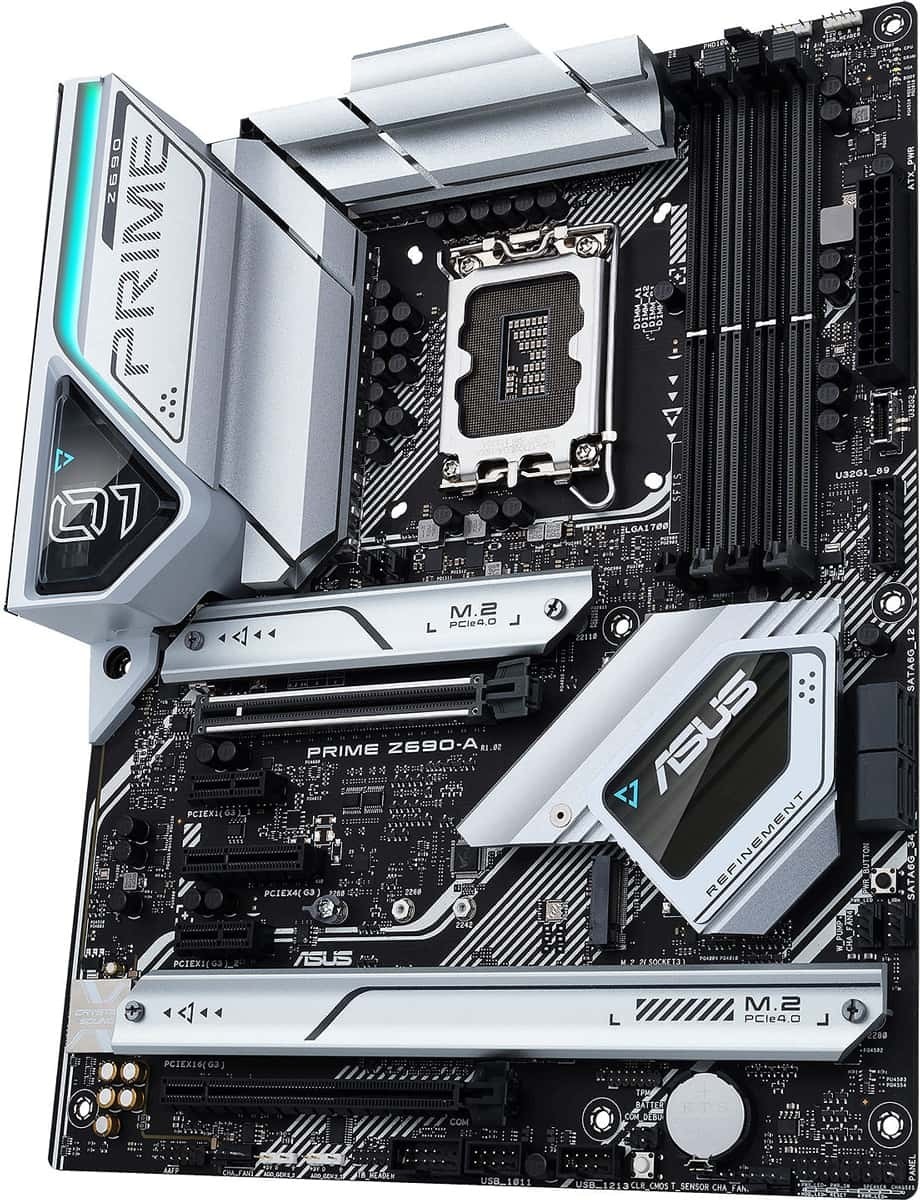

| SPECIFICATIONS | |
| Brand | Asus |
| Series | Prime Motherboards |
| Model | PRIME Z690-A (90MB18L0-M0EAY0) |
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| *Refer to www.asus.com for CPU support list. | |
| **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z690 |
| Memory | Memory Channels: |
| 4x DDR5 (Dual channel) | |
| Max Memory Size: 128GB | |
| DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1x DisplayPort 1.4 |
| 1x HDMI Port 2.1 | |
| *Graphics specifications may vary between CPU types. | |
| **Supports max. 8K@60Hz as specified in DisplayPort 1.4 | |
| ***Supports 4K@60Hz as specified in HDMI 2.1 | |
| Expansion Slots | Intel 12th Gen Processors* |
| 1x PCIe 5.0/4.0/3.0 x16 slot(s) | |
| Intel Z690 Chipset** | |
| 1x PCIe 3.0 x16 slot (supports x4 mode) | |
| 1x PCIe 3.0 x4 slot | |
| 2x PCIe 3.0 x1 slots | |
| *Please check PCIe bifurcation table in support site. | |
| **Supports Intel Optane Memory H Series on PCH-attached PCIE slot. | |
| Storage | |
| Intel 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - Intel 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel Z690 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (Supports PCIe 4.0 x4 & SATA modes) | |
| 4x SATA 6Gb/s ports | |
| *Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| **Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. | |
| Ethernet | 1x Intel 2.5Gb Ethernet |
| ASUS LANGuard | |
| USB | Rear USB (Total 8 ports): |
| 1x USB 3.2 Gen 2x2 port (1x USB Type-C) | |
| 3x USB 3.2 Gen 2 port(s) (2x Type-A + 1x USB Type-C) | |
| 4x USB 3.2 Gen 1 port(s) (4x Type-A) | |
| Front USB (Total 7 ports): | |
| 1x USB 3.2 Gen 2 connector (Supports USB Type-C) | |
| 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| Impedance sense for front and rear headphone outputs | |
| Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| Supports up to 32-Bit/192 kHz playback* | |
| Audio Features: | |
| - Audio Shielding | |
| - Power pre-regulator reduces power input noise to ensure consistent performance | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| - Unique de-pop circuit | |
| *Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |

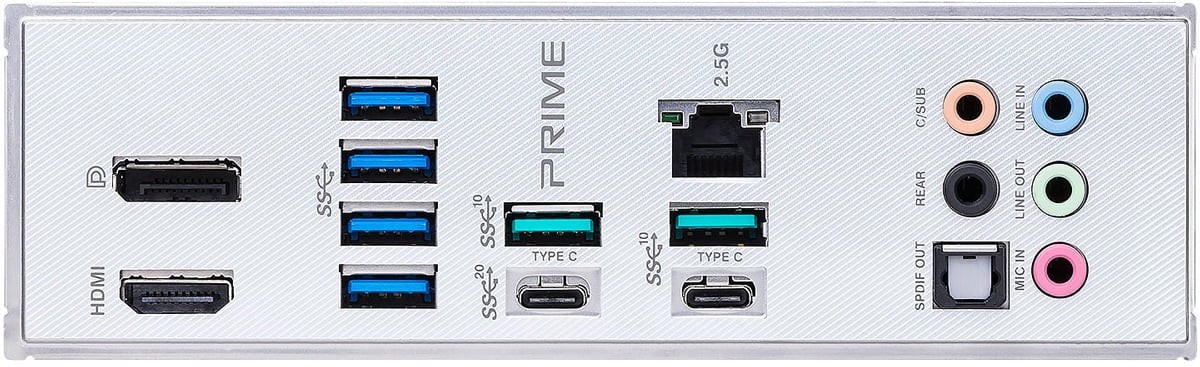

| Back Panel I/O Ports | 1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) |
| 3x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C) | |
| 4x USB 3.2 Gen 1 port(s) (4 x Type-A) | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x Intel 2.5Gb Ethernet port | |
| 5x Audio jacks | |
| 1x Optical S/PDIF out port | |
| Intrernal I/O Connectors | Fan and Cooling related: |
| 1x 4-pin CPU Fan header | |
| 1x 4-pin CPU OPT Fan header | |
| 1x 4-pin AIO Pump header | |
| 4x 4-pin Chassis Fan headers | |
| 1x W_PUMP+ header | |
| Power related: | |
| 1x 24-pin Main Power connector | |
| 2x 8-pin +12V Power connectors | |
| Storage related: | |
| 4x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| USB: | |
| 1x USB 3.2 Gen 2 connector (support(s) USB Type-C) | |
| 1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 port | |
| 2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| Miscellaneous: | |
| 3x Addressable Gen 2 headers | |
| 1x AURA RGB header | |
| 1x Clear CMOS button | |
| 1x COM Port header | |
| 1x CPU Over Voltage jumper | |
| 1x Front Panel Audio header (AAFP) | |
| 1x Power button | |
| 1x SPI TPM header (14-1pin) | |
| 1x 20-3 pin System Panel header with Chassis intrude function | |
| 1x Thermal Sensor header | |
| 1x Thunderbolt header | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables: |
| 2x SATA 6Gb/s cables | |
| Miscellaneous: | |
| 1x M.2 Rubber Package | |
| 1x Q-connector | |
| 1x M.2 Q-Latch package | |
| Installation Media: | |
| 1x Support DVD | |
| Documentation: | |
| 1x User guide | |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
