| SPECIFICATIONS | |
| Brand | Asus |
| Series | TUF Gaming |

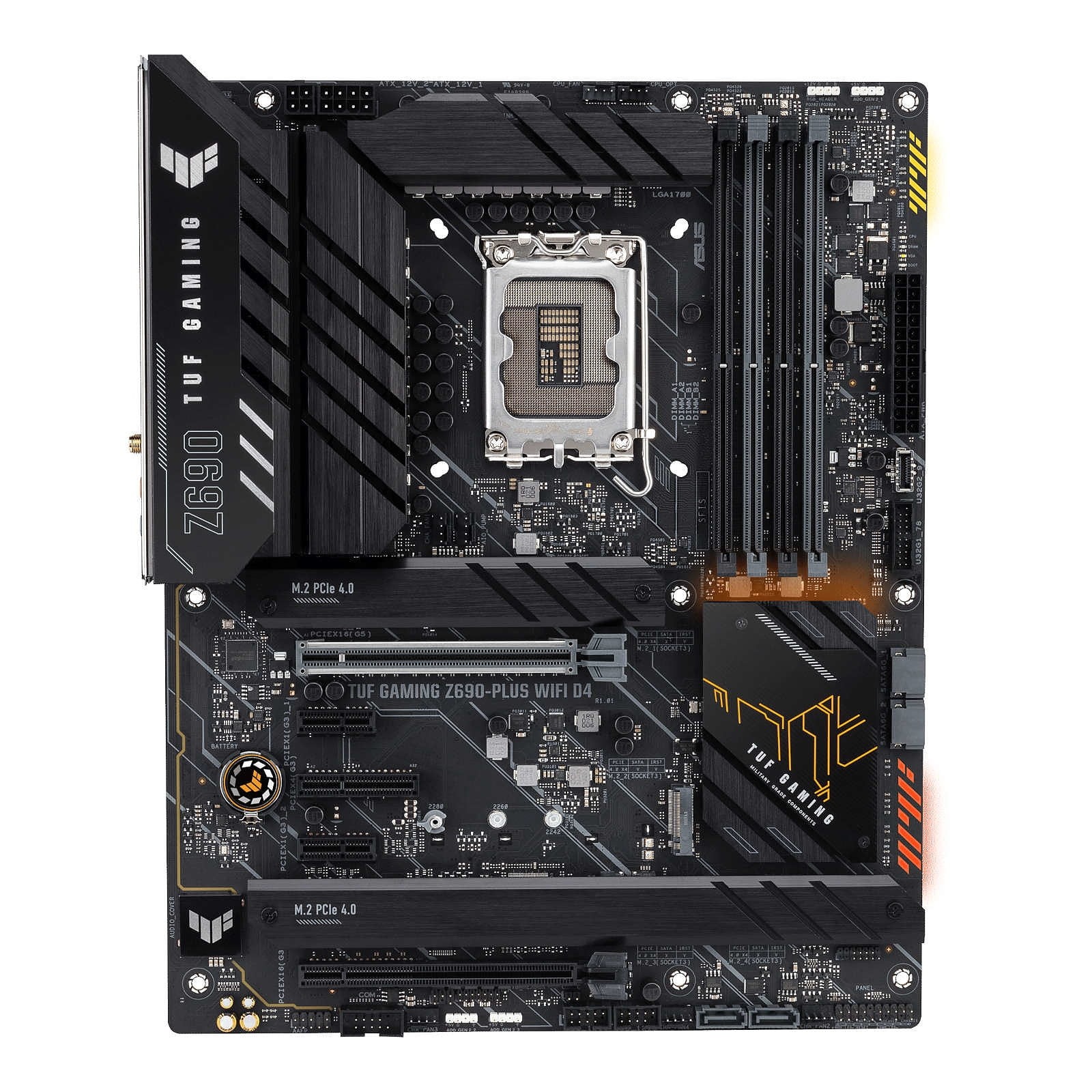

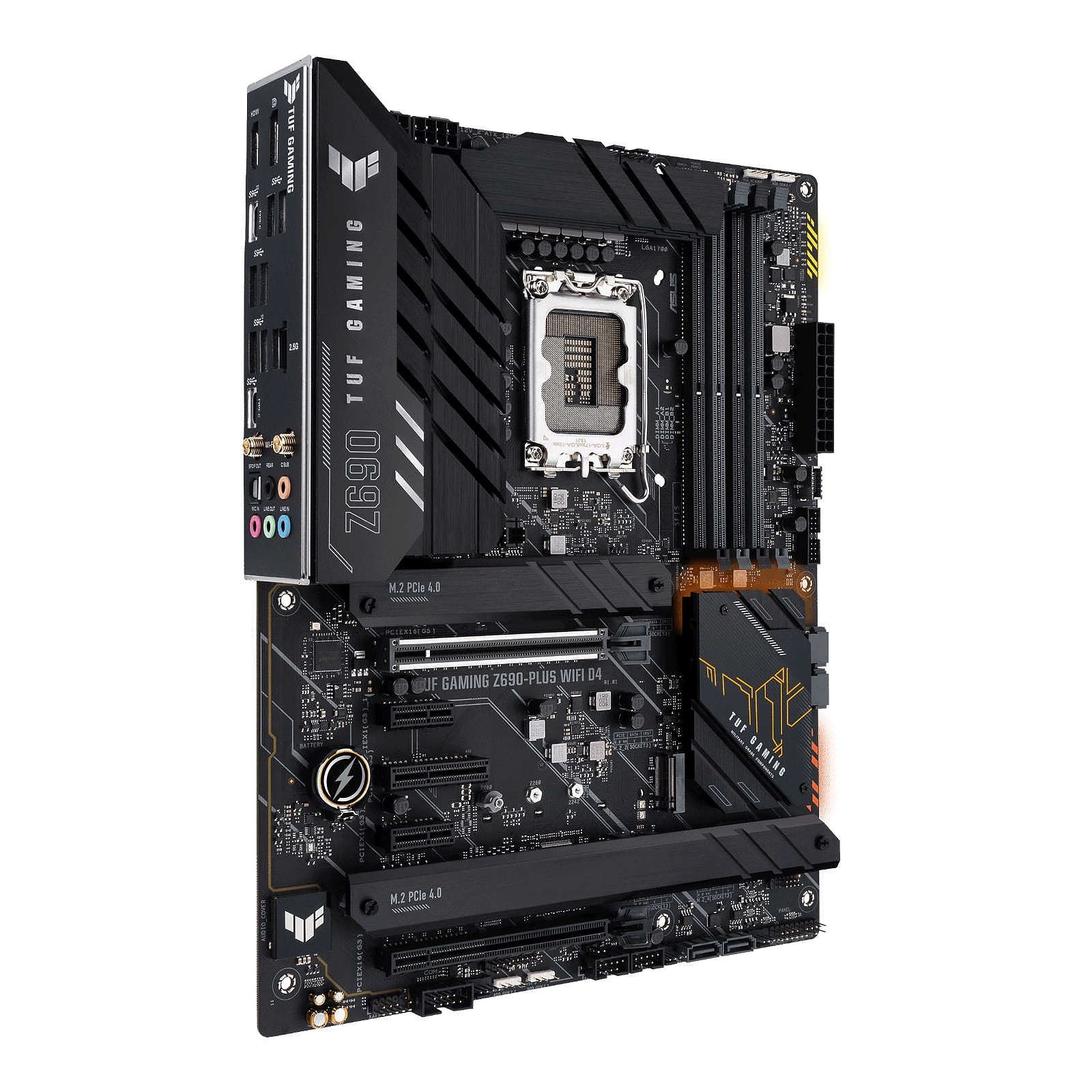

| Model | TUF GAMING Z690-PLUS D4 WiFi (90MB18V0-M0EAY0) |
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| *Refer to www.asus.com for CPU support list. | |
| **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z690 |
| Memory | Memory Channels: |
| 4x DDR4 (Dual channel) | |
| Max Memory Size: 128GB | |
| DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphics | 1x DisplayPort 1.4 |
| 1x HDMI port 2.1 | |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| **Supports max. 4K@60Hz as specified in DisplayPort 1.4 | |
| ***Supports 4K@60Hz as specified in HDMI 2.1 | |
| ****VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | Intel 12th Gen Processors* |
| 1x PCIe 5.0 x16 slot | |
| Intel Z690 Chipset** | |
| 1x PCIe 3.0 x16 slot (supports x4 mode) | |
| 1x PCIe 3.0 x4 slot | |
| 2x PCIe 3.0 x1 slots | |
| *Please check PCIe bifurcation table in support site. | |
| **Supports Intel Optane Memory H Series on PCH-attached PCIe slot. | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - Intel 12th Gen processors support PCIe 4.0 x4 mode | |
| Intel Z690 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4x SATA 6Gb/s ports | |
| *Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| **Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. | |
| Ethernet | 1x Intel I225-V 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6 |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth v5.2 | |
| USB | Rear USB (Total 8 ports): |
| 1x USB 3.2 Gen 2x2 port (1x USB Type-C) | |
| 2x USB 3.2 Gen 2 ports (2x Type-A) | |
| 5x USB 3.2 Gen 1 ports (4x Type-A 1 x USB Type-C) | |
| Front USB (Total 7 ports): | |
| 1x USB 3.2 Gen 2 connector (supports USB Type-C) | |
| 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio Cover | |
| Back Panel I/O Ports | 1x USB 3.2 Gen 2x2 port (1x USB Type-C) |
| 2x USB 3.2 Gen 2 ports (2x Type-A) | |
| 5x USB 3.2 Gen 1 ports (4x Type-A 1 x USB Type-C) | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x Intel 2.5Gb Ethernet port | |
| 5x Audio jacks | |
| 1x Optical S/PDIF out port | |
| Intrernal I/O Connectors | Fan and Cooling related: |
| 1x 4-pin CPU Fan header | |
| 1x 4-pin CPU OPT Fan header | |
| 1x 4-pin AIO Pump header | |
| 4x 4-pin Chassis Fan headers | |
| Power related: | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 1x 4-pin 12V Power connector | |
| Storage related: | |
| 4x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| USB: | |
| 1x USB 3.2 Gen 2 connector (supports USB Type-C) | |
| 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3x Addressable Gen 2 headers | |
| 1x AURA RGB header | |
| 1x Clear CMOS header | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x 20-3 pin System Panel header with Chassis intrude function | |
| 1x Thunderbolt header | |
| BIOS | 192 (128 64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables: |
| 2x SATA 6Gb/s cables | |
| Miscellaneous: | |
| 2x M.2 Rubber Packages | |
| 1x M.2 SSD screw package | |
| 1x TUF GAMING sticker | |
| Installation Media: | |
| 1x Support DVD | |
| Documentation: | |
| 1x TUF Certification card | |
| 1x User guide | |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
