| SPECIFICATIONS | |
| Brand | Asus |

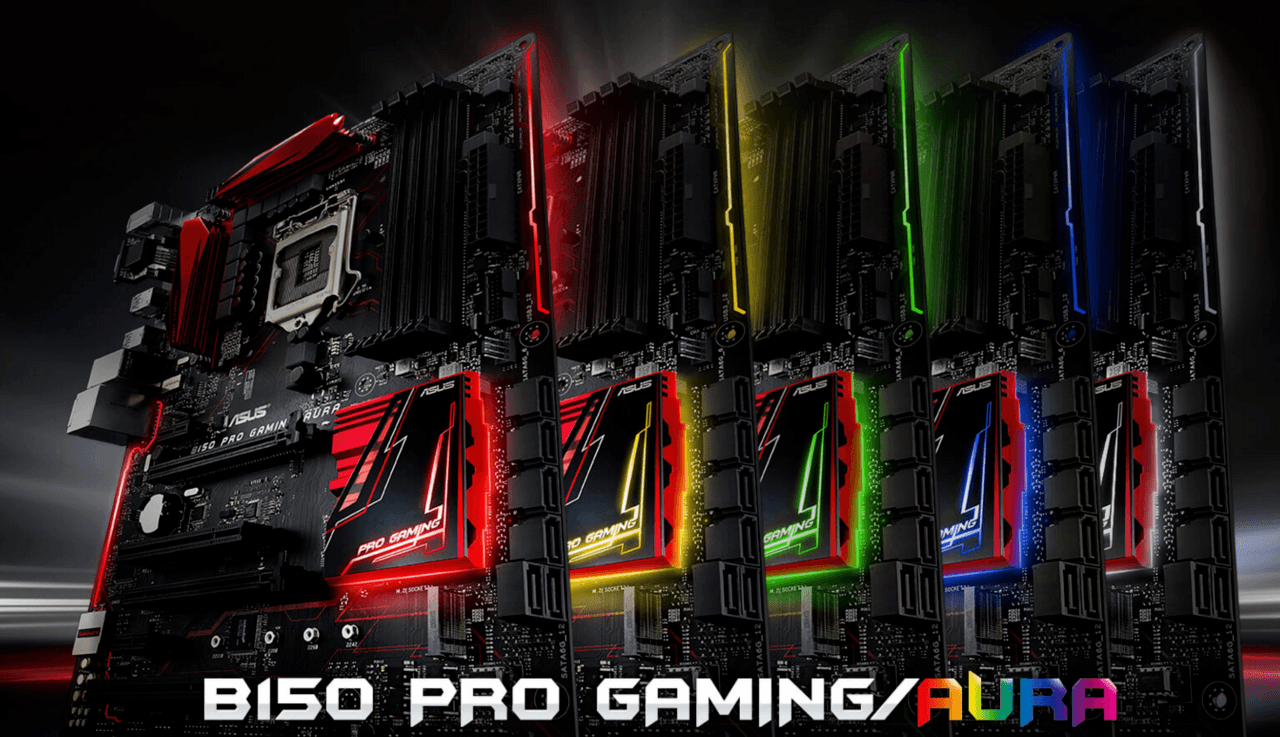

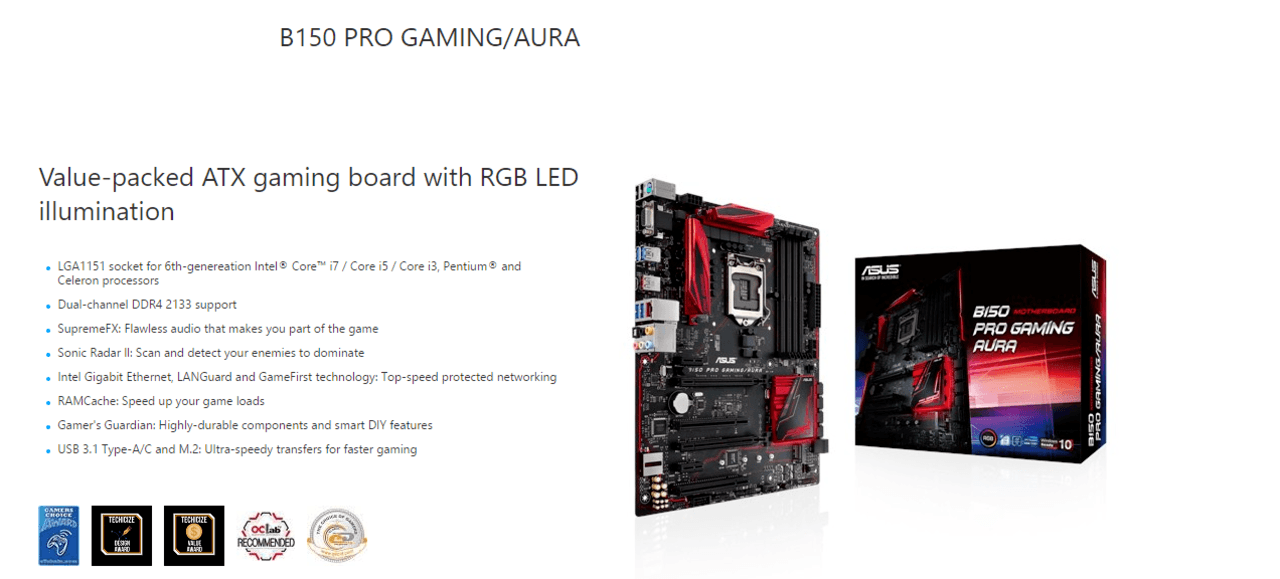

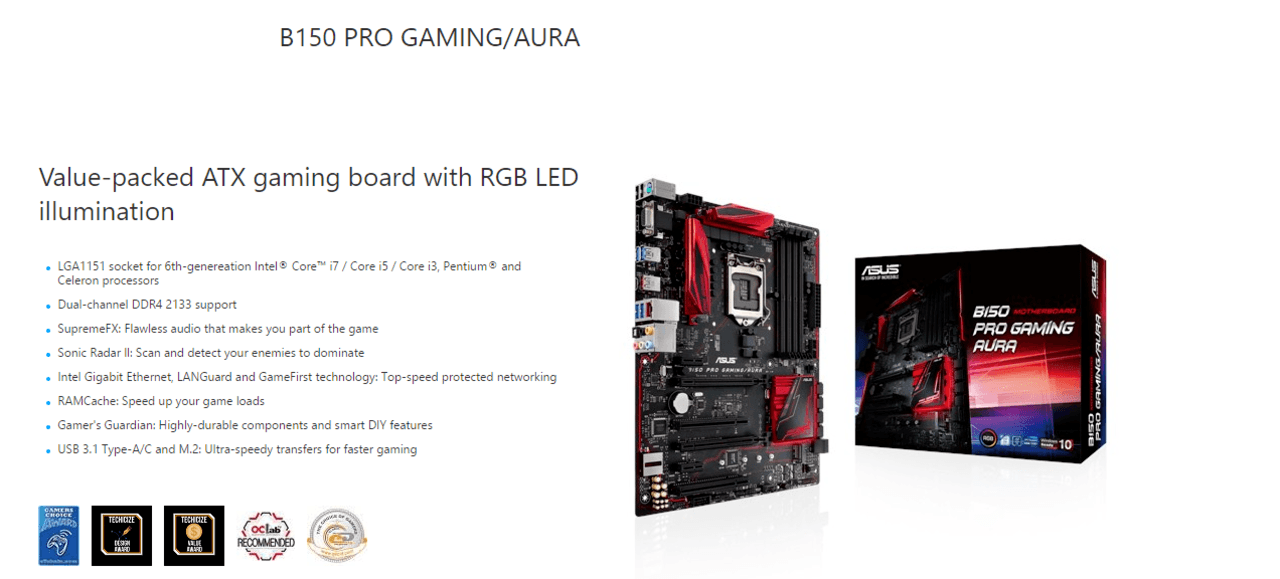

| Model | B150 PRO GAMING Aura edition |
| Series | B150 |
| CPU | Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors | Supports Intel 14 nm CPU | Supports Intel Turbo Boost Technology 2.0 | * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. | * Refer to www.asus.com for CPU support list |
| Chipset | Intel B150 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory | Dual Channel Memory Architecture | Supports Intel Extreme Memory Profile (XMP) | * Hyper DIMM support is subject to the physical characteristics of individual CPUs. | * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor- Intel HD Graphics support | Multi-VGA output support : HDMI/RGB ports | - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz | - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz | Maximum shared memory of 1024 MB | Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Multi-GPU Support | Supports AMD Quad-GPU CrossFireX Technology | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode, ) | 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 | 2 x PCIe 3.0/2.0 x1 | 2 x PCI |
| Storage | Intel B150 chipset : | 1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2 | 6 x SATA 6Gb/s port(s), |

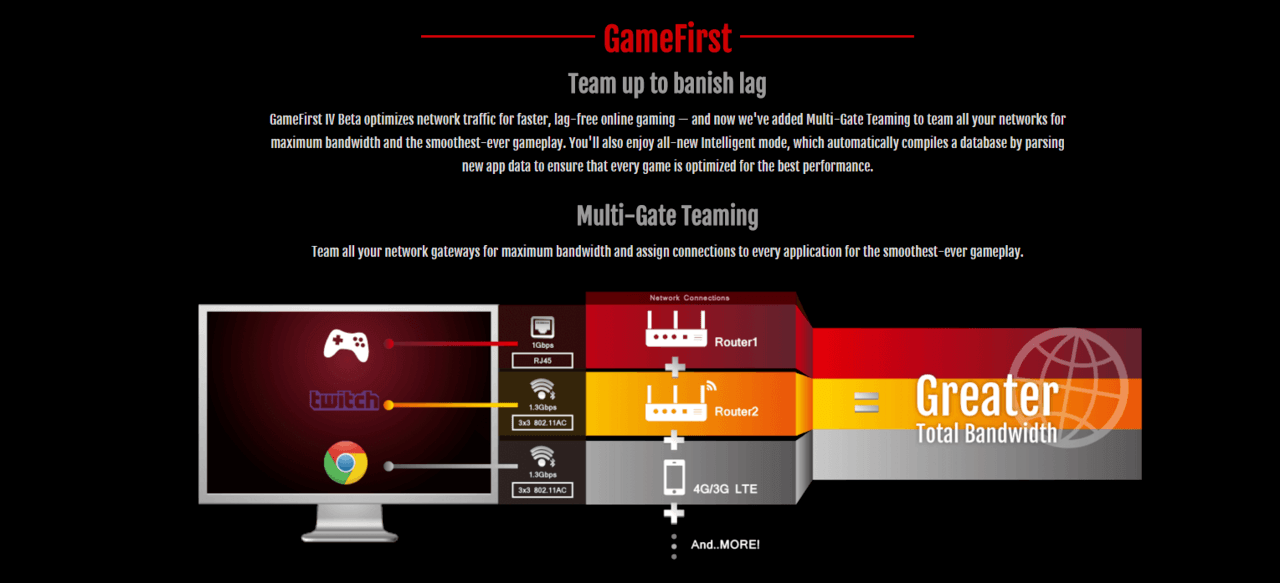

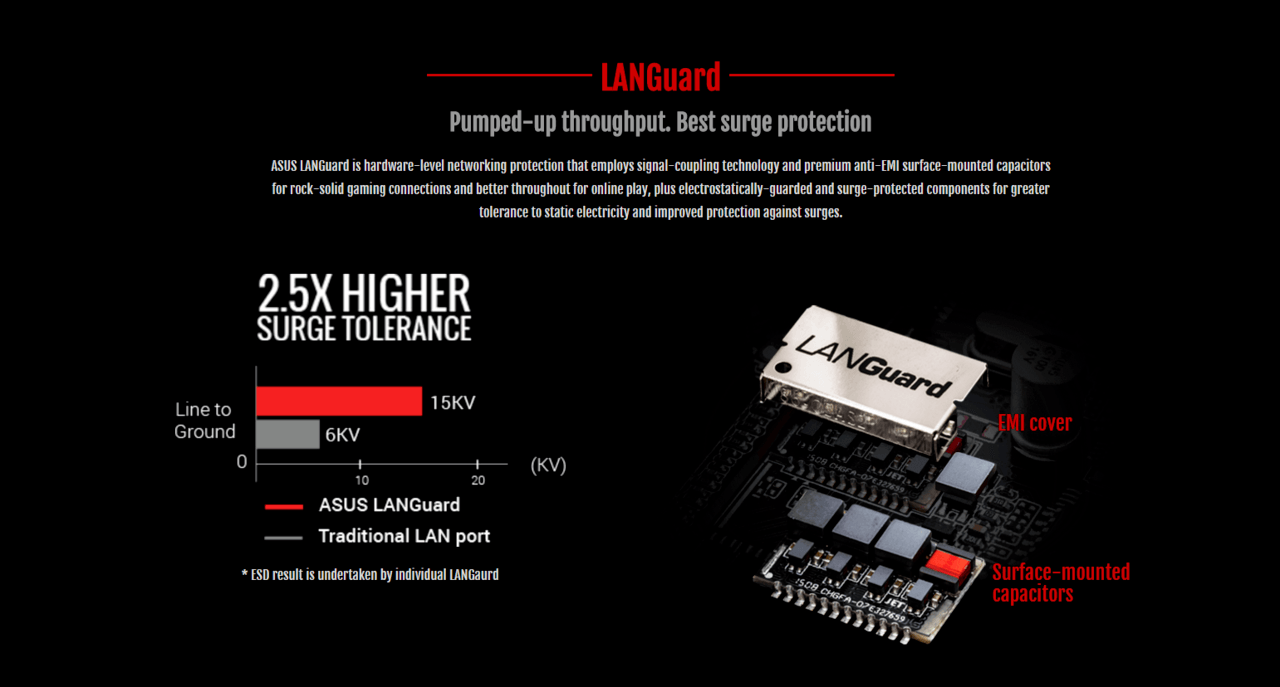

| LAN | Intel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology | Anti-surge LANGuard |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC | - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | - High quality 115 dB SNR stereo playback output | Audio Feature : | - SupremeFX Shielding Technology | - Optical S/PDIF out port(S) at back panel | - Sonic Radar II |
| USB Ports | ASMedia USB 3.1 controller : | 1 x USB 3.1 port(s) (Type-A) | ASMedia USB 3.1 controller : | 1 x USB 3.1 port(s) (Type-C, Reversible) | Intel B150 chipset : | 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board) | Intel B150 chipset : | 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |

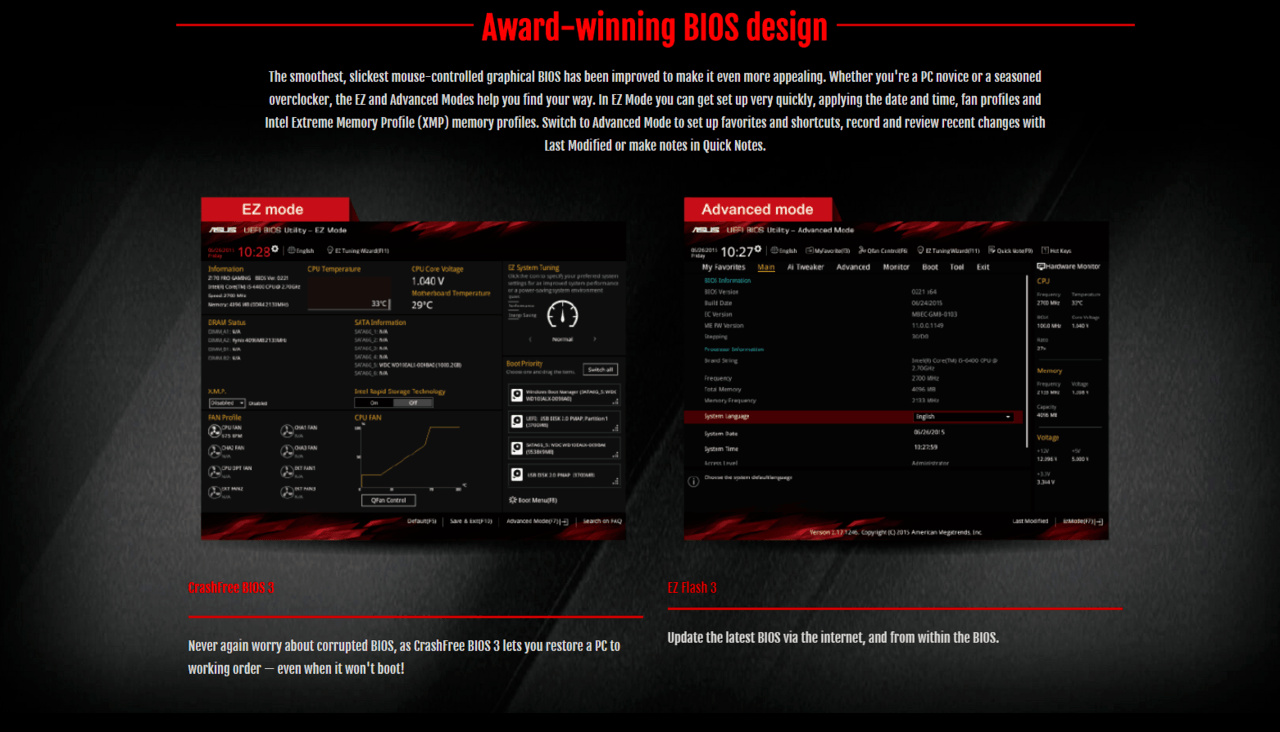

| Special Features | Gamer's Guardian: | - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports | - DRAM Overcurrent Protection | - Stainless Steel back I/O | - Highly Durable Components | - DIGI+ VRM | ASUS EPU : | - EPU | ASUS Exclusive Features : | - AI Suite 3 | - Ai Charger+ | - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | - USB 3.1 Boost | - Disk Unlocker | ASUS Quiet Thermal Solution : | - Stylish Fanless Design Heat-sink solution | - ASUS Fan Xpert 3 | ASUS EZ DIY : | - ASUS CrashFree BIOS 3 | - ASUS EZ Flash 3 | - ASUS UEFI BIOS EZ Mode | - Push Notice | ASUS Q-Design : | - ASUS Q-Shield | - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | - ASUS Q-Slot | - ASUS Q-DIMM | Media Streamer | RAMCache |
| Operating System Support | Windows 10 , 64bit | Windows 8.1 , 64bit | Windows 7 , 32bit/64bit |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) | 1 x D-Sub | 1 x HDMI | 1 x LAN (RJ45) port(s) | 1 x USB 3.1 (red)Type-A | 1 x USB 3.1 Type-C | 4 x USB 3.0 | 2 x USB 2.0 | 1 x Optical S/PDIF out | 5 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) | 1 x COM port(s) connector(s) | 6 x SATA 6Gb/s connector(s) | 1 x CPU Fan connector(s) (1 x 4 -pin) | 3 x Chassis Fan connector(s) (3 x 4 -pin) | 1 x 24-pin EATX Power connector(s) | 1 x 8-pin ATX 12V Power connector(s) | 1 x Front panel audio connector(s) (AAFP) | 1 x System panel(s) | 1 x Thermal sensor connector(s) | 1 x CPU OV | 1 x Clear CMOS jumper(s) | 1 x Water Pump header (4-pin) | 1 x ROG extension (ROG_EXT) header(s) | 1 x 14-1 pin TPM connector |
| Accessories | User's manual | I/O Shield | 4 x SATA 6Gb/s cable(s) | 1 x M.2 Screw Package | 1 x pack of cable tie | 1 x Supporting DVD | 1 x 12 in 1 Cable Label (s) |
| Form Factor | ATX Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note | *1:When PCIE x16_2 is occupied by x4 or faster devices, PCIE x1_1 and PCIE x1_2 will be disabled. | *2:When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. | Warranty Information |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
