| SPECIFICATIONS | |
| Brand | ASUS |

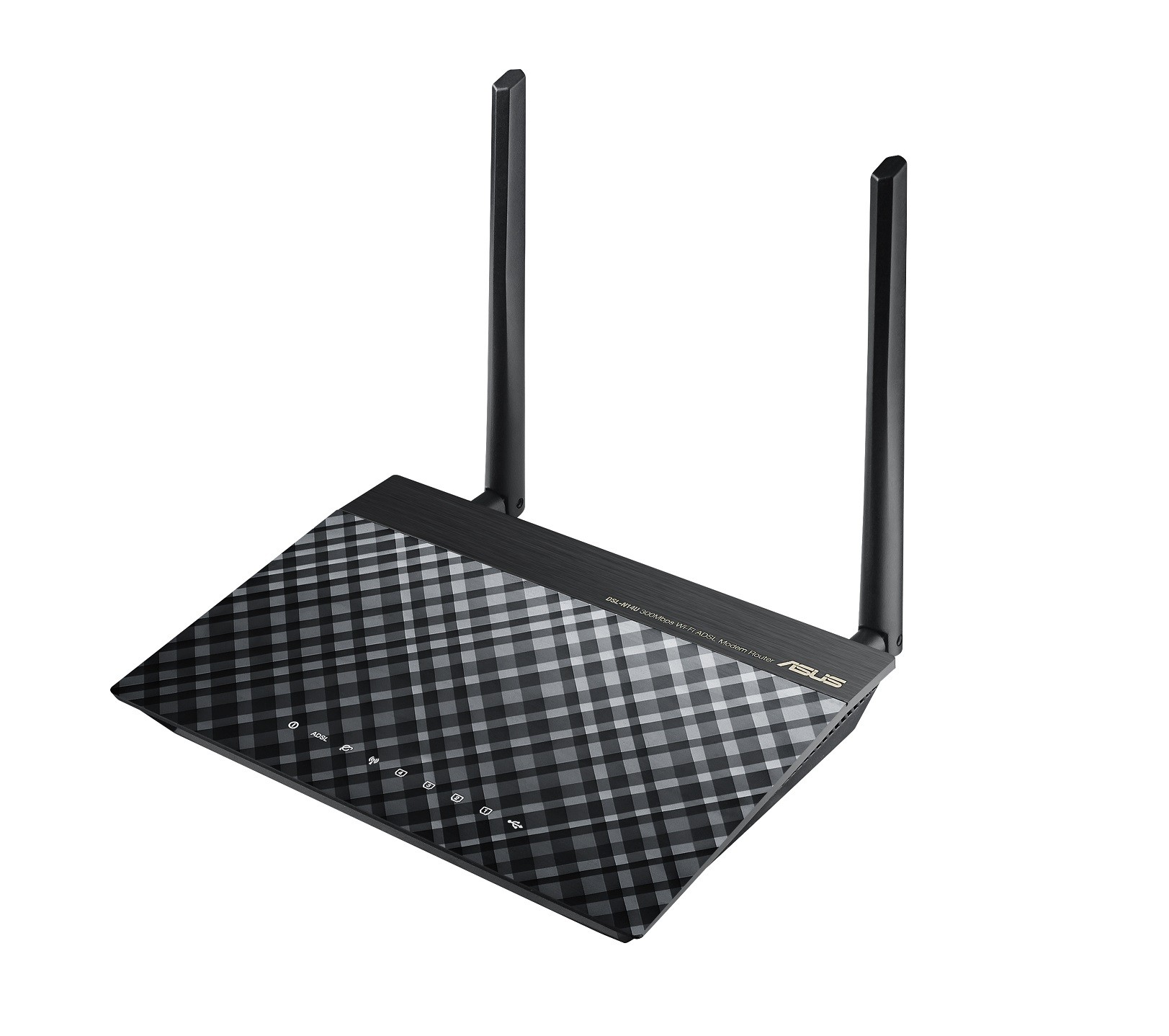

| Model | DSL-N14U |
| Network Standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6 |
| Product Segment | N300 complete networking; 300Mbps |
| Wi-Fi Data Rate | 802.11b : 1, 2, 5.5, 11Mbps | 802.11g : 6,9,12,18,24,36,48,54Mbps | 802.11n : up to 300Mbps |
| xDSL Data Rate | ANSI T1.413i2 | ITU G.922.1(G.dmt).ITU G.922.2 (G.lite) | ITU G.922.3 ADSL2(G.dmt.bis) | ITU G.922.4(G.lite.bis) | ITU G.922.5(G.dmt.bisplus) | ADSL/ADSL2/ADSL2+ multimode AnnexA,AnnexB compliant | ADSL 2/2+ 24Mbps downstream | Support Annex A/B/I/J/L/M |
| Antenna | Detachable 2 dBi antenna x 2 |
| LED Indicator | Power, ADSL, Internet, WLAN, LAN x 4, USB x 1 |
| Button | WPS Button, Reset Button, Power Button, Wireless on/off Button |
| Ports | 1 x RJ11 for ADSL | 4 x RJ45 10/100 BaseT for LAN |
| USB Ports | USB 2.0 x 1 |
| USB Applications | Printer Server | FTP Server | Download Master |
| Router Special Features | AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control |
| Operating Frequency | 2.4GHz |
| Operation Channel | 13 Europe (ETSI) |
| Memory | 64MB DDR / 16MB Flash |
| Security | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support |
| Firewall & Access Control | NAT and SPI (Stateful Packet Inspection) Firewall | - enable/disable WAN ping | - allow access from WAN | - log of accepted and dropped | Filtering: | - Single Port and Port Range | - URL based | - MAC Address | - DoS protection |
| Management | Web-based GUI configuration | Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI | Auto VPI/VCI detection | Configuration backup and restore | Diagnostics | Log & Trace function |
| Utilities | ADSL Setting Wizards | Device Discovery | Firmware Restoration | Printer Setup Utility |
| VPN Support | IPSec Pass-Throuth | PPTP Pass-Through | L2TP Pass-Through | PPTP server |
| Power Adapter | AC Input : 100 ~240 V(50~60HZ) | DC Output : 12 V/1 A |
| Certificates | CE |
| Dimensions | 123 x 190 x 35mm (WxDxH) |
| Weight | 314 g (Device Only) |
| Environmental | Operating Temperature: -10 °C to 50 °C | Storage Temperature: -40 ° to 60 ° C | Operating Humidity: 5 % to 95 % (Non-condensing) | Storage Humidity: 5 % to 95 % (Non-condensing) |
| OS Support | Windows 8.1 , 32bit/64bit | Windows 8 , 32bit/64bit | Windows 7 , 32bit/64bit | Windows Vista , 32bit/64bit | Windows XP , 32bit/64bit | Mac OS X | Linux |
| Package Content | DSL-N14U Wireless-N300 ADSL Modem Router | Power Adapter | Quick Start Guide | Support CD (user manual, Utilities) | RJ45 cable, RJ11 cable | Splitter (varies with regions) | Warranty Information |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
