| SPECIFICATIONS | |
| Brand | ASUS |
| Series | Networking |
| Model | ExpertWiFi EBA63 |
| Network Standard | IPv6 |
| IPv4 | |
| WiFi 6 (802.11ax) | |
| WiFi 5 (802.11ac) | |
| WiFi 4 (802.11n) | |
| IEEE 802.11g | |
| IEEE 802.11b | |
| IEEE 802.11a | |
| Product Segment | AX3000 ultimate AX performance: 2402 Mbps 574 Mbps |
| Data Rate | WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps |
| WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps | |
| WiFi 5 (802.11ac): up to 1734 Mbps | |
| WiFi 4 (802.11n): up to 300 Mbps | |
| 802.11g: up to 54 Mbps | |
| 802.11b: up to 11 Mbps | |
| 802.11a: up to 54 Mbps | |
| Antenna | Internal Antenna x 4 |
| Transmit / Receive | 5GHz 2x2 |
| 2.4GHz 2x2 | |
| Processor | 1.7 GHz Quad-Core Processor |
| Memory | 256 MB Flash |
| 512 MB RAM | |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) |
| Beamforming: Standard-Based And Universal | |
| 1024-QAM High Data Rate | |
| 20/40/80/160 MHz Bandwidth | |
| The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions | |
| Operating Frequency | 5 GHz |
| 2.4 GHz | |
| Operating Mode | Access Point Mode |
| AiMesh Node Mode | |

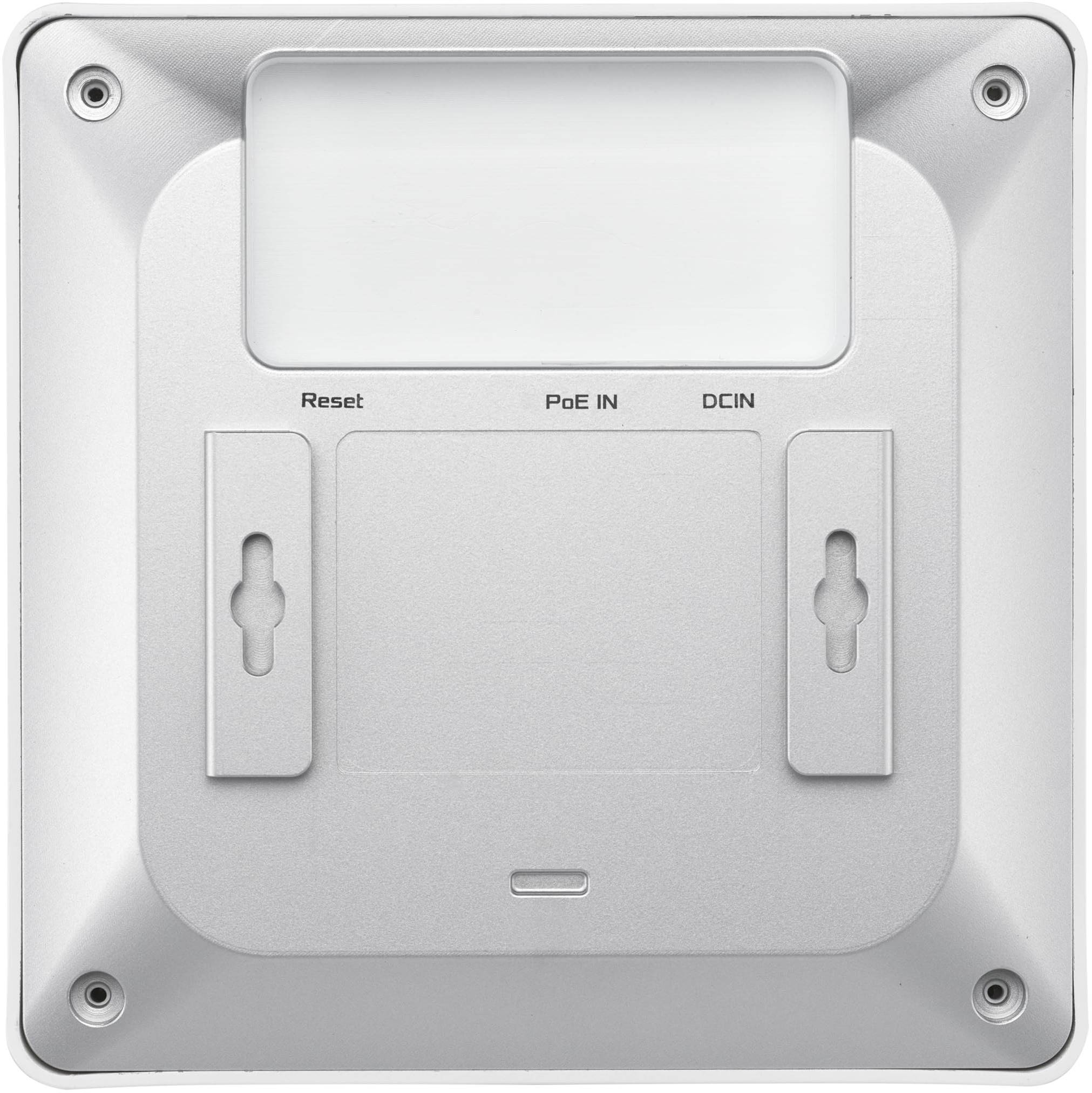

| I/O Ports | 10/100/1000 Gigabit Ethernet Port (Support PoE) x 1 |
| Buttons | Reset Button |
| LED Indicator | Power x 2 |
| Power Supply | 802.3af PoE |
| 12 V with max. 1.5 A current DC (Power Adapter Included) | |
| Power Consumption | US: 10.0W |
| EU: 9.1W | |

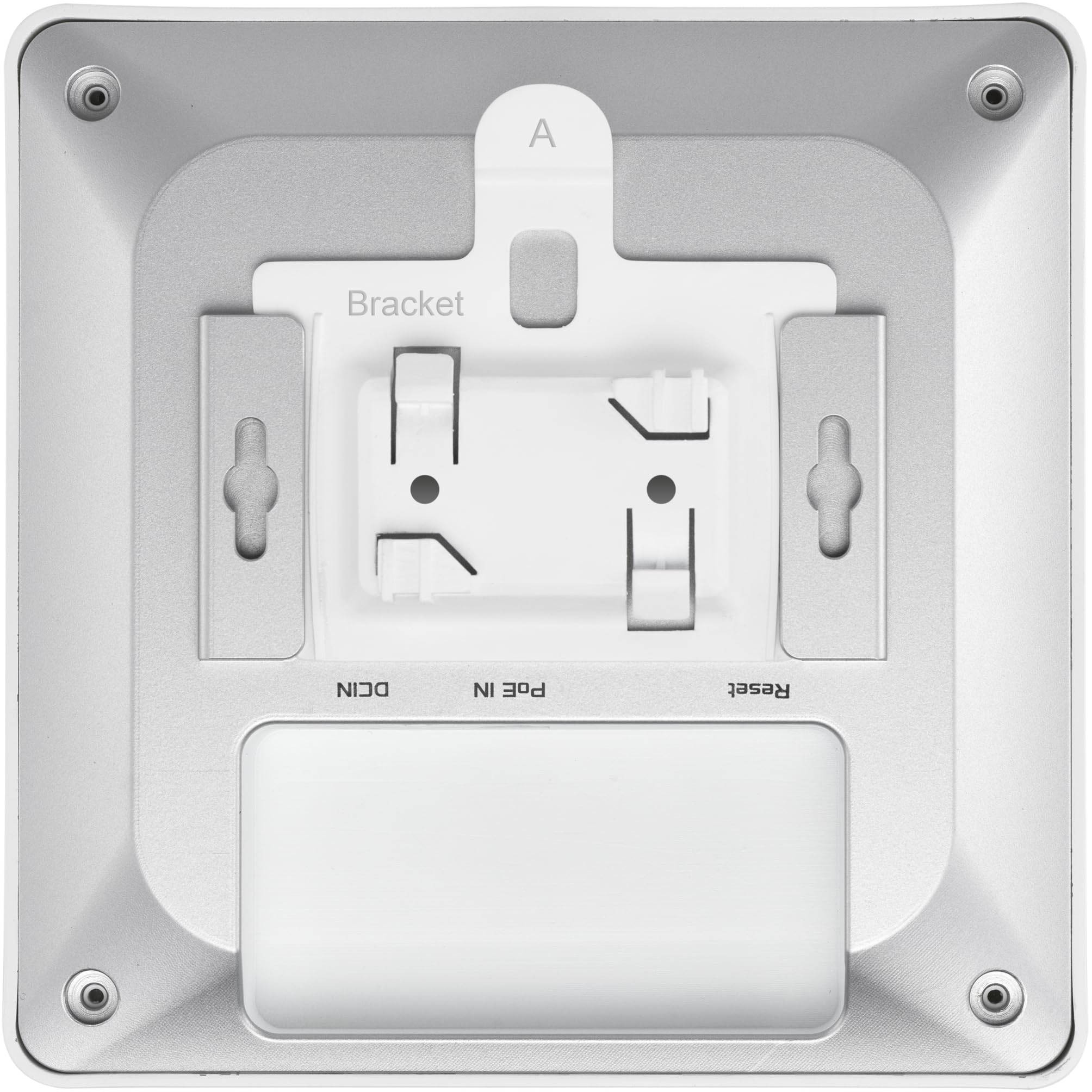

| Mounting | Ceiling Mount |
| Wall Mount | |
| Package Content | ExpertWiFi EBA63 |
| RJ-45 Cable | |
| Power Adapter | |
| Warranty Card | |
| Quick Start Guide | |
| Wall-Mount Kit | |
| Product Weight | 426g |
| Product Dimensions | 160 x 160 x 42 mm |
| AiMesh | AiMesh |
| AiMesh Node | |
| Device Access Control | Time Scheduling |
| Reward | |
| Customized Internet Schedule | |
| Maximum Device Access Control Profile: 12 | |
| Maximum Device Access Control Content Filter Rule: 12 | |
| Dashboard | Dashboard |
| Self-Defined Network | Scheduled Network |
| Guest Network | |
| Employee | |
| Maximum Self-Defined Network Rule: 16 | |
| AP Isolate | |
| WiFi Share: QR Code | |
| PDF File | |
| WiFi Scheduling: Weekly Schedule | |
| WiFi Scheduling: One Time Access | |
| VLAN | |
| Security | WPA/WPA2/WPA3-Personal |
| WPA/WPA2-Enterprise | |
| WPS | |
| SSH | |
| Traffic Control | Real-Time Traffic Monitor |
| Wired Traffic Monitor | |
| Wireless Traffic Monitor | |
| Wireless | UTF-8 SSID |
| WiFi MAC Address Filter | |
| Maximum MAC Filters: 64 | |
| Wireless Scheduler | |
| User Interface | WEB: ASUSWRT |
| APP: ASUS ExpertWiFi APP | |
| Administration | Configuration Backup And Restore |
| Diagnosis Tools | |
| Feedback System | |
| System Log | |
| New Device Connect Notification | |
| Login Captcha | |
| Connection Diagnosis | |
| Auto Firmware Update | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
