| SPECIFICATIONS | |
| Brand | Asus |

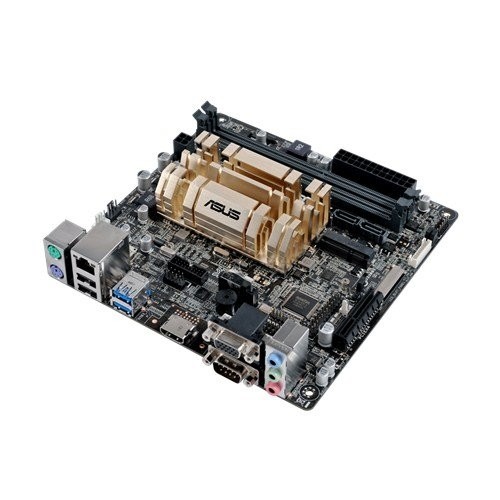

| Model | N3050I-C |
| CPU | Intel Celeron Dual-Core N3050 SoC onboard Processors |
| Memory | 2x U-DIMM, Max. 8GB, DDR3 1600/1066 MHz Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Graphic | Integrated Graphics Processor |
| Multi-VGA output support : HDMI/RGB/LVDS ports | |
| - Supports HDMI with max. resolution 3840 x 2160 at 30 Hz | |
| - Supports LVDS with max. resolution 1920 x 1200 at 60 Hz | |
| - Supports RGB with max. resolution 1920 x 1200 at 60 Hz | |
| Maximum shared memory of 512 MB | |
| Expansion Slots | 1x PCIe 2.0 x4 (x1 mode) |
| Storage | Built-in Controller : |
| 2x SATA 6Gb/s port(s), dark brown, | |
| Supports Intel Smart Connect Technology | |
| LAN | Realtek RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *1 |
| USB Ports | Built-in Controller : |
| 4x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) | |
| GL852G USB Hub : | |
| 4x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) | |
| Special Features | ASUS 5X Protection : |
| - ASUS LANGuard - Advanced LAN protection | |
| - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention | |
| - ASUS ESD Guards - Enhanced ESD protection | |
| - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability | |
| - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating | |
| ASUS Exclusive Features : | |
| - AI Suite 3 | |
| - Anti-Surge | |
| - Low EMI Solution | |
| - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | |
| - USB 3.0 Boost | |
| ASUS Quiet Thermal Solution : | |
| - Stylish Fanless Design Heat-sink solution | |
| - ASUS Fan Xpert | |
| ASUS EZ DIY : | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 2 | |
| - ASUS MyLogo 2 | |
| - ASUS UEFI BIOS EZ Mode | |
| - Push Notice | |
| Operating System Support | Windows 8.1 , 64bit |
| Windows 7 , 64bit | |
| Back I/O Ports | 1x PS/2 keyboard (purple) |
| 1x PS/2 mouse (green) | |
| 1x D-Sub | |
| 1x HDMI | |
| 1x LAN (RJ45) port(s) | |
| 2x USB 3.1 Gen 1 (blue) | |
| 2x USB 2.0 | |
| 1x COM port(s) | |
| 3x Audio jack(s) | |
| Internal I/O Ports | 1x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) |
| 1x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) | |
| 1x TPM header | |
| 1x COM port(s) connector(s) | |
| 2x SATA 6Gb/s connector(s) | |
| 1x CPU Fan connector(s) (1 x 4 -pin) | |
| 1x Chassis Fan connector(s) (1 x 4 -pin) | |
| 1x 24-pin EATX Power connector(s) | |
| 1x 4-pin ATX 12V Power connector(s) | |
| 1x parallel port connector(s) | |
| 1x Front panel audio connector(s) (AAFP) | |
| 1x System panel(s) | |
| 1x Chassis Intrusion connector(s) | |
| 1x LVDS connector(s) | |
| 1x Buzzer | |
| Accessories | User's manual |
| I/O Shield | |
| 2x SATA 6Gb/s cable(s) | |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers |
| ASUS Utilities | |
| EZ Update | |
| Anti-virus software (OEM version) | |
| Form Factor | Mini ITX Form Factor |
| 170 x 170 mm | |
| Note | *1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
| **2: Please follow SOP in manual when installing Windows7 64-bit and USB3.0 drivers. | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
