| SPECIFICATIONS | |
| Brand | Asus |
| Series | Prime |

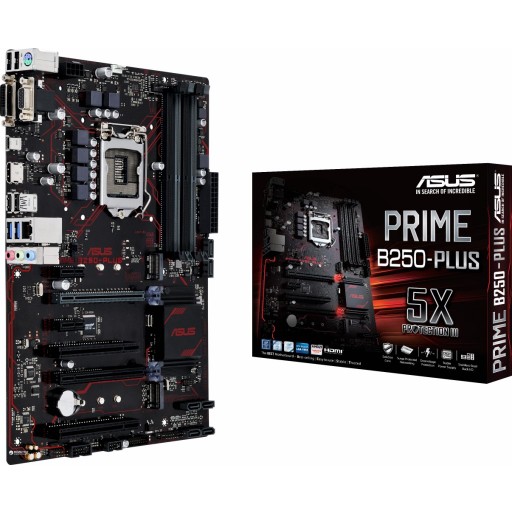

| Model | PRIME B250-PLUS |
| CPU | Intel Socket 1151 for 7th/6th Generation Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors | Supports Intel 14 nm CPU | Supports Intel Turbo Boost Technology 2.0 | *The Intel Turbo Boost Technology 2.0 support depends on the CPU types | *Refer to www.asus.com for CPU support list |
| Chipset | Intel B250 |
| Memory | 4x DIMM, Maximum 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory* | Dual Channel Memory Architecture | Supports Intel Extreme Memory Profile (XMP) | *Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists) | *Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. | **Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz. |
| Graphic | Integrated Graphics Processor- Intel HD Graphics support | Multi-VGA output support: HDMI / DVI-D / RGB ports | - Supports HDMI with maximum resolution 4096 x 2160 @24Hz / 2560 x 1600 @60Hz | - Supports DVI-D with maximum resolution 1920 x 1200 @60Hz | - Supports RGB with maximum resolution 1920 x 1200 @60Hz | Maximum shared memory of 1024 MB |
| Multi-GPU Support | Supports AMD CrossFireX Technology |
| Expansion Slots | 1x PCIe 3.0/2.0 x16 (x16 mode, gray) | 1x PCIe 3.0/2.0 x16 (max at x4 mode, black) | 2x PCIe 3.0/2.0 x1 | 2x PCI |
| Storage | 1x M.2 Socket 3, with M key, type 2242 / 2260 / 2280 Storage Devices Support (both SATA & PCIE mode) | 1x M.2 Socket 3, with M key, type 2242 / 2260 / 2280 Storage Devices Support (PCIE 3.0 x4 mode) | 6x SATA 6Gb/s Ports | Intel Optane Memory Ready |
| LAN | Realtek RTL8111H, 1x Gigabit LAN Controller | ASUS LAN Guard |
| Audio | Realtek ALC887 8-Channel High Definition Audio Codec | Audio Feature: | - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path | - audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| USB Ports | Intel B250 Chipset: | 1x USB 3.0 Port (1x at back panel, Type-C, Reversible, Support 3A power output) | Intel B250 Chipset: | 4x USB 3.0/2.0 Ports (2 at back panel, Type-A, 2x at mid-board) | Intel B250 Chipset: | 6x USB 2.0/1.1 Ports (4x at back panel, Type-A, 2x at mid-board) |
| Special Features | ASUS 5X Protection III: | - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage | - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges | - ASUS Overvoltage Protection: World-class circuit-protecting power design | - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability | - ASUS DIGI+ VRM: 6 Phase digital power design | ASUS EPU: | - EPU | ASUS Exclusive Features: | - AI Suite 3 | - Ai Charger | - Low EMI Solution | - ESD Guards | - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | ASUS Quiet Thermal Solution: | - Stylish Fanless Design Heat-sink solution | - ASUS Fan Xpert 2+ | ASUS EZ DIY: | - ASUS CrashFree BIOS 3 | - ASUS EZ Flash 3 | - ASUS MyLogo 2 | - ASUS UEFI BIOS EZ Mode | ASUS Q-Design: | - ASUS Q-Slot | - ASUS Q-DIMM | Digi+VRM | M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |
| Back I/O Ports | 1x PS/2 Keyboard / Mouse Combo Port | 1x DVI-D | 1x D-Sub | 1x HDMI | 1x LAN (RJ45) Port | 1x USB 5Gb/s Port(s) Type-C (support 3A power output) | 2x USB 3.0 (blue) | 4x USB 2.0 | 3x Audio Jacks |
| Internal I/O Ports | 1x USB 3.0 Connector Supports Additional 2x USB 3.0 Ports | 1x USB 2.0 Connector Supports Additional 2x USB 2.0 Ports | 2x M.2 Socket 3 | 1x COM Port | 6x SATA 6Gb/s Connectors | 1x CPU Fan Connector (1 x 4 -pin) | 2x Chassis Fan Connectors (2 x 4 -pin) | 1x S/PDIF Out Headers | 1x 24-pin EATX Power Connector | 1x 8-pin ATX 12V Power Connector | 1x Front Panel Audio Connector (AAFP) | 1x Clear CMOS Jumper | 1x System Panel Connector |
| Accessories | User's Manual | I/O Shield | 2x SATA 6Gb/s Cables | 2x M.2 Screws | 1x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Support Disc | Drivers | ASUS Utilities | EZ Update | Anti-virus software (OEM version) |
| Operating System | Windows 10 64-bit | Windows 8.1 64-bit | Windows 7 32-bit | Windows 7 64-bit |
| Form Factor | ATX Form Factor | 30.5 x 21.8 cm | Warranty Information |
| Warranty | 3 Year Warranty |
