| SPECIFICATIONS | |
| Brand | ASUS |
| Series | PRIME B560 |

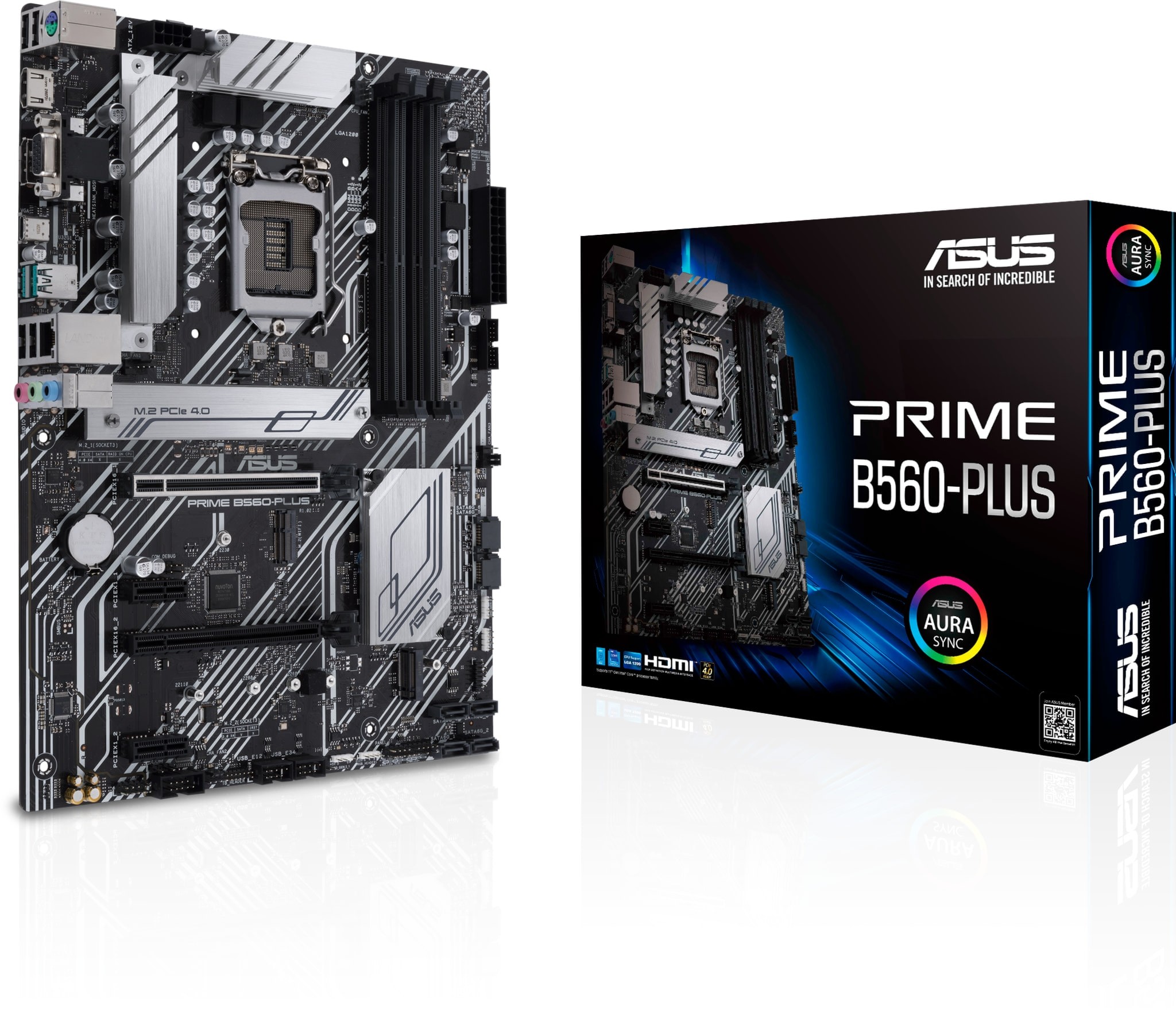

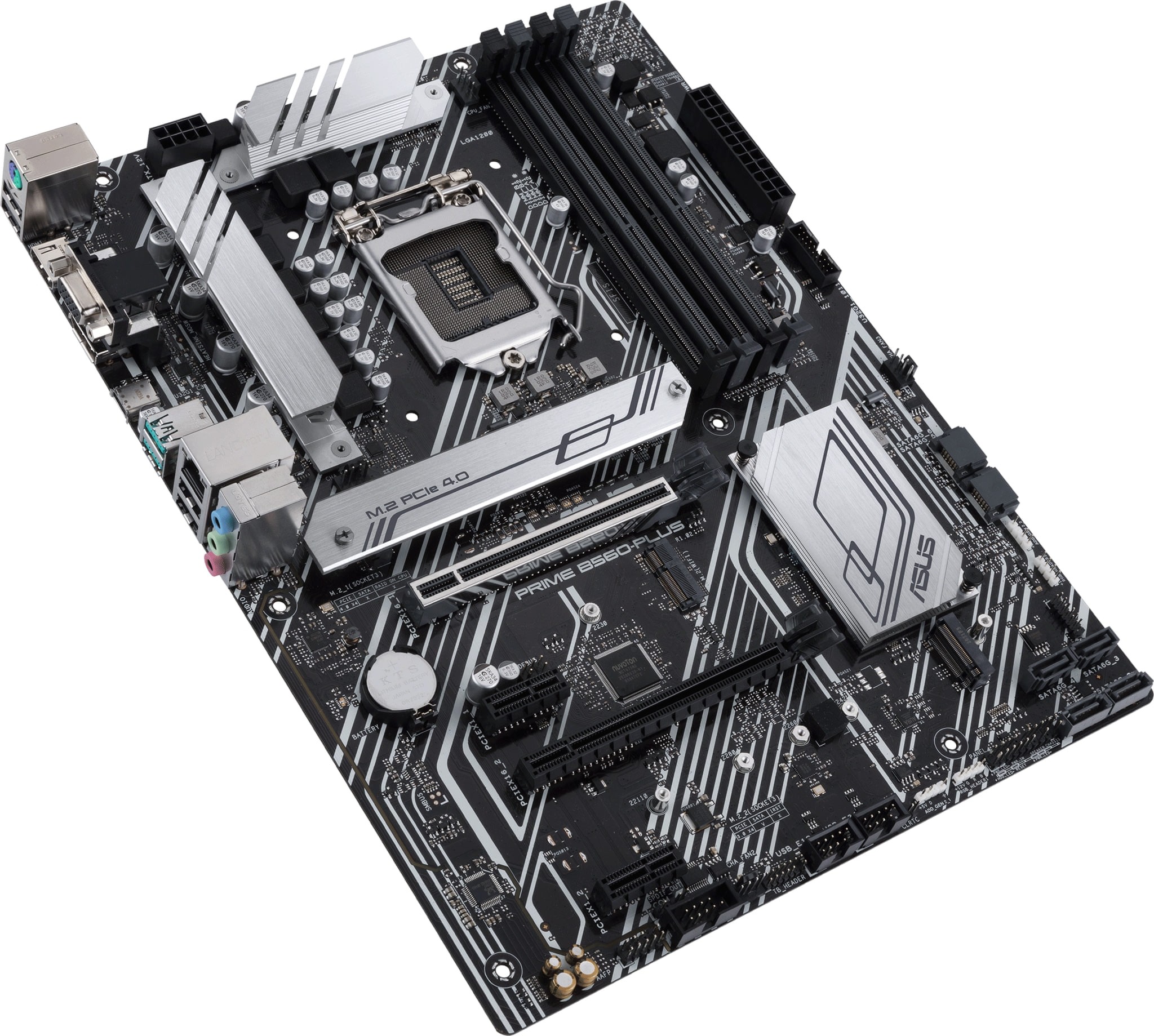

| Model | PRIME B560-PLUS |
| CPU | Intel Socket LGA1200 for 11th Gen Intel |
| Core processors & 10th Gen Intel Core, Pentium Gold and Celeron | |
| Processors | |
| Supports Intel 14nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Intel B560 Chipset |
| Memory | 4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory |
| Dual channel memory architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| ASUS OptiMem | |
| * 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. | |
| * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz. | |
| Graphics | 1 x DP 1.4 |
| 1 x HDMITM 1.4 / 2.0 | |
| 1 x D-Sub | |
| Expansion Slots | Intel 11th &10th Gen Processors |
| 1 x PCIe 4.0/3.0 x16 slot* | |
| - Intel 11th processors support PCIe 4.0 x16 | |
| - Intel10th processors support PCIe 3.0 x16 | |
| Intel B560 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode)* | |
| 2 x PCIe 3.0 x1 slots | |
| *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory. | |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel 11th Gen Processors | |
| -M.2_1slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ) | |
| -Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | |
| Intel B560 Chipset | |
| -M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode* | |
| -6 x SATA 6Gb/s ports | |
| * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. | |
| Ethernet | Intel I219-V |
| ASUS LANGuard | |
| Wireless & Bluetooth | M.2 slot only(Key E,CNVi & PCIe) |
| USB | Rear USB (Total 7 ports) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 1x USB 3.2 Gen 1 port (1 x USB Type-C) | |
| 4 x USB 2.0 ports | |
| Front USB (Total 6 ports) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC* |
| - Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. | |

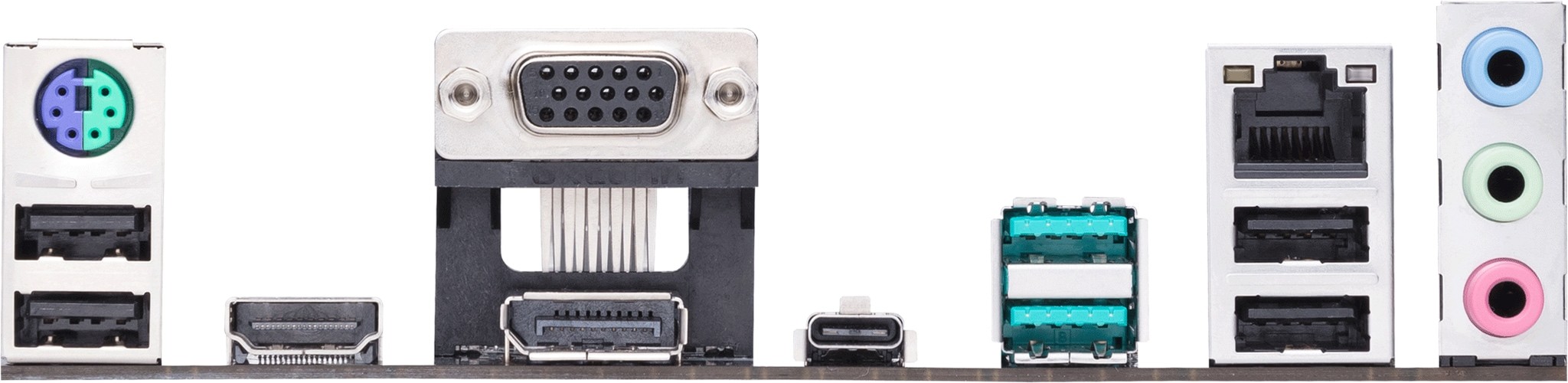

| Back Panel I/O Ports | 1 x DP port |
| 1 x HDMI port | |
| 1 x D-Sub port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| 1 x Intel I219-V 1Gb Ethernet port | |
| 4 x USB 2.0 Type-A ports | |
| 2 x USB 3.2 Gen 2 Type-A ports | |
| 1 x USB 3.2 Gen 1 Type-C port | |
| Internal I/O Connectors | Fan and cooling-related |
| 1x 4-pin CPU Fan header | |
| 3x 4-pin Chassis Fan headers | |
| Power related | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin +12V Power connector | |
| Storage related | |
| 2x M.2 slots (Key M) | |
| 6x SATA 6Gb/s ports | |
| USB | |
| 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 2x AURA Addressable Gen 2 headers | |
| 2x AURA RGB headers | |
| 1x Clear CMOS jumper | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x S/PDIF out header | |
| 1x 20-3pin System Panel header with | |
| Chassis intrude function | |
| 1x SPI TPM header (14-1 pin) | |
| 1x M.2 slot (key E) | |
| 1x Thunderbolt 4 header | |
| BIOS | 128 Mb Flash ROM |
| UEFI AMI BIOS | |
| Form Factor | ATX Form Factor |
| 30.5cm x 23.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
