| SPECIFICATIONS | |
| Brand | ASUS |
| Series | Prime Series |
| Model | 90MB1AE0-M0EAY0 |
| CPU | Intel Socket LGA 1700 for 12th Gen Intel Core, Pentium Gold And Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0 | |
| Refer To www.Asus.Com For CPU Support List | |
| Intel Turbo Boost Max Technology 3.0 Support Depends On The CPU Types | |
| Chipset | Intel B660 Chipset |
| Memory | 4x DIMM, Max. 128GB,DDR4 |
| 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Actual Memory Data Rate Depends On The CPU Types And DRAM Modules, For More Information Refer To www.Asus.Com For Memory Support List | |
| Graphics | 1x DisplayPort |
| 2x HDMI Ports | |
| Graphics Specifications May Vary Between CPU Types. Please Refer To www.Intel.Com For Any Updates | |
| Supports Max. 4K@60Hz As Specified In DisplayPort 1.4 | |
| Supports 4K@60Hz As Specified In HDMI 2.1 | |
| Expansion Slots | |
| CPU Native | 1x PCIe 4.0/3.0 x16 Slot |
| Intel B660 Chipset | 1x PCIe 3.0 x16 Slot (Supports x4 Mode) |
| 1x PCIe 3.0 x16 Slot (Supports x1 Mode) | |
| Supports Intel Optane Memory H Series On PCH-Attached PCIe Slot | |
| Storage | Supports 2x M.2 Slots And 4x SATA 6Gb/s Ports |
| CPU Native | M.2_1 slot (Key M),Type 2242/2260/2280 |
| Intel 12th Gen Processors Support PCIe 4.0 x4 Mode | |
| Intel B660 Chipset | M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 x4 Mode) |
| 4x SATA 6Gb/s Ports | |
| Intel Rapid Storage Technology Supports SATA RAID 0/1/5/10. | |
| Intel Rapid Storage Technology Supports Intel Optane Memory H Series On PCH-Attached M.2 Slots | |
| Ethernet | 1x Intel 1Gb Ethernet |
| Wireless & Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Supports 2.4/5GHz Frequency Band | |
| Bluetooth v5.2 | |
| USB | 2x USB 3.2 Gen 2 Ports (2x Type-A ) |
| 4x USB 2.0 Ports (4x Type-A) | |
| 2x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports | |
| 1x USB 3.2 Gen 1 Connector (Supports USB Type-C) | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| 1x USB 2.0 Headers Support Additional 1 USB 2.0 Port | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | |
| Supports Up to 24-Bit/192 kHz Playback | |
| Audio Features | Premium Audio Capacitors |
| Dedicated Audio PCB Layers | |
| A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output | |

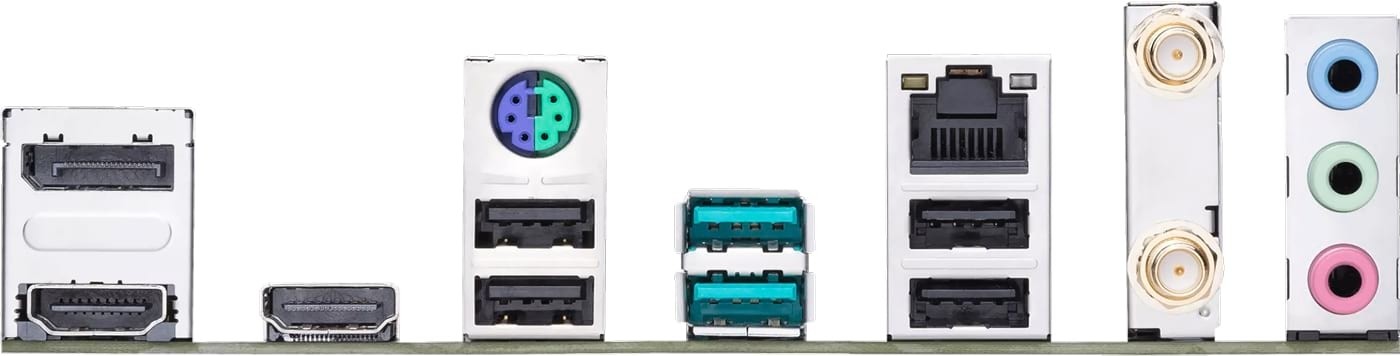

| Back Panel I/O Ports | 2x USB 3.2 Gen 2 Ports (2x Type-A ) |
| 4x USB 2.0 Ports (4x Type-A) | |
| 1x DisplayPort | |
| 2x HDMI Ports | |
| 1x Wi-Fi Module | |
| 1x Intel 1Gb Ethernet Port | |
| 3x Audio Jacks | |
| 1x PS/2 Keyboard/Mouse Combo Port | |
| Internal I/O Connectors | |
| Fan and Cooling related | 1x 4-Pin CPU Fan Header |
| 1x 4-pin CPU OPT Fan Header | |
| 2x 4-pin Chassis Fan Header | |
| Power Related | 1x 24-pin Main Power Connector |
| 1x 8-pin 12V Power Connector | |
| Storage Related | 2x M.2 Slots (Key M) |
| 4x SATA 6Gb/s ports | |
| USB | 2x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports |
| 1x USB 3.2 Gen 1 Connector (Supports USB Type-C) | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| 1x USB 2.0 Header Support 1 USB 2.0 Port | |
| Miscellaneous | 3x AURA Addressable Gen 2 Headers |
| 1x AURA RGB Header | |
| 1x Clear CMOS Header | |
| 1x COM Port Header | |
| 1x Front Panel Audio Header (AAFP) | |
| 1x LPT Header | |
| 1x S/PDIF Out Header | |
| 1x SPI TPM Header (14-1 Pin) | |
| 1x 20-3 Pin System Panel Header With Chassis Intrude Function | |
| Special Features | |
| ASUS 5X PROTECTION III | DIGI VRM |
| Enhanced DRAM Overcurrent Protection | |
| ESD Guards | |
| LANGuard | |
| Overvoltage Protection | |
| SafeSlot Core | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | Q-DIMM |
| Q-Slot | |
| ASUS Thermal Solution | M.2 Heatsink |
| VRM Heatsink Design | |
| ASUS EZ DIY | ProCool |
| AURA Sync | AURA RGB Header |
| Addressable Gen 2 RGB Headers | |
| Software Features | |
| Armoury Crate | AURA Creator |
| AURA Sync | |
| Fan Xpert 2 | |
| AI Suite 3 | Performance And Power Saving Utility |
| TurboV EVO | |
| EPU | |
| Digi VRM | |
| ASUS CPU-Z | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | ASUS EZ DIY |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | |
| Cables | 2x SATA 6Gb/s cables |
| Miscellaneous | 1x ASUS Wi-Fi Moving Antennas |
| 1x I/O Shield | |
| 1x M.2 Rubber Package | |
| 1x M.2 SSD Screw Package | |
| Installation Media | 1x Support DVD |
| Documentation | 1x User manual |
| Form Factor | MicroATX |
| 244 x 244mm (L x W) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
