| SPECIFICATIONS | |
| Brand | Asus |
| Series | Prime Motherboards |

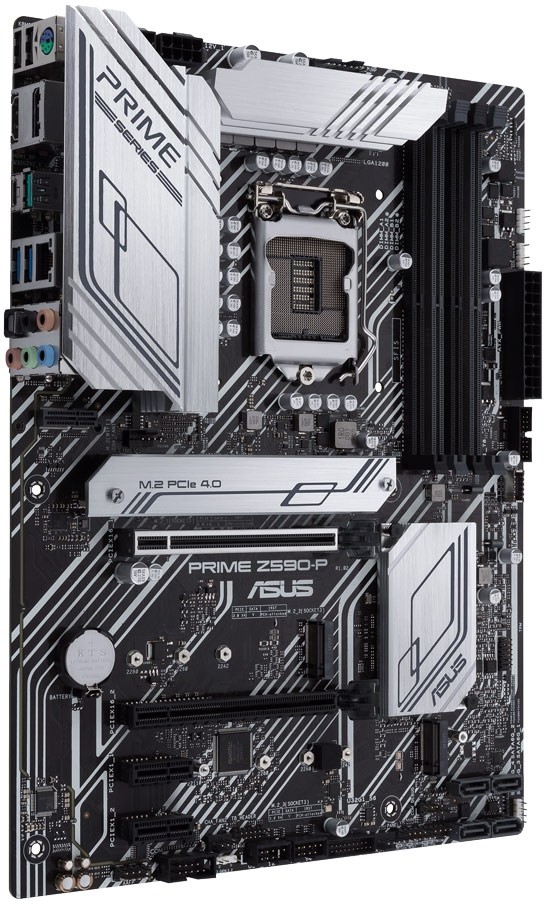

| Model | PRIME Z590-P |
| CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel 14 nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 *1 | |
| Chipset | Intel Z590 Chipset |
| Memory | 4x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-Buffered Memory *2 |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Graphics | 1x DisplayPort 1.4 *3 |
| 1x HDMI 1.4 / 2.0 *4 | |
| (Graphics Specifications May Vary Between CPU Types.) | |
| Expansion Slots | Intel 11th & 10th Gen Processors *5 |
| 1x PCIe 4.0/3.0 x16 Slot | |
| Intel 11th Gen Processors Support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 Modes | |
| Intel 10th Gen Processors Support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 Modes | |
| Intel Z590 Chipset | |
| 1x PCIe 3.0 x16 Slot (Supports x4 Mode) | |
| 2x PCIe 3.0 x1 Slots | |
| Storage | Total Supports 3x M.2 Slots and 4x SATA 6Gb/s Ports |
| Intel 11th Gen Processors | |
| M.2_1 Slot (Key M), Type 2242/2260/2280/22110 | |
| (Only Intel 11th Gen Processors Support PCIe 4.0 x4 Mode, This Slot Will be Disabled for Other CPUs) | |
| Intel Z590 Chipset | |
| M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 x4 & SATA Modes) *6 | |
| M.2_3 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 3.0 x4 & SATA Modes) | |
| 4x SATA 6Gb/s Ports | |
| (Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.) | |
| Ethernet | 1x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | V-M.2 Slot Only (Key E, CNVi & PCIe) *7 |
| USB | Rear USB (Total 6 Ports) |
| 1x USB 3.2 Gen 2x2 Port (1x USB Type-C) | |
| 1x USB 3.2 Gen 2 Port (1x Type-A) | |
| 2x USB 3.2 Gen 1 Ports (2x Type-A) | |
| 2x USB 2.0 Ports (2x Type-A) | |
| Front USB (Total 9 Ports) | |
| 1x USB 3.2 Gen 1 Connector (Supports USB Type-C) | |
| 2x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports *8 | |
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC |
| Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | |
| Supports Up to 24-Bit/192 kHz Playback | |
| Audio Features | |
| Audio Shielding | |
| Rear Optical S/PDIF Out Port | |
| Premium Japanese Audio Capacitors | |
| Dedicated Audio PCB Layers | |
| Back Panel I/O Ports | 1x USB 3.2 Gen 2x2 Port (1x USB Type-C) |
| 1x USB 3.2 Gen 2 Port (1x Type-A) | |
| 2x USB 3.2 Gen 1 Ports (2x Type-A) | |
| 2x USB 2.0 Ports (2x Type-A) | |
| 1x DisplayPort | |
| 1x HDMI Port | |
| 1x V-M.2 Slot (Key E) | |
| 1x Realtek 2.5Gb Ethernet Port | |
| 5x Audio Jacks | |
| 1x Optical S/PDIF Out Port | |
| 1x PS/2 Keyboard/Mouse Combo Port | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1x 4-pin CPU Fan Header | |
| 1x 4-pin AIO Pump Header | |
| 3x 4-pin Chassis Fan Headers | |
| Power Related | |
| 1x 24-pin Main Power Connector | |
| 1x 8-pin +12V Power Connector | |
| 1x 4-pin +12V Power Connector | |
| Storage Related | |
| 3x M.2 Slots (Key M) | |
| 4x SATA 6Gb/s Ports | |
| USB | |
| 1x USB 3.2 Gen 1 Connector (Supports USB Type-C) | |
| 2x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| Miscellaneous | |
| 2x AURA Addressable Gen 2 Headers | |
| 2x AURA RGB Headers | |
| 1x Clear CMOS Header | |
| 1x COM Port Header | |
| 1x Front Panel Audio Header (AAFP) | |
| 1x SPI TPM Header (14-1pin) | |
| 1x 20-5pin System Panel Header | |
| 1x Thunderbolt Header | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System Support | Windows 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) | |
| Package Content | Cables |
| 2x SATA 6Gb/s Cables | |
| Miscellaneous | |
| 1x I/O Shield | |
| 1x M.2 Rubber Package | |
| 2x M.2 SSD Screw Packages | |
| Installation Media | |
| 1x Support DVD | |
| Documentation | |
| 1x User Manual | |
| Notes | *1 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| *2 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively. | |
| *3 Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. | |
| *4 Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. | |
| *5 Supports PCIe bandwidth bifurcation for RAID on CPU function. | |
| *6 When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used. | |
| *7 Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. | |
| *8 USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. | |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- an awesome motherboard - Cyril, 23 May 2022
I was finally able to build my PC with this motherboard, I got to say the performance is and it's performing.
The only downside of my build was the IO Pump not working where I had to resort to using the stock cooler,
but overall I'm very happy with this motherboard, the i5-11600k CPU and the 16GB 3600Mhz G-skill rams (except the liquid cooler) supplied by wootware and their exceptional customer service by Joshua and the team. - Took hours to get working - Dirk, 7 May 2022
Got new mb cpu and memory, powered on but board didn't want to use full 3200 speed of the memory, keeps freezing , or boot into any drive except a usb.
