| SPECIFICATIONS | |
| Brand | ASUS |
| Series | Prime |

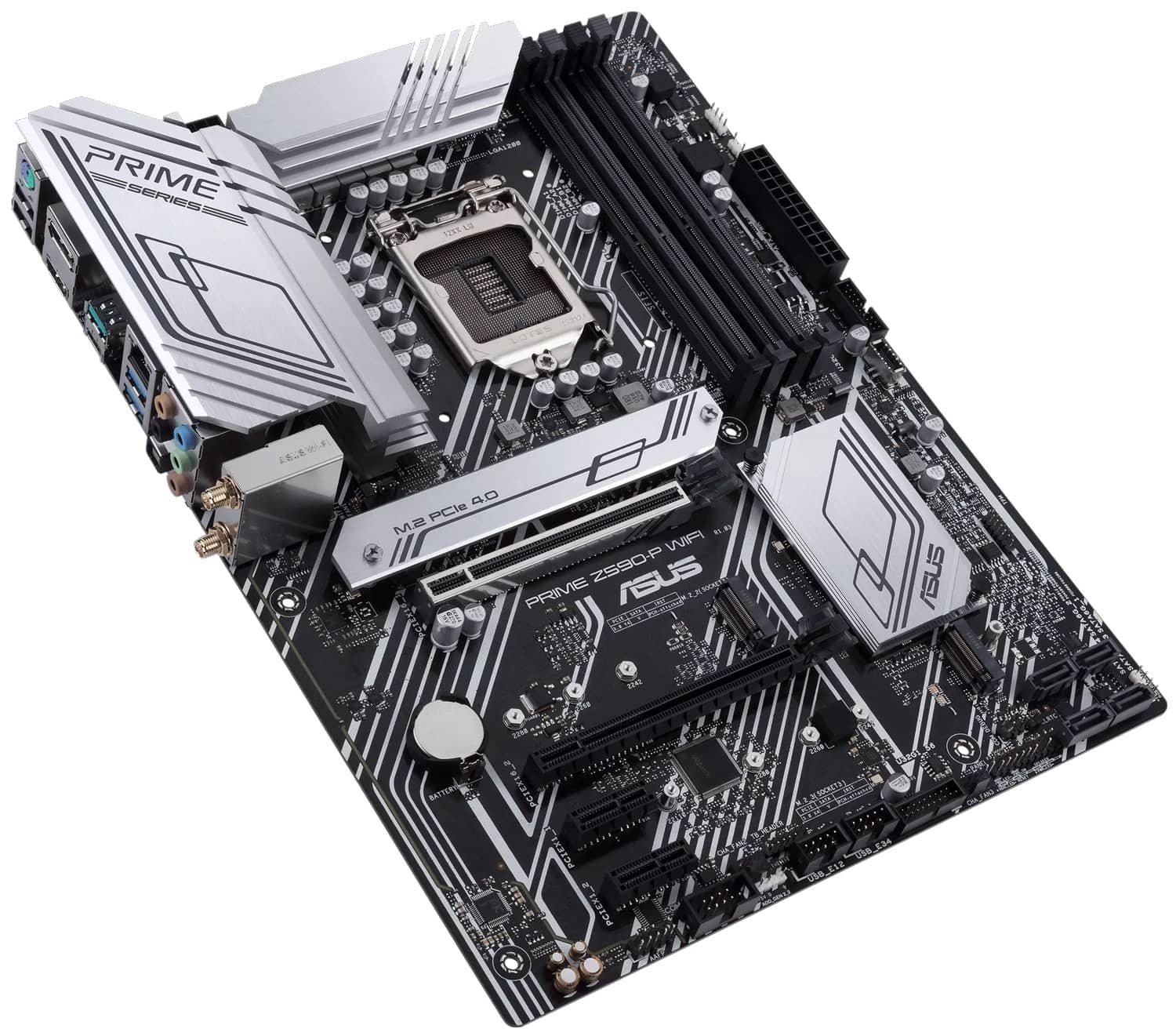

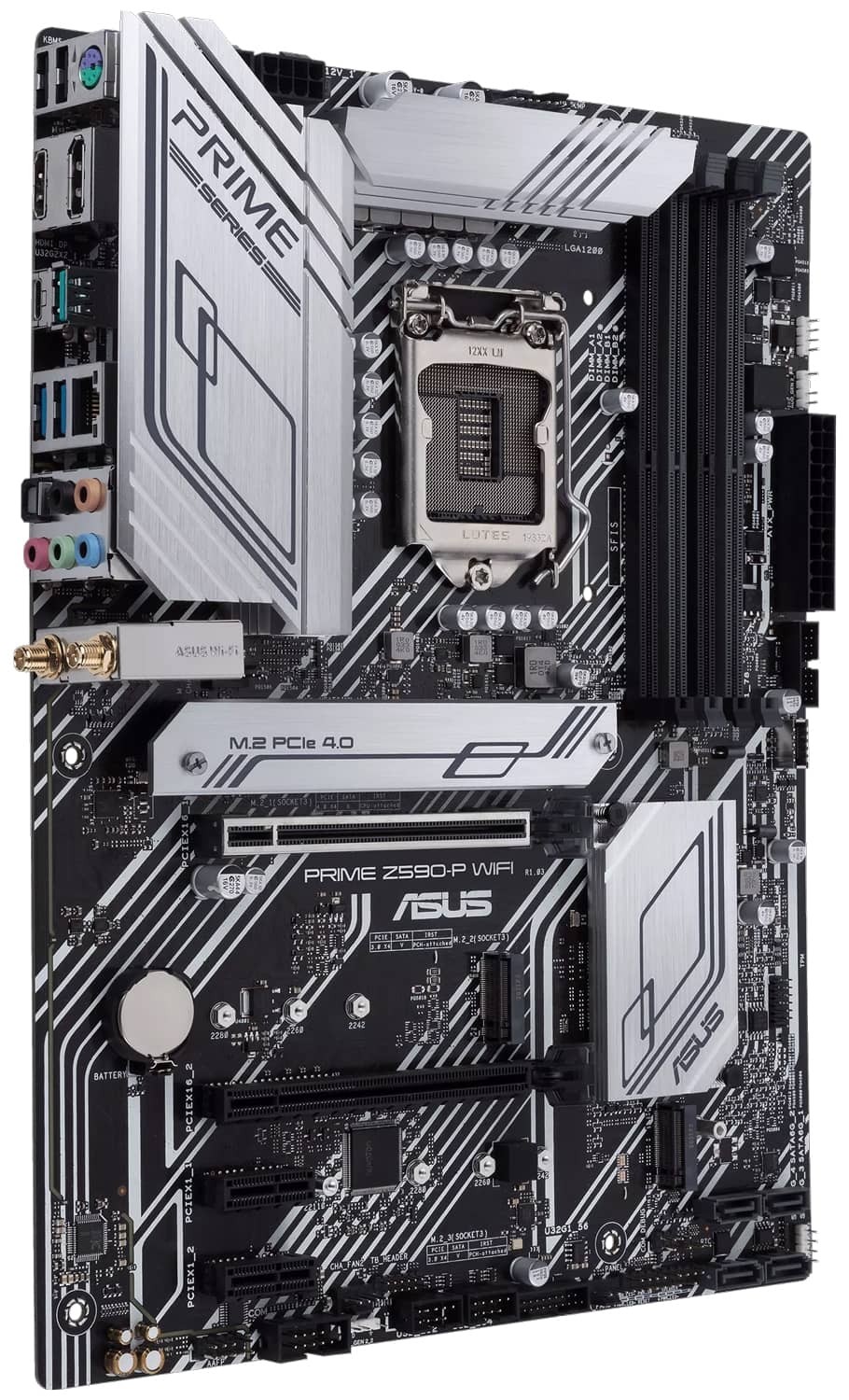

| Model | ASUS PRIME Z590-P WIFI |
| CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z590 |
| Memory | 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports IntelExtreme Memory Profile (XMP) | |
| OptiMem II | |
| Graphics | Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz |
| Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz | |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 1 x PCIe 3.0 x16 (max. x4) |
| Intel 11th & 10th Gen Processors* | |
| 1 x PCIe 4.0/3.0 x16 slot | |
| - Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes | |
| - Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes | |
| Intel Z590 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| 2 x PCIe 3.0 x1 slots | |
| * Supports PCIe bandwidth bifurcation for RAID on CPU function | |
| Storage | Intel 11th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | |
| Intel Z590 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. | |
| To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. | |
| * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used | |
| Ethernet | ASUS LANGuard |
| USB | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB:Total 9 ports | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C) | |
| 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports* | |
| * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth | |
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x ASUS Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V Power connector | |
| 1 x 4-pin 12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C) | |
| 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 2 x AURA Addressable Gen 2 headers | |
| 2 x AURA RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5pin System Panel header | |
| 1 x Thunderbolt header | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI VRM (- Digital power design with DrMOS) | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - Flexible M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - ProCool | |
| AURA Sync | |
| - AURA RGB headers | |
| - Addressable Gen 2 RGB headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Sync | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| DIGI VRM | |
| Fan Xpert 4 | |
| - EZ update | |
| ASUS CPU-Z | |
| AI Charger | |
| DAEMON Tools | |
| MyASUS | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 192 (128 64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x I/O Shield | |
| 1 x M.2 Rubber Package | |
| 2 x M.2 SSD screw packages | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User manual | |
| Form Factor | ATX |
| 30.5cm x 23.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
