| SPECIFICATIONS | |
| Brand | ASUS |
| Series | PRIME |

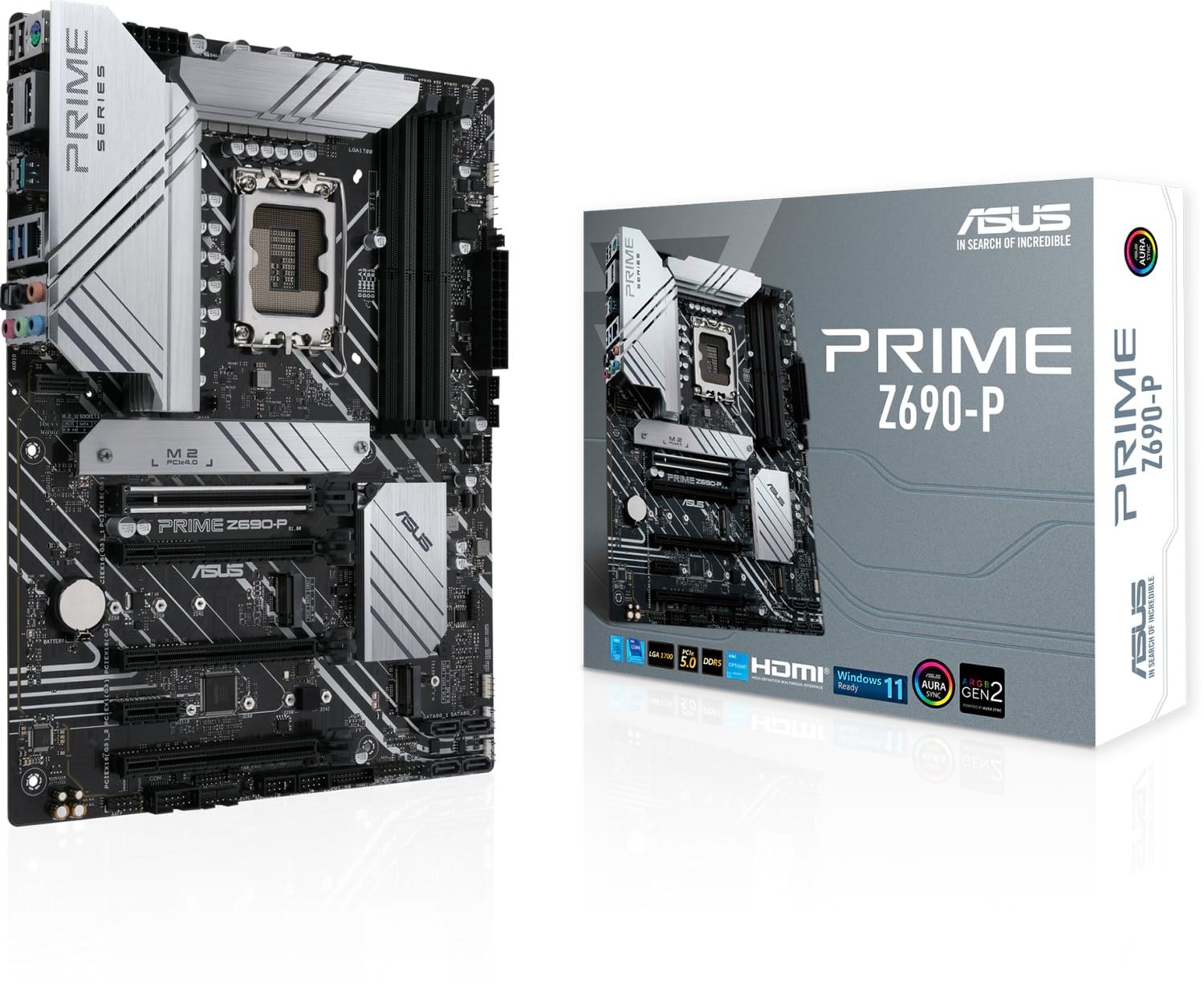

| Model | PRIME Z690-P |
| CPU | Intel Socket LGA1700 for 12th Gen Intel Alder Lake Core Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Intel Z690 Chipset |
| Memory | 4x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-Buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Graphics | 1x DisplayPort, Support Max. 4K@60Hz As Specified In DisplayPort 1.4. |
| 1x HDMI, Support 4K@60Hz As Specified In HDMI 2.1 | |
| Expansion Slots | |
| CPU Native | 1x PCIe 5.0/4.0/3.0 x16 Slot |
| Intel Z690 Chipset | 1x PCIe 4.0/3.0 x16 Slot (Supports x4 Mode) |
| 2x PCIe 3.0 x16 Slots (Support x4 Mode) | |
| 1x PCIe 3.0 x1 Slot | |
| Storage | |
| CPU Native | M.2_1 Slot (Key M), Type 2242/2260/2280/22110 |
| Intel 12th Gen Processors Support PCIe 4.0 x4 Mode | |
| Intel Z690 Chipset | M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 x4 Mode) |
| M.2_3 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 & SATA Modes) | |
| 4x SATA 6Gb/s Ports | |
| Intel Rapid Storage Technology Supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| Intel Rapid Storage Technology Supports Intel Optane Memory H Series On PCH Attached M.2 Slots. | |
| Ethernet | ASUS LANGuard |
| 1x Realtek 2.5Gb Ethernet | |
| Wireless & Amp; Bluetooth | V-M.2 Slot (Key E, CNVi & Amp; PCIe) |
| Wi-Fi Module and Vertical M.2 Key E Bracket Set Are Purchased Separately | |
| USB | 1x USB 3.2 Gen 2x2 Port (1x USB Type-C) |
| 1x USB 3.2 Gen 2 Port (1 x Type-A) | |
| 2x USB 3.2 Gen 1 Ports (2 x Type-A) | |
| 2x USB 2.0 Ports (2 x Type-A) | |
| 1x USB 3.2 Gen 1 Connector (Supports USB Type-C) | |
| 2x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| USB_E1 Port, USB_E2 Port, USB_E3 Port and USB_E4 Port Share The Bandwidth | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | |
| Supports Up to 24-Bit/192 kHz Playback | |
| Audio Features | Audio Shielding |
| Rear Optical S/PDIF Out Port | |
| Premium Audio Capacitors | |
| Dedicated Audio PCB layers | |
| Back Panel I/O Ports | 1x USB 3.2 Gen 2x2 Port (1 x USB Type-C) |
| 1x USB 3.2 Gen 2 Port (1 x Type-A) | |
| 2x USB 3.2 Gen 1 Ports (2 x Type-A) | |
| 2x USB 2.0 Ports (2 x Type-A) | |
| 1x DisplayPort | |
| 1x HDMI Port | |
| 1x V-M.2 Slot (Key E) | |
| 1x Realtek 2.5Gb Ethernet Port | |
| 5x Audio Jacks | |
| 1x Optical S/PDIF Out Port | |
| 1x PS/2 Keyboard/Mouse Combo Port | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1x 4-Pin CPU Fan Header | |
| 1x 4-Pin CPU OPT Fan Header | |
| 1x 4-Pin AIO Pump Header | |
| 3x 4-Pin Chassis Fan Headers | |
| Power Related | |
| 1x 24-Pin Main Power Connector | |
| 1x 8-Pin 12V Power Connector | |
| 1x 4-pin 12V Power Connector | |
| Storage Related | |
| 3x M.2 Slots (Key M) | |
| 4x SATA 6Gb/s Ports | |
| USB | |
| 1x USB 3.2 Gen 1 Connector (Supports USB Type-C) | |
| 2x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| Miscellaneous | |
| 3x Addressable Gen 2 Headers | |
| 2x AURA RGB Headers | |
| 1x Clear CMOS Header | |
| 1x COM Port Header | |
| 1x Front Panel Audio Header (AAFP) | |
| 1x SPI TPM Header (14-1pin) | |
| 1x 20-5pin System Panel Header | |
| 1x Thunderbolt Header | |
| Special Features | ASUS 5X PROTECTION III |
| DIGI VRM (- Digital power Design with DrMOS) | |
| LANGuard | |
| Overvoltage Protection | |
| SafeSlot | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| Q-DIMM | |
| Q-Slot | |
| ASUS Thermal Solution | |
| Flexible M.2 Heatsink | |
| VRM Heatsink Design | |
| ASUS EZ DIY | |
| ProCool | |
| AURA Sync | |
| AURA RGB Headers | |
| Addressable Gen 2 RGB Headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| AURA Sync | |
| Fan Xpert 4 | |
| AI Suite 3 | |
| Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| DIGI VRM | |
| ASUS CPUZ | |
| Norton Antivirus Software (Free Trial Version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 192 (128 64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2x SATA 6Gb/s Cables | |
| Miscellaneous | |
| 1x I/O Shield | |
| 1x M.2 Rubber Package | |
| 2x M.2 SSD screw packages | |
| Installation Media | |
| 1x Support DVD | |
| Documentation | |
| 1x User Guide | |
| Form Factor | ATX |
| 30.5cm x 23.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
