| SPECIFICATIONS |
| Brand | ASUS |
| Series | Pro WS Series |

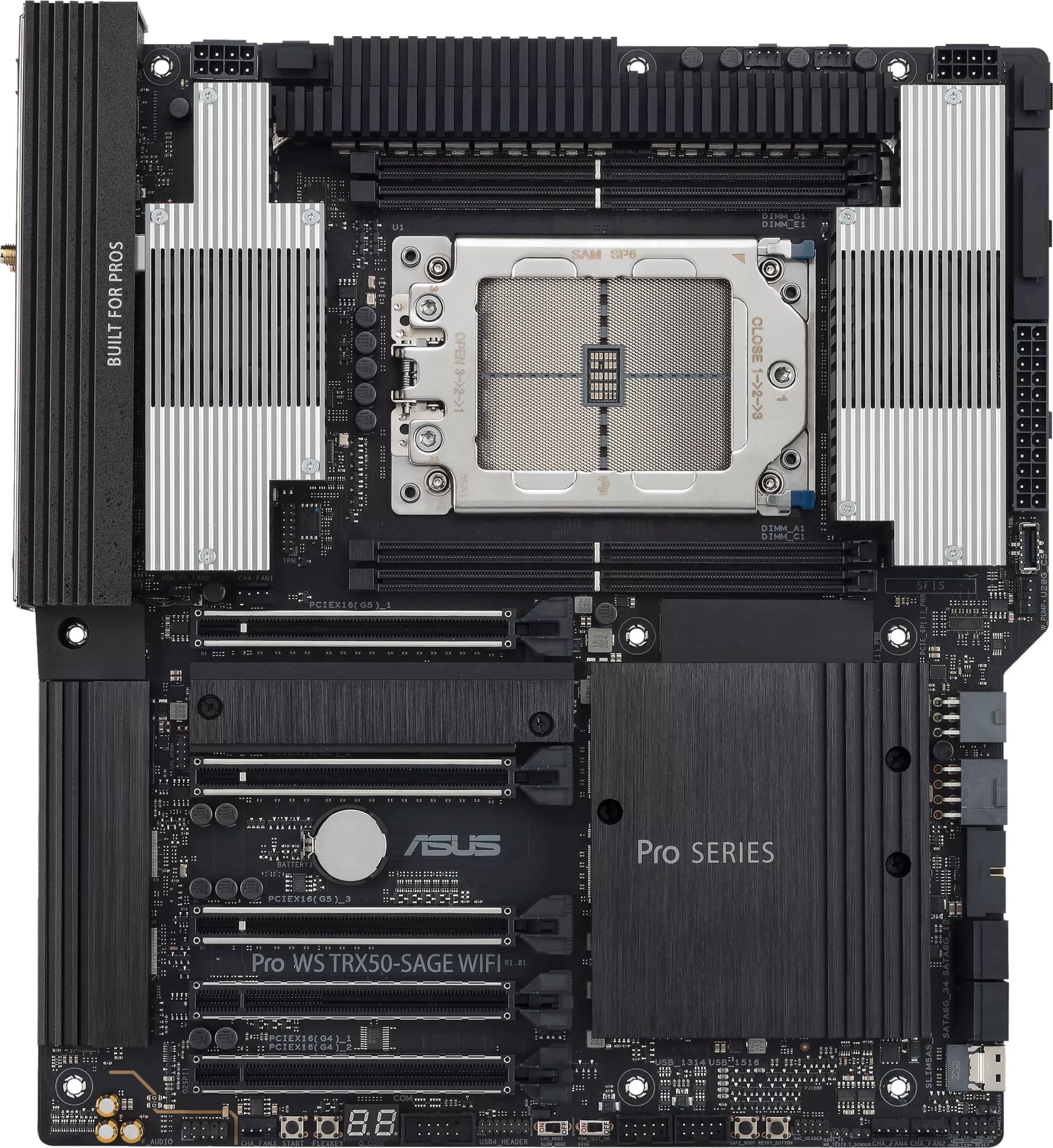

| Model | PRO WS TRX50-SAGE WIFI (90MB1FZ0-M0EAY0) |
| CPU Support | Supports AMD Ryzen Threadripper PRO 7000 & future processors |
| Supports AMD Ryzen Threadripper 7000 & future processors |
| Chipset | AMD TRX50 |
| Memory Support |
| AMD Ryzen 7000 Series | Support for DDR5 6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) |
| 4x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory |
| Quad channel memory architecture |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Expansion Slots |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical |
| 1x PCIe 5.0 x16 Physical, x16 Electrical |
| 1x PCIe 5.0 x16 Physical, x8 Electrical |
| 1x PCIe 4.0 x16 Physical, x16 Electrical |
| 1x PCIe 4.0 x16 Physical, x4 Electrical |
| Storage |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| AMD TRX50 Chipset | M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) |
| 4x SATA 6Gb/s Ports |
| 1x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device |
| Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| Networking |
| LAN | Marvell AQtion AQC113C 10 Gigabit Ethernet RJ-45 Adapter (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Intel i226-LM 2.5Gb Ethernet RJ-45 Adapter (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | WiFi 7 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio |
| Codec | Realtek ALC1220P CODEC |
| Impedance sense for front and rear headphone outputs |
| Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| Supports up to 32-Bit/192 kHz playback |
| Connectivity |
| Ports | 1x USB 20Gbps port (1 x USB Type-C) |
| 6x USB 10Gbps ports (6 x Type-A) |
| 2x USB 2.0 port (2 x Type-A) |
| 1x Wi-Fi Module |
| 1x Marvell AQtion 10Gb Ethernet port |
| 1x Intel 2.5Gb Ethernet port |
| 2x Audio jacks |
| 1x Optical S/PDIF out port |
| Buttons | 1x BIOS FlashBack button |
| 1x Clear CMOS button |
| General |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header |
| 1x W_PUMP header |
| 4x 4-pin Chassis Fan headers |
| 2x 4-pin VRM Fan header (with VRM FAN onboard) |
| 2x 24-pin Main Power connectors |
| 2x 8-pin 12V Power connectors |
| 2x 8-pin PCIe to CPU power connectors |
| 1x 6-pin PCIe Power connector |
| 1x 8-pin PCIe Power connector |
| 3x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| 1x SlimSAS port |
| 1x USB 20Gbps connector supports USB Type-C |
| 1x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports |
| 1x BMC header1 x COM Port header |
| 1x USB4 header1 x FlexKey button |
| 1x Front panel audio header (F_AUDIO) |
| 1x Start button |
| 1x Safe boot button |
| 1x ReTry button1 x LN2 mode jumper |
| 1x Slow mode switch |
| 1x SPI TPM header (14-1pin) |
| 1x 10-1 pin system panel header |
| 1x Chassis intrusion header |
| 1x Thermal Sensor header |
| I/O Controller | N/A |
| LED Displays | 7-Segment Debug POST Code LED Display |
| BIOS | 256Mb UEFI AMI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | SSI-CEB Form Factor, 305 x 280mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Accessories | 2x SATA 6Gb/s cables |
| 1x CPU 8-pin to PCIe 8-pin adapter cable package |
| 1x Thermistor cable pack |
| 1x ASUS 2x2 Dual-Band Wi-Fi moving antennas |
| 1x M.2 Q-Latch package(2 in 1) |
| 2x M.2 Rubber Packages |
| 1x Q-connectorDocumentation |
| 1x ACC Express Activation Key Card |
| 1x QSG |
| Warranty Information |
| Warranty | 5 Year Warranty |
