| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ProArt |

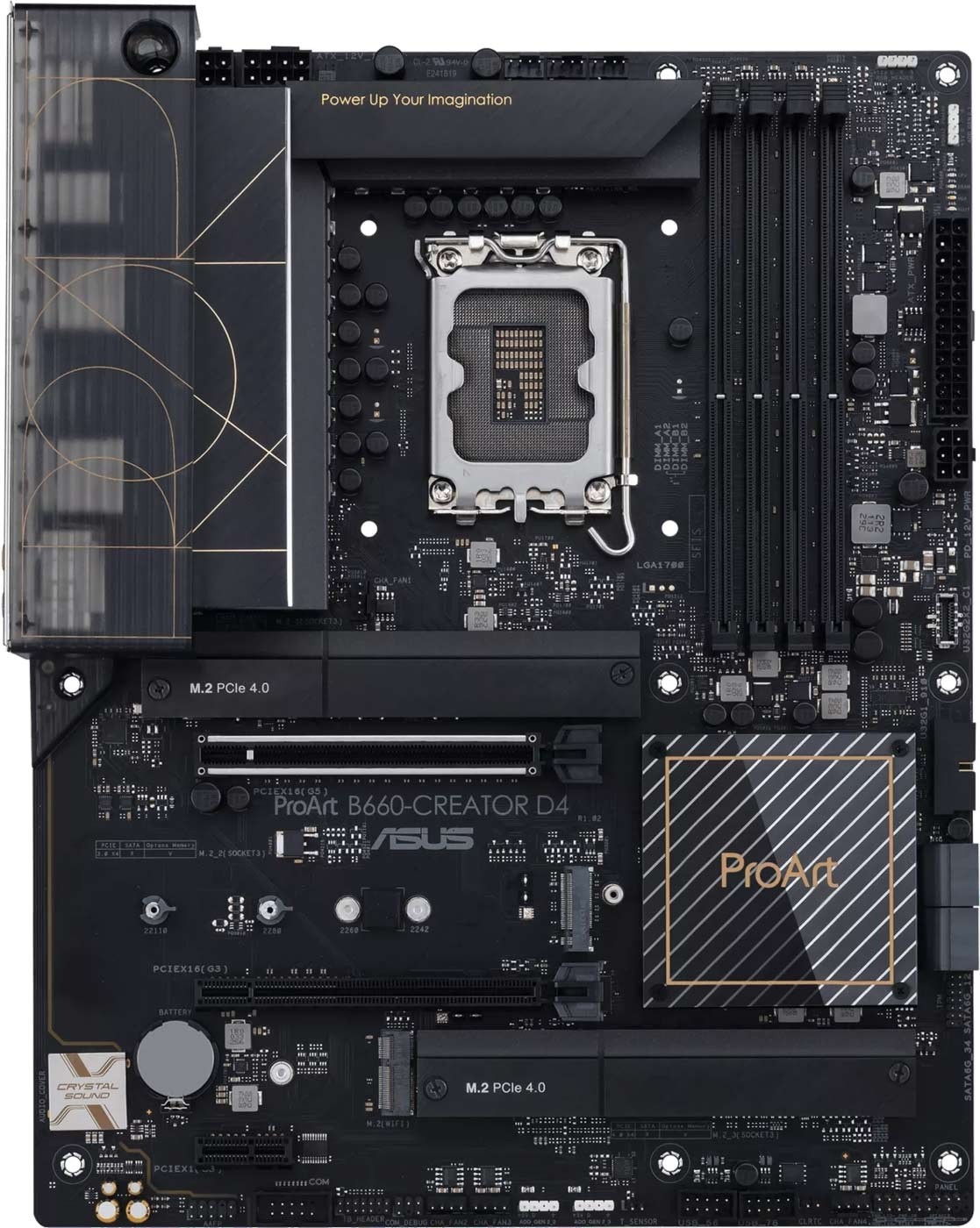

| Model | ASUS ProArt B660-CREATOR D4 |
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Refer to www.asus.com for CPU support list | |
| Intel Turbo Boost Max Technology 3.0 support depends on the CPU types | |
| Chipset | Intel B660 |
| Memory | 4x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-Buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Actual Memory Data Rate Depends On The CPU Types and DRAM Modules, For More Information Refer To www.asus.com For The Memory QVL (Qualified Vendors Lists). | |
| Graphics | 1x DisplayPort In (That Will Have Output Through Type-C Port) |
| 1x HDMI port | |
| Graphics Specifications May Vary Between CPU Types. Please Refer To www.intel.com For Any Updates | |
| Supports max. 4K@60Hz as specified in DisplayPort 1.4 | |
| Supports 4K@60Hz as specified in HDMI 2.1 | |
| Expansion Slots | |
| CPU Native | 1x PCIe 5.0/4.0/3.0 x16 Slot |
| Intel H670 Chipset | 1x PCIe 3.0 x16 Slot (Supports x4 Mode) |
| 2x PCIe 3.0 x1 Slots | |
| PCIe X1 Shares Bandwidth With M.2_2. PCIe X1 Will Be Disable When M.2_2 Runs At PCIe x4 Mode By Manually Enabled | |
| Supports Intel Optane Memory H Series On PCH-Attached PCIe Slot | |
| Storage | |
| CPU Native | M.2_1 Slot (Key M), type 2242/2260/2280/22110 |
| Intel 12th Gen Processors Support PCIe 4.0 x4 Mode | |
| Intel H670 Chipset | M.2_2 Slot (Key M), type 2242/2260/2280 (Supports PCIe 3.0 x4 Mode) |
| M.2_3 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 Mode) | |
| 4x SATA 6Gb/s Ports | |
| Intel Rapid Storage Technology Supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| Intel Rapid Storage Technology Supports Intel Optane Memory H Series On PCH Attached M.2 Slots. | |
| Ethernet | 1x Intel 2.5Gb Ethernet |
| 1x Intel 1Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | M.2 Slot Only (Key E, PCIe) |
| Wi-Fi Module Is Sold Separately | |
| USB | |
| Rear USB (Total 9 Ports) | 1x USB 3.2 Gen 2x2 Connector (Supports USB Type-C With 60W PD/QC4 ) |
| 1x USB 3.2 Gen 1 Header Supports Additional 2x USB 3.2 Gen1 Ports | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| Front USB (Total 7 Ports) | 1x USB 3.2 Gen 1 Connector (Supports USB Type-C) |
| 1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | |
| Supports Up to 24-Bit/192 kHz Playback | |
| Audio Features | |
| Power Pre-Regulator Reduces Power Input Noise To Ensure Consistent Performance | |
| Premium Audio Capacitors | |
| Dedicated Audio PCB Layers | |
| Audio Cover | |
| Unique De-Pop Circuit | |
| Due To Limitations In HDA Bandwidth, 32-Bit/192 kHz Is Not Supported For 7.1 Surround Sound Audio. | |
| A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output | |
| Back Panel I/O Ports | 1x USB Type-C Port Supports USB 3.2 Gen2 and DisplayPort Output |
| 4x USB 3.2 Gen 1 Ports (4x Type-A) | |
| 4x USB 2.0 Ports (4x Type-A) | |
| 1x DisplayPort (Input Only) | |
| 1x HDMI Port | |
| 1x Realtek 2.5Gb Ethernet Port | |
| 1x Intel 1Gb Ethernet Port | |
| 5x Audio Jacks | |
| 1x Optical S/PDIF Out Port | |
| Internal I/O Connectors | |
| Fan and Cooling related | 1x 4-Pin CPU Fan Header |
| 1x 4-Pin CPU OPT Fan Header | |
| 1x 4-Pin AIO Pump Header | |
| 4x 4-Pin Chassis Fan Headers | |
| Power related | 1x 24-Pin Main Power Connector |
| 1x 8-Pin 12V Power Connector | |
| 1x 4-Pin 12V Power Connector | |
| Storage related | 3x M.2 Slots (Key M) |
| 4x SATA 6Gb/s Ports | |
| USB | 1x USB 3.2 Gen 2x2 Connector (Supports USB Type-C) |
| 1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| Miscellaneous | 3x Addressable Gen 2 Headers |
| 1x AURA RGB Header | |
| 1x Clear CMOS Header | |
| 1x COM Port Header | |
| 1x Front Panel Audio Header (AAFP) | |
| 1x M.2 slot (Key E) | |
| 1x SPI TPM Header (14-1Pin) | |
| 1x 20-3 Pin System Panel Header With Chassis Intrude Function | |
| 1x Thermal Sensor Header | |
| 1x Thunderbolt Header | |
| Special Features | |
| ASUS TUF PROTECTION | DIGI VRM (Digital Power Design With DrMOS) |
| Enhanced DRAM Overcurrent Protection | |
| ESD Guards | |
| LANGuard | |
| Overvoltage Protection | |
| Safeslot | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | M.2 Q-Latch |
| Q-Connecter | |
| Q-DIMM | |
| Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green]) | |
| Q-Slot | |
| ASUS Thermal Solution | Flexible M.2 Heatsink |
| VRM Heatsink Design | |
| ASUS EZ DIY | ProCool |
| Pre-Mounted I/O Shield | |
| AURA Sync | AURA RGB Header |
| Addressable Gen 2 Headers | |
| Software Features | |
| ASUS Exclusive Software | Armoury Crate |
| AURA Creator | |
| AURA Sync | |
| Fan Xpert 4 | |
| Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| DIGI VRM | |
| CPU-Z | |
| DTS Audio Processing | |
| MyAsus | |
| Norton Anti-Virus Software (Free Trial Version) | |
| WinRAR | |
| ProArt Creator Hub | |
| CreationFirst | |
| UEFI BIOS | |
| ASUS EZ DIY | ASUS CrashFree BIOS 3 |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 128Mb |
| Manageability | WOL by PME, PXE |
| Accessories | |
| Cables | 2x SATA 6Gb/s Cables |
| 1x DisplayPort Cable | |
| Miscellaneous | 3x M.2 Rubber Packages |
| 1x Q-Connector | |
| Installation Media | 1x Support DVD |
| Documentation | 1x User Guide |
| 1x ACC Express Activation Key Card | |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX |
| 305mm x 244mm (L x W) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- A work of art itself - Oliver, 15 May 2023
Not only is this board physically beautiful, but it is crammed full of IO and useful headers. The ability to put 3 m.2. SSDs into RAID is now hard to live without. The board has an excellent sound chip, thunderbolt, USB3 - very fully featured and easy to install. Highly recommend for anyone who is building a workstation rather than a gaming rig.
