| SPECIFICATIONS | |
| Brand | Asus |
| Series | ROG |
| Model | ROG CROSSHAIR VI EXTREME |

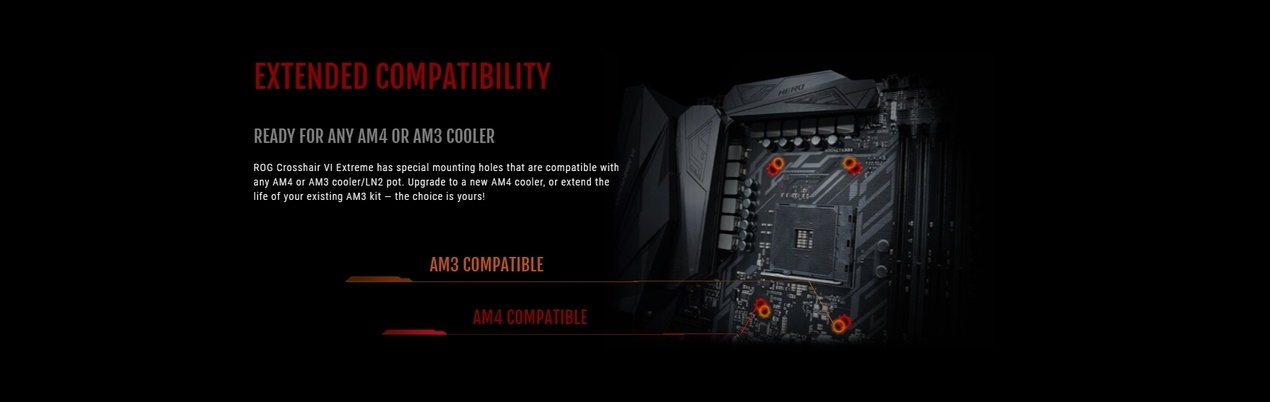

| CPU | AMD AM4 Socket for AMD Ryzen / 7th Generation A-series / Athlon Processors | Supports AM4 Socket 14 nm CPU | Supports CPU up to 8 cores | *Refer to www.asus.com for CPU support list |
| Chipset | AMD X370 |
| Memory | AMD Ryzen Processors | 4x DIMM, Max. 64GB, DDR4 3200(O.C.) / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory* | AMD 7th Generation A-series / Athlon Processors | 4x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory* | Dual Channel Memory Architecture | *Hyper DIMM support is subject to the physical characteristics of individual CPUs. | *Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Multi-GPU Support | Supports NVIDIA 2-Way SLI Technology | Supports AMD 3-Way CrossFireX Technology |
| Expansion Slots | AMD Ryzen Processors | 2x PCIe 3.0/2.0 x16 (x16 or dual x8) | AMD 7th Generation A-series/Athlon Processors | 1x PCIe 3.0/2.0 x16 (x8 mode) | AMD X370 chipset | 1x PCIe 2.0 x16 (max at x4 mode) | 3x PCIe 2.0 x1 |
| Storage | AMD Ryzen Processors: | 1x M.2 Socket 3, with M key, type 2242 / 2260 / 2280 storage devices support (SATA & PCIE 3.0 x4 mode) | 1x M.2 Socket 3, with M key, type 2242 / 2260 / 2280 / 22110 storage devices support (PCIE 3.0 x4 mode) | AMD 7th Generation A-series / Athlon Processors: | 1x M.2 Socket 3, with M key, type 2242 / 2260 / 2280 storage devices support (SATA & PCIE 3.0 x4 mode) | AMD X370 chipset: | 8x SATA 6Gb/s ports | Support Raid 0, 1, 10 |

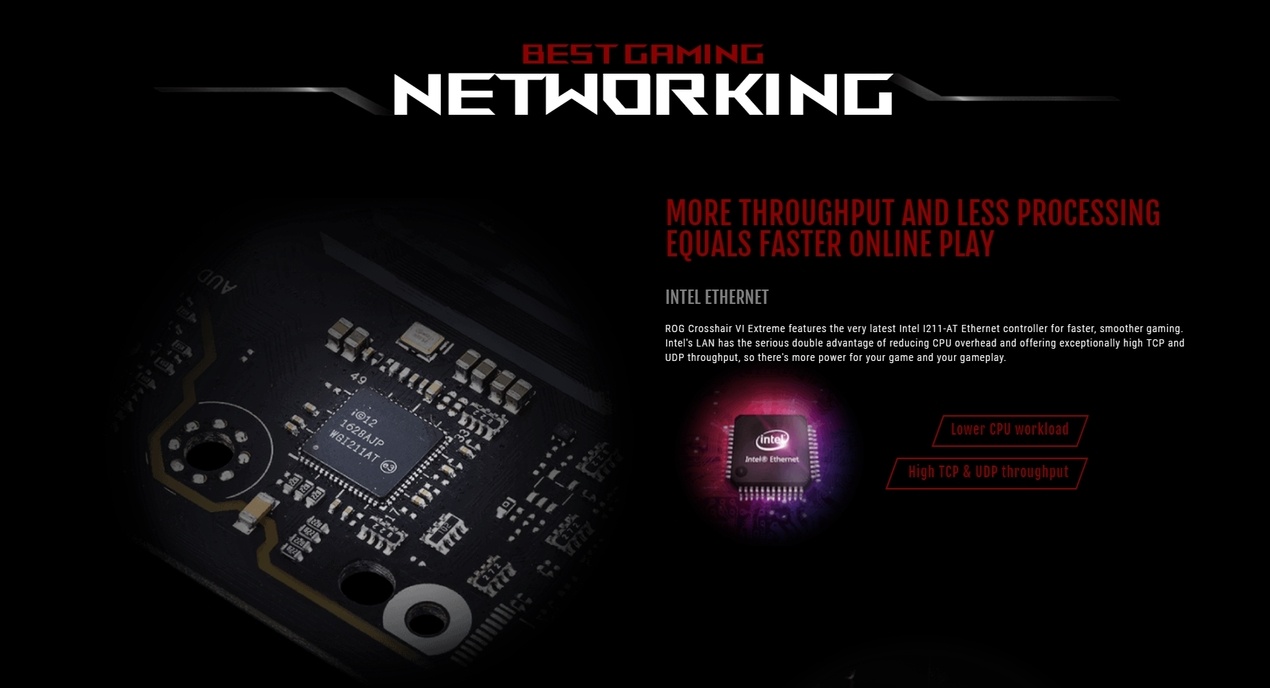

| LAN | Intel I211-AT, 1x Gigabit LAN Controller | Anti-surge LANGuard | ROG GameFirst IV |
| Wireless Data Network | Wi-Fi 802.11 a/b/g/n/ac | Supports dual band frequency 2.4/5 GHz | Supports MU-MIMO |
| Bluetooth | Bluetooth V4.2 |

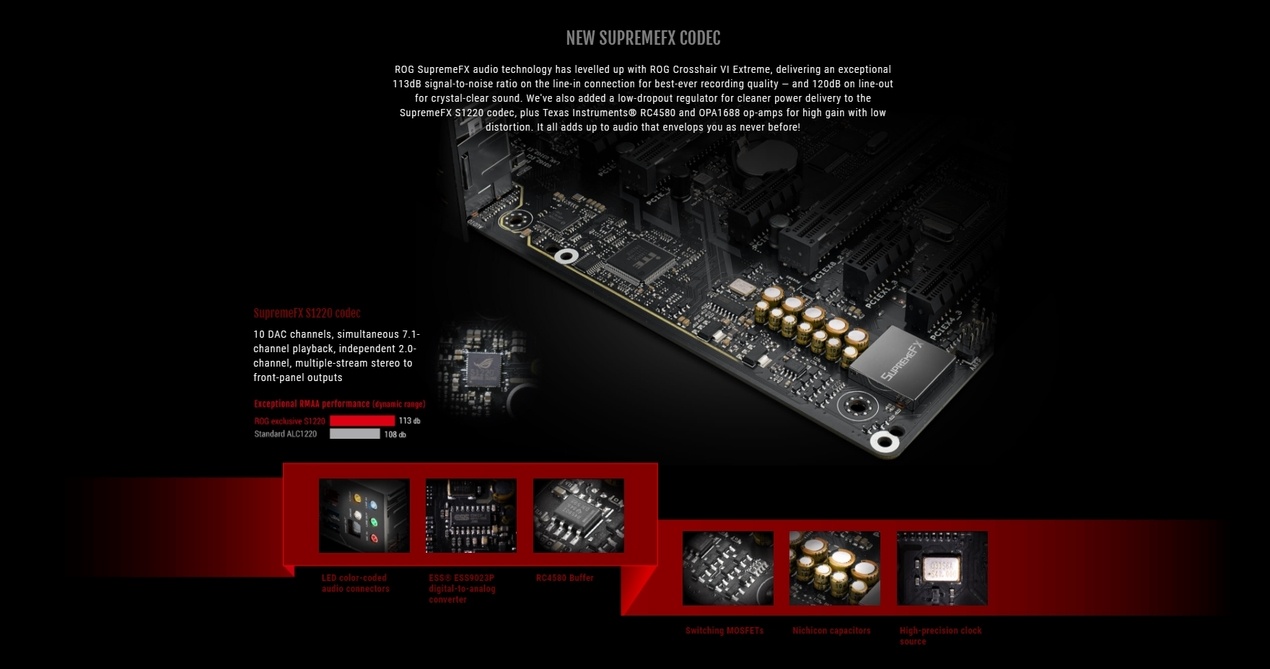

| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 | - Impedance sense for front and rear Headphone outputs | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | - SupremeFX Shielding Technology | - ESS ES9023P | - Supports up to 32-Bit/192kHz playback | Audio Feature: | - Gold-plated jacks | - Optical S/PDIF out port at back panel | - Sonic Radar III | - Sonic Studio III |
| USB Ports | AMD Ryzen / 7th Generation A-series / Athlon Processors: | 4x USB 3.1 Gen 1 ports (4x at back panel, blue) | AMD X370 chipset: | 6x USB 3.1 Gen 1 ports (2x at back panel, blue, 4x at mid-board) | AMD X370 chipset: | 5x USB 2.0 ports (4x at back panel, black, 1x at mid-board) | ASMedia USB 3.1 Gen 2 controller: | 1x USB 3.1 Gen 2 front panel connector port | ASMedia USB 3.1 Gen 2 controller: | 2x USB 3.1 Gen 2 ports (2x at back panel, Type-A + USB Type-CTM) |
| Back I/O Ports | 1x LAN (RJ45) port | 1x USB 3.1 Gen 2 (black) USB Type-CTM | 1x USB 3.1 Gen 2 (red) Type-A | 6x USB 3.1 Gen 1 (blue) | 4x USB 2.0 (one port can be switched to USB BIOS Flashback) | 1x Optical S/PDIF out | 1x Clear CMOS button | 1x USB BIOS Flashback Button | 1x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module | 5x Gold-plated audio jacks |
| Internal I/O Ports | 1x Aura Addressable Strip Header | 2x Aura RGB Strip Headers | 2x USB 3.1 Gen 1 connectors support additional 4x USB 3.1 Gen 1 ports | 1x USB 2.0 connector supports an additional 1x USB 2.0 port | 1x M.2 Socket 1 with M key, type 2242 / 2260 / 2280 storage devices support (SATA & PCIE 3.0 x4 mode) | 1x M.2 Socket 3 with M key, type 2242 / 2260 / 2280 / 22110 storage devices support (PCIE 3.0 x4 mode) | 1x TPM header | 8x SATA 6Gb/s connectors | 1x CPU Fan connector (1x 4 -pin) | 1x CPU OPT Fan connector (1x 4 -pin) | 1x Chassis Fan connector (1x 4 -pin) | 1x W_PUMP+ connector (1x 4 -pin) | 1x 8-pin EATX 12 V Power connector | 1x 4-pin EATX 12 V_1 Power connector | 1x 24-pin EATX Power connector | 1x Front panel audio connector (AAFP) | 1x Internal speaker connector | 1x System panel (Q-Connector) | 1x Slow Mode switch | 7x ProbeIt Measurement Points | 1x EZ Plug connector (4-pin Molex power connector) | 1x Reset button | 1x 5-pin EXT_FAN (Extension Fan) connector | 1x LN2 Mode jumper | 1x ROG extension (ROG_EXT) header | 1x Safe Boot button | 1x ReTry button | 1x W_IN header | 2x W_OUT header | 1x W_FLOW header | 1x Thermal sensor connector | 1x Start button | 1x USB 3.1 Gen 2 front panel connector | 1x 9 pin Monoblock sensor | 8x Radiator Fan Headers |
| Accessories | User's manual | 1x ROG logo plate sticker | 8x SATA 6Gb/s cables | 1x M.2 Screw Package | 1x Supporting DVD | 1x Fan Extension Card (3x 4-pin fan out) | 1x Fan Extension card screw pack | 1x Fan Extension card cable | 1x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant) | 1x SLI HB BRIDGE (2-WAY-M) | 1x ROG big sticker | 1x Q-Connector | 1x 10-in-1 ROG cable label | 1x Extension Cable for RGB strips (80 cm) | 1x Extension cable for Addressable LED | 3x Thermistor cables | 1x ROG coaster |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, WOL by PME, PXE |
| Support Disc | Drivers | AURA | ROG GameFirst IV | ROG RAMDisk | ROG RAMCache II | ROG CPU-Z | ROG Mem TweakIt | ROG Keybot II | Sonic Studio III | Sonic Radar III | Overwolf | CloneDrive | DAEMON Tools Software | Winzip | ASUS Utilities |
| Operating System | Windows 10 64-bit |
| Form Factor | Extended ATX Form Factor | 30.5 x 26.9 cm | Warranty Information |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
