| SPECIFICATIONS | |
| Brand | Asus |
| Series | ROG Crosshair |

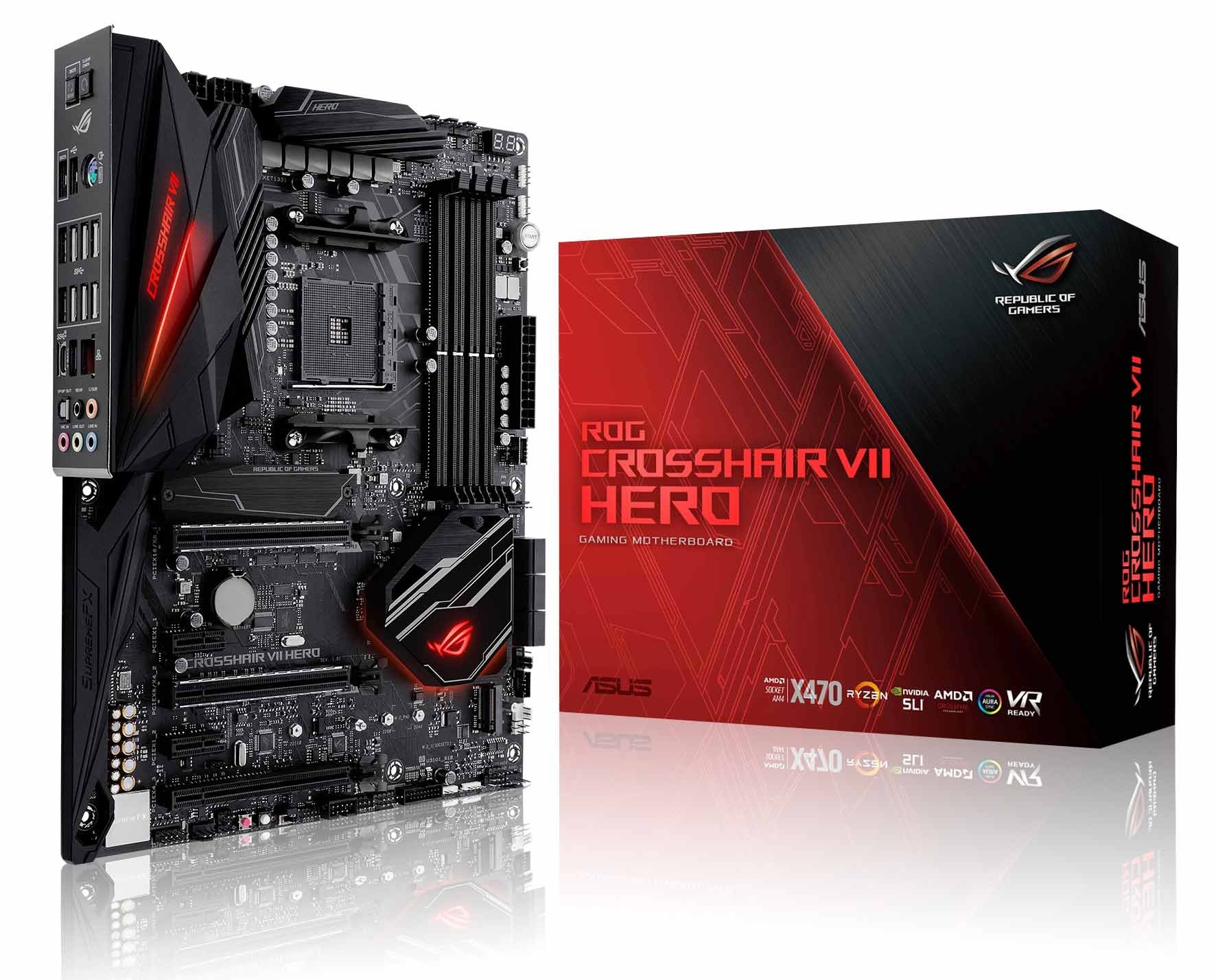

| Model | ROG CROSSHAIR VII HERO WiFi |
| CPU | AM4 socket for AMD Ryzen 2nd Generation/Ryzen 1st Generation/Ryzen with Radeon Vega Graphics/7th Generation A-Series/Athlon X4 Processors |
| Supports CPU up to 8 cores* | |
| *Due to CPU limitation, CPU cores supported varies by processor. | |
| **Refer to www.asus.com for the AMD CPU support list. | |
| Chipset | AMD X470 Chipset |
| Memory | AMD Ryzen 2nd Generation Processors |
| 4x DIMM, max. 64GB, DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C)/2666/2400/2133 MHz, un-buffered memory | |
| AMD Ryzen 1st Generation Processors / AMD Ryzen with Radeon Vega Graphics Processors | |
| 4x DIMM, max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/3000(O.C.)/2800(O.C)/2666/2400/2133 MHz, un-buffered memory | |
| AMD 7th Gen A-series/Athlon X4 Processors | |
| 4x DIMM, max. 64GB, DDR4 2400/2133 MHz, un-buffered memory | |
| Dual channel memory architecture | |
| *Refer to www.asus.com for the Memory QVL (Qualified Vendors List). | |
| Expansion Slots | AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors |
| - 2x PCIe 3.0 x16 SafeSlots (supports x16, x8/x8, x8/x4*) | |
| AMD Ryzen with Radeon Vega Graphics/7th Generation A-Series/Athlon X4 Processors | |
| - 1x PCIe 3.0 x16 SafeSlot (supports x8) | |
| AMD X470 chipset | |
| - 1x PCIe 2.0 x16 (max. at x4 mode) | |
| - 2x PCIe 2.0 x1 | |
| *The PCIE_x8/x4_2 slot shares bandwidth with the M.2_2 slot. The PCIE_x8/x4_2 slot will be limited to x4 mode if M.2_2 is enabled in PCIe mode. | |
| Multi-GPU | AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors |
| Supports NVIDIA 2-Way SLI Technology | |
| Supports AMD 3-Way CrossFireX Technology | |
| AMD Ryzen with Radeon Vega Graphics/7th Generation A-Series/Athlon X4 Processors | |
| Supports AMD 2-Way CrossFireX Technology | |
| Storage | AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors |
| - M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support | |
| - M.2_2 Socket 3 with M Key, type 2242/2260/2280(PCIE 3.0 x4) storage devices support | |
| AMD Ryzen with Radeon Vega Graphics Processors* | |
| - M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support | |
| AMD 7th Generation A-series/Athlon Processors* | |
| - M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110(SATA mode) storage devices support | |
| *M.2_2 is unsupported for these processors. | |
| AMD X470 chipset | |
| - 6x SATA 6Gb/s ports | |
| LAN | Intel Ethernet Controller I211-AT |
| Anti-surge LANGuard | |
| ROG GameFirst IV | |
| Audio | ROG SupremeFX S1220 8-Channel high-definition CODEC |
| - Supports up to 32-Bit/192kHz playback* | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| - Impedance sense for front and rear headphone outputs | |
| - ES9023P High Definition DAC | |
| - SupremeFX Shielding Technology | |
| - Jack-detection, Multi-streaming, and Front Panel Jack-retasking | |
| - Optical S/PDIF out port at back panel | |
| Audio Feature: | |
| - Sonic Studio III | |
| - Sonic Radar III | |
| *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
| USB | AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors |
| - 4x USB 3.1 Gen 1 ports (4 ports at back panel[blue]) | |
| AMD X470 chipset: | |
| - 1x USB 3.1 Gen 2 front panel connector | |
| - 6x USB 3.1 Gen 1 ports (4 ports at back panel[blue], 2 ports at mid-board [black]) | |
| - 5x USB 2.0 ports (2 ports at back panel, 3 ports at mid-board [black]) | |
| ASMedia USB 3.1 controller: | |
| - 2x USB 3.1 Gen 2 ports (2 ports at back panel, Type-A and Type-C) | |
| Back I/O Ports | 1x Clear CMOS button |
| 1x BIOS Flashback button | |
| 1x PS/2 keyboard/mouse combo port | |
| 2x USB 3.1 Gen 2 ports ( 1 x Type-C [black] and 1 x Type-A [red] ) | |
| 8x USB 3.1 Gen 1 ports [blue] | |
| 2x USB 2.0 ports [black] | |
| 1x Anti-surge LAN (RJ45) port | |
| 1x Optical S/PDIF out | |
| 5x Gold-plated audio jacks | |
| Internal connectors | 1x USB 3.1 Gen 2 front panel connector |
| 1x USB 3.1 Gen 1 header supports additional 2 USB 3.1 Gen1 ports | |
| 1x USB 2.0 header supports additional 2 USB 2.0 ports | |
| 1x ROG extension (ROG_EXT) header supports additional 1 USB 2.0 port | |
| 6x SATA 6Gb/s connectors | |
| 1x M.2 Socket 3 for M Key, type 2242/2260/2280 storage devices support | |
| 1x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support | |
| 1x 4-Pin CPU fan connector | |
| 1x 4-Pin CPU_OPT fan connector | |
| 1x 4-Pin AIO_PUMP connector | |
| 1x 4-Pin W_PUMP connector | |
| 1x 3-Pin W_FLOW connector | |
| 1x 2-Pin W_IN connector | |
| 1x 2-Pin W_OUT connector | |
| 1x 4-Pin H_AMP Fan connector | |
| 3x 4-Pin Chassis fan connectors | |
| 1x EXT_Fan header | |
| 1x Thermal sensor connector | |
| 1x 24-pin EATX power connector | |
| 1x 8-pin EATX 12V power connector | |
| 1x 4-pin EATX 12V power connector | |
| 1x Start button | |
| 1x Reset button | |
| 1x Safe Boot button | |
| 1x Retry button | |
| 1x LN2 mode jumper | |
| 1x Slow mode switch | |
| 1x System panel connector | |
| 1x Front panel audio connector (AAFP) | |
| 1x Speaker connector | |
| 2x Aura Addressable Strip headers | |
| 2x Aura RGB Strip headers | |
| 1x LED connector (Back I/O cover) | |
| Accessory | User guide |
| Support DVD | |
| 1x SLI HB Bridge(2-way-M) | |
| 2x 2-in-1 SATA 6Gb/s Cables | |
| 1x Q-Connector | |
| 2x M.2 Screw Package | |
| 1x Extension Cable for RGB strips | |
| 1x Extension Cable for RGB Addressable strips | |
| 1x ROG Coaster | |
| 1x ROG big sticker | |
| 1x ROG thank you card | |
| 1x Cablemod coupon | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search |
| Manageability | WOL, PXE |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch (30.5cm x 24.4cm) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | No |
|---|---|
| Product Link | No |
