| SPECIFICATIONS | |
| Brand | Asus |
| Series | ROG Motherboards |

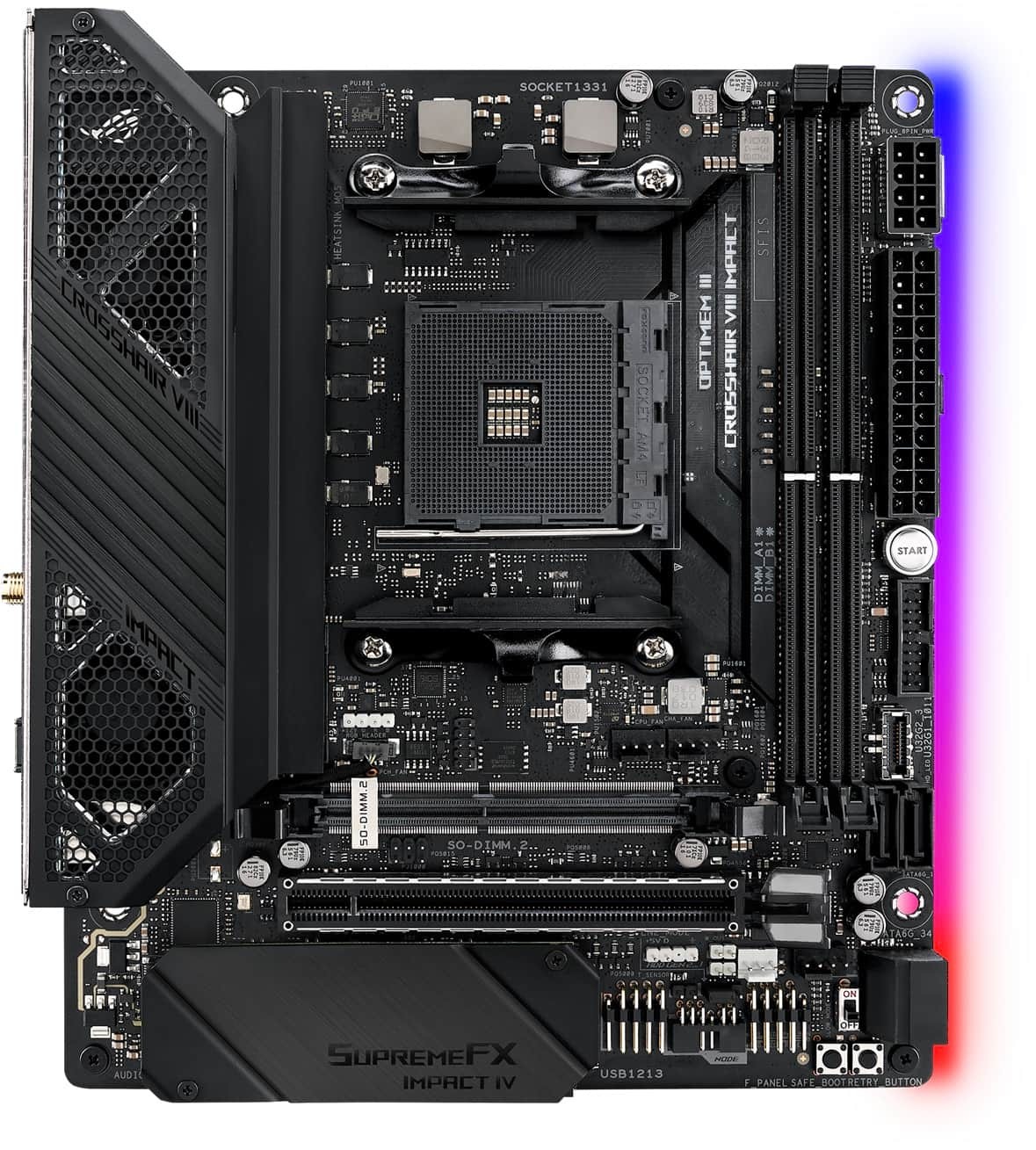

| Model | ROG Crosshair VIII Impact |
| CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
| Chipset | AMD X570 |
| Memory | 2x DIMM, Max. 64GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-Buffered Memory |
| 4x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-Buffered Memory | |
| AMD Ryzen 4000 G-Series Processor | |
| AMD Ryzen 2000 Series Processors | |
| 2x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-Buffered Memory | |
| 2x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-Buffered Memory | |
| (Double Capcity DRAM support depends on the DRAM models) | |
| Expansion Slots | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
| AMD Ryzen 3000 G-Series / 2000 G-Series Processors | |
| AMD Ryzen 4000 G-Series / 2000 Series Processors | |
| 1x PCIe 4.0 x16 (x16 Mode) | |
| 1x PCIe 3.0 x16 (x16 Mode) | |
| 1x PCIe 3.0 x16 (x8 Mode) | |
| Storage | AMD Ryzen 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors: |
| AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: | |
| 1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA Modes) Storage Devices Support | |
| 1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode) | |
| AMD X570 Chipset: | |
| 1x M.2_1 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA Modes) Storage Devices Support | |
| 4x SATA 6Gb/s Ports | |
| Support Raid 0, 1, 10 | |
| LAN | Intel I211-AT |
| ASUS LAN Guard | |
| ROG GameFirst Technology | |
| Wireless Data Network | Intel Wi-Fi 6 AX200 |
| Supports Channel Bandwidth: HT20/HT40/HT80/HT160 | |
| 2x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO Supports Dual Frequency Band 2.4/5GHz | |
| Up to 2.4Gbps Transfer Speed | |
| Bluetooth | Bluetooth 5.0 |
| Audio | ROG SupremeFX8-Channel High Definition Audio CODEC |
| Impedance Sense for Front and Rear Headphone Outputs | |
| Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | |
| High Quality120dBSNR Stereo Playback Output and 113dBSNR Recording Input | |
| SupremeFX Shielding Technology | |
| ESS ES9023P | |
| Supports Up to 32-Bit/192kHz Playback | |
| Audio Feature: | |
| Sonic Studio III Sonic Studio Virtual Mixer | |
| DTS Sound Unbound | |
| Optical S/PDIF Out Ports at Back Panel | |
| Sonic Radar III | |
| (Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.) | |
| USB Ports | AMD Ryzen 5000 Series / 4000 G-Series/ 3000 Series Processors: |
| AMD Ryzen 3000 G-Series / 2000 Series / 2000 G-Series Processors: | |
| 2x USB 3.2 Gen 2 Ports | |
| 2x USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Ports | |
| 4x USB 3.2 Gen 1 Ports | |
| 1x USB 3.2 Gen 2 Front Panel Connector Port | |
| 4x USB 3.2 Gen 2 Ports | |
| Back I/O Ports | 1x USB BIOS FlashBack Button |
| 2x USB 3.2 Gen 1 (Up to 5Gbps) Ports | |
| 6x USB 3.2 Gen 2 (Up to 10Gbps) Ports | |
| 1x Q-Code LED | |
| 3x LED-Illuminated Audio Jacks | |
| 1x Optical S/PDIF Out | |
| 1x Clear CMOS Button | |
| 1x ASUS Wi-Fi Module | |
| Anti-Surge LAN (RJ45) Port | |
| Internal I/O Ports | 2x Radiator Fan Headers |
| 1x Aura RGB Strip Headers | |
| 2x M.2 Socket 3 with M Key, Type 2242/2260/2280 Storage Devices Support | |
| 2x Addressable Gen 2 Headers | |
| 1x USB 2.0 Connector Supports Additional 2 USB 2.0 Ports | |
| 4x SATA 6Gb/s Connectors | |
| 1x CPU Fan Connector | |
| 1x Chassis Fan Connector | |
| 1x W_PUMP Connector | |
| 1x 24-pin EATX Power Connector | |
| 1x 8-pin EATX 12V Power Connectors | |
| 1x Front Panel Audio Connector (AAFP) | |
| 1x Slow Mode Switch | |
| 1x Reset Button | |
| 1x Node Connector | |
| 1x LN2 Mode Jumper | |
| 1x Safe Boot Button | |
| 1x ReTry Button | |
| 1x System Panel Connector | |
| 1x T_Sensor Connector | |
| 1x W_IN Header | |
| 1x W_OUT Header | |
| 1x W_FLOW Header | |
| 1x Start Button | |
| 1x USB 3.2 Gen 2 (Up to 10Gbps) Connector | |
| 1x USB 3.2 Gen 1 (Up to 5Gbps) Connector Support Additional 2 USB Ports | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WOL, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | Mini-DTX Form Factor |
| 8 inch x 6.7 inch ( 20.3 cm x 17 cm ) | |
| Package Contents | 1x ROG SO-DIMM.2 with Heatsinks |
| 1x 2-in-1 Rubber Pad | |
| 1x Panel Cable | |
| 2x M.2 Screw Kit (Short Screw and Mount) | |
| User Manual | |
| 4x SATA 6Gb/s Cables | |
| 1x Supporting DVD | |
| 1x ROG Big Sticker | |
| 1x Wi-Fi Antenna | |
| 1x Extension Cable for RGB Strips (80 cm) | |
| 1x Extension Cable for Addressable LED | |
| 1x ROG Coaster | |
| 1x ROG Thank You Card | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
