| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG |

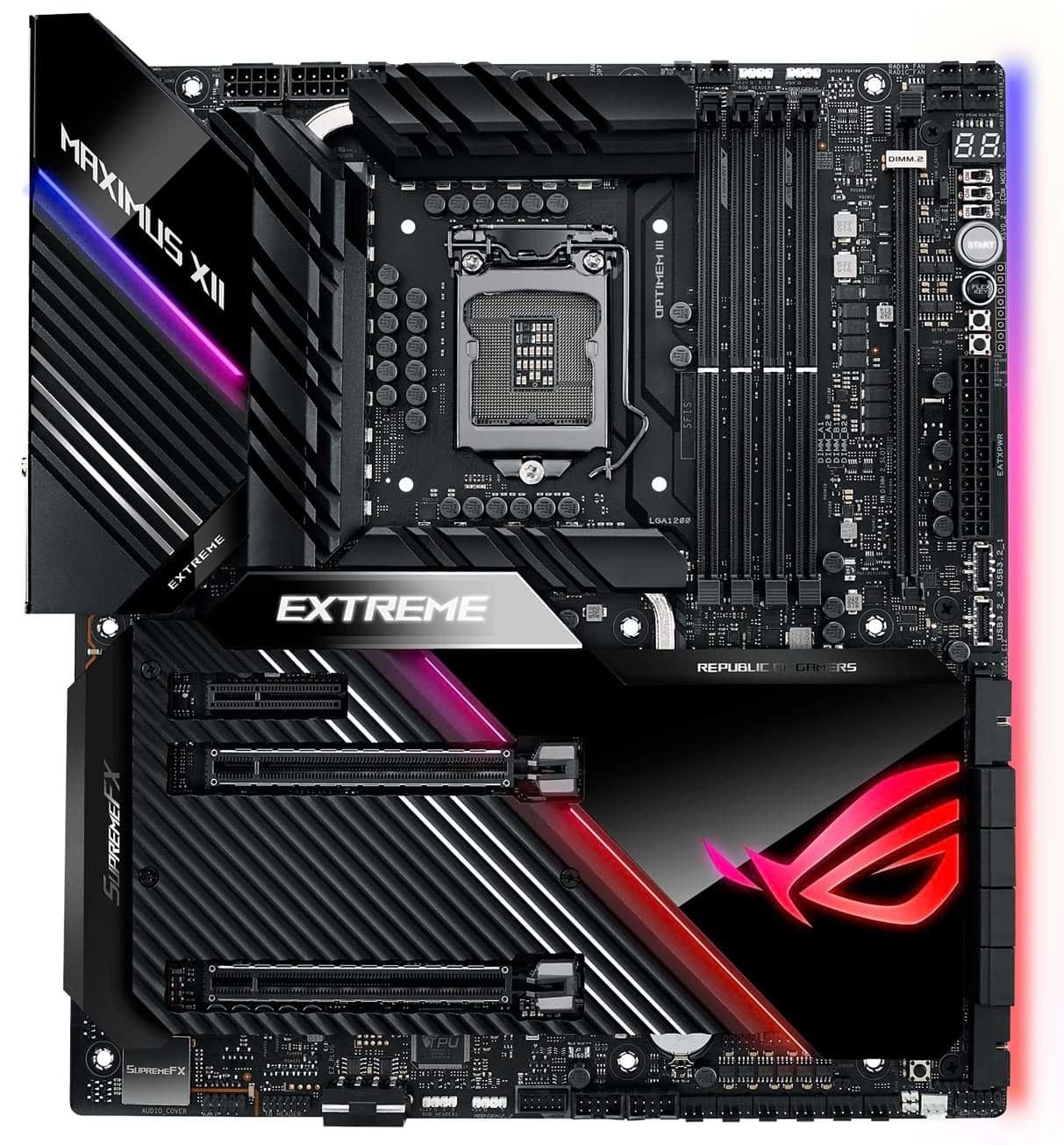

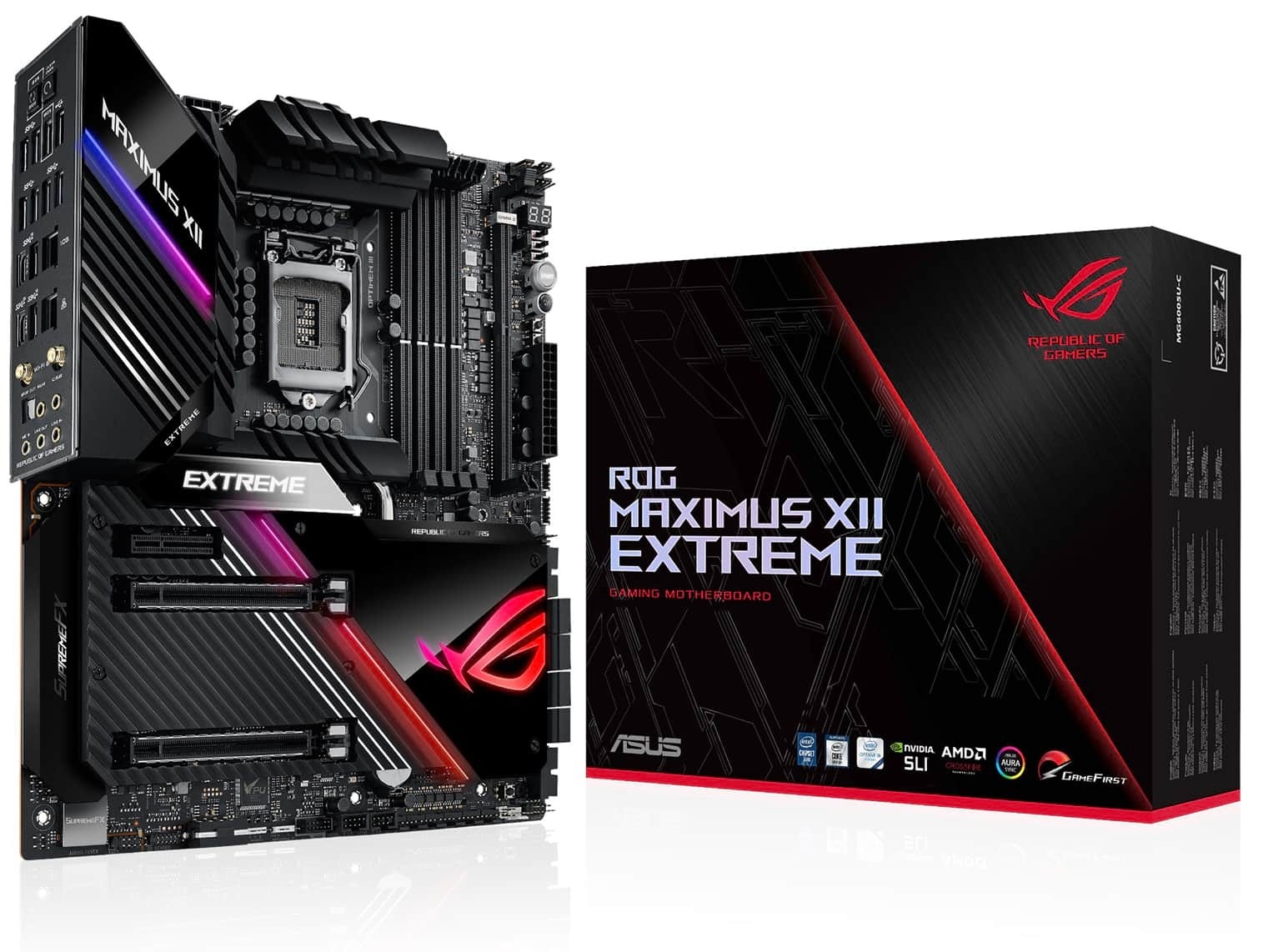

| Model | ROG MAXIMUS XII EXTREME |
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel 14 nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| *Refer to www.asus.com for CPU support list | |
| **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z490 |
| Memory | 4x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem III | |
| *10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Multi-GPU Support | Supports NVIDIA 2-Way SLI Technology |
| Supports AMD 3-Way CrossFireX Technology | |
| Expansion Slots | Intel 10th Gen Processors |
| 2x PCIe 3.0 x16 (x16 or dual x8) | |
| Intel Z490 Chipset | |
| 1x PCIe 3.0 x4 *1 | |
| Storage | Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports |
| Intel 10th Gen Processors : | |
| 1x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 | |
| Intel Z490 Chipset : | |
| 1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*3 | |
| 1x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) | |
| 8x SATA 6Gb/s port(s) | |
| Support Raid 0, 1, 5, 10 | |
| Intel Rapid Storage Technology supports | |
| Intel Optane Memory Ready | |
| LAN | Intel I225-V 2.5Gb Ethernet |
| Marvell AQtion AQC107 10Gb Ethernet | |
| ASUS LANGuard | |
| Wireless Data Network | Intel Wi-Fi 6 AX201 |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO | |
| Supports up to 2.4Gbps max data rate | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160 | |
| Supports CNVI interface | |
| Bluetooth | Bluetooth v5.1* |
| *BT 5.1 function will be ready in Windows 10 build 19041 or later. | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| - ESS ES9023 DAC RC4580 OP AMP | |
| - Supports up to 32-Bit/192kHz playback | |
| LED-illuminated audio jacks | |
| Audio Feature: | |
| - SupremeFX Shielding Technology | |
| - Optical S/PDIF out port(s) at back panel | |
| - Premium Japanese audio capacitors | |
| - Audio Cover | |
| *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
| USB Ports | Rear USB Port ( Total 12 ) |
| 1x USB 3.2 Gen 2x2 port(s) | |
| 3x USB 3.2 Gen 2 port(s)(2 Type-A 1 USB Type-CTM) | |
| 6x USB 3.2 Gen 1 port(s)(6 x Type-A) | |
| 2x USB 2.0 port(s)(2 x Type-A) | |
| Front USB Port ( Total 10 ) | |
| 2x USB 3.2 Gen 2 front panel connector port(s) | |
| 4x USB 3.2 Gen 1 port(s) | |
| 4x USB 2.0 port(s) | |

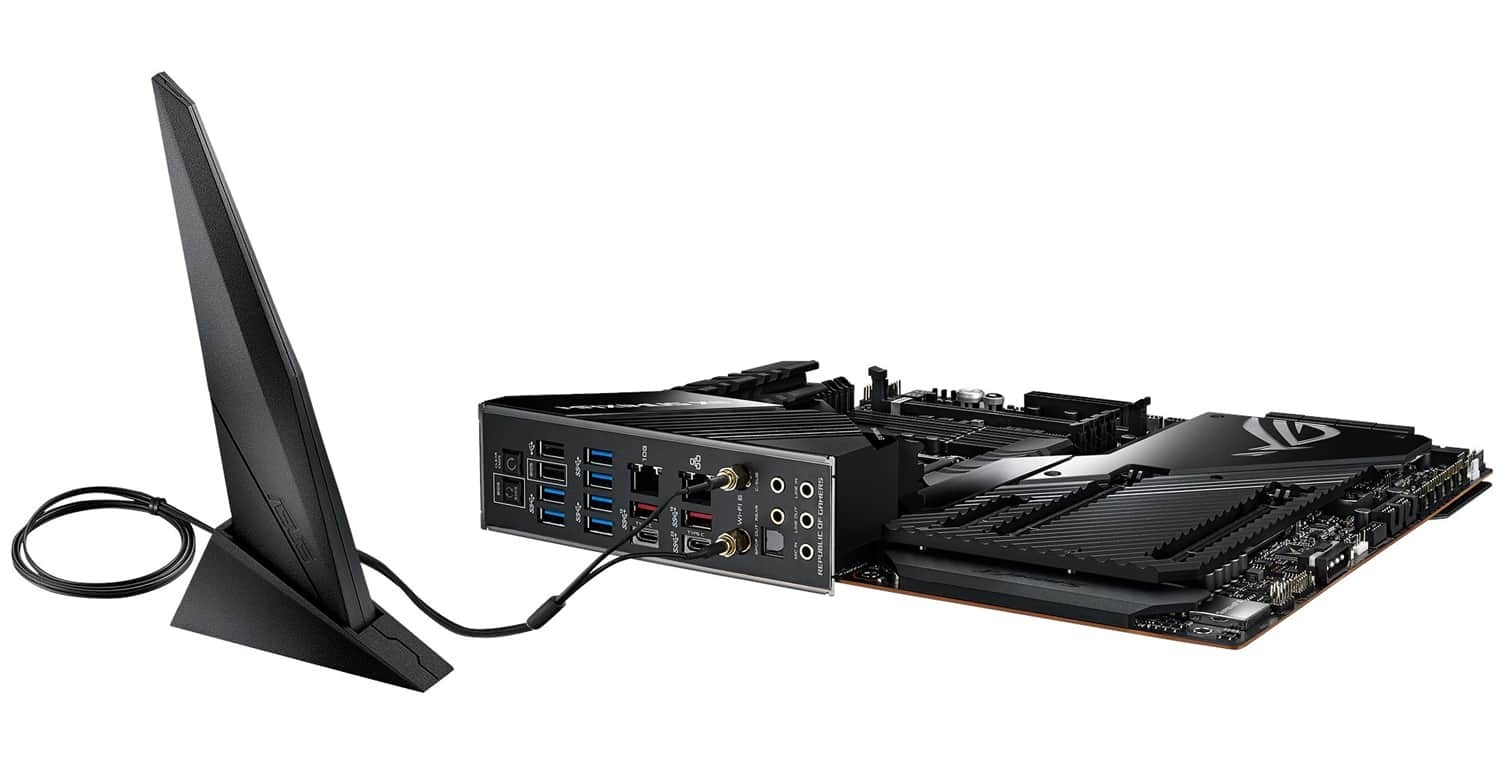

| Back I/O Ports | 1x LAN (2.5G) port(s) |
| 1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) | |
| 3x USB 3.2 Gen 2 | |
| 6x USB 3.2 Gen 1 | |
| 2x USB 2.0 | |
| 1x Optical S/PDIF out | |
| 1x Clear CMOS button(s) | |
| 1x USB BIOS FlashBack Button(s) | |
| 1x ASUS Wi-Fi Module | |
| 5x LED-illuminated audio jacks | |
| 1x Aquantia AQC-107 10G LAN port | |
| Internal I/O Ports | 1x CPU Fan connector(s) |
| 1x CPU OPT Fan connector(s) | |
| 2x Chassis Fan connector(s) | |
| 2x W_PUMP connector | |
| 1x WB_SENSOR | |
| 8x Radiator Fan Headers | |
| 1x W_IN header | |
| 1x W_OUT header | |
| 1x W_FLOW header | |
| 1x Node Connector(s) | |
| 1x AAFP connector | |
| 2x Aura RGB Strip Headers | |
| 2x Addressable Gen 2 header(s) | |
| 2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) | |
| 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 1x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 1x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) | |
| 8x SATA 6Gb/s connector(s) | |
| 1x Thunderbolt header(s) | |
| 1x 24-pin EATX Power connector(s) | |
| 2x 8-pin ATX 12V Power connector(s) | |
| 1x 4-pin EZ_PLUG Power connector(s) | |
| 1x Slow Mode switch(es) | |
| 8x ProbeIt Measurement Points | |
| 1x Thermal sensor connector(s) | |
| 1x BIOS Switch button(s) | |
| 1x LN2 Mode jumper(s) | |
| 1x Safe Boot button | |
| 1x ReTry button | |
| 1x System panel connector | |
| 2x USB 3.2 Gen 2 front panel connector | |
| 1x Speaker connector | |
| 1x DIMM.2 Slot supports 2 M.2 drives (2242-22110) | |
| 2x RSVD Switch | |
| 1x Start button | |
| 1x FlexKey button | |
| Accessories | User's manual |
| 1x ROG logo plate sticker | |
| 3x M.2 Screw Package | |
| 1x MOS Cooling kit (fan bracket and 40mm x 40mm fan) | |
| 1x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) | |
| 1x Fan Extension Card II power cable | |
| 1x Fan Extension Card II NODE connector cable | |
| 1x Fan Extension Card II screw package | |
| 2x mini DisplayPort Cable | |
| 1x ROG big sticker | |
| 1x Q-Connector | |
| 1x Wi-Fi Antenna(s) | |
| 1x Extension Cable for RGB strips (80 cm) | |
| 1x Extension cable for Addressable LED | |
| 3x Thermistor cable(s) | |
| 1x USB drive with utilities and drivers | |
| 8x ROG weave SATA 6G cable | |
| 1x ROG DIMM.2 with heatsink | |
| 2x M.2 Pad for ROG DIMM.2 | |
| 1x 2-in-1 Rubber pad | |
| 1x ROG Multi-Bit screwdriver | |
| 1x THUNDERBOLTEX 3-TR Card | |
| 1x ASUS TB header cable | |
| 1x USB2.0 Cable | |
| ROG key chain | |
| BIOS | 2x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | Extended ATX Form Factor |
| 30.5 cm x 27.7 cm | |
| Note | *1 PCIEx4 slot shares bandwidth with SATA6G_56 and PCIEx4 slot is default set at x2 mode. Please adjust BIOS settings to enable Thunderbolt card. |
| *2 The DIMM.2 Slots are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots. | |
| *3 When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled. | |
| *4 USB 3.2 Gen 2x2 works at PCIe 3.0 x2 speeds | |
