| SPECIFICATIONS | |
| Brand | Asus |
| Series | Republic of Gamers |
| Model | ROG Maximus XIII Extreme Glacial |
| CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel 14 nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 *1 | |
| Chipset | Intel Z590 Chipset |
| Memory | Memory Channels: 4DDR4 (Dual Channel) |
| Max Memory Size: 128GB | |
| 4x DIMM, Max. 128GB, DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-Buffered Memory *2 | |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem III | |
| Graphics | 1x HDMI 1.4 / 2.0 *3 |
| 2x Intel Thunderbolt 4 Ports (USB Type-C) Support DisplayPort 1.2/1.4 and Thunderbolt Video Outputs | |
| Expansion Slots | 2x PCIe 4.0/3.0 x16 (x16, x8/x8) |
| Intel 11th & 10th Gen Processors | |
| 2x PCIe 4.0/3.0 x16 Slots | |
| Intel 11th Core Processors Support PCIe 4.0 x16 or x8/x8 Mode | |
| Intel 10th Core Processors Support PCIe 3.0 x16 or x8/x8 Mode | |
| Intel Z590 Chipset | |
| 1 x PCIe 3.0 x4 Slot *4 | |
| Multi-GPU Support | NVIDIA 2-Way SLI Technology *5 |
| Storage | Supports 5x M.2 Slots and 6x SATA 6Gb/s Ports |
| Intel 11th & 10th Gen Processors | |
| M.2_1 Slot (Key M), Type 2242/2260/2280 | |
| Intel 11th Core Processors Support PCIe 4.0 x4 Mode | |
| Intel 10th Core Processors Support PCIe 3.0 x4 Mode | |
| M.2_2 Slot (Key M), Type 2242/2260/2280 | |
| Intel 11th Core Processors Support PCIe 4.0 x4 Mode | |
| Intel 10th Core Processors Support PCIe 3.0 x4 Mode | |
| M.2_3 Slot (Key M), Type 2242/2260/2280 | |
| Only Intel 11th Core Processors Support PCIe 4.0 x4 Mode, This Slot Will Be Disabled for Other CPUs | |
| Intel Z590 Chipset | |
| DIMM.2_1 Slot (Key M) Via ROG DIMM.2, Type 2242/2260/2280/22110 (Supports PCIe 3.0 x4 & SATA Modes) | |
| DIMM.2_2 Slot (Key M) via ROG DIMM.2, Type 2242/2260/2280/22110 (Supports PCIe 3.0 x4 Mode) *6 | |
| 6x SATA 6Gb/s Ports | |
| Raid Function for PCIe Mode SSD in Intel Rapid Storage Technology is Available with Either 1. Intel SSDs Installed in Both CPU-Attached and PCH-Attached Slots, or 2. Any Other 3rd Party SSDs Installed in PCH-Attached Slots. | |
| (To enable Intel Optane Memory (Hybrid Storage Device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.) | |
| Ethernet | 1x Marvell 10Gb Ethernet |
| Wireless & Bluetooth | 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 |
| USB | 2x Thunderbolt 4 Ports (2x USB Type-C) With Up to 5V/3A, 15W Charging Support |
| 8x USB 3.2 Gen 2 Ports (8x Type-A) | |
| Front USB: | |
| Total 10 Ports | |
| 1x USB 3.2 Gen 2x2 Connector Suppports USB Type-C | |
| 1x USB 3.2 Gen 2 Front Panel Connector Supports USB Type-C | |
| 2x USB 3.2 Gen 1 Headers Supports Additional 4 USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Supports Additional 4 USB 2.0 Ports | |
| Audio | ALC4082 |
| Audio Features | |
| SupremeFX Shielding Technology | |
| ESS SABRE9018Q2C DAC/AMP | |
| LED-Illuminated Audio Jacks | |
| Rear Optical S/PDIF Out Port | |
| Premium Japanese Audio Capacitors | |
| Audio Cover | |

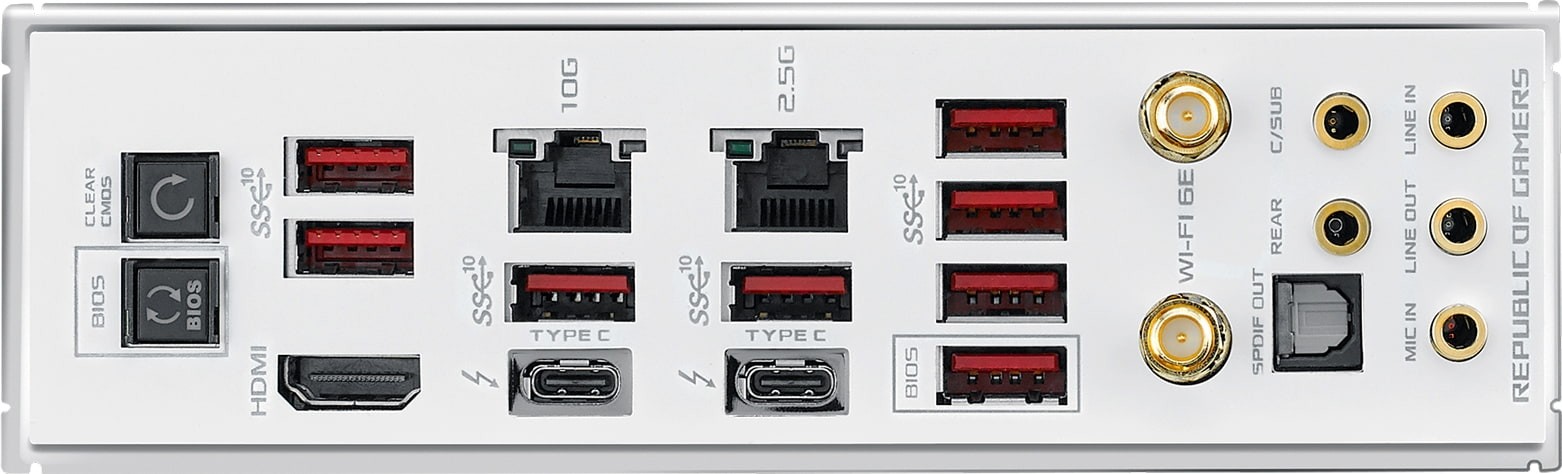

| Back Panel I/O Ports | 2x Thunderbolt 4 USB Type-C Ports |
| 8x USB 3.2 Gen 2 Ports (8x Type-A) | |
| 1x HDMI Port | |
| 1x ASUS Wi-Fi Module | |
| 1x Marvell AQtion AQC113CS 10Gb Ethernet | |
| 1x Intel I225-V 2.5Gb Ethernet | |
| 5x LED-Illuminated Audio Jacks | |
| 1x Optical S/PDIF Out Port | |
| 1x BIOS FlashBack Button | |
| 1x Clear CMOS Button | |
| Internal I/O Connectors | 2x Thunderbolt 4 Ports (2x USB Type-C) With Up to 5V/3A, 15W Charging Support |
| Fan and Cooling Related | |
| 2x 4-pin Chassis Fan Headers | |
| 2x 4-pin Radiator Fan Headers | |
| 2x W_PUMP+ Headers | |
| 1x WB_SENSOR Header | |
| 1x 2-pin Water In Header | |
| 1x 2-pin Water Out Header | |
| 1x 3-pin Water Flow Header | |
| Power Related | |
| 1 x 24-pin Main Power Connector | |
| 2x 8-pin + 12V Power Connector | |
| 1x 6-pin PCIe Graphics Card Connector | |
| Storage Related | |
| 3x M.2 Slots (Key M) | |
| 1x DIMM.2 Slot Supports 2 x M.2 Slots (Key M) | |
| 6x SATA 6Gb/s Ports | |
| USB | |
| 1x USB 3.2 Gen 2x2 Connector (Supports USB Type-C) | |
| 1x USB 3.2 Gen Connector (Supports USB Type-C) | |
| 2x USB 3.2 Gen 1 Headers Supports Additional 4 USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Supports Additional 4 USB 2.0 Ports | |
| Miscellaneous | |
| 3x AURA Addressable Gen 2 Headers | |
| 1x AURA RGB Header | |
| 1x WB_ADD Header | |
| 1x BIOS Switch Button | |
| 1x FlexKey Button | |
| 1x Front Panel Audio Header (AAFP) | |
| 1x LN2 Mode Jumper | |
| 8x ProbeIt Measurement Points | |
| 1x ReTry Button | |
| 2x RSVD Switch | |
| 1x RSVD Header | |
| 1x Safe Boot Button | |
| 1x Slow Mode Switch | |
| 1x Speaker Header | |
| 1x Start Button | |
| 1x V_LATCH Switch | |
| 1x 10-1 pin System Panel Header | |
| 1x Thermal Sensor Header | |
| BIOS | 2x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System Support | Windows 10 64-bit |
| Form Factor | Extended ATX |
| 30.5cm x 27.7cm | |

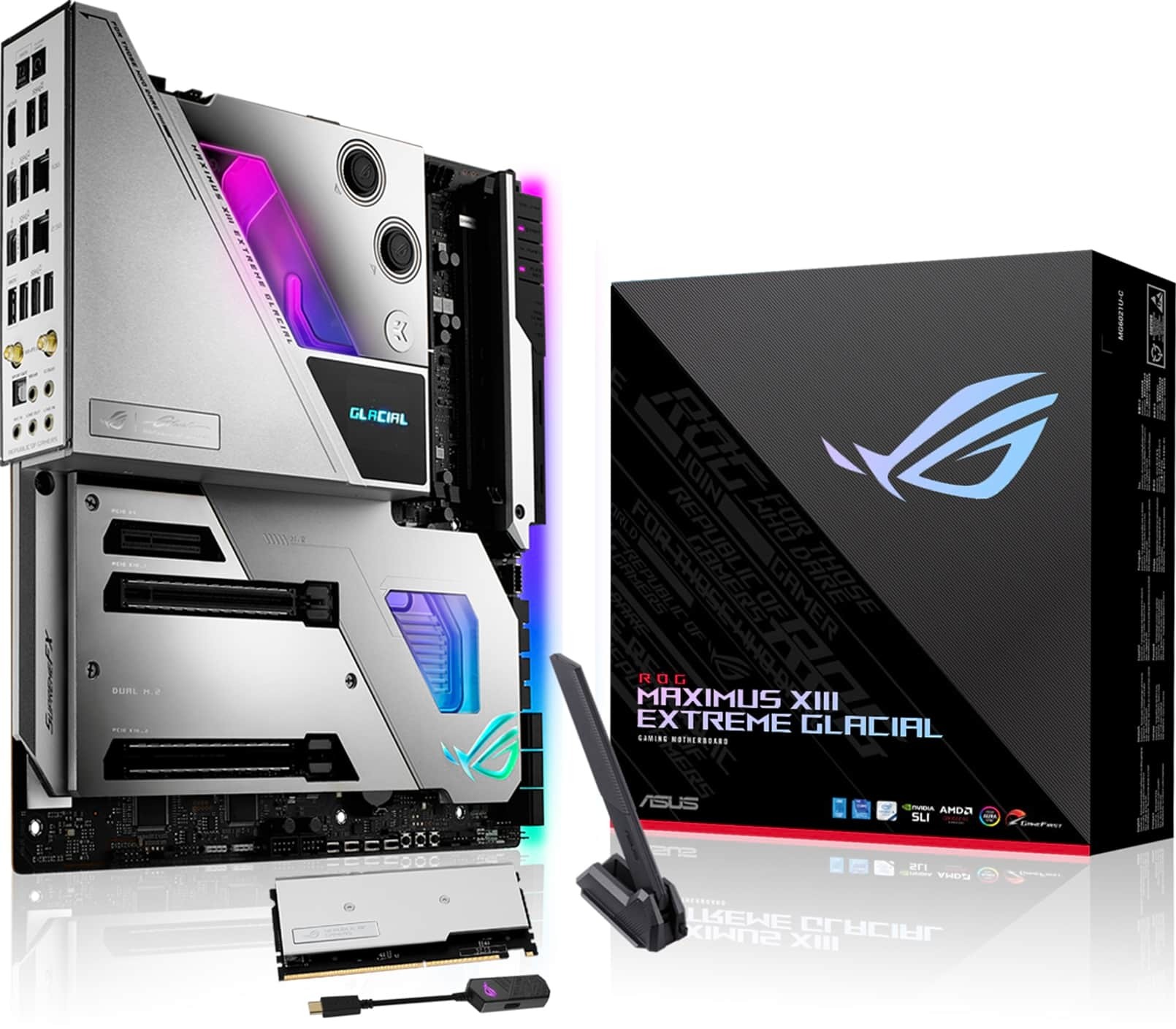

| Package Contents | Cables |
| 1x 1-to-3 ARGB Splitter Cable | |
| 2x 1-to-4 Fan Splitter Cable | |
| 1x RGB Extension Cable | |
| 3x ROG Weave SATA 6G Cables | |
| 1x 3-in-1 Thermistor Cables Pack | |
| ROG Fan Controller | |
| 1x ROG Fan Controller | |
| 1x Fan EXT PWR Cable | |
| 1 x ARGB Input Cable | |
| 1x USB Input Cable | |
| 1x ROG Fan Controller 3M Mounting Tape | |
| 1x Fan Controller Manual | |
| ROG DIMM.2 with Heatsink | |
| 1 x ROG DIMM.2 with Heatsink | |
| 1x M.2 Pad for ROG DIMM.2 | |
| 2x M.2 Screw Package for ROG DIMM.2 | |
| Additional Cooling Kit | |
| 1x Monoblock | |
| 3x Screw Package for Monoblock | |
| 1x Thermal Pad for Monoblock | |
| 1x Fittings for Monoblock | |
| Miscellaneous | |
| 1x ASUS Wi-Fi Moving Antennas | |
| 1x M.2 Rubber Package | |
| 1x M.2 SSD Screw Package | |
| 1 x Q-Connector | |
| 1x ROG CLAVIS DAC | |
| 1x ROG Key Chain | |
| 1x ROG Logo Plate Stickers | |
| 1x ROG Screwdriver | |
| 1x ROG Stickers | |
| 1x ROG Thank You Card | |
| 1x ROG Graphics Card Holder | |
| Installation Media | |
| 1x USB Drive with Utilities and Drivers | |
| Documentation | |
| 1x User Manual | |
| Notes | *1 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| *2 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. | |
| *3 Only Intel 11th Core processors, support HDMI 2.0 with max. resolution of 4K@60Hz, others would only support | |
| *4 PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode. | |
| *5 Support varies with different graphics cards | |
| *6 DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
