| SPECIFICATIONS | |
| Brand | Asus |
| Series | Republic of Gamers |

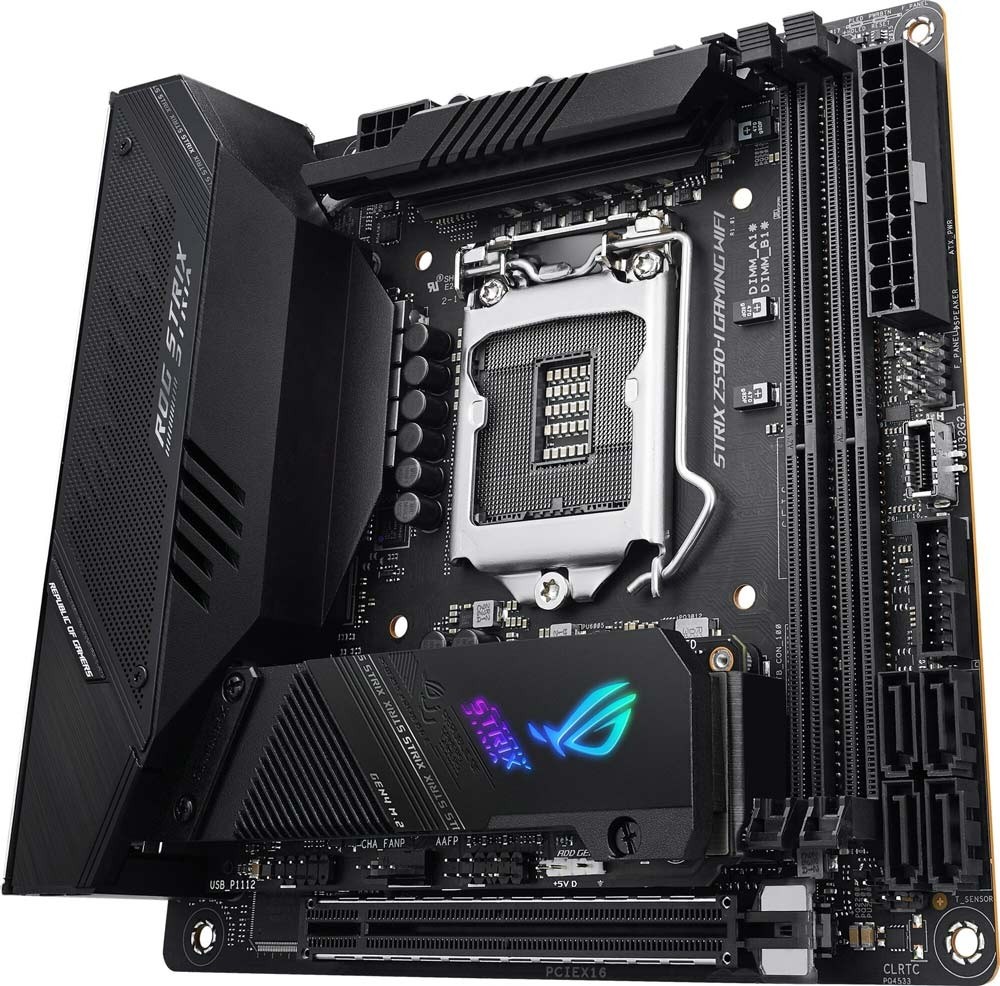

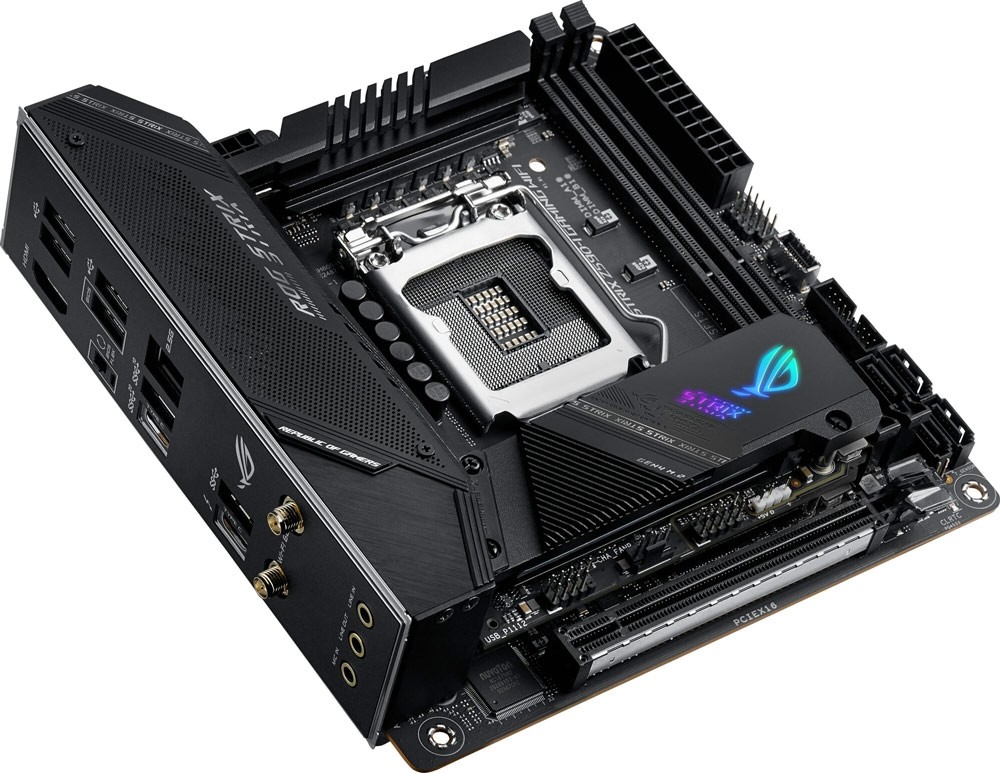

| Model | ROG STRIX Z590-I GAMING WIFI |
| CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel 14 nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 *1 | |
| Chipset | Intel Z590 Chipset |
| Memory | Memory Channels: 2DDR4 (Dual Channel) |
| Max Memory Size: 64GB | |
| 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-Buffered Memory *2 | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Graphics | 1x HDMI 2.0 |
| Expansion Slots | Intel 11th & 10th Gen Processors |
| 1x PCIe 4.0/3.0 x16 Slot *3 | |
| Intel 11th Gen Processors Supports PCIe 4.0 x16 Mode | |
| Intel 10th Gen Processors Supports PCIe 3.0 x16 Mode | |
| Storage | Supports 2x M.2 Slots and 4 x SATA 6Gb/s Ports |
| Intel 11th Gen Processors | |
| M.2_1 Slot (Key M), Type 2242/2260/2280 | |
| Only Intel 11th Core Processors Support PCIe 4.0 x4 Mode, this Slot will be Disabled for Other CPUs. | |
| Intel Z590 Chipset | |
| M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 x4 & SATA Modes) | |
| 4x SATA 6Gb/s Ports | |
| (Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.) | |
| Wireless & Bluetooth | Intel Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz Frequency Band *4 | |
| Bluetooth v5.2 Hardware Ready *5 | |
| USB | Rear USB: |
| Total 8 Ports | |
| 1x Thunderbolt 4 Port (1x USB Type-C) With Up to 5V/3A, 15W Charging Support | |
| 1x USB 3.2 Gen 2x2 Port (1x USB Type-C) | |
| 1x USB 3.2 Gen 2 Port (1x Type-A) | |
| 1x USB 3.2 Gen 1 Port (1x Type-A) | |
| 4x USB 2.0 Ports (4x Type-A) | |
| Front USB: | |
| Total 5 Ports | |
| 1x USB 3.2 Gen 2 Connector Suppports USB Type-C) | |
| 1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports | |
| 1x USB 2.0 Header Supports Additional 2 USB 2.0 Ports | |
| Audio | Audio Features *6 |
| Audio Shielding | |
| ALC4080 + Savitech SV3H712 AMP | |
| LED-Illuminated Audio Jacks | |
| Premium Japanese Audio Capacitors | |
| Internal I/O Connectors | 1x Thunderbolt 4 (On-Board) |
| Fan and Cooling Related | |
| 1x 4-pin CPU Fan Header | |
| 1x 4-pin AIO Pump Header | |
| 1x 4-pin Chassis Fan Header | |
| Power Related | |
| 1x 24-pin Main Power Connector | |
| 1x 8-pin +12V Power Connector | |
| Storage Related | |
| 2x M.2 Slots (Key M) | |
| 4x SATA 6Gb/s Ports | |
| USB | |
| 1x USB 3.2 Gen 2 Connector (Supports USB Type-C) | |
| 1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports | |
| 1x USB 2.0 Header Supports Additional 2 USB 2.0 Ports | |
| Miscellaneous | |
| 1x AURA Addressable Gen 2 Header | |
| 1x AURA RGB Header | |
| 1x Clear CMOS Header | |
| 1x Front Panel Audio Header (AAFP) | |
| 1x Speaker Header | |
| 1x 10-1 pin System Panel Header | |
| 1x Thermal Sensor Header | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System Support | Windows 10 64-bit |
| Form Factor | Mini ITX |
| 17cm x 17cm | |
| Package Content | Cables |
| 4x SATA 6Gb/s Cables | |
| 1x Panel Cable | |
| 1x ROG USB2.0 Splitter Cable | |
| Miscellaneous | |
| 1x ASUS Wi-Fi Moving Antennas | |
| 1x Cable Ties Pack | |
| 2x M.2 SSD Screw Packages | |
| 1x ROG Key Chain | |
| 1x ROG Strix Stickers | |
| 1x ROG Thank You Card | |
| Installation Media | |
| 1x Support DVD | |
| Documentation | |
| 1x User Manual | |
| Notes | *1 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| *2 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. | |
| *3 Supports PCIe bandwidth bifurcation for RAID on CPU function. | |
| *4 WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later. | |
| *5 Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later. | |
| *6 A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
