| SPECIFICATIONS | |
| Brand | ASUS |
| Model | RT-AC87U | Product Specifications |
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6 |
| Product Segment | AC2400 ultimate AC performance : 600+1734 Mbps |
| Coverage | Very large homes |
| Data Rate | 802.11n : up to 450 Mbps | 802.11n TurboQAM : up to 600 Mbps | 802.11ac : up to 1734 Mbps |
| Antenna | External antenna x 4 |
| Transmit/Receive | MIMO technology | 2.4 GHz 3 x 3 | 5 GHz 4 x 4 |
| Memory | 128 MB Flash | 256 MB RAM |
| Wi-Fi Technology | Beamforming: standard-based and universal | 256QAM high data rate | 20/40/80 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Firewall & Access Control | Firewall: SPI intrusion detection,DoS protection | Access control: Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, System Event Log |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP | Dual Link support | WAN Bridge support | Multicast Proxy support | Multicast Rate Setting support |

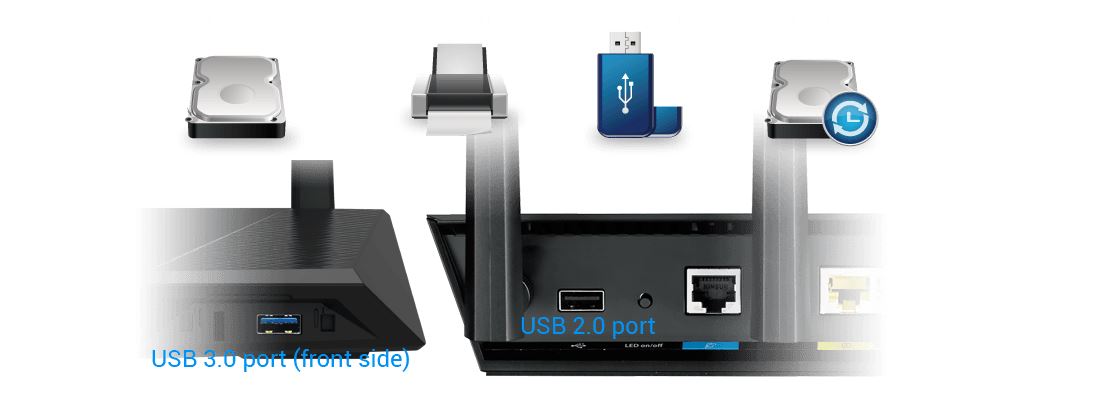

| Ports | RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1 | USB 2.0 x 1 | USB 3.0 x 1 |
| Button | WPS Button, Reset Button, Power Switch, Wireless on/off Button, LED on/off Button |

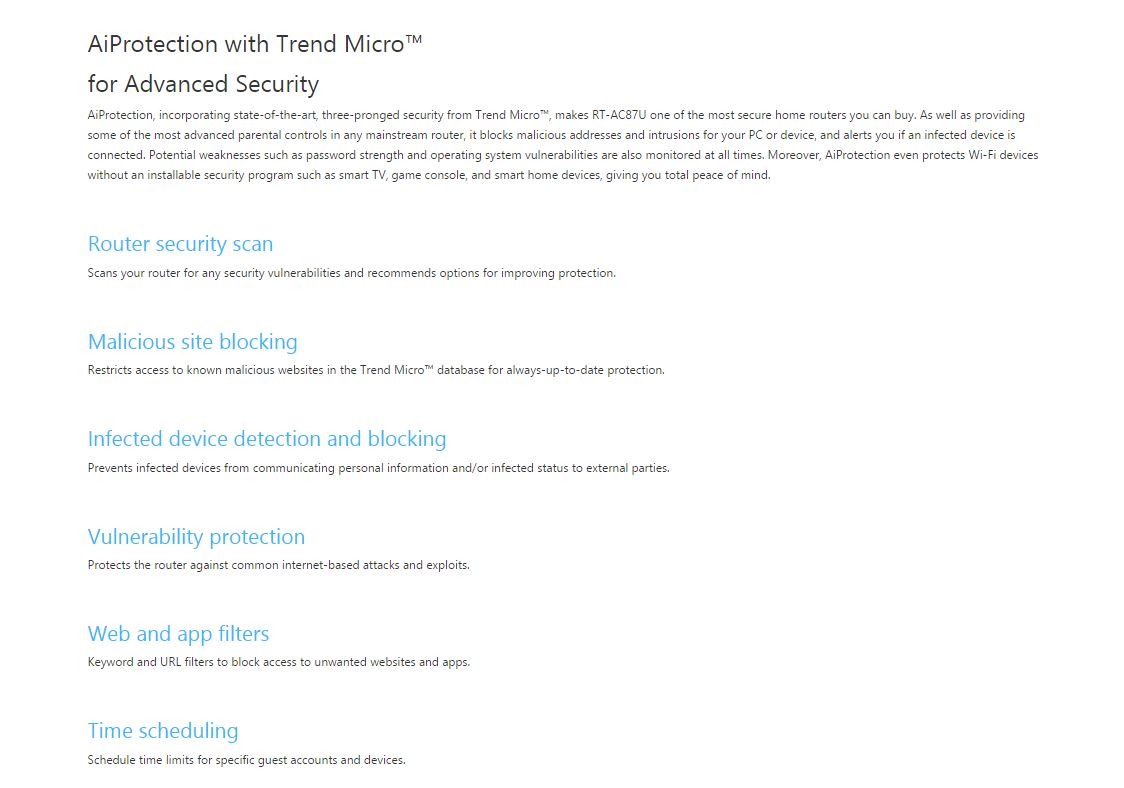

| Features | MU-MIMO | Airtime Fairness | Traffic Analyzer | Adaptive QoS | AiProtection | Guest Network : 2.4 GHz x 3, 5 GHz x 3 | VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server | VPN client : PPTP client, L2TP client, OpenVPN client | Mac OS Backup | Enhanced media server | Image : Jpeg | Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg | Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov | AiCloud personal cloud service | 3G/4G data sharing | Printer Server | Multifunctional printer support (Windows only) | LPR protocol support | Download Master | Support bt, nzb, http, ed2k | Support encryption, DHT, PEX and magnet link | Upload and download bandwidth control | Download scheduling | AiDisk file server | Samba and FTP server with account management | Dual WAN | IPTV support | Roaming Assist |
| LED Indicator | Power x 1 | Wi-Fi x 2 | LAN x 4 | WAN x 1 | WPS x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) | DC Output : 19 V with max. 2.37 A current |
| OS Support | Windows 10 | Windows 8.1 | Windows 8 | Windows 7 | Windows Vista | Windows 2000 | Windows ME | Windows XP | Windows Server 2003 | Windows Server 2008 | Mac OS X 10.1 | Mac OS X 10.4 | Mac OS X 10.5 | Mac OS X 10.6 | Mac OS X 10.7 | Mac OS X 10.8 | Mac OS X | Linux Kernel (Support Ubuntu only) | Linux |
| Dimensions | 289.5mm x 167.6mm x 47.5mm (WxDxH) |
| Weight | 747 g |
| Package Content | 1 x RT-AC87U Wireless-AC2400 Dual Band Gigabit Router | 1 x RJ-45 cable | 1 x Power adapter | 1 x QSG | 1 x Support CD(user manual and utility) |
| Operation mode | Wireless router mode | Access point mode | Media bridge mode | Warranty Information |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
