| SPECIFICATIONS | |
| Brand | ASUS |
| Model | RT-AC88U | Product Specifications |
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6 |
| Product Segment | AC3100 ultimate AC performance : 1000+2167 Mbps |
| Coverage | Very large homes |
| Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps | 802.11b : 1, 2, 5.5, 11 Mbps | 802.11g : 6,9,12,18,24,36,48,54 Mbps | 802.11n : up to 600 Mbps | 802.11ac : up to 1734 Mbps | 1024QAM (2.4GHz) : up to 1000 Mbps | 1024QAM (5GHz) : up to2167 Mbps |
| Antenna | External antenna x 4 |

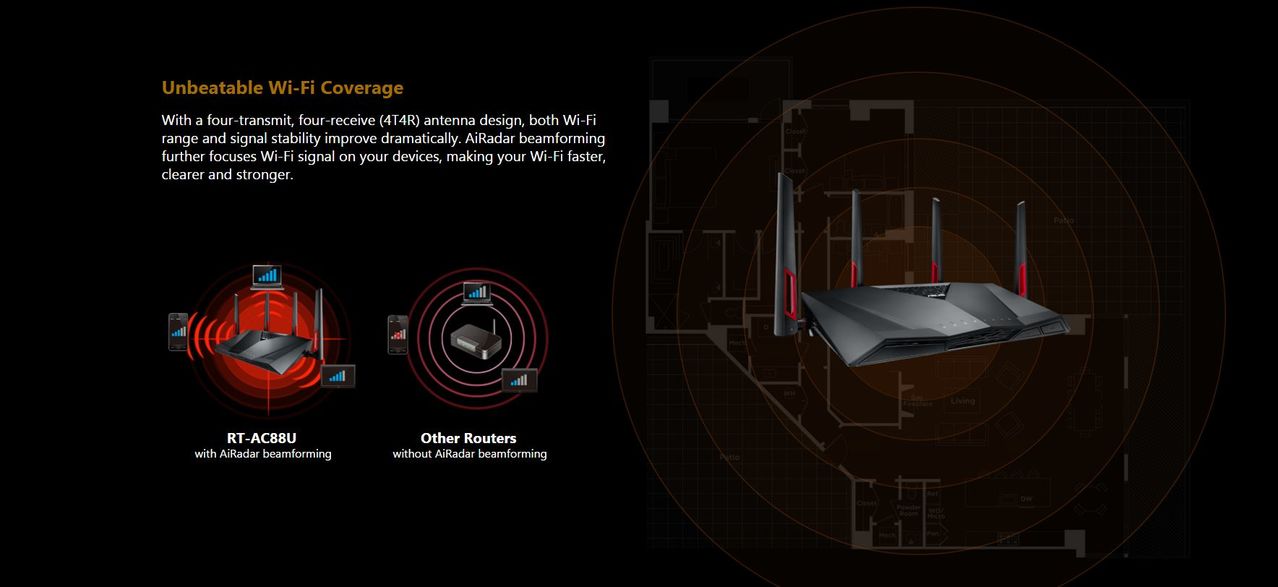

| Transmit/Receive | MIMO technology | 2.4 GHz 4 x 4 | 5 GHz 4 x 4 |

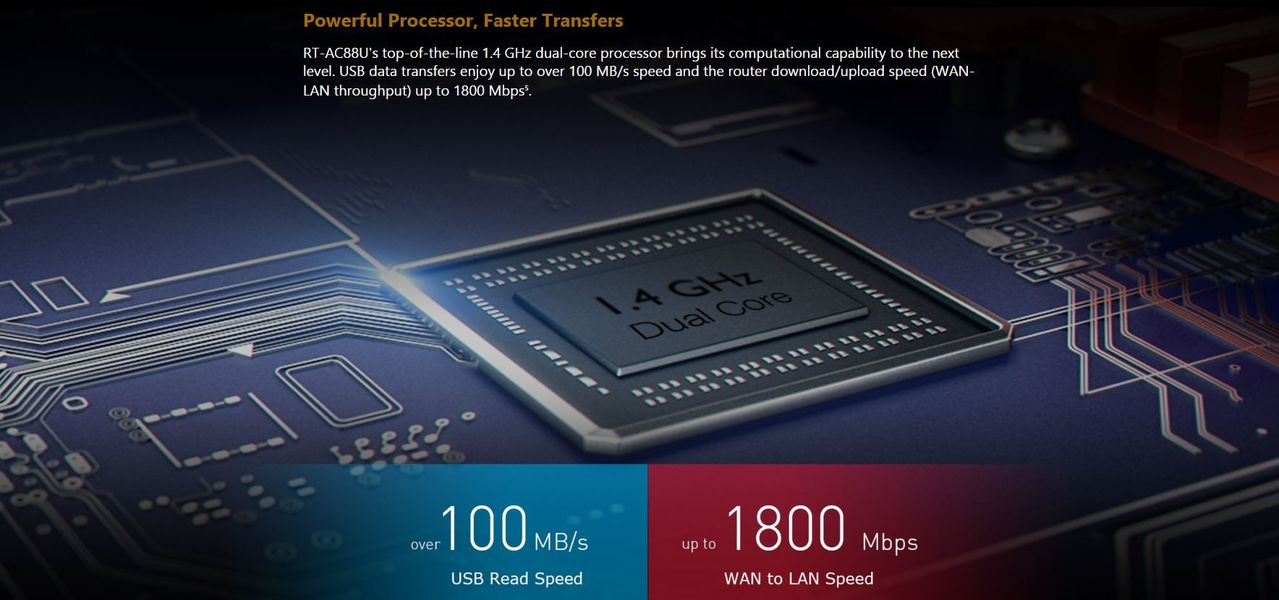

| Processor | 1.4 GHz dual-core processor |
| Memory | 128 MB Flash | 512 MB RAM |
| Wi-Fi Technology | Beamforming: standard-based and universal | 1024-QAM high data rate | 20/40/80 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Firewall & Access Control | Access control:Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, System Event Log |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
| Utilities | Router setup wizard; Firmware restoration; Device discovary; printer setup utility |
| Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 8 | USB 2.0 x 1 | USB 3.0 x 1 |
| Button | WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button |

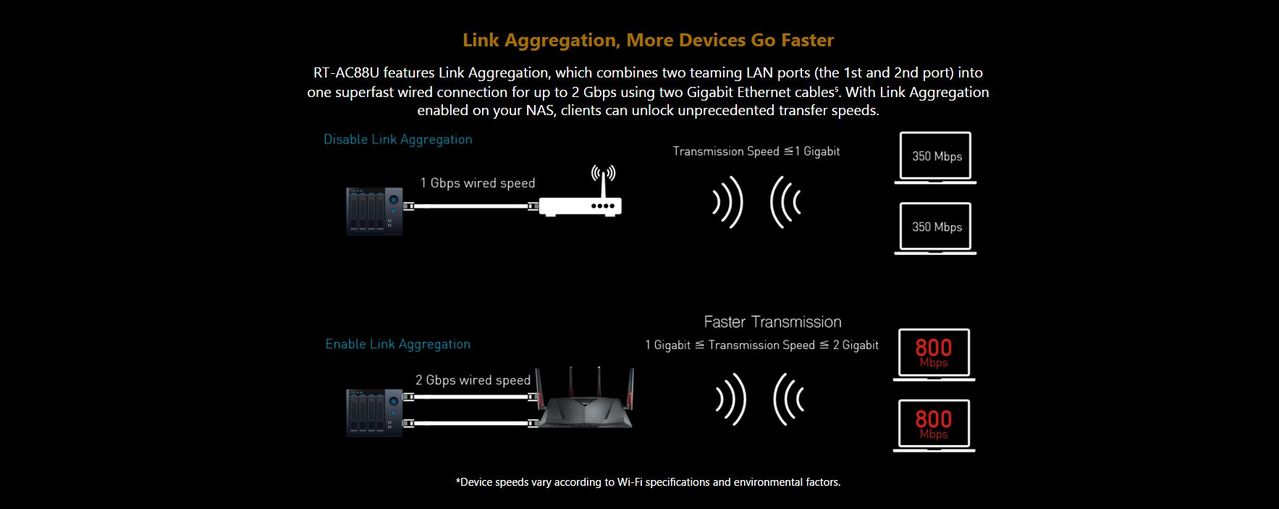

| Features | Link Aggregation | MU-MIMO | Traffic Analyzer | Adaptive QoS | AiProtection | Parental Control | Guest Network : 2.4 GHz x 3, 5 GHz x 3 | VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server | VPN client : PPTP client, L2TP client, OpenVPN client | Mac OS Backup | Enhanced media server (AiPlayer app compatible) | - Image : Jpeg | - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg | - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov | AiCloud personal cloud service | 3G/4G data sharing | Printer Server | - Multifunctional printer support (Windows only) | - LPR protocol support | Download Master | - Support bt, nzb, http, ed2k | - Support encryption, DHT, PEX and magnet link | - Upload and download bandwidth control | - Download scheduling | AiDisk file server | - Samba and FTP server with account management | Dual WAN | IPTV support | Roaming Assist |
| LED Indicator | Power x 1 | Wi-Fi x 2 | WAN x 1 | USB x 2 | WPS x 1 | LAN x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) | DC Output : 19 V with max. 2.37 A current |
| Dimensions | 299.7mm x 187.9mm x 83.8mm (WxDxH) |
| Operation mode | Wireless router mode | Access point mode | Media bridge mode | Warranty Information |
| Warranty | 3 Year Warranty |
