| SPECIFICATIONS | |
| Brand | ASUS |
| Series | TUF |

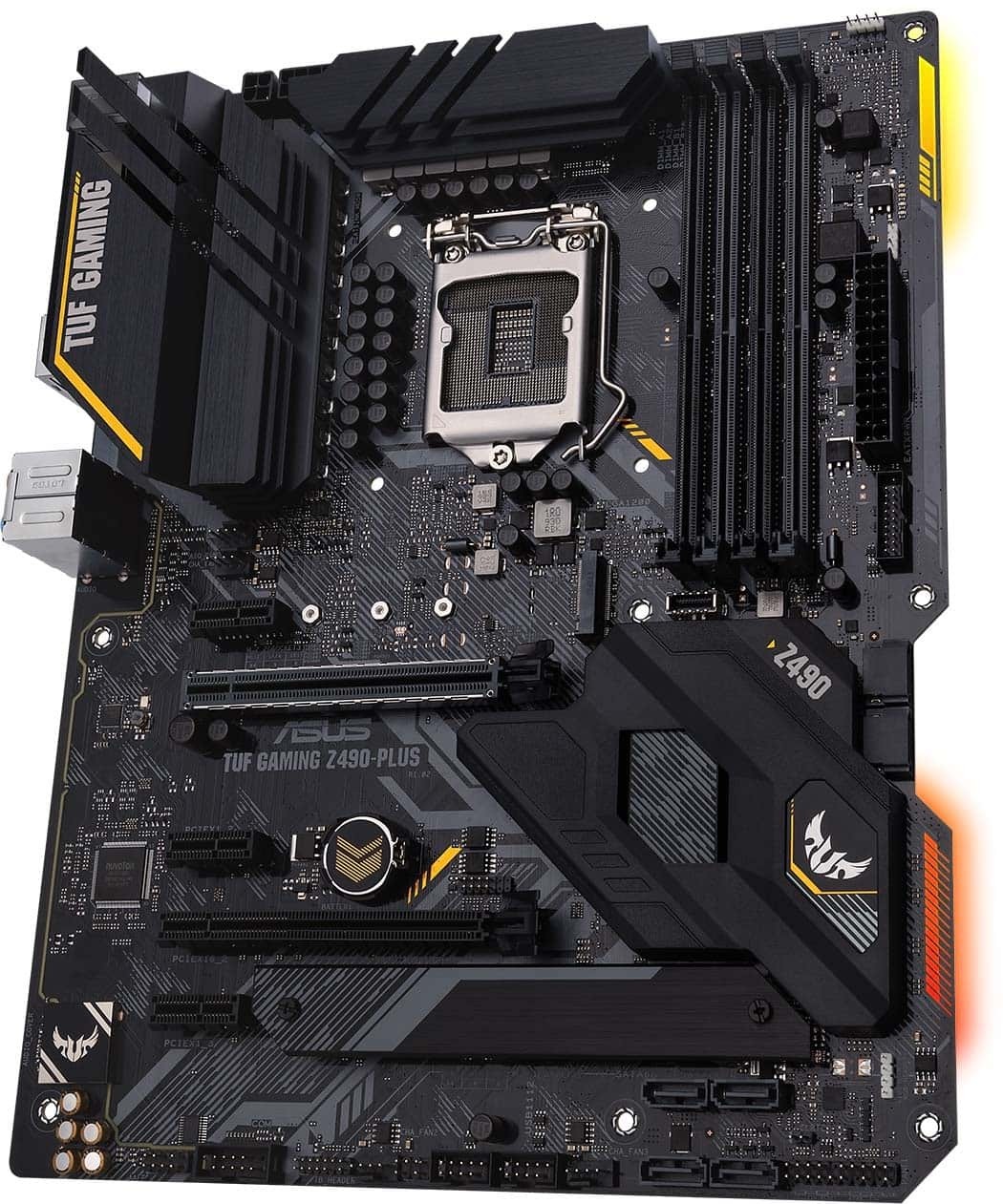

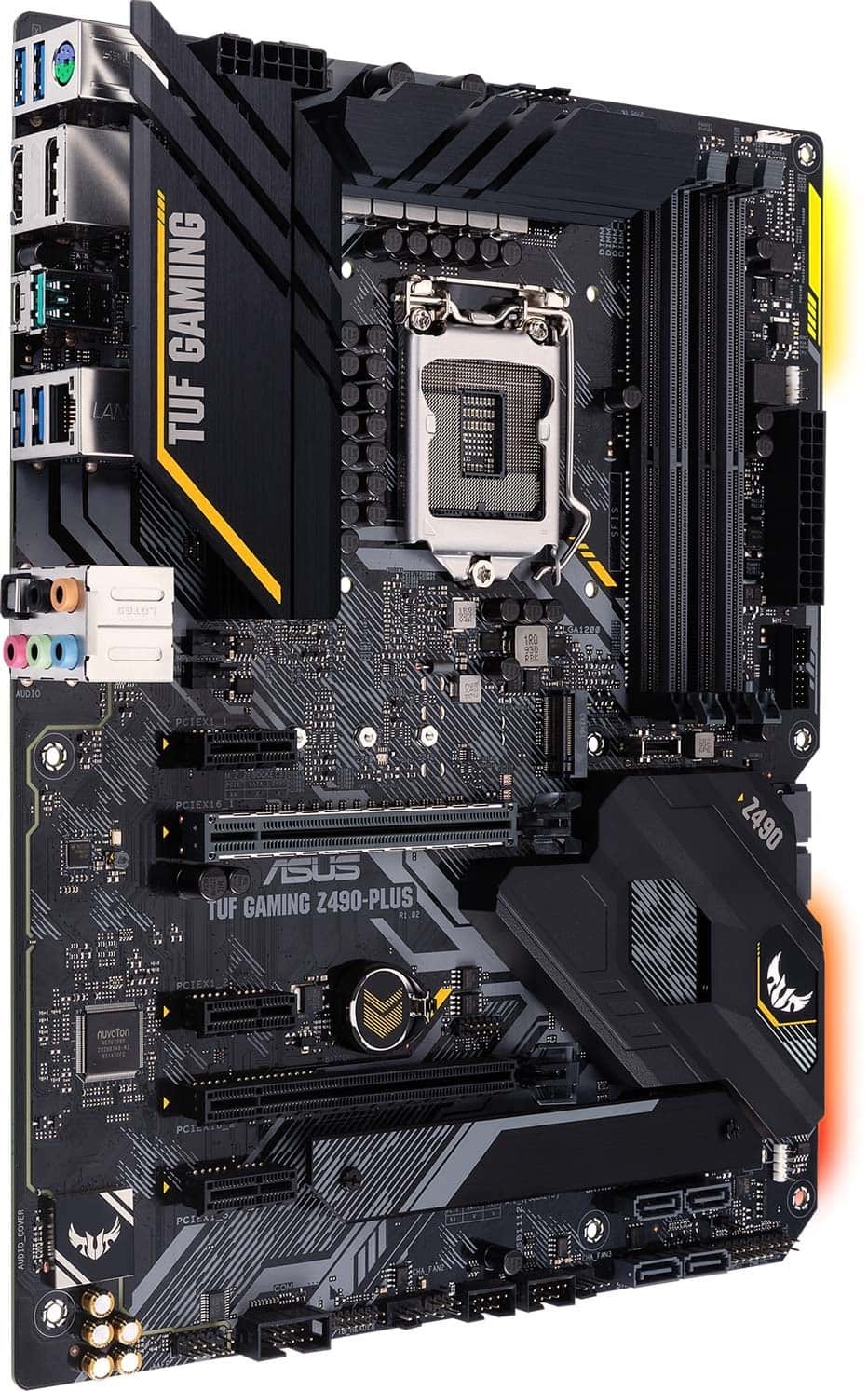

| Model | TUF GAMING Z490-PLUS (WI-FI) |
| CPU | Build in Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel 14 nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| *Refer to www.asus.com for CPU support list | |
| **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Build in Intel Z490 |
| Memory | 4x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| *10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| *Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphic | Integrated Graphics Processor |
| 1x DisplayPort 1.4 ** | |
| 1x HDMI 1.4b | |
| *Graphics specifications may vary between CPU types. | |
| **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. | |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | Intel 10th Gen Processors |
| 1x PCIe 3.0 x16 (x16 mode) | |
| Intel Z490 Chipset | |
| 1x PCIe 3.0 x16 (x4 mode) | |
| 3x PCIe x1 | |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel Z490 Chipset: | |
| 1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 1x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 6x SATA 6Gb/s port(s) | |
| Support Raid 0, 1, 5, 10 | |
| Intel Rapid Storage Technology supports | |
| Intel Optane Memory Ready | |
| LAN | Intel I219-V 1Gb Ethernet |
| TUF LANGuard | |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback | |
| Audio Feature: | |
| - Optical S/PDIF out port(s) at back panel | |
| - Audio cover | |
| - Audio Shielding | |
| - Dedicated audio PCB layers | |
| - Premium Japanese audio capacitors | |
| *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
| USB Ports | Rear USB Port ( Total 6 ) |
| 2x USB 3.2 Gen 2 port(s)(1 Type-A 1 USB Type-C) | |
| 4x USB 3.2 Gen 1 port(s)(4 x Type-A) | |
| Front USB Port ( Total 7 ) | |
| 1x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C) | |
| 1x USB 3.2 Gen 1 port(s)(2 x Type-A) | |
| 2x USB 2.0 port(s)(4 x Type-A) | |

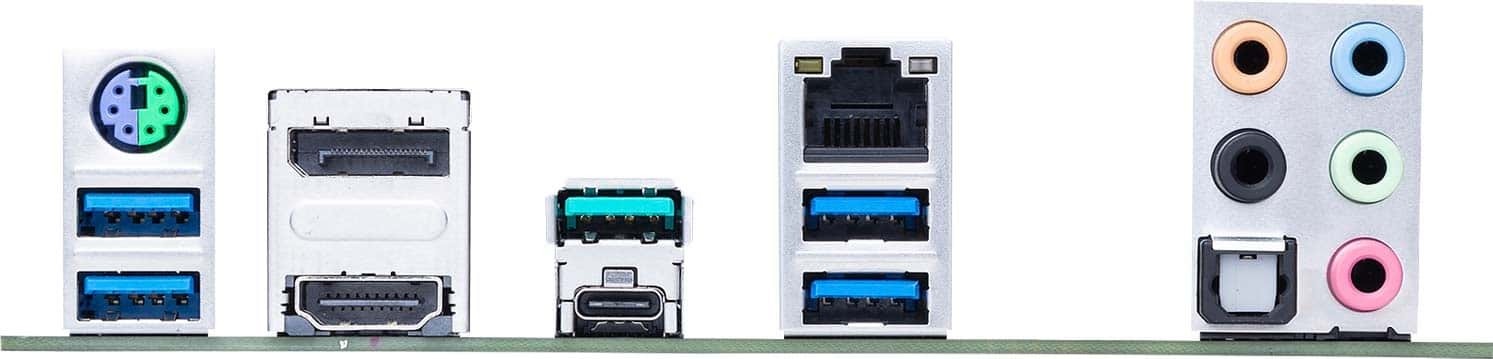

| Back I/O Ports | 1x PS/2 keyboard/mouse combo port(s) |
| 1x DisplayPort | |
| 1x HDMI | |
| 1x LAN (RJ45) port(s) | |
| 2x USB 3.2 Gen 2 (1 x Type-A 1 x USB Type-C) | |
| 4x USB 3.2 Gen 1 (blue) Type-A | |
| 1x Optical S/PDIF out | |
| 5x Audio jack(s) | |
| Internal I/O Ports | 1x CPU Fan connector(s) |
| 1x CPU OPT Fan connector(s) | |
| 3x Chassis Fan connector(s) | |
| 1x AIO_PUMP connector | |
| 2x Aura RGB Strip Headers | |
| 1x Addressable Gen 2 header(s) | |
| 1x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) | |
| 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) | |
| 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 2x M.2 Socket 3 | |
| 6x SATA 6Gb/s connector(s) | |
| 1x Thunderbolt header(s) | |
| 1x 24-pin EATX Power connector(s) | |
| 1x 8-pin ATX 12V Power connector(s) | |
| 1x 4-pin ATX 12V Power connector(s) | |
| 1x Front panel audio connector(s) (AAFP) | |
| 1x System panel(s) (Chassis intrusion header is inbuilt) | |
| 1x Clear CMOS jumper(s) | |
| 1x COM port header | |
| Accessories | User's manual |
| 1x ASUS Fan Holder | |
| I/O Shield | |
| 2x SATA 6Gb/s cable(s) | |
| 1x M.2 Screw Package | |
| 1x Supporting DVD | |
| 1x TUF GAMING Sticker | |
| 1x TUF Certification card(s) | |
| BIOS | 192 (128 64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX Form Factor |
| 30.5 cm x 24.4 cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Mobo's BIOS was dated - William, 21 January 2022
Please update mobos before dispatching. We had to disassemble a friend's PC and run his 10th gen CPU on my mobo before we could get the 11th gen to work.
Other than that I am very happy with the product
