| SPECIFICATIONS | |
| Brand | ASUS |

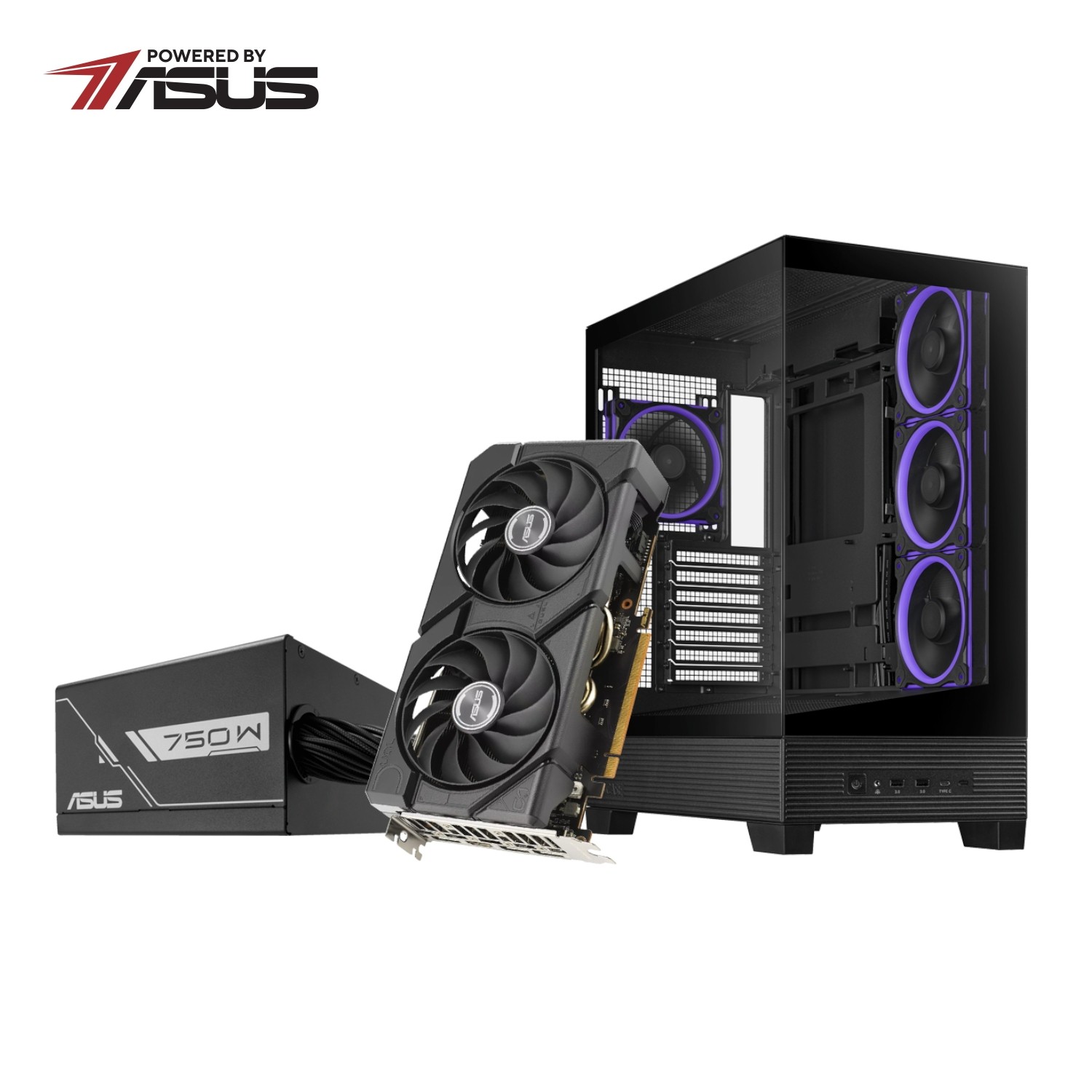

| Series | UWM Gaming Bundle |

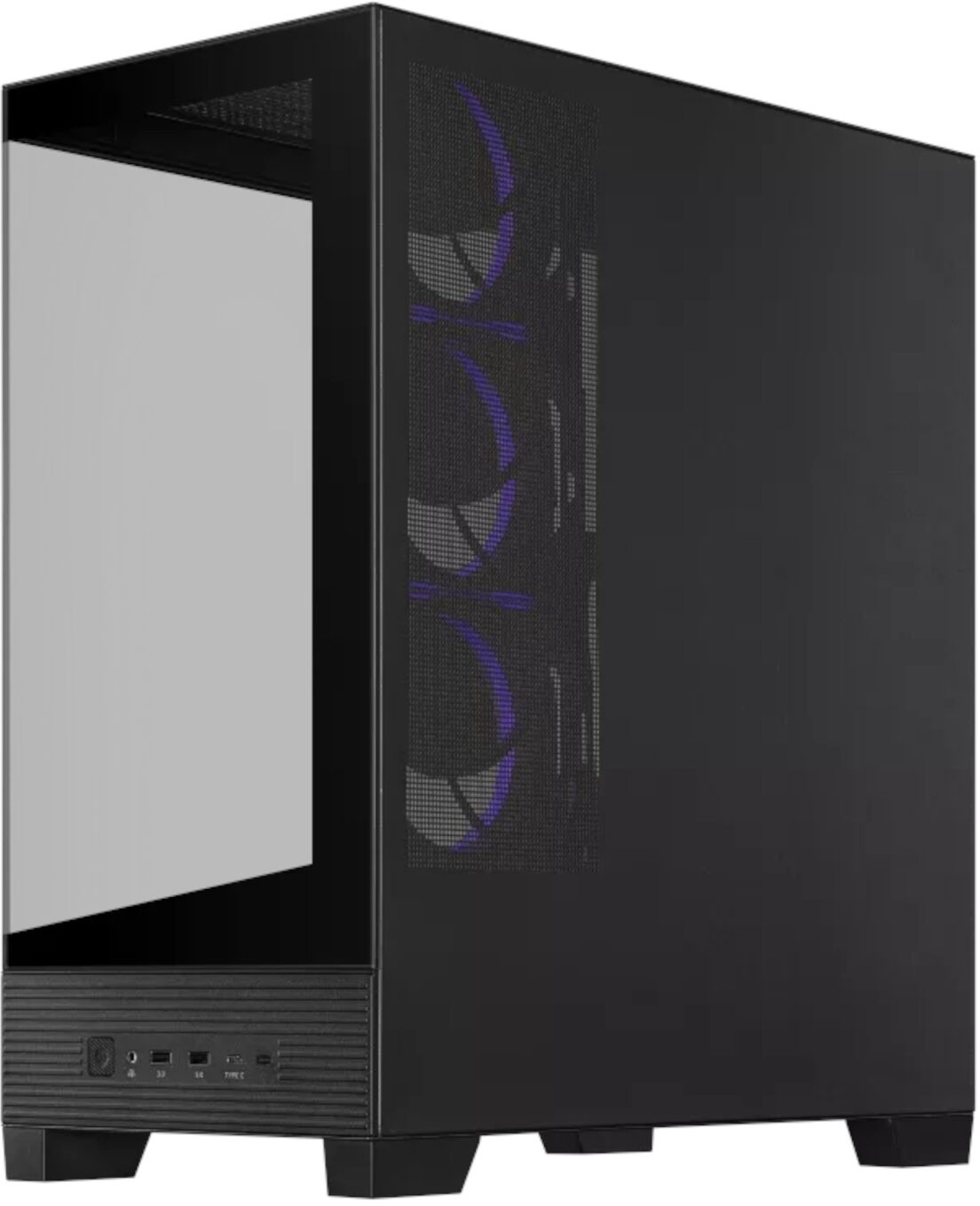

| Desktop Chassis | |
| Model | A31 PLUS |
| Motherboard Support | BTF Motherboard Compatible |
| Mini-ITX | |
| Micro-ATX | |
| ATX | |
| Drive Bays | 2 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 7 |
| Front I/O Port | 1 x USB 3.2 Gen 2x2 Type-C |
| 2 x USB 3.2 Gen 1 | |
| 1 x Headphone / Microphone | |
| Tempered Glass | Left Side |
| Front Side | |
| Radiator Support - Top | 360 mm |
| 280 mm | |
| 240 mm | |
| 140 mm | |
| 120 mm | |
| Radiator Support - Rear | 120 mm |
| Cooling Support - Top | 2 x 140 mm |
| 3 x 120 mm | |
| Cooling Support - Rear | 1 x 140 mm |
| 1 x 120 mm | |
| Pre-Installed Fans - Rear | ARGB |
| 1 x 120 mm | |
| Pre-Installed Fans - Side | ARGB |
| 3 x 120 mm | |
| Maximum CPU Cooler Height | 165 mm |
| Maximum GPU Length | 380 mm |
| Maximum PSU Length | 200 mm |
| Removable Dust Filters | Bottom |
| Top | |
| Maximum Cable Management Space | 34 mm |
| BTF Motherboard Compatible | Yes |
| Dimensions | 23.8 x 51.1 x 43.5 cm |
| Weight | 9100 g |

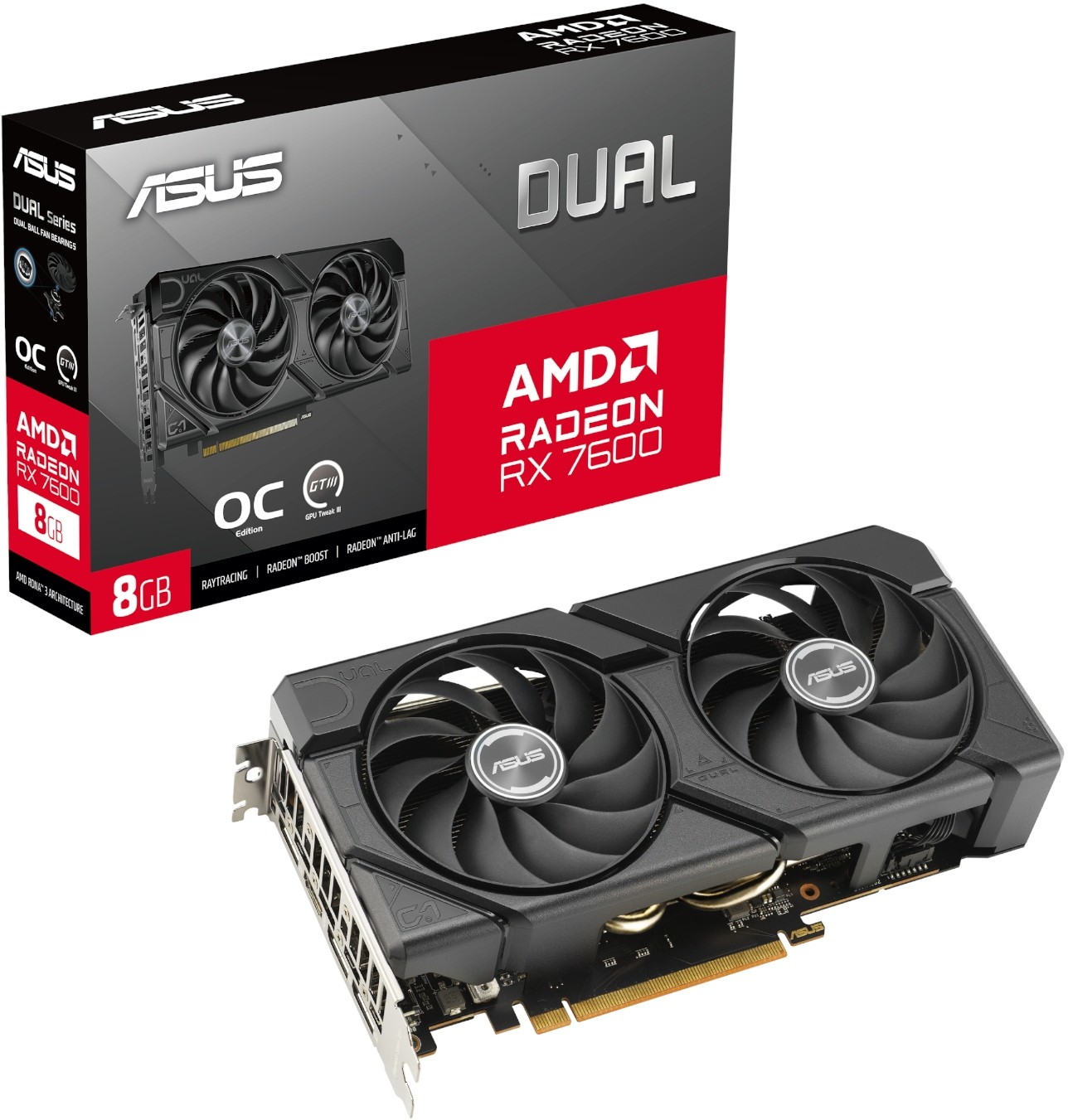

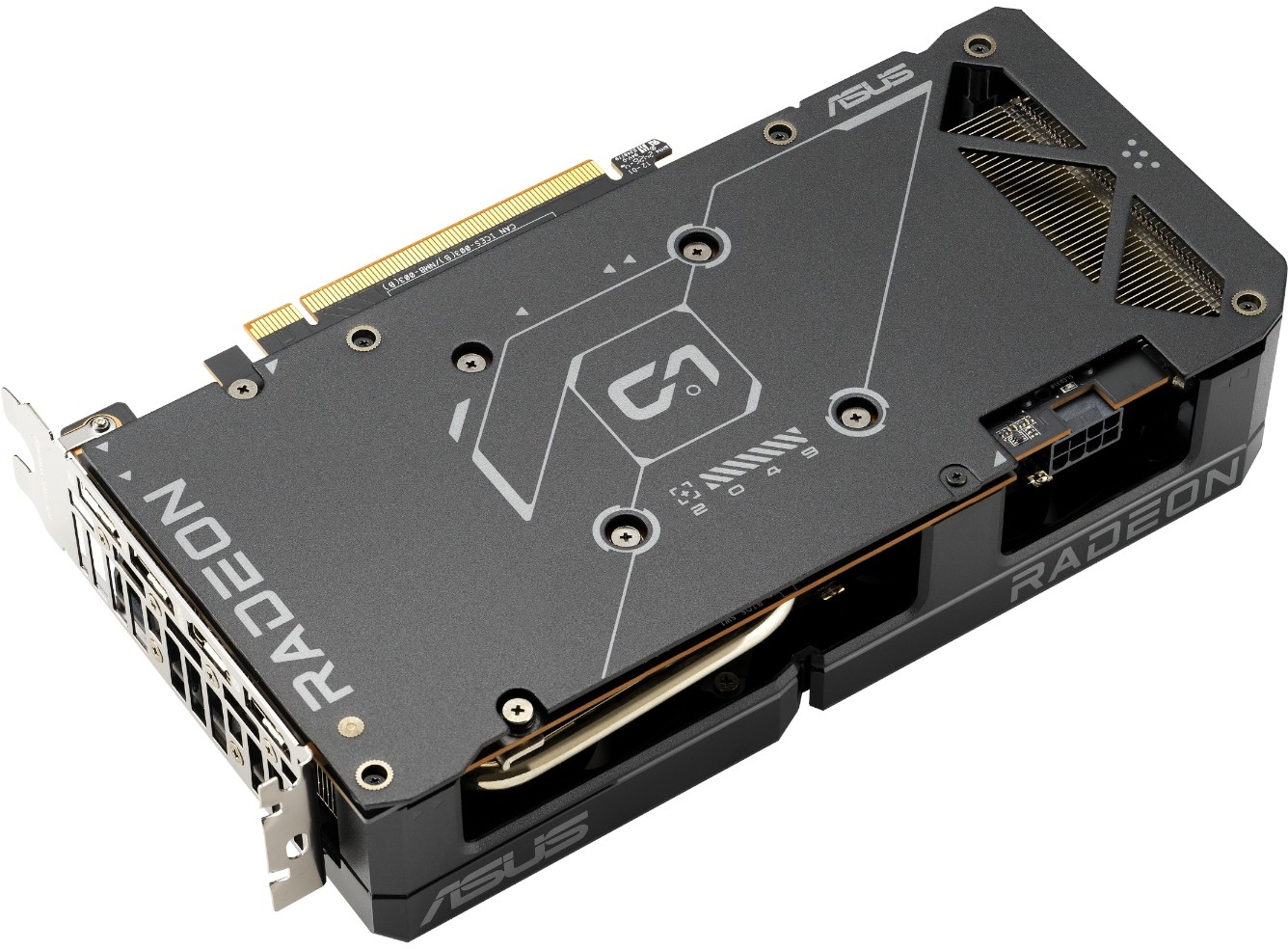

| Graphics Card | |
| Model | DUAL-RX7600-O8G-EVO |
| Graphic Engine | AMD Radeon RX 7600 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL 4.6 |
| Video Memory | 8GB GDDR6 |
| Engine Clock | OC Mode: Up to 2715 MHz Boost Clock / Up to 2300 MHz Game Clock |
| Default Mode: Up to 2695 MHz Boost Clock / Up to 2280 MHz Game Clock | |
| Stream Processors | 2048 |
| Memory Speed | 18Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | 1 x Native HDMI 2.1 |
| 3 x Native DisplayPort 1.4a | |
| HDCP Support | Yes (2.3) |
| Maximum Display Support | 4 |
| NVLink / Crossfire Support | No |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| Product Dimensions | 22.9 x 12.3 x 4.9 cm |

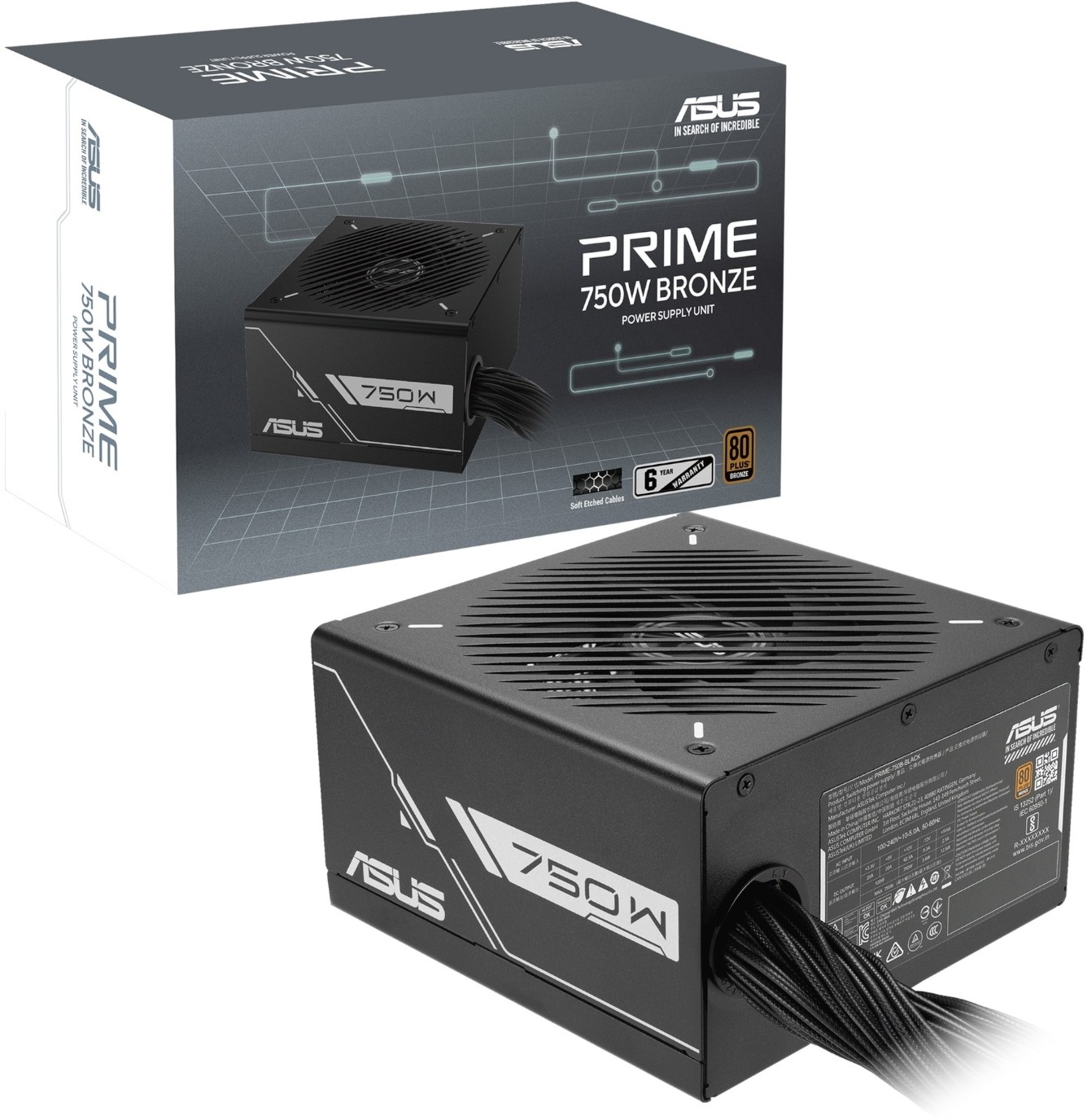

| Power Supply | |
| Model | PRIME 750B (90YE00Y0-B0NA00) |
| Total Output | 750W |
| PFC Type | Active PFC |
| ATX Standard | NA |
| Efficiency | 80 PLUS Bronze |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 20A, 20A, 62.5A, 0.3A, 2.5A |
| Combined Load | 120W, 120W, 750W, 3.6W, 12.5W |
| Cybenetics Noise Level Certification | NA |
| 0dB Technology | No |
| Cable Connectors | MB 24/20-pin x 1 |
| CPU 4+4-pin x 2 | |
| PCI-E 8-pin x 3 | |
| SATA x 6 | |
| PERIPHERAL x 3 | |
| Product Dimensions | 15 x 15 x 8.6 cm |
| Product Weight | 2200 g |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| Manufacturer's Site | No |
|---|---|
| Product Link | No |
