Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound. Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming. Stutter is eliminated for smooth-running apps, even under heavy loading. Energy waste is reduced so you'll save money. |
*Please see the graphics card QVL |  |
 |
|
|  |
 |
|
|  |
| SPECIFICATIONS | |
| Brand | ASUS |
| Model | Z170-WS |
| Series | Z170 |
| CPU | ntel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors | Supports Intel 14 nm CPU | Supports Intel Turbo Boost Technology 2.0 | * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. | * Refer to www.asus.com for CPU support list |
| Chipset | Intel Z170 |

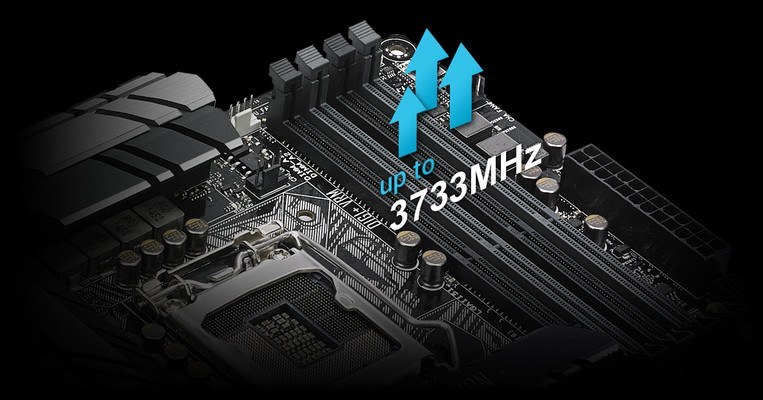

| Memory | 4 x DIMM, Max. 64GB, DDR4 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory | Dual Channel Memory Architecture | Supports Intel Extreme Memory Profile (XMP) | * Hyper DIMM support is subject to the physical characteristics of individual CPUs. | * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | ntegrated Graphics Processor- Intel HD Graphics support | Multi-VGA output support : HDMI/DisplayPort ports | - Supports HDMI with max. resolution 4096 x 2160 @ 60 Hz / 4096 x 2160 @ 24 Hz*1 | - Supports DisplayPort with max. resolution 4096 x 2304 @ 24 Hz / 4096 x 2304 @ 60 Hz *2 | Maximum shared memory of 512 MB | Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider | Supports up to 2 displays simultaneously | DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
| Multi-GPU Support | Supports NVIDIA Quad-GPU SLI Technology | Supports NVIDIA 4-Way SLI Technology | Supports AMD Quad-GPU CrossFireX Technology | Supports AMD 4-Way CrossFireX Technology |
| Expansion Slots | 4 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x16 mode, triple at x16/x8/x8 mode or quad x8/x8/x8/x8 mode) | 1 x PCIe 3.0 x4 (max at x4 mode) *3 |
| Storage | Intel Z170 chipset : | 6 x SATA 6Gb/s port(s), gray, | 2 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*4 | 1 x U.2 connector, *5 | Support Raid 0, 1, 5, 10 | Intel Rapid Storage Technology supports |
| LAN | Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 | - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in) | Audio Feature : | - DTS Connect | - DTS Studio Sound | - Optical S/PDIF out port(s) at back panel | - BD Audio Layer Content Protection | - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | - Audio amplifier: Provides the highest-quality sound for headphone and speakers | - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity | - Top notch audio sensation delivers according to the audio configuration | - Absolute Pitch 192khz/24bit true BD lossless sound | Separate layer for left and right track, ensuring both sound deliver equal quality |
| USB Ports | Intel Z170 chipset : | 5 x USB 3.0/2.0 port(s) (1 vertical Type A Connector, 4 at mid-board) | Intel Z170 chipset : | 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) | ASMedia USB 3.0 Hub : | 4 x USB 3.0/2.0 port(s) (4 at back panel, blue) | ASMedia USB 3.1 controller : | 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, teal blue, Type-A) | ASMedia USB 3.1 controller : | 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, , Type-C, Reversible) |
| Workstation Feature | 4 x PCIe x 16 slot(s) | 12K hours Capacitors | ProCool Power Connector | Q-Code Logger |

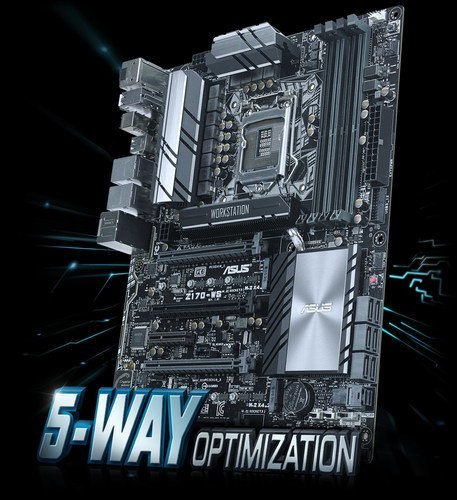

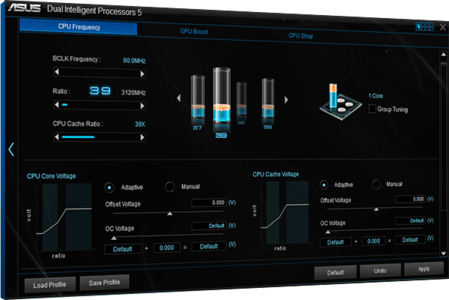

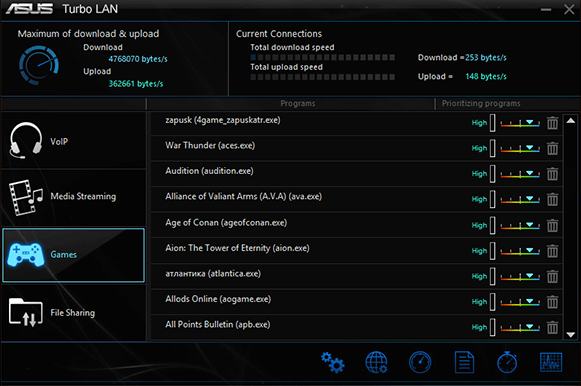

| Special Features | OC Design - ASUS PRO Clock Technology | - Full BCLK range for extreme overclocking performance | 5-Way Optimization by Dual Intelligent Processors 5 | - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 3, and Turbo App | ASUS TPU : | - Auto Tuning | - GPU Boost | - TPU switch | ASUS EPU : | - EPU | - EPU switch | ASUS Digital Power Design : | - Industry leading Digital 8 + 4 + 2 Phase Power Design | ASUS Exclusive Features : | - USB BIOS Flashback | - MemOK! | - Ai Charger | - Ai Charger+ | - Anti-Surge | - Front Panel USB 3.0 Support | - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | - USB 3.1 Boost | - Turbo LAN | - Crystal Sound 3 | - EZ XMP ASUS Exclusive Features | Remote Entertainment | - Media Streamer | ASUS Quiet Thermal Solution : | - Stylish Fanless Design Heat-pipe solution | - ASUS Fan Xpert 3 | ASUS EZ DIY : | - DirectKey | - ASUS USB BIOS Flashback | - ASUS UEFI BIOS EZ Mode | - Multi-language BIOS | - Push Notice | ASUS Q-Design : | - ASUS Q-Shield | - ASUS Q-Code | - ASUS Q-LED (CPU, DRAM, VGA, HDD LED) | - ASUS Q-Slot | - ASUS Q-DIMM | - ASUS Q-Connector | Special Memory O.C. Design | Overclocking Protection : | - ASUS C.P.R.(CPU Parameter Recall) | Fan Xpert 3 | Turbo APP | Key Express |
| Operating System Support | Windows 10 , 64bit | Windows 8.1 , 64bit | Windows 7 |
| Back I/O Ports | 1 x DisplayPort | 1 x HDMI | 2 x LAN (RJ45) port(s) | 1 x USB 3.1 (teal blue)Type-A | 1 x USB 3.1 Type-C | 4 x USB 3.0 (blue) | 4 x USB 2.0 | 1 x Optical S/PDIF out | 1 x USB BIOS Flashback Button(s) | 1 x Q-Code Logger button | 1 x 8-channel Audio I/O |
| Internal I/O Ports | 1 x AAFP connector | 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) | 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) | 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) | 6 x SATA 6Gb/s connector(s) | 1 x CPU Fan connector(s) (1 x 4 -pin, 4 -pin) | 1 x CPU OPT Fan connector(s) (1 x 4 -pin, 4 -pin) | 4 x Chassis Fan connector(s) (1 x 4 -pin, 4 -pin) | 1 x S/PDIF out header(s) | 1 x Thunderbolt header(s) | 1 x 24-pin EATX 12 V Power connector | 1 x 6-pin EATX 12 V_1 Power connector(s) | 2 x 8-pin ATX Power connector | 1 x EZ XMP switch | 1 x System panel(s) (Q-Connector) | 1 x 5-pin EXT_FAN(Extension Fan) connector | 1 x DRCT header(s) | 1 x MemOK! button(s) | 1 x TPU switch(es) | 1 x EPU switch(es) | 1 x Power-on button(s) | 1 x Clear CMOS button(s) | 1 x Water Pump header (4-pin) | 1 x 14-1 pin TPM connector | 1 x vertical type A USB 3.0 connector | 1 x U.2 connector |
| Accessories | User's manual | ASUS Q-Shield | 1 x COM port cable(s) | 6 x SATA 6Gb/s cable(s) | 2 x M.2 Screw Package | 1 x CPU installation tool | 1 x Supporting DVD | 1 x 3-Way SLI bridge(s) | 1 x 4-Way SLI bridge(s) | 1 x SLI bridge(s) | 1 x Q-connector(s) (2 in 1) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, | ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, | F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | ATX Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Weight | Color Box (5-in-1) | Net Weight : 8.05 KG | Gross Weight : 11.8 KG | Bulk Pack (5-in-1) | Net Weight : 6.2 KG | Gross Weight : 8.2 KG |
| Note | 1: HDMI 2.0 60Hz resolution support requires necessary drivers update | *2: DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays | *3: Max. at x4 mode, compatible with PCIe x1, x2 and x4 devices | *4: The M.2_1 socket shares SATA ports with SATA6G_56 ; the M.2_2 socket shares bandwidth with U.2 connector, and shares SATA ports with SATA6G_12 when using SATA mode | *5: Support NVMe device | *5: Support U.2 NVMe device | Warranty Information |
| Warranty | 3 Year Warranty |
