| SPECIFICATIONS | |
| CPU | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors | Supports Intel 22 nm CPU | Supports Intel Turbo Boost Technology 2.0 | * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel Z87 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory | Dual Channel Memory Architecture | Supports Intel Extreme Memory Profile (XMP) | * Hyper DIMM support is subject to the physical characteristics of individual CPUs. | * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor | Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort 1.2 ports *1 | - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz | - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz | - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz | Maximum shared memory of 1024 MB | Supports up to 3 displays simultaneously | Multi-GPU Support | Supports NVIDIA Quad-GPU SLI Technology *2 | Supports AMD Quad-GPU CrossFireX Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) | 1 x PCIe 2.0 x16 (x2 mode) | 2 x PCIe 2.0 x1 | 2 x PCI |
| Storage | Intel Z87 chipset : | 6 x eSATA port(s), yellow | Support Raid 0, 1, 5, 10 | Supports Intel Dynamic Storage Accelerator, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology*3 |
| LAN | Realtek 8111GR, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek ALC892 8-Channel High Definition Audio CODEC | - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking | Audio Feature : | - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound | - DTS Ultra PC II | - DTS Connect | - Optical S/PDIF out port(s) at back panel | - BD Audio Layer Content Protection |
| USB Ports | Intel Z87 chipset : | 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board) | Intel Z87 chipset : | 8 x USB 2.0/1.1 port(s) |
| Special Features | ASUS Dual Intelligent Processors 2 with DIGI+ VRM : | ASUS 5X PROTECTION : | - ASUS DIGI+ VRM - 8 Phase digital power design | - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention | - ASUS ESD Guards - Enhanced ESD protection | - ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability | - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating | ASUS EPU : | - EPU | - EPU switch | ASUS Digital Power Design : | - Industry leading Digital 8 Phase CPU Power Design | - ASUS DIGI+ VRM Utility | ASUS Exclusive Features : | - Remote GO! | - MemOK! | - AI Suite 3 | - Ai Charger | - Anti-Surge | - Front Panel USB 3.0 Support | - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | - Network iControl | - USB 3.0 Boost | - Disk Unlocker | ASUS Quiet Thermal Solution : | - Stylish Fanless Design Heat-sink solution | - ASUS Fan Xpert 2 | ASUS EZ DIY : | - DirectKey | - Precision Tweaker 2 | - ASUS O.C. Profile | - ASUS CrashFree BIOS 3 | - ASUS EZ Flash 2 | - Multi-language BIOS | ASUS Q-Design : | - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | - ASUS Q-Slot | - ASUS Q-DIMM | - ASUS Q-Connector | 100% All High-quality Conductive Polymer Capacitors | Overclocking Protection : | - ASUS C.P.R.(CPU Parameter Recall) |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) | 1 x DVI-D | 1 x D-Sub | 1 x DisplayPort | 1 x HDMI | 1 x LAN (RJ45) port(s) | 4 x USB 3.0 (blue) | 2 x USB 2.0 | 1 x Optical S/PDIF out | 6 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) | 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) | 1 x TPM header | 6 x SATA 6Gb/s connector(s) | 1 x CPU Fan connector(s) (1 x 4 -pin) | 1 x CPU OPT Fan connector(s) (1 x 4 -pin) | 3 x Chassis Fan connector(s) (3 x 4 -pin) | 1 x S/PDIF out header(s) | 1 x 24-pin EATX Power connector(s) | 1 x 8-pin ATX 12V Power connector(s) | 1 x Front panel audio connector(s) (AAFP) | 1 x System panel(s) (Q-Connector) | 1 x DirectKey Button(s) | 1 x DRCT header(s) | 1 x MemOK! button(s) | 1 x TPU switch(es) | 1 x EPU switch(es) | 1 x Clear CMOS jumper(s) |

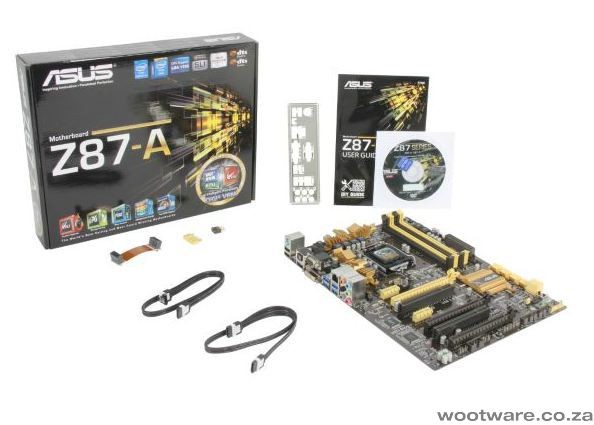

| Accessories | User's manual | I/O Shield | 2 x SATA 6Gb/s cable(s) | 1 x SLI bridge(s) | 1 x Q-connector(s) (2 in 1) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, | ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.7, WOL by PME, PXE |
| Support Disc | Drivers | ASUS Utilities | EZ Update | Anti-virus software (OEM Version Only) |
| Form Factor | ATX Form Factor | 12 inch x 8.8 inch ( 30.5 cm x 22.35 cm ) |
| Note | *1: DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays | *2: With 2 PCIex16 graphics card. | *3: Supports on Intel Core processor family | Warranty Information |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
