| SPECIFICATIONS | |

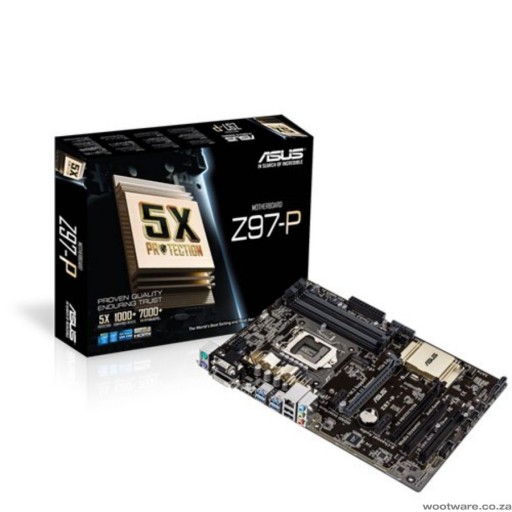

| Brand | Asus |
| Model | Z97-P |
| CPU | Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors | Supports Intel 22 nm CPU | Supports Intel Turbo Boost Technology 2.0 |
| Chipset | Intel Z97 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory * | Dual Channel Memory Architecture | Supports Intel Extreme Memory Profile (XMP) |
| Graphic | Integrated Graphics Processor- Intel HD Graphics support | Multi-VGA output support : HDMI/DVI-D/RGB ports | - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz | - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz | Maximum shared memory of 512 MB | Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider | Supports up to 3 displays simultaneously |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) | 1 x PCIe 2.0 x16 (x2 mode, black) | 2 x PCIe x1 | 2 x PCI |
| Storage | Intel Z97 chipset : | 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*1 | 4 x SATA 6Gb/s port(s), gray | Support Raid 0, 1, 5, 10 | Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *1 |
| LAN | Realtek 8111GR, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek ALC891 8-Channel High Definition Audio CODEC *2 | Supports : Jack-detection, Front Panel Jack-retasking | Audio Feature : | Audio Shielding: Ensures precision analog/digital separation and greatly reduced Multi-lateral interference | Dedicated Audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive Audio signals | Audio amplifier: Provides the highest-quality sound for headphone and speakers | Unique de-pop circuit: Reduces start-up popping noise to Audio outputs |
| USB Ports | Intel Z97 chipset : | 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board) | Intel Z97 chipset : | 8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board) |
| Back I/O Ports | 1 x PS/2 keyboard (purple) | 1 x PS/2 mouse (green) | 1 x DVI-D | 1 x D-Sub | 1 x HDMI | 1 x LAN (RJ45) port(s) | 4 x USB 3.0 (blue) | 2 x USB 2.0 | 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) | 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) | 1 x M.2 Socket 3 for M Key, type 2260/2280 devices | 1 x TPM header | 1 x COM port(s) connector(s) | 4 x SATA 6Gb/s connector(s) | 1 x CPU Fan connector(s) (1 x 4 -pin) | 2 x Chassis Fan connector(s) (2 x 4 -pin) | 1 x S/PDIF out header(s) | 1 x 24-pin EATX Power connector(s) | 1 x 8-pin ATX 12V Power connector(s) | 1 x Front panel audio connector(s) (AAFP) | 1 x System panel(s) | 1 x Clear CMOS jumper(s) |
| Form Factor | ATX Form Factor | 12 inch x 8.4 inch ( 30.5 cm x 21.3 cm ) | Warranty Information |
| Warranty | Manufacturer's Warranty |
