| SPECIFICATIONS | |
| Brand | EKWB |
| Series | EK-Quantum |

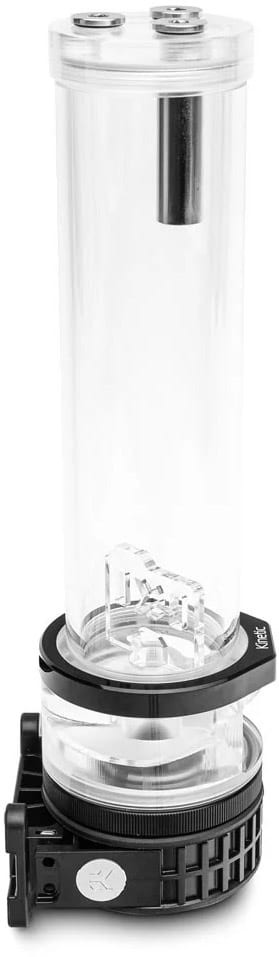

| Model | EK-Quantum Kinetic TBE 300 D5 |
| Pump Electrical & Mechanical Properties | |
| Motor | Electronically Commuted Spherical Motor |
| Rated voltage | 12V DC |
| Power Consumption | 23W |
| Maximum Pressure Head | 3.9m |
| Maximum Flow | 1500L/h |
| Maximum System Temperature | 60°C |
| Materials | Stainless Steel |
| PPS-GF40 | |
| EPDM O-rings | |
| Aluminium Oxide | |
| Hard Coal | |
| Power Connector | 4-Pin Molex- and 4-Pin PWM FAN Connector |
| Technical Specifications | |
| Reservoir Diameter | 60mm |
| Reservoir Free Volume | 405ml |
| Overall Unit Height | 300mm |
| Mounting Hole Pattern | 65mm x 34mm |
| D-RGB Connector | Standard 3-pin (5 , Digital, Blocked, Ground) |
| Operational Regime | |
| PWM Duty Cycle | 20% - 100% |
| Default Behaviour | Runs at 100% Duty Cycle when no PWM Feedback Signal is Present |
| General | |
| Threads | G1/4 |
| Package Contents | EK-Quantum Kinetic TBE 300 D5 PWM D-RGB |
| Mounting Clip with Rubber Insert | |
| Self-Adhesive Mounting Hole Pattern Sticker | |
| Mounting Mechanism (incl. required Allen keys) | |
| Installation Manual | |
| Warranty Information | |
| Warranty | 2 Year Warranty |
