| SPECIFICATIONS | |
| Brand | Fractal Design |
| Series | Celsius+ |
| Model | S36 Prisma Edition (FD-W-2-S3602) |
| Specifications | |
| Supported Sockets | Intel: 1700 / 1200 / 1150 / 1155 / 1156 / 1366 / 2011 / 2011-3 / 2066 |
| AMD: AM2 / AM2 / AM3 / AM3 / AM4 / AM5 / FM1 / FM2 / FM2 / TR4 (via included bracket in AMD Threadripper box) | |
| Coldplate Material | Copper |
| Thermal Paste | Pre-Applied |
| Block Height | 45 mm |
| Block Measurements | 86 x 75 mm (with fittings) |
| Block Diameter | 62 mm (main block body) |
| Fan Control | Dual mode (Auto/PWM) |
| Pump | |
| Rotational Speed | 3600 RPM (max) |
| Bearing Type | Ceramic bearing and shaft |
| PWM Control | Yes |
| Acoustical Noise | 20 dBA (full speed) |
| Maximum Pressure, 50°C | 1.46 mmH2O |
| Input Voltage | 12V DC |
| Input Current | 0.36A (without fans) |
| MTTF | 50,000 hours |
| Tubes | |
| Length | 400 mm |
| Material | Low-permeability rubber with braided nylon sleeves |
| Fittings | |
| Block Side | Articulating 90-degree elbow |
| Radiator Side | Fixed |
| Fan Specifications | |
| Fan Type | Prisma AL-12 PWM ARGB |
| Rotational Speed | 500 - 2000 RPM |
| Bearing Type | LLS (Long Life Sleeve) |
| PWM Control | Yes |
| Acoustical Noise | 32.7 dBA (max) |
| Airflow | 85.71 CFM (max) |
| Static Pressure | 2.78 mmH2O (max) |
| Input Voltage | 12V DC |
| input Current | 0.18A (max) |
| MTBF | 100,000 hours |
| Radiator Specification | |
| Dimensions | 123 x 30 x 403 mm |
| Housing Material | Aluminium |
| Fin Material | Aluminium |
| Fan Screw Threads | 6 - 32 |
| General | |

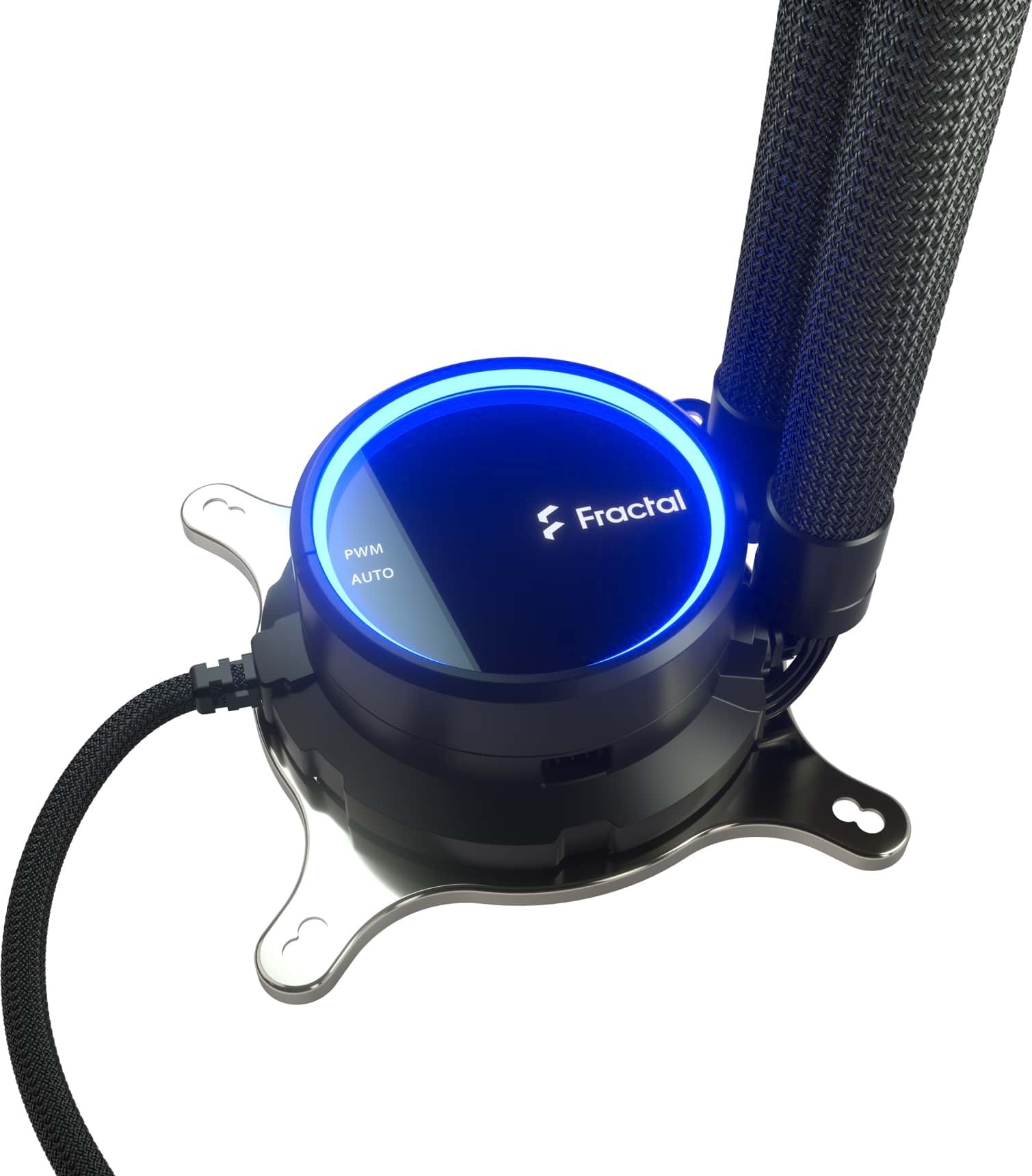

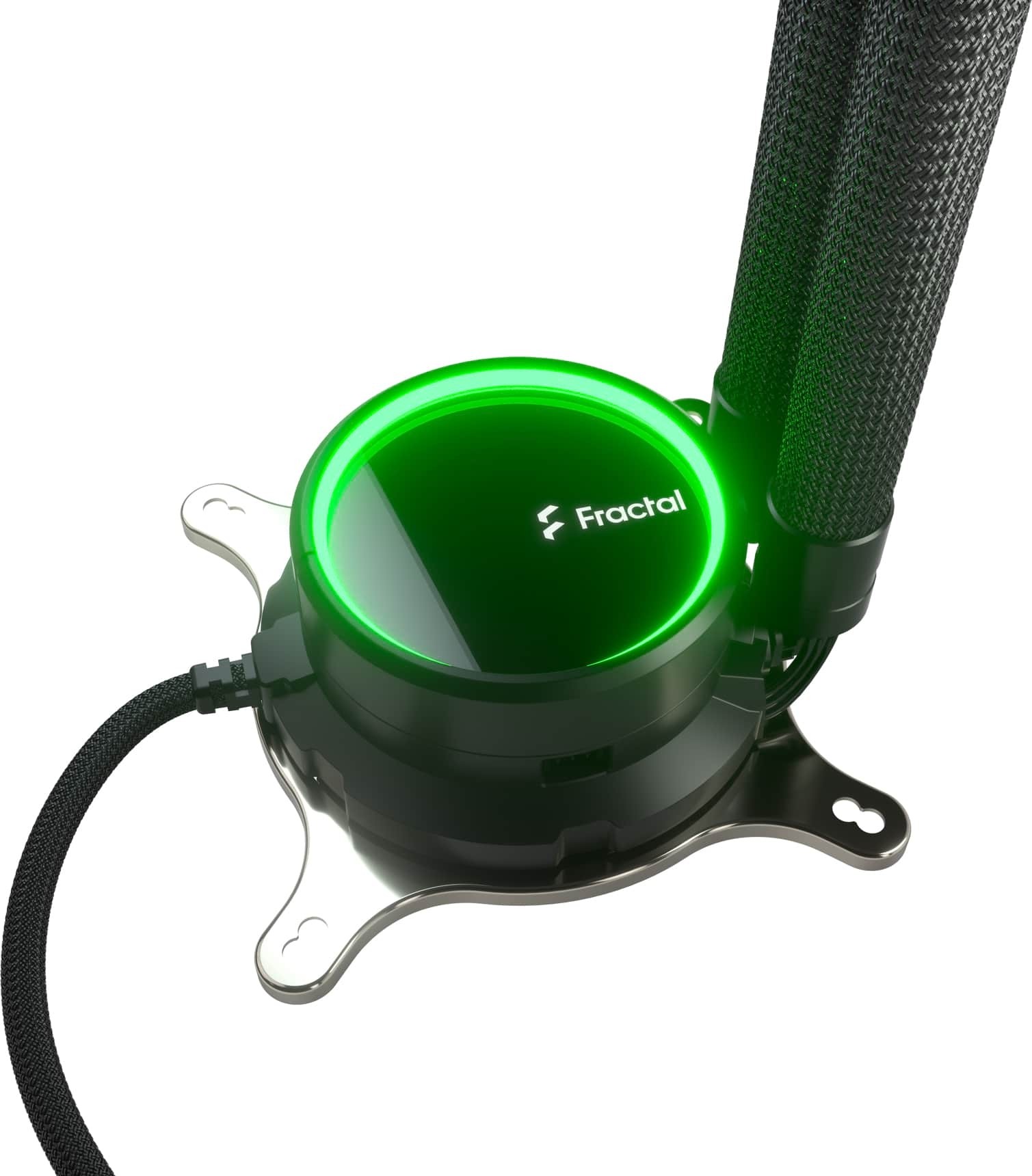

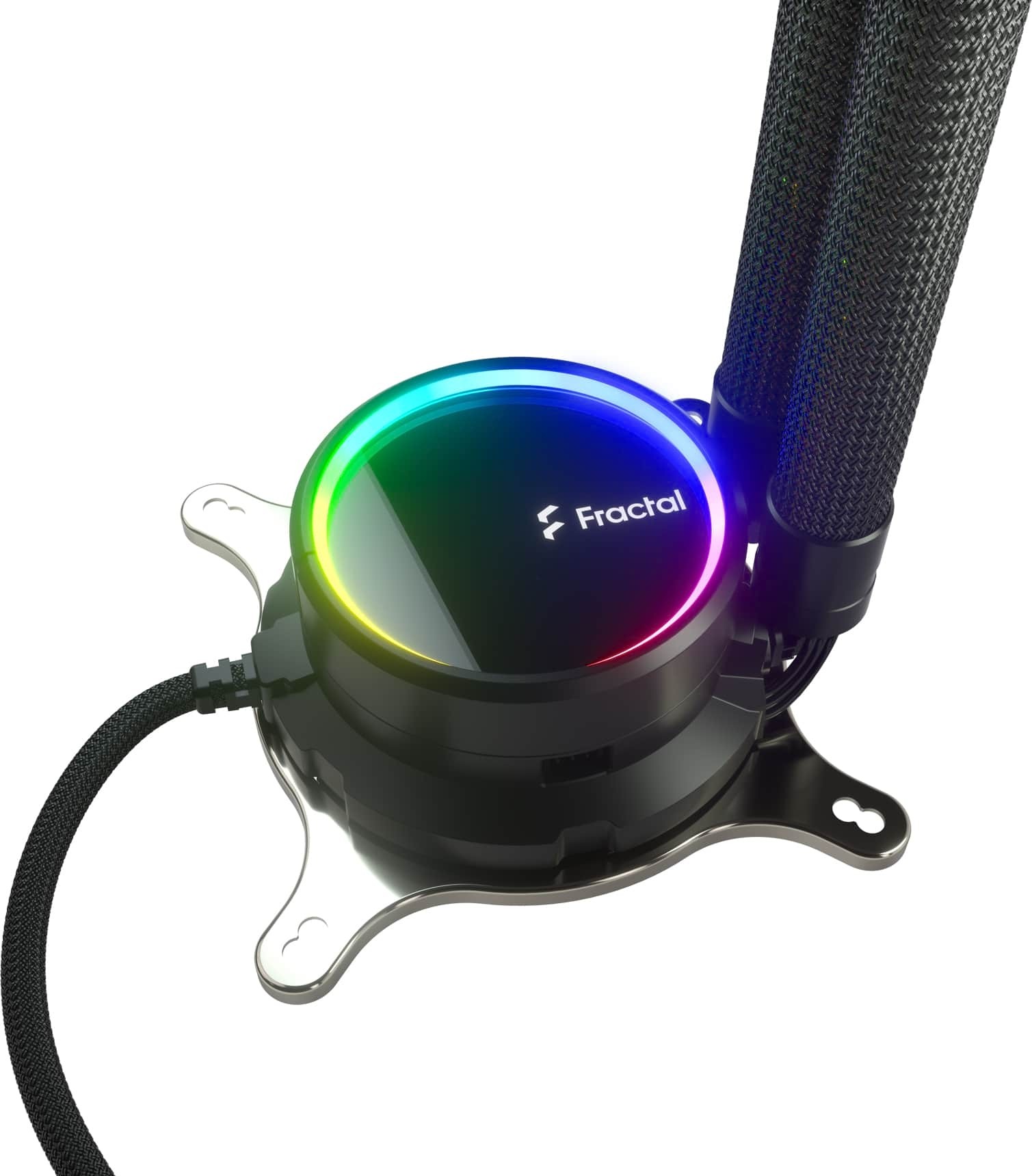

| Features | Tinted glass pump face with backlit logo and ARGB LED effects |
| Smart auto control mode dynamically adjusts fan and pump speeds for the ideal balance of silence and cooling performance | |
| Twist the pump face to change from auto to PWM mode for full user control | |
| ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation | |
| Sleeved tubing with concealed wiring connects power and ARGB for the entire system at the pump | |
| Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support | |
| Pre-applied thermal paste guarantees optimal application with even coverage | |
| Low-permeability rubber tubing with nylon braided sleeves for extra durability and an added touch of style | |
| Articulating elbow fittings make tubes easier to route while reducing tension on the pump | |

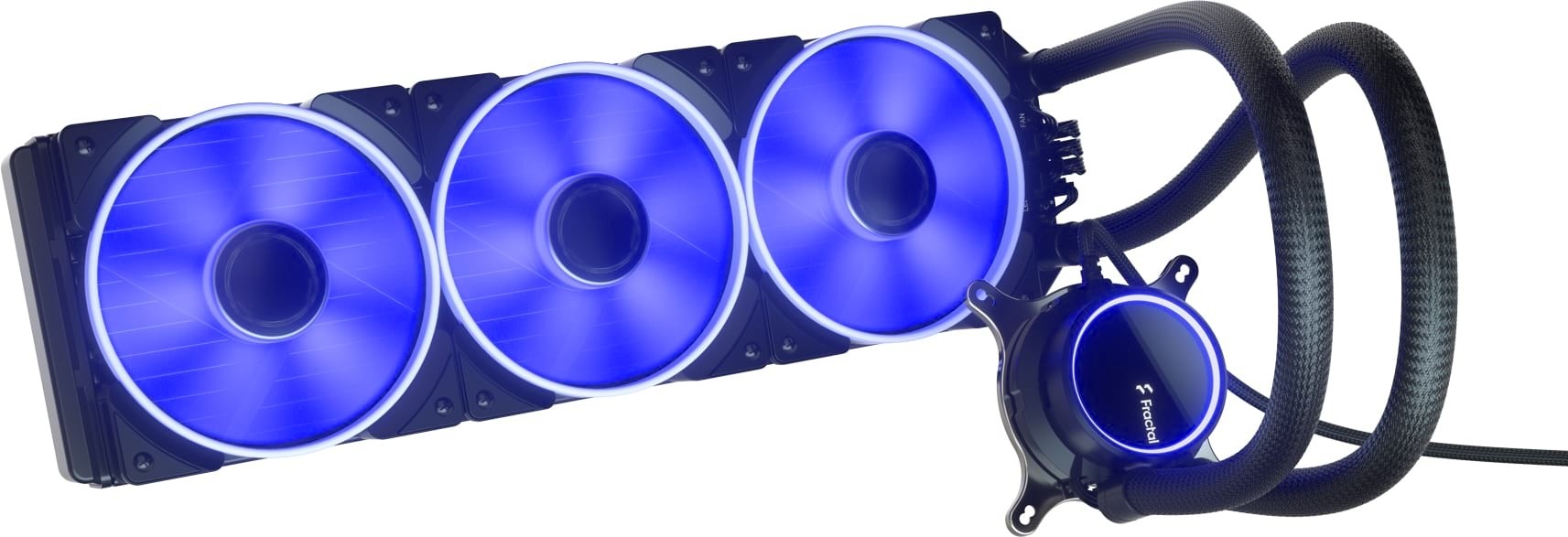

| Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects (Prisma versions only) | |
| Specially designed fan blades and outer ring produce a uniform glow (Prisma versions only) | |
| LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan | |

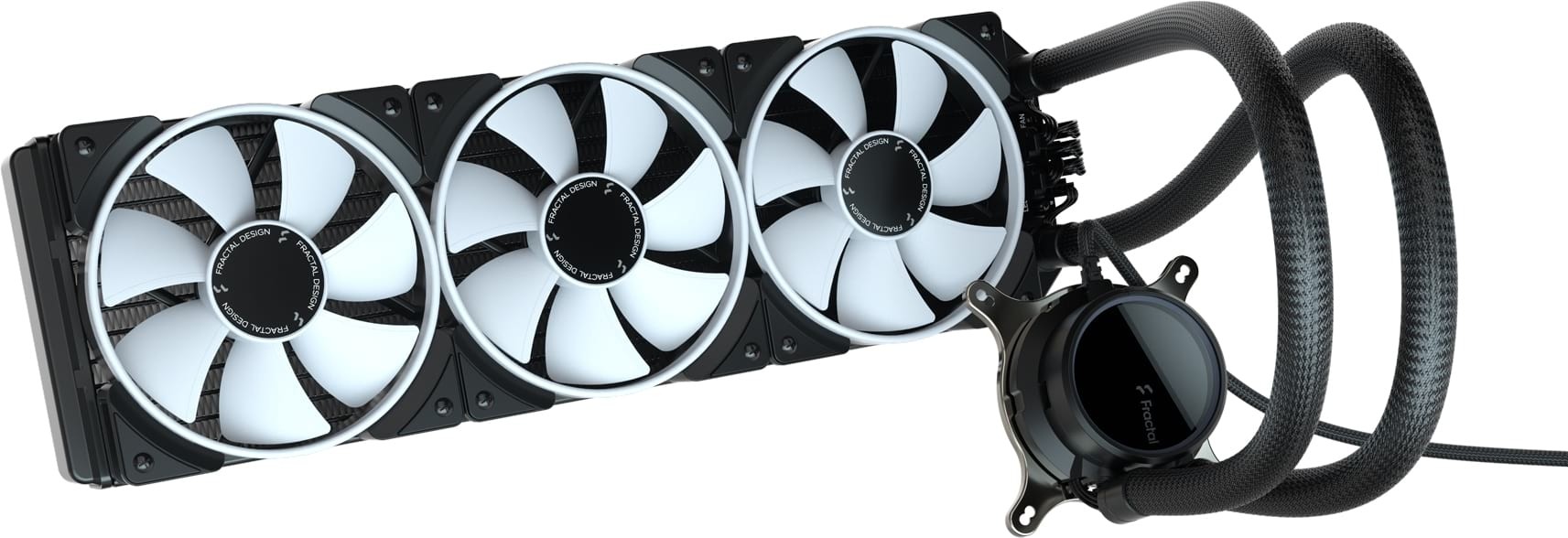

| Package Contents | Celsius+ S36 Unit |
| 3x 120 mm fans | |
| User Manual | |
| Mounting hardware for all listed sockets | |
| Fan and radiator mounting screws | |
| Warranty Information | |
| Warranty | 5 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Fractal Celsius Prisma CPU Cooler - Morné, 5 May 2021
What an easy installation. Cooling pipes and radiator is easy to orientate in your case with no problems (provided you have space for it).
The mounting to the CPU is very easy and firm once screwed down.
Cooling is excellent, it keeps my AMD X5900 a cool 30DegC at idle and it hardly goes beyond 55DegC when loaded with gaming or video editing tasks.
If you want a very costs effective CPU Liquid cooler, with enough RGB to satisfy (works with all the major brands), then this is for you! - Cool af - Gary, 2 February 2021
This thing is good, real good. Temps on my 3700X are way down, a whole 14 C down while playing Cold War. Sits around 61 - 62 C. And I have the fan curve set to I cannot hear it under load. I ran Cinebench R23 for 10min and I could not hear the fans, incredible, just what I wanted. And temps stayed around 64ish
I'm a fan of RGB and was thinking the LED's on these fans would still look good even though there are only 6 per fan, but they are too subtle for me. And I can see each individual LED as apposed to a smooth ring which I was hoping for. Luckily I have my original 3 front Phanteks RGB fans so I'm likely to swap those out soon. The pump looks beautiful though, so so clean.
If you're not bothered about hectic RGB fans then this product is amazing. 100% recommend. - Effective and stylish - Justin, 18 January 2021
This unit is capable of keeping my CPU under 70 C at 100% load, so it definitely passes the performance test. Fans are relatively quiet (noise doesn't bother me) and the RGB is fully customizable with a pleasant glow to give those extra frames per second.
Cable management was a breeze too with the ability to daisy chain the fans and tuck the cables behind the screws. The hub on the radiator itself adds to this as it simplifies the installation and means you only need one header for powering your pump and fans, and a single header for the RGB which is great on more budget motherboards.
Great product, would recommend - Minimalistic, tidy, potent - Matthew, 18 November 2020
I'm running this on a 5900X, idle average under 40, gaming average 65. Front mounted in a high airflow case. At speeds above 50%, these fans are LOUD. I had to tune the fan curve in BIOS to stop them spinning up and down like mad every time the CPU spiked above 65 degree. With the right settings it works beautifully. I personally think this is the best looking AIO by far. It has no garish/childish design on the pump, fan LEDs are softer and diffused light. No stupid software, use whatever your motherboard offers.
- S36 - Todd, 17 November 2020
Initial thoughts of this liquid cooler are outstanding. Runs super silent. RGB lighting on fans aren't over the top, nice and subtle.
Braided tubing is great, only downside is the length, there's a bit of excess tubing which you cant necessarily tuck away, however this does not affect performance negatively. In fact, the contrary as it provides more space for coolant.
Extremely happy with my purchase
