| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Intel B460 Motherboards |
| Model | B460M D3H |
| CPU | Support for 10th Generation Intel Core/Pentium/Celeron Processors in the LGA1200 Package |
| L3 Cache Varies With CPU | |
| Chipset | Intel B460 Chipset |
| Memory | Intel Core i9/i7 Processors: |
| Support for DDR4 2933/2666/2400/2133 MHz Memory Modules | |
| Intel Core i5/i3/Pentium/Celeron Processors: | |
| Support for DDR4 2666/2400/2133 MHz Memory Modules | |
| 4 x DDR4 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) of System Memory | |
| Dual Channel Memory Architecture | |
| Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate in Non-ECC Mode) | |
| Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics Support: |
| 1 x D-Sub Port, Supporting a Maximum Resolution of 1920x1200@60 Hz | |
| 1 x DVI-D Port, Supporting a Maximum Resolution of 1920x1200@60 Hz | |
| * The DVI-D Port Does Not Support D-Sub Connection by Adapter. | |
| 1 x DisplayPort, Supporting a Maximum Resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 1.2 Version, HDCP 2.2, and HDR. | |
| 1 x HDMI Port, Supporting a Maximum Resolution of 4096x2160@30 Hz | |
| * Support for HDMI 1.4 Version and HDCP 2.2. | |
| Support for Up to 3 Displays at the Same Time | |
| Maximum Shared Memory of 512 MB | |
| Audio | Realtek ALC1200 Codec |
| High Definition Audio | |
| 2/4/5.1/7.1-Channel | |
| LAN | Intel GbE LAN Chip (1 Gbit/100 Mbit) |
| Expansion Slots | 1 x PCI Express x16 Slot, Running at x16 (PCIEX16) |
| * For Optimum Performance, if Only One PCI Express Graphics Card Is to Be Installed, Be Sure to Install It in the PCIEX16 Slot. | |
| 1 x PCI Express x16 Slot, Running at x4 (PCIEX4) | |
| 1 x PCI Express x1 Slot | |
| (All of the PCI Express Slots Conform to PCI Express 3.0 Standard.) | |
| 1 x PCI Slot | |
| Supports Up to ASPM L1.2 Power Management Protocols. | |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire & 2-Way AMD CrossFire Technologies |
| Storage Interface | 1 x M.2 Connector (Socket 3, M Key, Type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD Support) (M2M_SB) |
| 1 x M.2 Connector (Socket 3, M Key, Type 2242/2260/2280 SATA and PCIe x4/x2 SSD Support) (M2P_SB) | |
| 6 x SATA 6Gb/S Connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * Refer to “1–7 Internal Connectors,” for the Installation Notices for the M.2 and SATA Connectors. | |
| Intel Optane Memory Ready | |
| * System Acceleration With Intel Optane Memory Enabled on the M2M_SB Connector Only. | |
| M.2 Connectors Support Up to ASPM L1.2 PCIe Power Management Protocols. | |
| USB | Chipset: |
| 5 x USB 3.2 Gen 1 Ports (3x Ports on the Back Panel, 2x Ports Through the Internal USB Header) | |
| 1 x USB 3.2 Gen 1 Type-C Port, Back Panel | |
| 2 x USB 2.0/1.1 Ports on the Back Panel | |
| Chipset USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 Ports, Internal USB Headers | |
| Internal I/O Connectors | 1 x 24-Pin ATX Main Power Connector |
| 1 x 8-Pin ATX 12V Power Connector | |
| 1 x CPU Fan Header | |
| 3 x System Fan Headers | |
| 2 x M.2 Socket 3 Connectors | |
| 6 x SATA 6Gb/S Connectors | |
| 1 x Front Panel Header | |
| 1 x Front Panel Audio Header | |
| 1 x USB 3.2 Gen 1 Header | |
| 2 x USB 2.0/1.1 Headers | |
| 2 x Thunderbolt Add-In Card Connectors | |
| 1 x Trusted Platform Module Header (for the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) | |
| 1 x Serial Port Header | |
| 1 x Parallel Port Header | |
| 1 x Clear CMOS Jumper | |

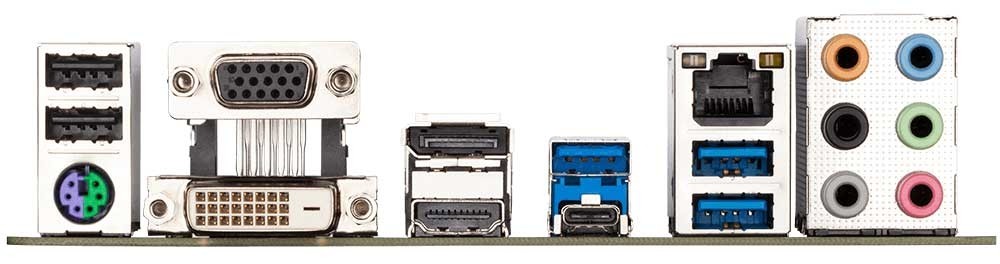

| Back Panel Connectors | 1 x PS/2 Keyboard/Mouse Port |
| 1 x D-Sub Port | |
| 1 x DVI-D Port | |
| 1 x DisplayPort | |
| 1 x HDMI Port | |
| 1 x USB Type-C Port, With USB 3.2 Gen 1 Support | |
| 3 x USB 3.2 Gen 1 Ports | |
| 2 x USB 2.0/1.1 Ports | |
| 1 x RJ-45 Port | |
| 6 x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Overheating Warning | |
| Fan Fail Warning | |
| Fan Speed Control | |
| BIOS | 2 x 128 Mbit Flash |
| Use of Licensed AMI UEFI BIOS | |
| Support for DualBIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX |
| 24.4cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Gigabytes Of Motherboard - Morné, 16 October 2020
This board is a cheap and durable entry for a gaming PC, or any PC really. It has all the basic needed for running most Intel CPU's and any GPU you wish to install. BIOS is feature rich enough to get the best out of the MB.
- Excellent - Vicente, 21 August 2020
Its an amazing motherboard. Just note that it is smaller being a MICRO-atx and if you have a large graphics card, it will block all the PCIe ports except the last PCIe 3 4x slot. It also has thunderbolt headers so you can plug in the TITAN Ridge PCIe card from Gigabyte to get thunderbolt 3 ports.
