| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Socket LGA1200 |

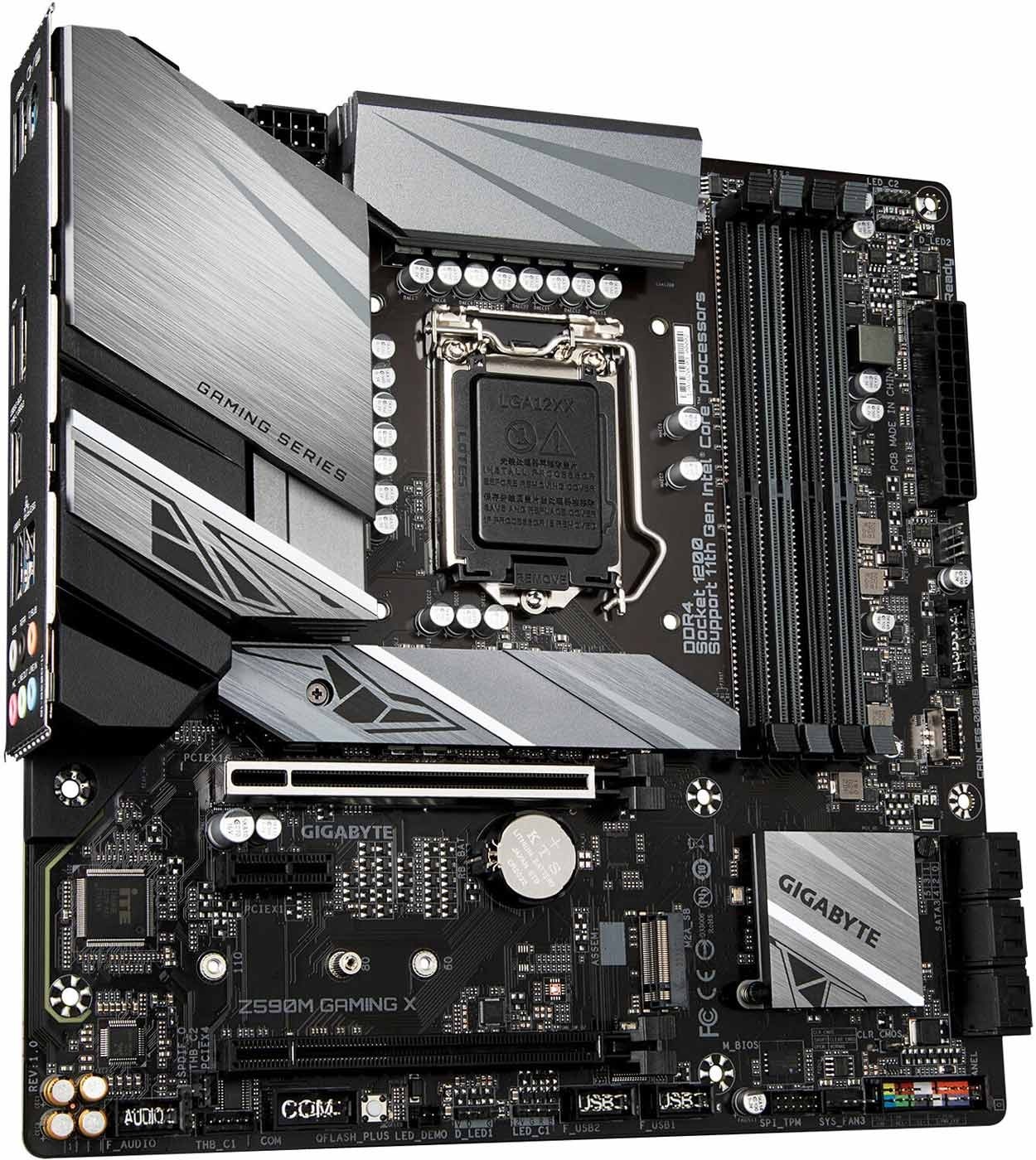

| Model | Z590M GAMING X |
| Specifications | |
| CPU | 11th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors |
| 10th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors / Intel Core i3 Processors/ Intel Pentium Processors / Intel Celeron Processors | |
| Chipset | Intel Z590 Express Chipset |
| Memory | 11th Generation Intel Core i9/i7/i5 Processors: |
| Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz | |
| 10th Generation Intel Core i9/i7 Processors: | |
| Support for DDR4 2933/2666/2400/2133 MHz Memory Modules | |
| 10th Generation Intel Core i5/i3 /Pentium/Celeron Processors: | |
| Support for DDR4 2666/2400/2133 MHz Memory Modules | |
| 4 x DDR4 DIMM Sockets Supporting up to 128 GB (32 GB Single DIMM Capacity) of System Memory | |
| Dual Channel Memory Architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate in non-ECC Mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics Support: |
| 1 x DisplayPort, Supporting a Maximum Resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 1.2 Version, HDCP 2.3. | |
| 1 x HDMI Port, Supporting a Maximum Resolution of 4096x2160@30 Hz | |
| * Support for HDMI 1.4 Version and HDCP 2.3. | |
| Audio | Realtek Audio codec |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit) |
| Expansion Slots | 1 x PCI Express x16 Slot, Running at x16 (PCIEX16) |
| * For Optimum Performance, if Only one PCI Express Graphics Card is to be Installed, be Sure to Install it in the PCIEX16 Slot. | |
| (The PCIEX16 Slot Conforms to PCI Express 4.0 Standard.)* | |
| * Supported by 11th Generation Processors Only. | |
| 1 x PCI Express x16 slot, running at x4 (PCIEX4) | |
| 2 x PCI Express x1 slots | |
| (The PCIEX4 and PCI Express x1 slots Conform to PCI Express 3.0 Standard) | |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies |
| Storage Interface | CPU: |
| 1 x M.2 Connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD Support) (M2P_CPU)* | |
| *Supported by 11th Generation Processors Only. | |
| Chipset: | |
| 1 x M.2 Connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD Support) (M2A_SB) | |
| 6 x SATA 6Gb/s Connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * Refer to "1-7 Internal Connectors," for the Installation Notices for the M.2 & SATA Connectors. | |
| Intel Optane Memory Ready | |
| USB | Chipset: |
| 1 x USB Type-C Port on the Back Panel, with USB 3.2 Gen 2 Support | |
| 1 x USB Type-C port with USB 3.2 Gen 1 Support, Available Through the Internal USB Header | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the Back Panel | |
| 6 x USB 3.2 Gen 1 Ports (4 Ports on the Back Panel, 2 ports Available Through the Internal USB Header) | |
| 2 x USB 2.0/1.1 ports Available Through the Internal USB Header | |
| Chipset USB 2.0 Hub: | |
| 2 x USB 2.0/1.1 Ports Available Through the Internal USB Header | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 4-pin ATX 12V power connector | |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 6 x SATA 6Gb/s connectors | |
| 2 x M.2 Socket 3 connector | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| 1 x Q-Flash Plus button | |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1 x RJ-45 port | |
| 6 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor |
| 24.4cm x 24.4cm | |
