| SPECIFICATIONS | |
| Brand | MOLEX |
| Series | Network Cables |
| Model | PowerCat CAA-00418 |
| Length | Sold per metre |
| Colour | Blue |

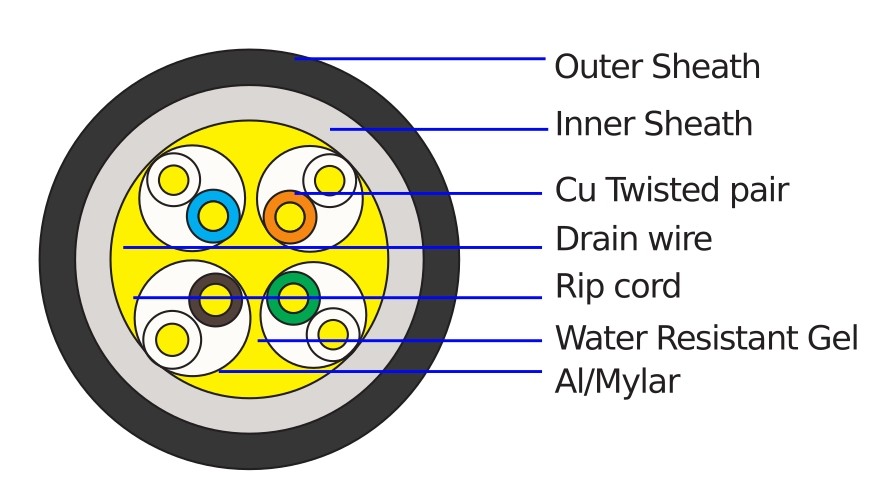

| Mechanical Characteristics | |
| Conductor Size | Solid 0.560 Solid Bare Copper |
| Primary Insulation | HDPE |
| Sheath Type | Inner: LDPE |
| Outer: Nylon | |
| Nominal O.D. | Overall: 8.3 ± 1.0 mm |
| Inner: 0.55 ± 0.05 mm | |
| Outer: 0.35 ± 0.1 mm | |
| Operating Temperature | -20° to 75°C |
| NVP | 65% |
| Maximum Pulling Force | 50N/square mm |
| Commercial Standards | Cat 6A ANSI/TIA/EIA-568-C.2, |
| ISO/IEC 11801, UL444 | |
| Reaction to Fire | EN 50575:2014 A:2016 |
| EU Regulation 305/2011 (CPR) | |
| Features | Category 6A compliant |
| PE (UV) and nylon sheathed for greater protection | |
| UV resistant | |
| Suitable for outdoor/underground installations | |
| Water resistant gel | |
| CPR Reaction to Fire Classification Fca | |
| Warranty Information | |
| Warranty | 1 Year Warranty |
