| SPECIFICATIONS | |
| Brand | MSI |
| Series | Gaming X Series |
| Model | GeForce RTX 4090 24G Gaming X Slim (RTX-4090-GAMING-X-SLIM-24G) |
| Chipset | |
| GPU | GeForce RTX 4090 |
| Chipset Manufacturer | NVIDIA |
| Interface | PCIe 4.0 x16 |
| Base Clock | 2235 MHz |
| Boost Clock | Up to 2595 MHz |
| MSI Center Extreme Performance Boost Clock | Up to 2610 MHz |
| CUDA Cores | 16384 Cores |
| GPU Architecture | NVIDIA Ada Lovelace |
| Memory | |
| Effective Memory Clock | 21Gbps |
| Memory Size | 24GB |
| Memory Interface | 384-bit |
| Memory Type | GDDR6X |
| 3D API | |
| DirectX | Microsoft DirectX 12.1 Ultimate |
| OpenGL | OpenGL 4.6 |
| Vulkan | Vulkan RT API |
| Connectivity | |
| Ports | 2x HDMI 2.1a |
| 2x DisplayPort 1.4a | |
| HDCP Support | Yes, 2.3 |
| Multi-Monitor Support | Up to 4 simultaneous |
| Maximum Digital Resolution | 7680 x 4320 |
| VR Ready | Yes |
| General | |
| SLI Support | N/A |
| Features | MSI TRI FROZR 3 Cooling System with TORX 5.0 Fans |
| Ventilated Supporting Metal Back Plate | |
| MSI Afterburner Overclocking Utility | |
| MSI Center Utility | |
| NVIDIA Optical Flow Accelerator Technology | |
| 3rd Gen Ray Tracing Cores | |
| 4th Gen Tensor Cores | |
| PCI Express Gen 4 | |
| Real-Time Ray Tracing Technology | |
| NVIDIA GeForce Game Ready & Studio Drivers | |
| NVIDIA G-Sync Premium | |
| NVIDIA Reflex | |
| NVIDIA Broadcast | |
| NVIDIA AV1 Encoder | |
| NVIDIA Omniverse 3D Design | |
| NVIDIA Canvas | |
| NVIDIA GPU Boost | |
| NVIDIA Encoder, 8th Generation | |
| NVIDIA Decoder, 5th Generation | |
| Power Requirements | |
| Power Consumption | Up to 450W |
| Recommended Power Supply | 1000W |
| Power Connector | 1x 16-Pin 12VHPWR Connector (or supplied 4x 8-pin adapter) |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 3-Slot |
| Dimensions | 322 x 136 x 62mm (L x W x H) |
| RGB | Yes, supports MSI Mystic Light ARGB Sync |

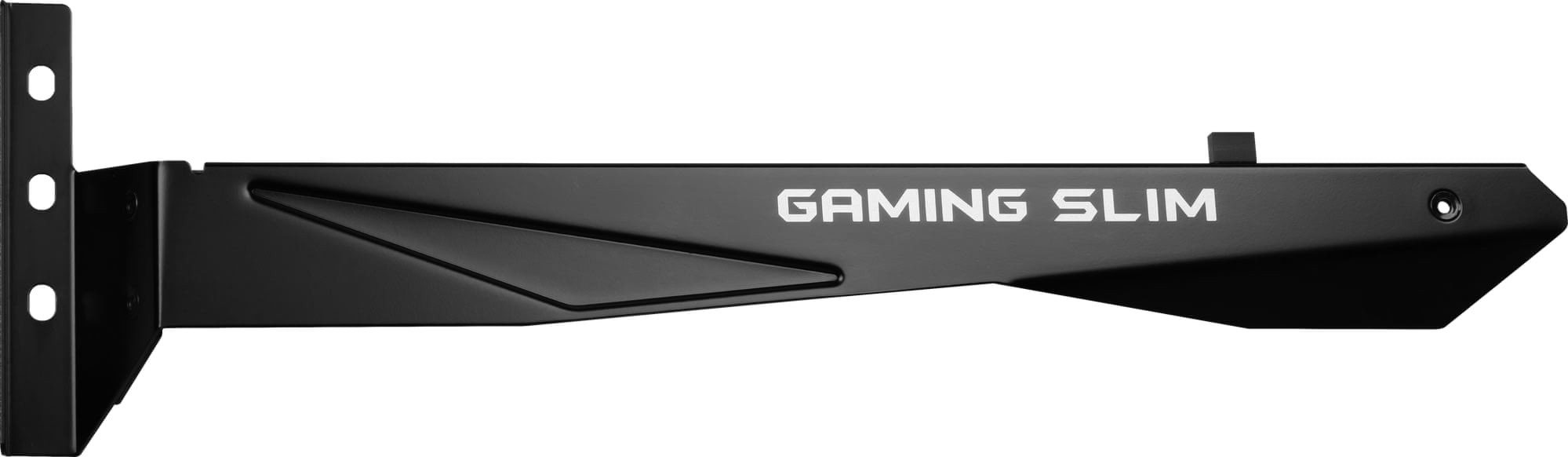

| Boxed Accessories | 1x MSI PCIe Support Bracket |
| 1x 12VHPWR Adapter Cable | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
