| SPECIFICATIONS | |
| Brand | MSI |
| Model | X370 Gaming Pro Carbon |
| Series | Gaming Pro Carbon |
| CPU | Supports AMD RYZEN series Processors and 7th Gen A-series / Athlon processors for Socket AM4 | *This function will be supported depend on the CPU |
| Chipset | AMD X370 Chipset |
| Main Memory | 4x DDR4 memory slots, support up to 64GB | - Supports DDR4 1866 / 2133 / 2400 / 2667(OC) / 2933(OC) / 3200(OC)+ Mhz* | Dual channel memory architecture | Supports non-ECC UDIMM memory | Supports ECC UDIMM memory (non-ECC mode) | *7th Gen A-series / Athlon processors support up to 2400 MHz only. Please refer www.msi.com for more information on compatible memory. |
| Slots | 2x PCIe 3.0 x16 slots (PCIE_2, PCIE_4) | - RYZEN series processors support x16/x0, x8/x8 mode | - 7th Gen A-series / Athlon processors support x8/x0 mode | 1x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)* | 3x PCIe 2.0 x1 slots | *PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot |
| Onboard Graphics | 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz* | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz* | *Only support when using a 7th Gen A-series / Athlon processor | *Maximum shared memory of 2048 MB | Multi-GPU |
| RYZEN series processors | Supports 3-Way AMD CrossFire Technology | Supports 2-Way NVIDIA SLI Technology |
| 7th Gen A-series / Athlon processors | Supports 2-Way AMD CrossFire Technology |

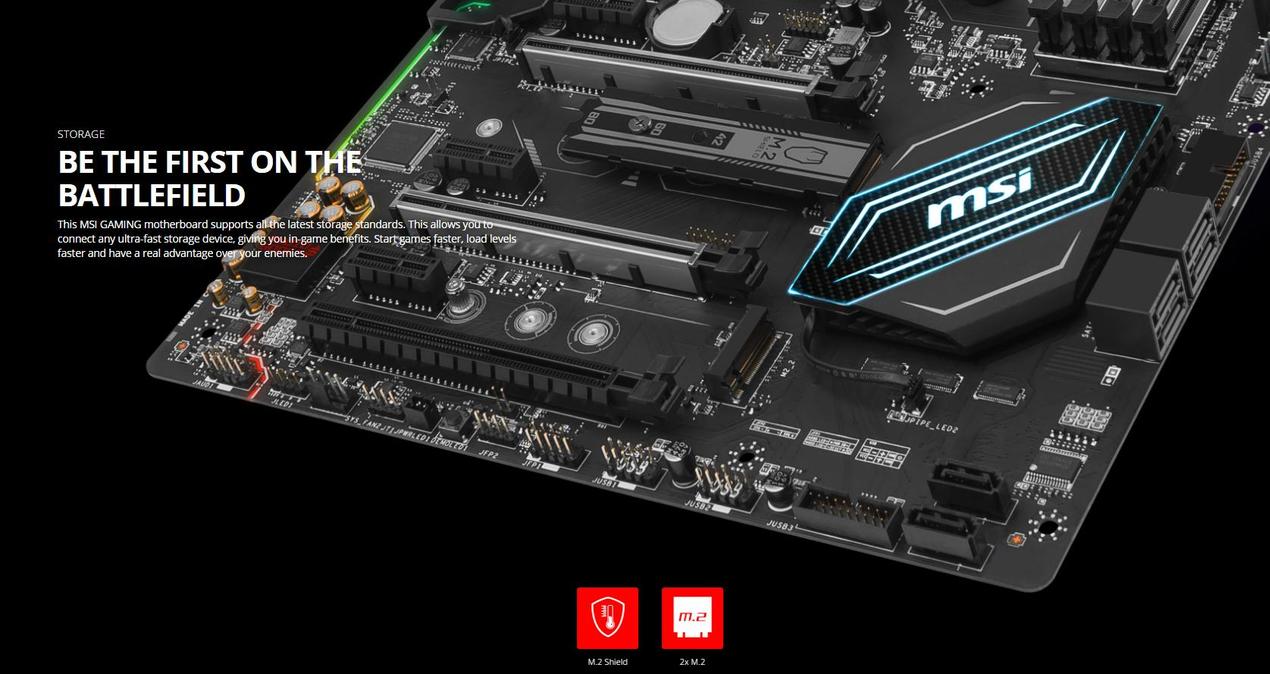

| Storage | 6x SATA 6Gb/s ports* | 2x M.2 slots (Key M) | - M2_1 slot supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (7th Gen A-series / Athlon processors) and SATA 6Gb/s 2242 / 2260 /2280 / 22110 storage devices' | - M2_2 slot supports PCIe 2.0 x4 and SATA 6Gb/s 2242 / 2260 / 2280 storage devices** | *M.2 and SATA ports combination details please refer user manual | **PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot. SATA3 port will be unavailable when installing the SATA SSD card in M2_2 slot | RAID |
| AMD X370 Chipset | Supports RAID 0, RAID1 and RAID 10 for SATA storage devices | USB |
| ASMedia ASM2142 Chipset | 1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel | 1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel |
| AMD X370 Chipset | 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors | 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
| AMD CPU | 4x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel | Audio |

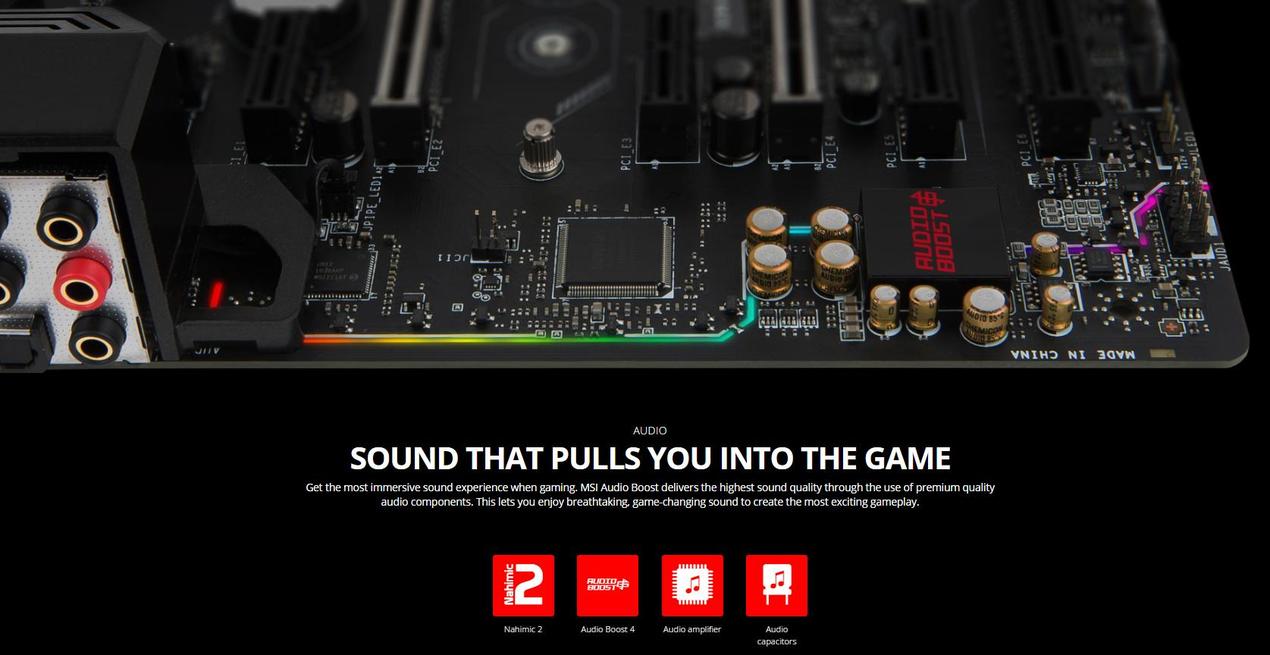

| Realtek ALC1220 Codec | 7.1-Channel High Definition Audio | Supports S/PDIF output |
| LAN | 1x Intel I211AT Gigabit LAN controller |
| Internal I/O Connectors | 1x 24-pin ATX main power connector | 1x 8-pin ATX 12V power connector | 6x SATA 6Gb/s connectors | 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) | 2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) | 1x 4-pin CPU fan connector | 1x 4-pin water-pump-fan connector | 4x 4-pin system fan connectors | 1x TPM module connector | 1x Front panel audio connector | 2x System panel connectors | 1x Chassis Intrusion connector | 1x Clear CMOS jumper | 1x 4-pin RGB LED strip connector |
| Back Panel I/O Ports | 1x PS/2 keyboard / mouse combo port | 2x USB 2.0 Type-A ports | 1x DVI-D port | 1x HDMI port | 4x USB 3.1 Gen1 Type-A ports | 1x LAN (RJ45) port | 1x USB 3.1 Gen2 Type-A port | 1x USB 3.1 Gen2 Type-C port | 5x OFC audio jacks | 1x Optical S/PDIF OUT connector |
| Dimension | 30.5 x 24.4 cm | ATX Form Factor |
| Mounting | 9x mounting holes | Warranty Information |
| Warranty | 3 Year Carry-In Warranty |
