| SPECIFICATIONS | |
| Brand | MSI |
| Series | X570 |

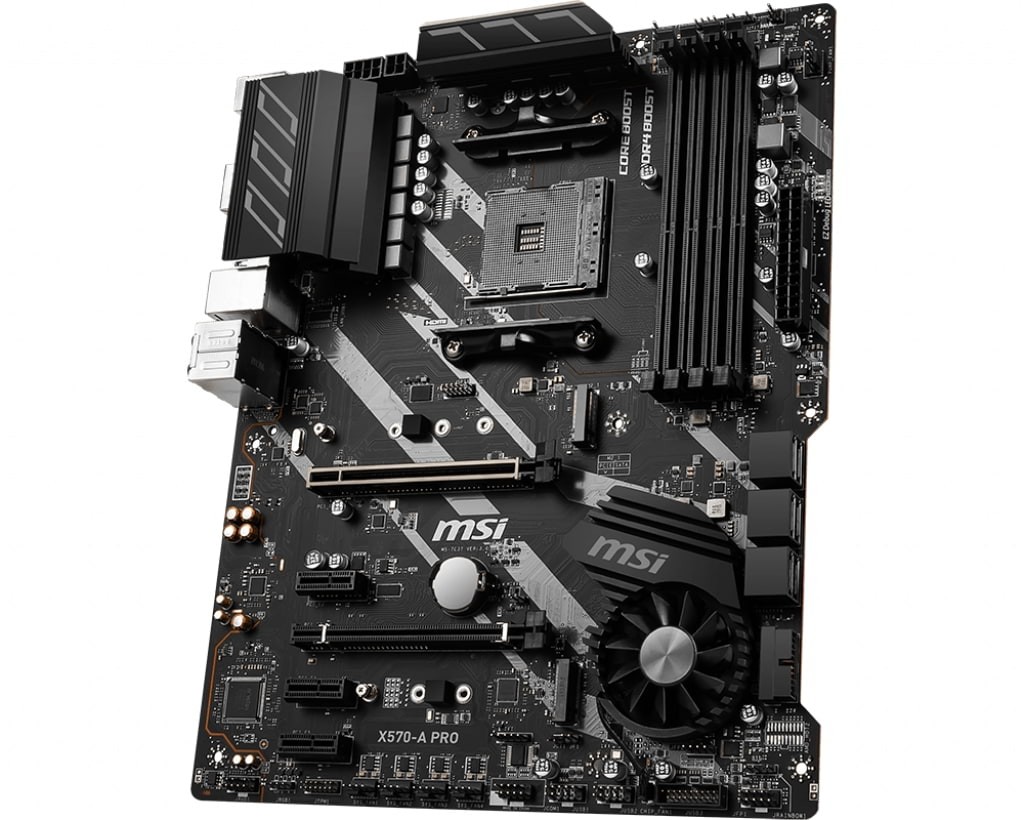

| Model | X570-A PRO |
| Processor | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X570 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB (depending on the processor)1 |
| 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE | |
| 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| ports ECC UDIMM memory (non-ECC mode) | |
| Supports un-buffered memory | |
| Please refer to Compatibility for more information on compatible memory | |
| Slots | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) |
| 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode | |
| 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode | |
| Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode | |
| 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) | |
| 3x PCIe 3.0 x1 slots1 | |
| PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.The speeds may vary for different devices | |
| Onboard Graphics | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1 |
| Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics ProcessorsMaximum shared memory of 2048 MB | |
| Multi-GPU | Supports 2-Way AMD CrossFire Technology |
| Storage | 6x SATA 6Gb/s ports |
| 2x M.2 slot (Key M) | |
| M2_1 slot (from AMD Processor) | |
| Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) | |
| Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) | |
| Supports 2242/ 2260/ 2280/ 22110 storage devices | |
| M2_2 slot (from AMD X570 Chipset) | |
| Supports PCIe 3.0 x4 and SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| RAID | AMD X570 Chipset |
| Supports RAID 0, RAID 1 and RAID 10 | |
| USB | AMD X570 Chipset |
| 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) | |
| 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) | |
| AMD Processor | |
| 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel | |
| 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel | |
| Audio | Realtek ALC1220 Codec |
| 7.1-Channel High Definition Audio | |
| Supports Optical S/PDIF output | |
| LAN | 1x Realtek 8111H Gigabit LAN Controller |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 6x SATA 6Gb/s connectors | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump connector | |
| 4x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x TPM module connector | |
| 1x Serial port connector | |
| 1x Clear CMOS jumper | |
| 1x Chassis Intrusion connector | |
| 2x 4-pin RGB LED connectors | |
| 2x 3-pin RAINBOW LED connectors | |
| 4x EZ Debug LEDs | |
| Dimensions | 12 in. x 9.6 in. (30.4 cm x 24.3 cm) |
| ATX Form Factor | |
| Mounting | 9x mounting holes |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
Wootware R7 Premium Pre-Built: AMD Ryzen 7 5000 Series 8-Core 32GB (2x16GB) DDR4-3600MHz NVIDIA GeForce RTX 3000 Series 1TB NVMe M.2 SSD Windows 11 Pro Desktop PC
From: R37,151.00
To: R48,150.00
Out of stock
- Good, Albeit Troubled, Board - James, 23 April 2021
It's a good board as far as MSI products go. It does have a few shortcomings.
CONS: The main nuisance is the laggy post. I've never had a board take so long to post. The proximity of the CPU socket to large heatsink at the top makes installing non-screw-on (clip on) CPU coolers a nuisance. The onboard firmware is a very messy GUI. Honestly, it's hard to find where some settings are. Luckily it has a search function. The GUI isn't 100% keyboard-only useable either, even though it should be 100% accessible from the keyboard alone and the mouse pointer should just be a bonus. It's easier to use in "Expert Mode", too, ironically. Also, you can only do a CMOS reset with the onboard pins (or by removing the battery, lol), which is difficult because of their location, which is just below the primary video card. If you had 2 cards, you wouldn't be able to reach it. For an X570 board, I would've liked a button (maybe next to the BIOS FLash button). A note to Linux users: the onboard sound gives you quite a bit of hassle and creating a monitor or loopback device for the analogue out seems impossible. You may also have to manually set the soundcard indexes, especially when using programs that normally try to access physical hardware instead of doing it through a sound server (looking at you, audacity).
PROS: Cheap. When I bought it, it was only 3k, but that was 2019 when the world was still normal. It's still well priced by today's mental standards. It hasn't given me any problems but the aforementioned. It's also future-proof with (back then) promised BIOS updates to accommodate future Ryzen CPUs. Being a full ATX board, no matter the somewhat-less-than-perfect layout (which seems to be today's norm anyway), it gives you more breathing space for add-ons and obviously better ventilation. Finally, has very comprehensive selection of settings for OC'ing CPU and RAM if you're trying to squeeze out some extra FPS -- though I'd expect that from an X570 board. - This board should not be purchased - Salomon, 1 January 2021
I have had this board for a few months and run a 3700x on the board and have not had much issues so I was happy. This was until I realised I cannot upgrade with this board and would need to buy a new one as the MSI board when running heavy loads on flagship 3900/AM4 CPUs will have the VRM overheating to over 100 degrees. With the board over heating the core speed gets reduced to limit damage to board. Which makes using this board for the latest AM4 chips and 3900x CPUs unusable. This data was released in February before I got this board and yet the item is still sold as a high end board. I understand it's my problem for missing this data but there should be a warning on the product description that you cannot use more than 65watt CPUs and if you do you should pick another brand.
https://youtu.be/UZWUOldsxXQ
- Perfect for my needs! - Wesley, 7 July 2020
I wanted a minimum of 2 M.2 slots and that's what this has. I wanted a decent looking board that wouldn't have too much colour and drama but still looks premium enough to put a Thicc III Ultra 5700 XT on and it certainly does that too. BIOS is easy and the EZ Diagnostic LEDS actually came to good use on this board as I had one faulty stick of RAM - a DOA part. So thankfully I didn't need to do too much before I realised why the system wasn't POSTing. Great board - I wouldn't overclock a CPU on it though - in SA we have a hot climate and this board has terrible VRM heat dissipation. As always - do your homework! I think it's perfect for what I need though!
- I was screwed - Jamie, 7 May 2020
On upgrading my PCs motherboard I discovered that the OEM had used a non-modular PSU without the 4+4 CPU connector. No wonder the CPU sucked. This one is much better.
- Love it from the open to the overclock - Japie, 27 April 2020
So happy that I went for this motherboard. Overclocking, new bios update, easy assistance from MSI. Everything worked. Plain enough not be complicated and its future proof for my AMD graphics that's coming together with M.2 SSD... This is part of my 5 year build
