| SPECIFICATIONS | |
| Brand | MSI |
| Model | Z170I GAMING PRO AC | Product Specifications |
| CPU | Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151 | * Please refer to CPU Support for compatible CPU; the above description is for reference only. |
| Chipset | Intel Z170 Chipset |
| Main Memory | 2 x DDR4 memory slots, support up to 32GB | Supports DDR4 4200(OC)/4000(OC)/3866(OC)/3600(OC)/3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz | Dual channel memory architecture | Supports non-ECC, un-buffered memory | Supports Intel Extreme Memory Profile (XMP) | * Hyper DIMM support is subject to the physical characteristics of individual CPUs |

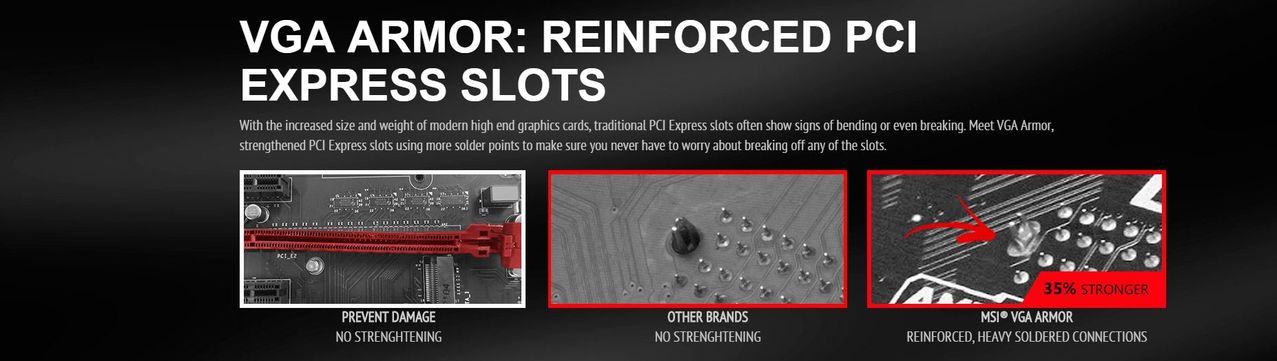

| Slots | 1 x PCIe 3.0 x16 slots |
| Onboard Graphics | 1 x HDMI port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz | 1 x DisplayPort, support a maximum resolution of 4096x2304@60Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz |
| Storage | Intel Z170 Chipset | 4 x SATA 6Gb/s ports | 1 x M.2 slot (Key M, on the back side of the motherboard) | Supports PCIe 3.0 x 4 and SATA 6Gb/s standards, 4.2cm/ 6cm length M.2 SSD cards | 1 x SATAe port (PCIe 3.0 x 2) | Supports RAID 0, RAID 1, RAID 5, RAID 10 | Supports Intel Smart Response Technology for Intel Core processors | * SATAe port is backward compatible with SATA. |
| USB | Intel Z170 Chipset | - 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) | - 5 x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 2 ports available through the internal USB connectors) |
| Audio | Realtek ALC1150 Codec | - 7.1-Channel High Definition Audio | - Supports S/PDIF output |
| LAN | 1 x Intel I219-V Gigabit LAN controller |
| WLAN / Bluetooth | Wi-Fi Bluetooth expansion module with Intel Dual Band Wireless-AC 8260 chip with M.2(Key E, on the front side of motherboard) | Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867Mbps speed. | Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0 BLE, 4.2 |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector | 1 x 8-pin ATX 12V power connector | 4 x SATA 6Gb/s connectors | 1 x SATAe connector | 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) | 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) | 1 x 4-pin CPU fan connectors | 1 x 4-pin system fan connectors | 1 x Front panel audio connector | 2 x Front panel connectors | 1 x TPM module connector | 1 x Chassis Intrusion connector | 1 x Clear CMOS jumper |

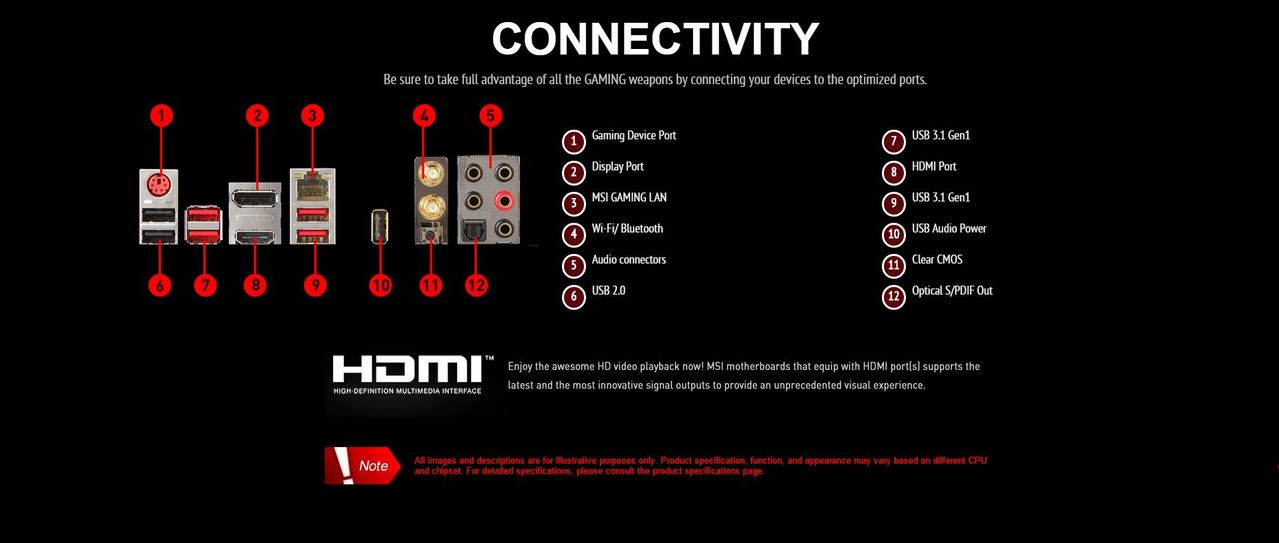

| Back Panel I/O Ports | 1 x PS/2 keyboard/ mouse port | 3 x USB 2.0 ports | 1 x DisplayPort | 1 x HDMI port | 1 x LAN (RJ45) port | 4 x USB 3.1 Gen1 ports | 1 x Clear CMOS button | 2 x antenna connectors | 1 x Optical S/PDIF OUT connector | 5 x OFC audio jacks |
| Dimension | 17 cm x 17 cm | Mini-ITX Form Factor |
| Mounting | 4 mounting holes | Warranty Information |
| Warranty | 3 Year Warranty |
