| SPECIFICATIONS | |
| Brand | MSI |
| Series | Intel Z270 Motherboards |

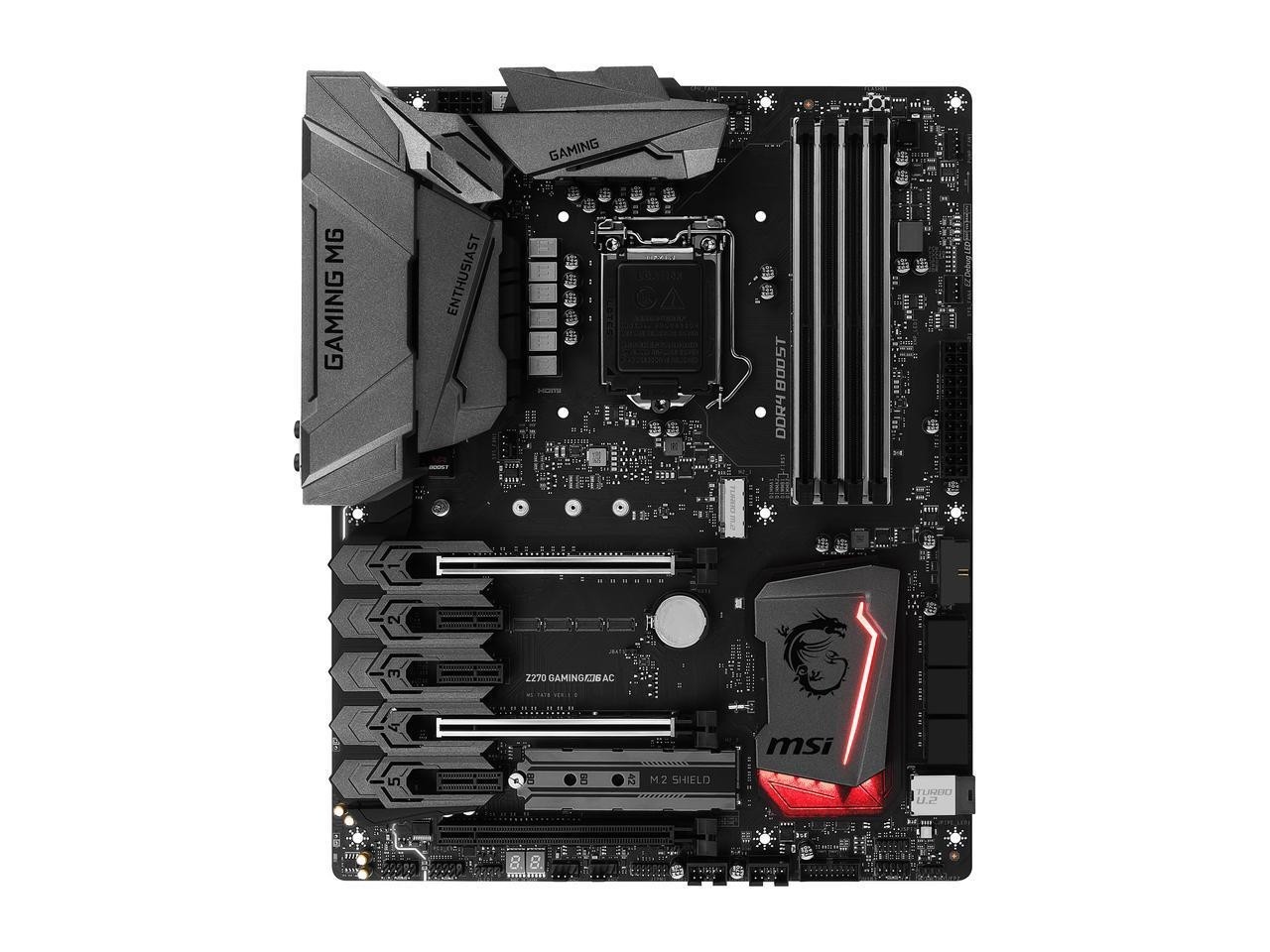

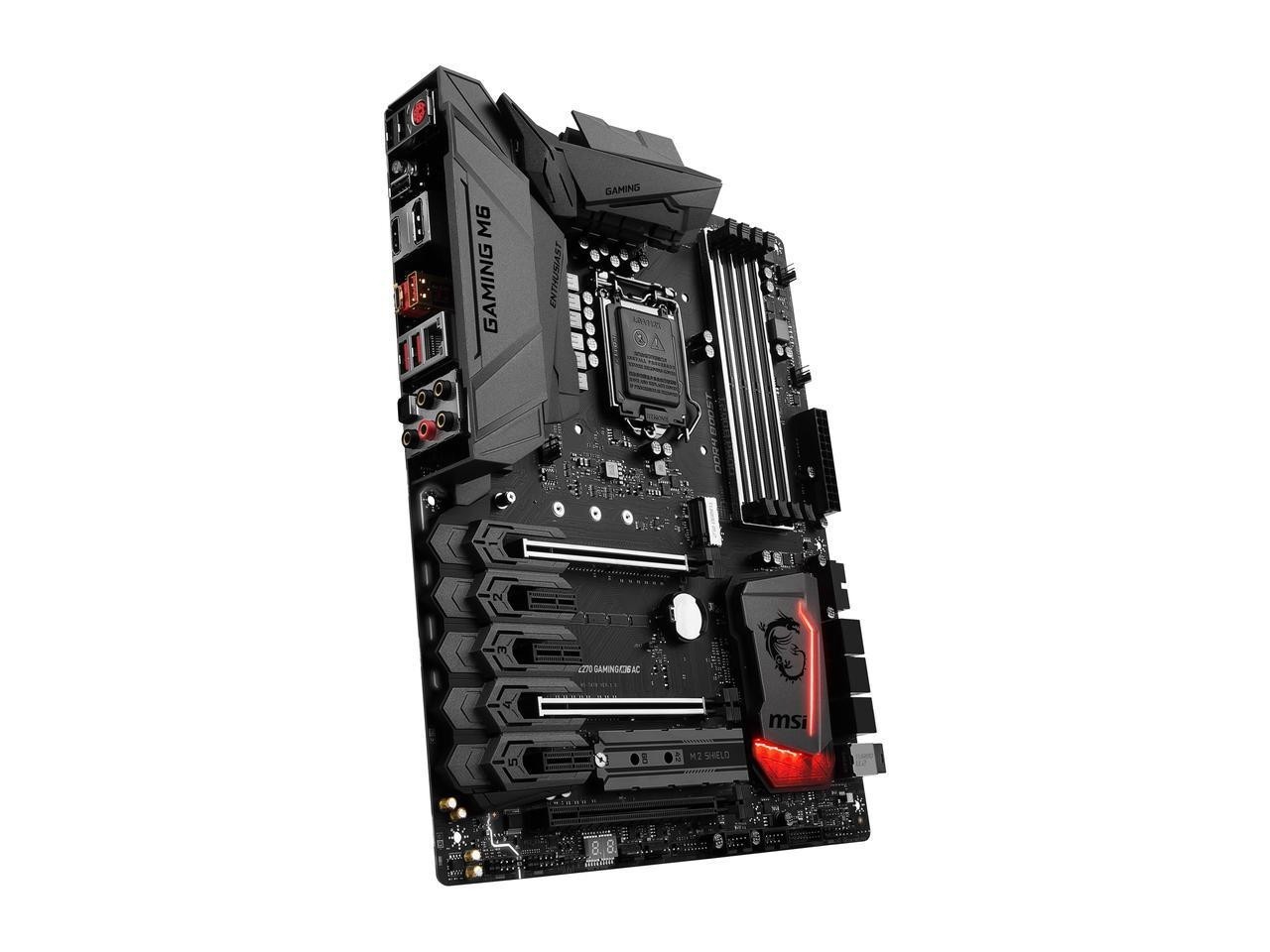

| Model | Z270 GAMING M6 AC |
| CPU | Supports 7th/6th Gen Intel Core i3/i5/i7 Processors, and Intel Pentium and Celeron Processors for Socket LGA1151 |
| Chipset | Intel Z270 Chipset |
| Main Memory | 4x DDR4 Memory Slots, Support Up to 64GB |
| 7th Gen Processors Support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz* | |
| 6th Gen Processors Support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz* | |
| Dual Channel Memory Architecture | |
| Supports Non-ECC, Un-Buffered Memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Slots | 3x PCIe 3.0 x16 Slots (Support x16/x0/x4, x8/x8/x4 Modes) |
| 3 x PCIe 3.0 x1 Slots | |
| On-Board Graphics | 1x HDMI Port, Supports a Maximum Resolution of 4096x2160@30Hz (7th CPU), 4096x2160@24Hz (6th CPU), 2560x1600@60Hz |
| 1x DisplayPort, Supports a Maximum Resolution of 4096X2304@24Hz, 3840X2160@60Hz, 1920X1200@60Hz | |
| Multi-GPU | Supports 3-Way AMD CrossFire Technology |
| Supports 2-Way NVIDIA SLI Technology | |
| Storage | Intel Z270 Chipset: |
| 6x SATA 6Gb/s Ports *1 | |
| 2x M.2 Slots (Key M) | |
| Support Up to PCIe 3.0 x4 and SATA 6Gb/s | |
| M2_1 Slot Supports 2242/ 2260 /2280/ 22110 Storage Devices | |
| M2_2 Slot Supports 2242/ 2260 /2280 Storage Devices | |
| Intel Optane Memory Ready for all M.2 slots *3 | |
| 1x U.2 Port *2 | |
| Supports Up to PCIe 3.0 x4 NVMe U.2 SSD | |
| Supports Intel Smart Response Technology for Intel Core Processors | |
| RAID | Intel Z270 Chipset: |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Storage Devices | |
| Supports RAID 0 and RAID 1 for M.2 Storage Devices *4 | |
| USB | ASMedia ASM2142 Chipset: |
| 1x USB 3.1 Gen 2 (SuperSpeed USB 10Gbps) Type-C Port on the Back Panel | |
| 1x USB 3.1 Gen 2 (SuperSpeed USB 10Gbps) Type-A Port on the Back Panel | |
| Intel Z270 Chipset: | |
| 6x USB 3.1 Gen 1 (SuperSpeed USB) Ports (2 Type-A Ports on the Back Panel, 4 Ports Available Through the Internal USB Connectors) | |
| 7x USB 2.0 (High-Speed USB) Ports (3 Type-A Ports on the Back Panel, 4 Ports Available Through the Internal USB Connectors) | |
| Audio | Realtek ALC1220 Codec |
| 7.1-Channel High Definition Audio | |
| LAN | 1x KillerTM E2500 Gigabit LAN Controller |
| Wi-Fi & Bluetooth | Intel Dual Band Wireless-AC 8265 |
| Dual Band 2x2 802.11ac | |
| 80MHz Channels | |
| 867 Mbps Max Speed | |
| MU-MIMO Rx | |
| Support for ACS Enabling Concurrent Multi-Channel Usage | |
| Bluetooth 4.2 (BR/EDR, BLE) | |
| Support Windows 7, 8.1/ 10 | |
| Internal I/O Connectors | 1x 24-pin ATX Main Power Connector |
| 1x 8-pin ATX 12V Power Connector | |
| 6x SATA 6Gb/s Connectors | |
| 1x U.2 Port | |
| 2 x M.2 Slots | |
| 2x USB 3.1 Gen 1 Connectors (Supports Additional 4 USB 3.1 Gen 1 Ports) | |
| 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) | |
| 1x 4-pin CPU Fan Connector | |
| 1x 4-pin Water Pump Fan Connector | |
| 4x 4-pin System Fan Connectors | |
| 1x Front Panel Audio Connector | |
| 2x Front Panel Connectors | |
| 1x Serial Port Connector | |
| 1x RGB LED Connector | |
| 1x TPM Module Connector | |
| 1x Chassis Intrusion Connector | |
| 1x Clear CMOS Jumper | |
| 1x BIOS FLASHBACK Button | |
| 1x 2-Digit Debug Code LED | |

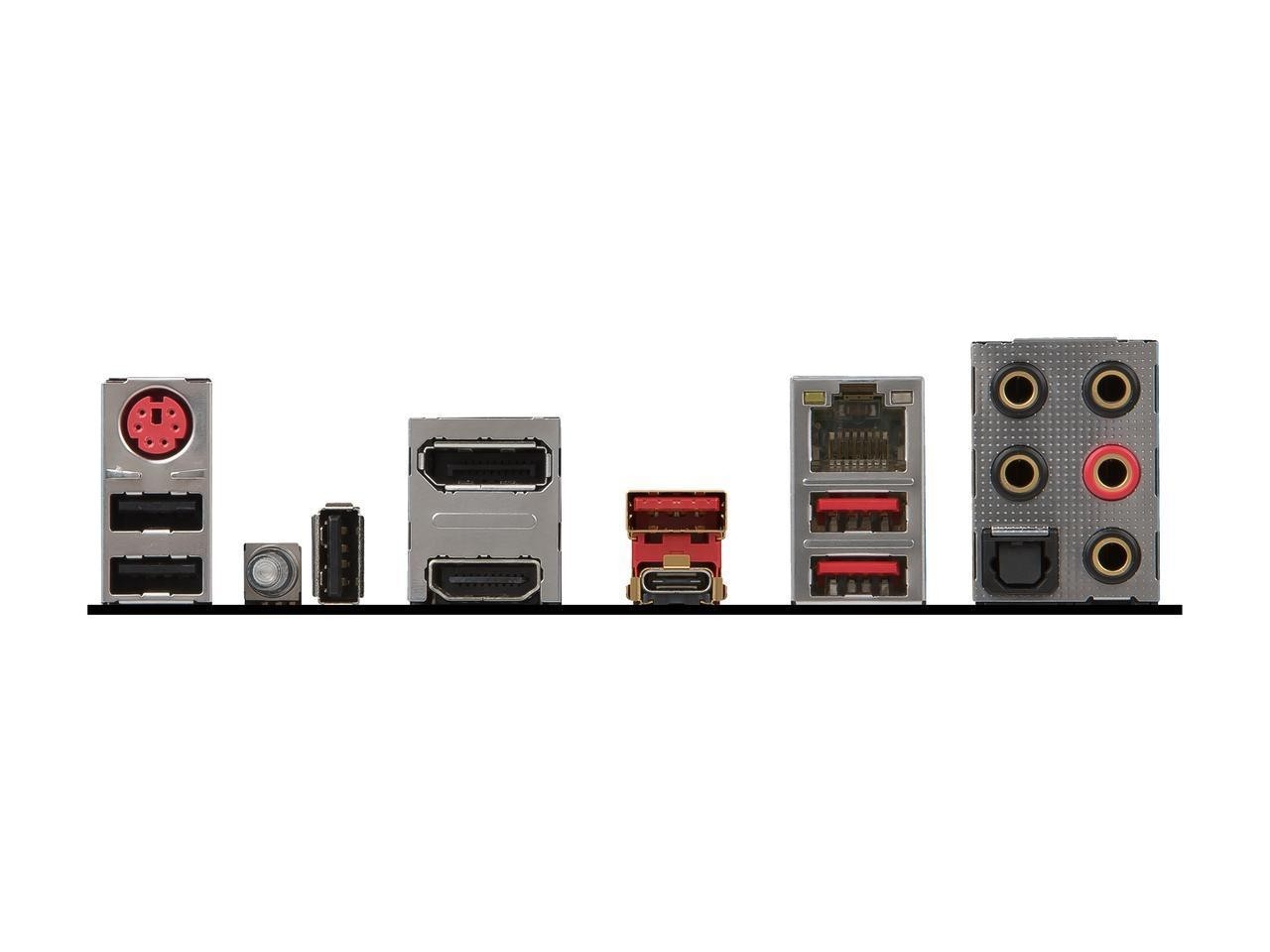

| Back Panel I/O Ports | 1x PS/2 Mouse & Keyboard Combo Port |
| 3x USB 2.0 Ports | |
| *(1 x BIOS FLASHBACK Port) | |
| 1x Clear CMOS Button | |
| 1x DisplayPort | |
| 1x HDMI Port | |
| 1x USB 3.1 Gen 2 Type-A Port | |
| 1x USB 3.1 Gen 2 Type-C Port | |
| 1x LAN (RJ45) Port | |
| 2x USB 3.1 Gen 1 Type-A Ports | |
| 1x Optical S/PDIF OUT Connector | |
| 5x OFC Audio Jacks | |
| Form Factor | 30.5 x 24.4 cm |
| ATX Form Factor | |
| Mounting | 9x Mounting Holes |
| Notes | *1 The SATA1/ SATA5 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1/ M.2_2 slot. The SATA5 and SATA 6 ports will be unavailable when M.2 PCIe SSD module has been installed in the M.2_2 slot. Please refer to page 35 for M.2 & SATA combination table. |
| *2 The U.2 port will be unavailable when an PCIe expansion card has been installed in PCI_E6 slot. | |
| *3 Intel Optane Technology is only supported when using 7th Gen processors. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |
| *4 M.2 PCIe RAID volume can be created with M.2 GENIE. Please refer to page 51 for details about M.2 GENIE. | |
