Seasonic SS-520GM M12II 520W 80 Plus Bronze Certified Fully Modular Desktop Power Supply

Introduction

Sea Sonic Electronics launches the M12II “Bronze” Series, the new and upgraded version of the M12II “Bronze” Series in response to the growing demand and anticipation for more energy-efficient products. The M12II Bronze Series inherits the same output and wattage options as well as the superb quality and ultimate silence from the M12II Series. The M12II, available in 500 watts, offers buyers with a mid range power output solution with cable management, to meet their exact system needs; cable management is now made easier than ever.

The M12II Bronze Series

achieves the 80 PLUS® Bronze standard of at least 82%, 85% and 82% efficiency under 20%, 50% and 100% operating loads respectively. Combined with Active Power Factor correction (Active PFC), the M12II Bronze reduces energy waste, boosts power efficiency and more importantly, helps the users to save energy and reduce electricity bill.

SPECIFICATIONS
Brand	Seasonic
Model	SS-520GM
Series	M12II
Type	ATX12V V2.3 / EPS 12V V2.91
Maximum Power	620W
Fans	120mm ball bearing cooling fan
PFC	Active

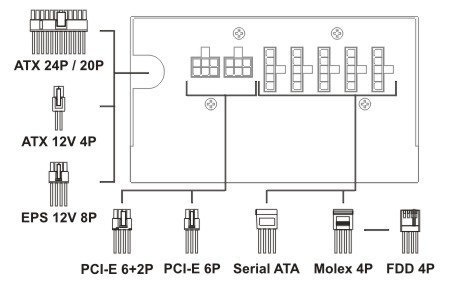

Main Connector	24Pin
+12V Rails	2
PCI-Express Connector	1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector	9
SLI	SLI Ready
Haswell Support	No
Modular	Fully Modular
Efficiency	>87%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Output	+3.3V@24A, +5V@24A, +12V1@24A, +12V2@24A, -12V@0.8A, +5VSB@2.5A
Dimensions	3.39" x 6.30" x 5.91"
Warranty Information
Warranty	5 Year Warranty

Manufacturer's Site	Visit the manufacturer's website
Product Link	Visit the manufacturer's page for this product
