| SPECIFICATIONS | |
| Brand | SilverStone |
| Series | SFX |
| Model | SST-ST45SF |
| Maximum DC Output | 450W |
| Power density | 567W per liter |
| Color | Black (Lead-Free Paint) |
| Combined 3.3V & 5V | 110W (V3.0) |
| 120W (V2.0) | |
| Combined 12V | 450W / 37.5A (V3.0) |
| 432W / 36A (V2.0) | |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC. (PF>0.9 at Full Load) |
| Efficiency | 82%~85% (20% to 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0 ~ 40°C (V3.0) |
| 10°C ~ 50°C (V2.0) | |
| Protection | Over current protection |
| Over voltage protection | |
| Short circuit protection | |
| Over Power Protection (V3.0 only) | |
| Under Voltage Protection (V3.0 only) | |
| Connectors | 1x 24 / 20-Pin motherboard connector(300mm) |
| 1x 8 / 4-Pin EPS / ATX 12V connector(400mm) | |
| 1x 8/6-Pin PCIE connector(400mm) | |
| 1x 6-Pin PCIE connector(400mm / 150mm) | |
| 3x SATA connector(300mm / 200mm / 100mm) | |
| 2x 4-Pin Peripheral connector (300mm / 200mm) | |
| 1x 4-Pin Floppy connector(300mm / 200mm / 200mm) | |
| Cooling System | Single 92mm silent fan (V3.0) |
| Single 80mm silent fan (V2.0) | |
| Form factor | SFX |
| Noise Level | 18dBA minimum |
| Dimension | 125 mm (W) x 63.5 mm(H) x 100 mm(D) |
| 4.92" (W) x 2.5" (H) x 3.94" (D) | |
| Weight | 1.1 kg (V3.0) |
| 1 kg (V2.0) | |

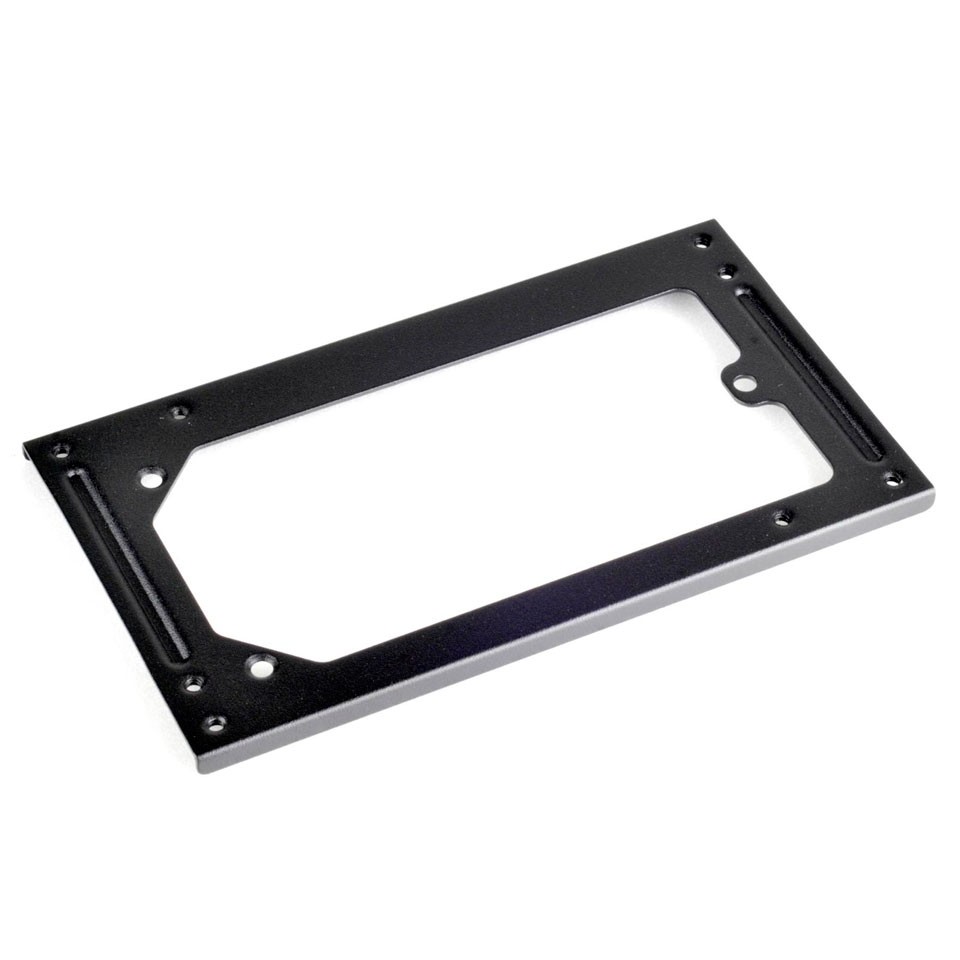

| Other | Includes SFX to ATX bracket for use in ATX case |
| GPU Support list | |
| Compatible with ATX12V v2.4 | |
| Warranty Information | |
| Warranty | Manufacturer's Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
