| SPECIFICATIONS | |
| Brand | Thermaltake |
| Series | Core V71 |
| Model | CA-1B6-00F1WN-00 | Details |
| Type | ATX Full Tower |
| Color | Black |
| Case Material | SPCC |
| With Power Supply | No |
| Power Supply | Compatible with Standard PS2 PSU (not included) |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | Micro ATX / ATX / Extended ATX |
| Side Panel Window | Transparent Window |
| Removable Filter | Yes | Expansion |
| External 5.25" Drive Bays | 2 |

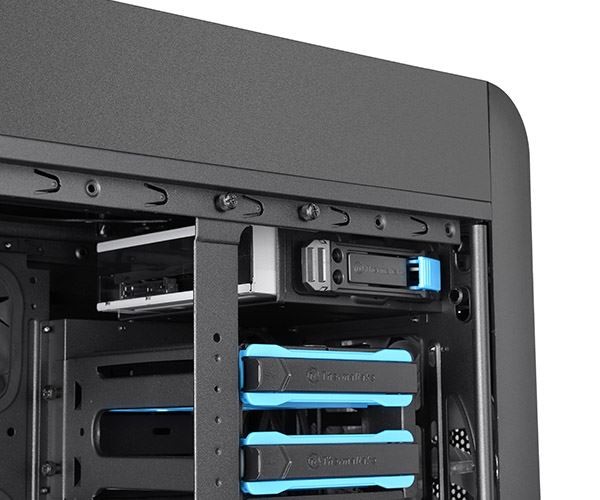

| Internal 3.5" Drive Bays | 8 x 2.5" / 3.5" |
| Expansion Slots | 8 | Front Panel Ports |
| Front Ports | 2 x USB 3.0 / 2 x USB 2.0 / Audio |
| Cooling System | 140mm Fans |
| Rear (exhaust) | 140 x 140 x 25mm Turbo fan (1000 rpm, 16 dBA) x 1 | 200mm Fans |
| Front (intake) | 200 x 200 x 30mm Blue LED fan (600 ~ 800 rpm, 13 ~ 15 dBA) x 2 |
| Top (exhaust) | 200 x 200 x 30mm Blue LED fan (600 ~ 800 rpm, 13 ~ 15 dBA) x 1 |
| Side Air duct | No | Dimensions & Weight |
| Dimensions (H x W x D) | 583 x 230 x 560 mm |
| Weight | 13.2 | Features |
| PSU | Standard PS2 PSU (optional) | Fan Support |
| Front | 1 x 120mm or 2 x 120mm or 3 x 120mm | 1 x 140mm or 2 x 140mm | 1 x 200mm or 2 x 200mm |
| Top | 1 x 120mm or 2 x 120mm or 3 x 120mm | 1 x 140mm or 2 x 140mm | 1 x 200mm or 2 x 200mm |
| Rear | 1 x 120mm or 1 x 140mm |
| Bottom | 1 x 120mm or 2 x 120mm | Radiator Support |
| Front | 1 x 120mm or 1 x 240mm or 1 x 360mm | 1 x 140mm or 1 x 280mm or 1 x 420mm |
| Top | 1 x 120mm or 1 x 240mm or 1 x 360mm | 1 x 140mm or 1 x 280mm or 1 x 420mm |
| Rear | 1 x 120mm |
| Bottom | 1 x 120mm or 1 x 240mm | Other |
| LCS Upgradable | Supports 1/2", 3/8", 1/4" water tube |
| CPU cooler height limitation | 185mm |
| VGA length limitation | 310mm (with HDD rack) | 400mm (without HDD rack) | 400mm (without HDD rack) | Warranty Information |
| Warranty | 12 Month Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
