| SPECIFICATIONS | |
| Brand | TP-LINK |
| Model | Archer C5 | Hardware Features |
| Interface | 4 10/100/1000Mbps LAN Ports | 1 10/100/1000Mbps WAN Port | 2 USB 2.0 Ports |
| Button | WPS/Reset Button | Wireless On/Off Switch | Power On/Off Button |
| Dimensions (W X D X H) | 243x160.6x32.5mm |
| External Power Supply | 12VDC / 2.5A |

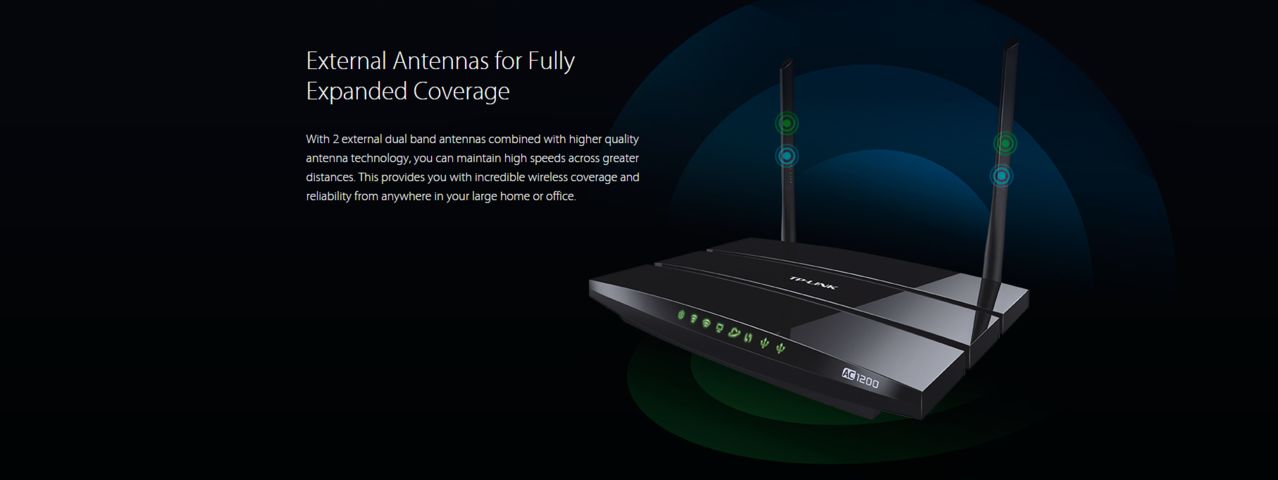

| Antenna Type | 2 dual band detachable antennas (RP-SMA) | Wireless Features |

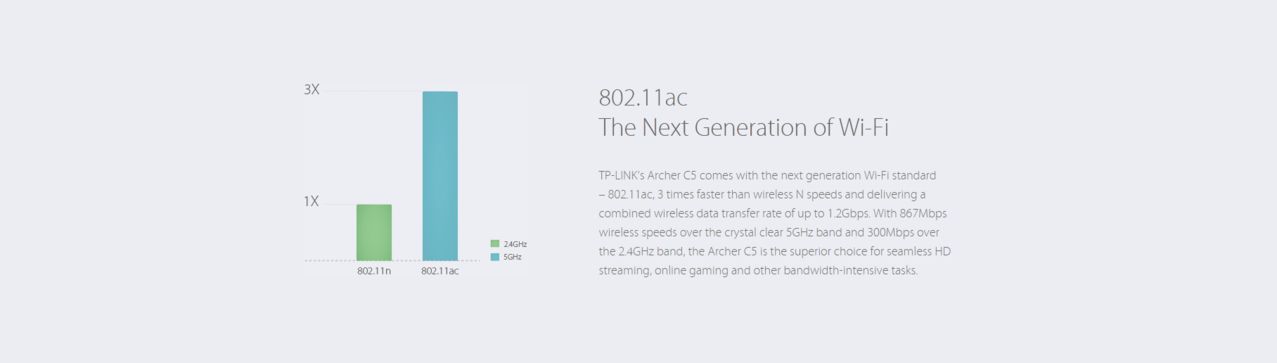

| Wireless Standards | IEEE 802.11ac/n/a 5GHz | IEEE 802.11n/g/b 2.4GHz |
| Frequency | 5GHz and 2.4GHz |

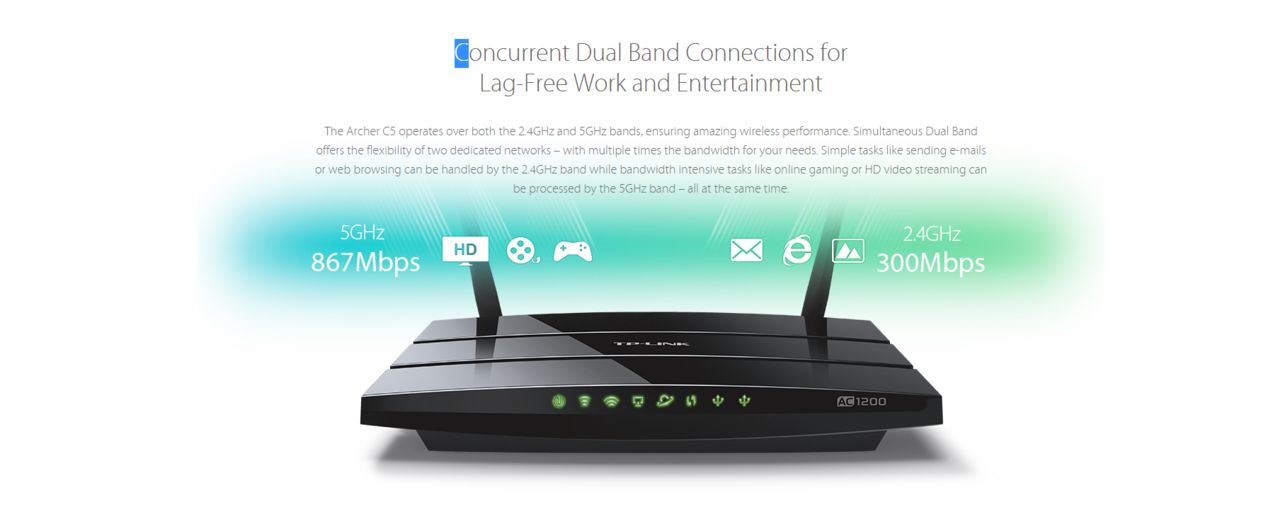

| Signal Rate | 5GHz: Up to 867Mbps | 2.4GHz: Up to 300Mbps |
| Reception Sensitivity | 5GHz: | 11a 54Mbps: -74dBm | 11ac HT20: -67dBm | 11ac HT40: -63dBm | 11ac HT80: -59dBm | 11n HT20: -71dBm | 11n HT40: -69dBm | 2.4GHz: | 11g 54M: -76dBm | 11n HT20: -73dBm | 11n HT40: -71dBm |
| Transmit Power | CE: | <20dBm(2.4GHz) | <23dBm(5GHz) | FCC: | <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | Software Features |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access) |
| Management | Access Control | Local Management | Remote Management |
| DHCP | Server, Client, DHCP Client List, | Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access | Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall | IP Address Filter/MAC Address Filter/Domain Filter | IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Guest Network | 2.4GHz guest network × 1 | 5GHz guest network × 1 | Others |
| Certification | CE, FCC, RoHS |
| Package Contents | AC1200 Wireless Dual Band Gigabit Router Archer C5 | 2 detachable antennas | Power supply unit | Resource CD | Ethernet Cable | Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10 | MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0°C~40°C | Storage Temperature: -40°C~70°C | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing | Warranty Information |
| Warranty | 12 Month Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
