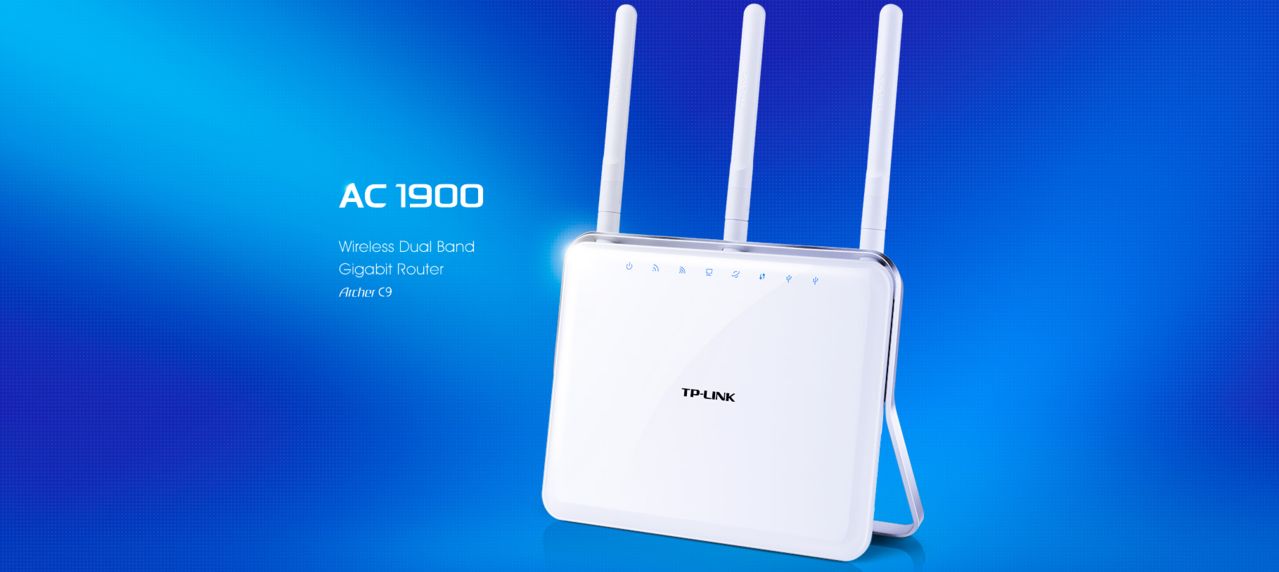

TP-LINK Archer C9 AC1900 Wireless Dual Band Gigabit Router

More Views

Please note:
Images are for illustrative purposes only.

TP-LINK Archer C9 AC1900 Wireless Dual Band Gigabit Router

Product ID: 18122

- Supports 802.11ac standard-the next generation of Wi-Fi
- Simultaneous 2.4GHz 600Mbps and 5GHz 1300Mbps connections for 1.9Gbps of total available bandwidth
- 3 dual band detachable antennas provide maximum Omni-directional wireless coverage and reliability
- Beamforming technology delivers highly efficient wireless connection
- 1GHz dual-core processor ensures no interruption when simultaneously processing multiple wireless or wired tasks
- USB 3.0 + USB 2.0 Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server

66 Products

- Please note: This product is a network router only - and not an ADSL modem/modem router. Should you require ADSL connectivity it will need to be used in conjunction with an ADSL modem.

End of Life

Add to Wishlist

Features
Product Description
Additional Information
Reviews (0)
Questions (0)

Features

Product Description

SPECIFICATIONS
Brand	TP-LINK
Model	Archer C9
Hardware Features

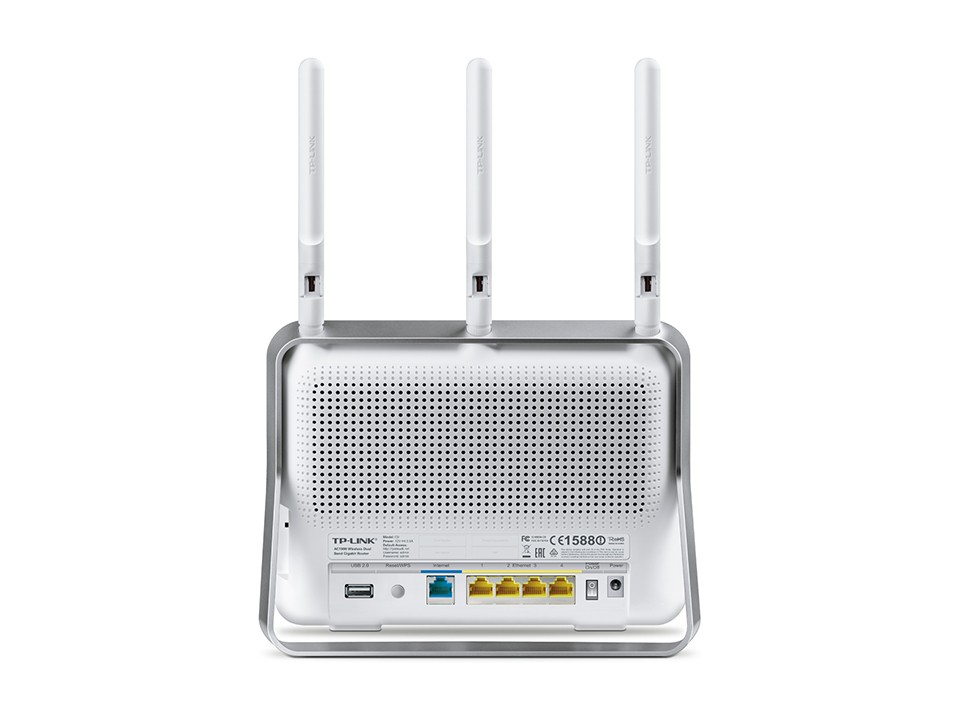

Interface	4 10/100/1000Mbps LAN Ports,
	1 10/100/1000Mbps WAN Port
	1 USB 3.0 Port + 1 USB 2.0 Port
Button	WPS/Reset Button,
	Wireless On/Off Button,
	Power On/off Button
Dimensions (W X D X H)	221 X 86 X 168.5mm
Antenna	3 dual band detachable antennas
External Power Supply	12V/3.3A
Wireless Features
Wireless Standards	IEEE 802.11ac/n/a 5GHz
Wireless Standards	IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz: Up to 1300Mbps
Signal Rate	2.4GHz: Up to 600Mbps
Reception Sensitivity	5GHz:
	11a 6Mbps: -94dBm
	11a 54Mbps: -76dBm
	11ac HT20: -68dBm
	11ac HT40: -64dBm
	11ac HT80: -60dBm
	2.4GHz
	11g 54M: -77dBm
	11n HT20: -73dBm
	11n HT40: -71dBm
Transmit Power	CE:
	<20dBm(2.4GHz)
	<23dBm(5GHz)
	FCC:
	<30dBm
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryption
Software Features
Quality of Service	WMM, Bandwidth Control
WAN Type	Dynamic IP/Static IP/PPPoE/
WAN Type	PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management	Access Control
	Local Management
	Remote Management
DHCP	Server, Client, DHCP Client List,
DHCP	Address Reservation
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comexe, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Control, Local Management Control, Host List, Access
Access Control	Schedule, Rule Management
Firewall Security	DoS, SPI Firewall
	IP Address Filter/MAC Address Filter/Domain Filter
	IP and MAC Address Binding
Protocols	Supports IPv4 and IPv6
USB Sharing	Support Samba(Storage)/FTP Server/Media Server/Printer Server
Guest Network	2.4GHz guest network × 1
Guest Network	5GHz guest network × 1
Others
Certification	CE, FCC, RoHS
Package Contents	AC 1900 Wireless Dual Band Gigabit Router Archer C9
	3 detachable antennas
	Power supply unit
	Resource CD
	Ethernet Cable
	Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10
System Requirements	MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0°C~40°C
	Storage Temperature: -40°C~70°C
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
Warranty Information
Warranty	12 Month Warranty

Manufacturer's Site	Visit the manufacturer's website
Product Link	Visit the manufacturer's page for this product
