| SPECIFICATIONS | |
| Brand | TP-LINK |
| Model | Archer D7 | Hardware Features |
| Interface | 1x 10/100/1000Mbps RJ45 WAN/LAN Port | 3x 10/100/1000Mbps RJ45 LAN Ports | 1x RJ11 Port | 2x USB 2.0 Ports |
| Button | 1x Power On/Off Button | 1x Wi-Fi On/Off Button | 1x WPS Button | 1x RESET Button |
| External Power Supply | 12VDC/2.5A |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3ab |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2 | ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) | ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis) | ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions (WxDxH) | 229 x 160 x 37mm |
| Antenna Type | Three detachable dual band external antennas |
| Antenna Gain | 3× 2dBi for 2.4GHz and 3x 3dBi for 5GHz | Wireless Features |

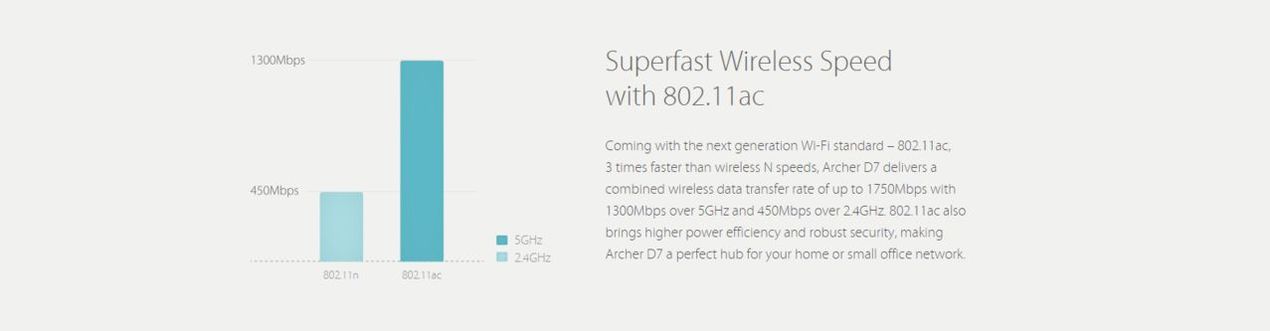

| Wireless Speeds | 5GHz: Up to 1300Mbps | 2.4GHz: Up to 450Mbps |
| Frequency | 2.4GHz and 5GHz |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz | IEEE 802.11n/g/b 2.4GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering |
| Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule | Software Features |
| Operating Modes | ADSL Modem Router, Wireless Router |
| DHCP | Server, Client, DHCP Client List | Address Reservation, DHCP relay |
| Quality of Service | ATM QoS, Traffic Control(IP QoS) |
| Port Forwarding | Virtual server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0 | PPP over ATM (RFC 2364) | PPP over Ethernet (RFC2516) | IPoA (RFC1577/2225) | MER\IPoE (RFC 1483 Routed) | Bridge (RFC1483 Bridge) | PVC – Up to 8 PVCs |
| Security | NAT Firewall, Access Control, MAC / IP / URL Filtering | Denial of Service (DoS), SYN Flooding, Ping of Death | IP and MAC Address Binding |
| IPv6 | IPv6 and IPv4 dual stack |
| Advanced Functions | Parental Control | Network Address Translation (NAT) | Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional) | DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management | Web Based Configuration(HTTP), Remote management | Command Line Interface | SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| Guest Network | 1x 2.4GHz guest network | 1x 5GHz guest network |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels | Others |
| Certification | CE, FCC, RCM, RoHS |
| Package Contents | AC1750 Wireless Dual Band Gigabit ADSL2+ Modem Router | External Splitter | RJ-11 Telephone Cable | RJ-45 Ethernet Cable | Quick Installation Guide | Resource CD | Power Adapter |
| System Requirements | Windows 8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment | Operating Temperature: 0°C~40°C | Storage Temperature: -40°C~70°C | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing | Warranty Information |
| Warranty | 1 Year Warranty |
